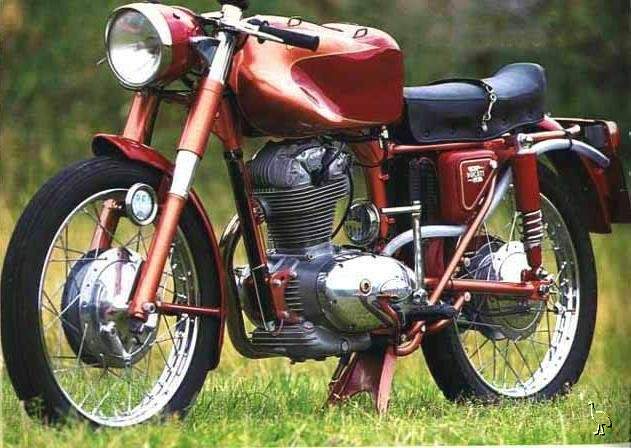

Ducati 175 Sport

Make Model	Ducati 175 Sport
Year	1957 - 61
Engine	Four stroke, single cylinder, SOHC, shaft and bevel gear driven 2 valve per cylinder
Capacity	175.4 cc / 10.7 cu in
Bore x Stroke	62 x 57.8 mm
Compression Ratio	8.5:1
Induction	1957 - 59: Dell'Orto MB22.5B carburetor 1960 - 61: Dell'Orto MB22B / UBF24BS carburetor
Spart plug	1957 - 59: Marelli CW225A 1960 - 61: Marelli CW250A
Ignition	Battery / coil, 6V 40W generator
Battery	6V, 13.5Ah
Starting	Kick
Max Power	10.4 kW / 14 hp @ 8000 rpm
Clutch	Multi wet plate, wet
Transmission	4 Speed
Primary Drive Ratio	2.522:1
Gear Ratios	1st 2.75 / 2nd 1.65 / 3rd 1.18 / 4th 0.97:1
Final Drive	Chain,
Final Drive Ratio	2.875:1
Frame	Single cradle tubular frame
Front Suspension	Hydraulic telescopic fork, Mazocchi
Rear Suspension	Swingarm, dual shocks, 3-way adjustable
Front Brakes	Drum, full aluminium, 180 mm
Rear Brakes	Drum, full aluminium, 160 mm
Front Tyre	2.50 -18 CEAT
Rear Tyre	2.75 -18 CEAT
Dimensions	Length: Sport: 1950 mm / 76.8 in / T: 1980 mm / 78.0 in Height: 960 mm / 37.8 in
Wheelbase	1320 mm / 52.0 in
Seat Height	750 mm / 29.5 in
Dry Weight	106 kg / 234 lbs
Fuel Capacity	17 L / 4.5 US gal / 3.7 Imp gal
Top Speed	130 km/h / 81 mph

The 175 was the first Ducati production machine to be offered with the single overhead cam, bevel driven engine when it was launched at the 1956 Milan show.

The engine was a direct descendent of Taglioni’s 98cc Gran Sport Marianna. It was offered as a ‘S’ Sport, ‘T’ Turismo, Americano, Formula 3 and Motocross. But the biggest seller was the Sport which was capable of 84mph and could achieve almost 100mpg.

This little racer boasted a whip-free chassis, a dry weight of just 103kg and large full aluminium brake hubs. These features combined ensured that the 175 handled and stopped better than anything else in its class. British importers, Kings of Manchester, offered a tuned version of the Sport known as the Silverstone Super. This was capable of 95mph.
