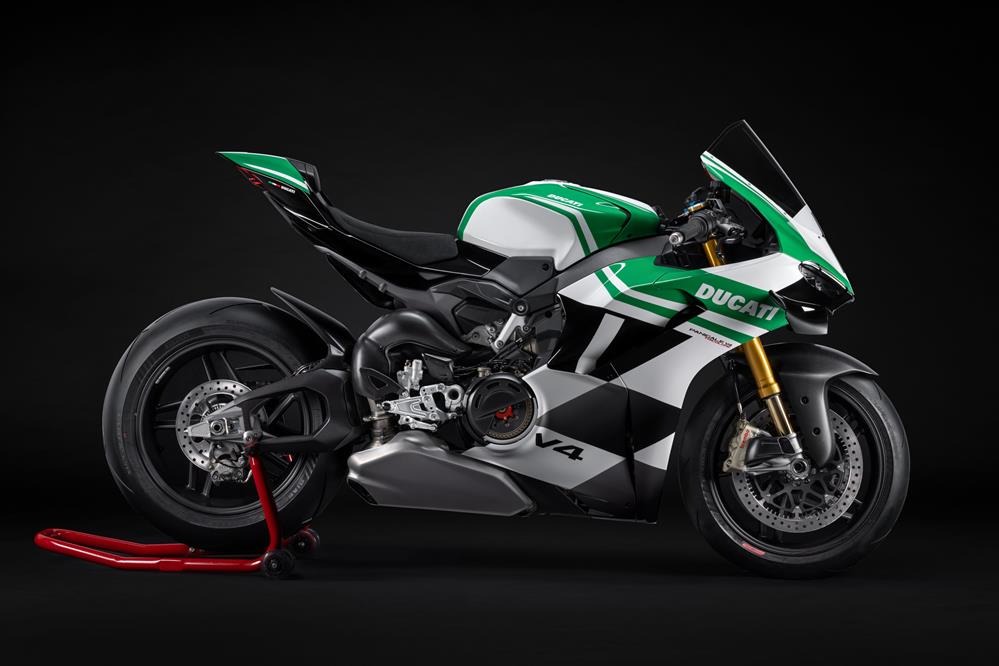

Ducati Panigale V4 Tricolore

Make Model	Ducati Panigale V4 Tricolore
Year	2025
Production	1000 Units
Engine	Four stroke, Desmosedici Stradale 90° V4, counter-rotating crankshaft, 4 Desmodromically actuated valves per cylinder
Capacity	1103 cc / 67.3 cu in
Bore x Stroke	81 x 53.5 mm
Compression Ratio	14.0:1
Cooling System	Liquid cooled
Induction	Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system
Emission	Euro 5
Exhaust	4-2-1-2 system, with 2 catalytic converters and 2 lambda probes
Starting	Electric
Max Power	158.9 kW / 216 hp @ 13500 rpm
Max Torque	120.9 Nm / 89.2 lb-ft @ 11250 rpm
Clutch	Hydraulically controlled slipper dry clutch. Self bleeding master cylinder.
Transmission	6 Speed with Ducati Quick Shift (DQS) up/down EVO
Primary Drive	Straight cut gears, Ratio 1.80:1
Final drive	Chain 520, Front sprocket 16, Rear sprocket 41
Gear Ratio	1st 36/15, 2nd 34/17, 3rd 33/19, 4th 32/21, 5th 30/22, 6th 27/22
Frame	Aluminum alloy "Front Frame" with optimized stiffnesses
Front Suspension	Öhlins NPX 25/30 (SV) S-EC 3.0 pressurized  43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 3.0 event-based mode
Front Wheel Travel	125 mm / 4.9 in
Rear Suspension	Fully adjustable Öhlins TTX36 (SV) S-EC 3.0 unit. Electronic compression and rebound damping adjustment with Öhlins Smart EC 3.0 event-based mode. Aluminium Hollow Symmetrical Swingarm
Rear Wheel travel	130 mm / 5.1 in
Front Brakes	2 x 338.5 x 6.2 mm T-drive finned discs, radially mounted Brembo Monobloc Hypure® 4-piston calipers with Race eCBS. Brembo MCS 19.21 master cylinder with remote adjuster. Self bleeding master cylinder.
Rear Brakes	Single 245 mm disc, 2-piston calliper with race ECBS
Wheels	5-Split spokes, carbon fibre
Front Wheel	5-spokes light alloy 3.50" x 17"
Rear Wheel	5-spokes light alloy 6.00” x 17”
Front Tyre	120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear Tyre	200/60 ZR17 Pirelli Diablo Supercorsa SP
Rake	24°
Trail	98 mm / 3.86 in
Wheelbase	1485 mm / 58.5 in
Seat Height	850 mm / 33.5 in
Wet Weight ( no fuel)	187kg / 412 lbs
Fuel Capacity	17 Litres / 4.49 US gal
Safety equipment	Riding Modes, Power Modes, Race eCBS, Ducati Vehicle Observer (DVO), Ducati Traction Control (DTC) DVO, Ducati Wheelie Control (DWC) DVO, Ducati Slide Control (DSC), Engine Brake Control (EBC), Ducati Brake Light (DBL), Chain guard in carbon fibre
Standard equipment	Ducati Power Launch (DPL) DVO, Ducati Quick Shift (DQS) up/down 2.0, Full LED headlights with Daytime Running Light (DRL), Ducati Electronic Suspension (DES) 3.0 with Öhlins Smart EC 3.0, Lithium-ion battery, Quick adjustment buttons, Pit Limiter, Auto-off indicators, Carbon fibre wheels, Adjustable rider foot-pegs in milled aluminium, Top triple clamp in milled aluminium, GPS module, Carbon fibre components (mudguards, swingarm protectors, exhaust heatshield, generator protector)

From a press release issued by Ducati and its website:

The Panigale V4 Tricolore celebrates the latest generation of Ducati sports bike, combining tradition and innovation in a limited edition based on the new Panigale V4 S. Produced as a series of just 1000 units, this exclusive version pays tribute to Ducati history and is packed with standout technical solutions such as carbon fibre wheels and the race-ready Brembo braking system. Each new generation of Ducati Superbike comes with its own special tribute, a central theme linking past and future that is embodied in this Tricolore, a pure expression of Italian excellence.
The Panigale V4 Tricolore is a tribute to the seventh generation of Ducati sports bike. A real collector’s model and a unique interpretation of Ducati style, it showcases the manufacturer’s heritage and the infinite passion for speed. The very first road bike to be equipped with 338.5 mm Brembo T-Drive finned discs.

The world’s first production bike to mount Brembo T-Drive finned discs
The Panigale V4 Tricolore is the first production sports bike to be equipped with Brembo T-Drive finned discs, derived from the racing discs used in WorldSBK at tracks such as Misano, Portimão and Aragon, which are demanding on the brakes. The new discs are designed for professional riders who require greater braking power and a consistently high level of performance when racing or during extended sessions on track. They were used by the Ducati riders during the 2024 edition of the Race of Champions, which ran at the Misano World Circuit Marco Simoncelli.

With increased diameter (338.5 mm) and thickness (6.2 mm), these discs have an increased surface thanks to the brake belt finning, which, when combined with a thickness greater than that of traditional discs, dissipates the heat more effectively and keeps the operating temperature lower for a consistently high level of performance, reducing brake lever travel. The increased diameter ensures more braking torque, so for the same exerted force there is greater deceleration, making for a more efficient system overall. The T layout of the pins between the braking band and bell allows for both radial and axial floating, which helps to improve braking torque transmission, contain the overall weight of the disc, and heighten the resistance to thermomechanical stresses. The new discs are paired with Hypure callipers in a titanium colour, an exclusive colourway for this braking system that makes it immediately recognisable.

In brief:
- Increased braking torque
- Greater efficiency
- Greater deceleration for the same exerted force
- Increased thermal stability
- Consistently high performance
- Reduced brake level travel
- Racing aesthetic

Tricolour livery
A tribute to the Italian flag, the livery of the Panigale V4 Tricolore flaunts an aggressive, asymmetric design that highlights the aerodynamic lines of the new generation Panigale. The chequered flag on the lower fairing further emphasises its sports vocation.

Limited, numbered edition
Produced as a limited, numbered series of just 1000 units, the Panigale V4 Tricolore proudly flaunts a tricolour livery, inspired by the Italian flag, in perfect tune with its heritage. Like all collectible Ducati models, the Panigale V4 Tricolore comes with a certificate of authenticity.

Exclusive racing equipment
The Panigale V4 Tricolore's equipment is designed for racing performance. In addition to Brembo finned T-Drive discs, it includes new carbon wheels, a dry clutch, adjustable billet aluminum footpegs and numerous carbon fiber components.

Summary of main features
- Desmosedici Stradale engine, 1,103 cc
- Maximum power of 216 hp at 13,500 rpm
- Maximum torque of 120.9 Nm at 11,250 rpm
- “Front Frame”
- 17-litre aluminum tank
- Ducati Electronic Suspension (DES) 3.0
- Öhlins NPX-30 pressurized fork with Öhlins Smart EC 3.0 control system
- Öhlins TTX 36 shock absorber with Öhlins Smart EC 3.0 control system
- Öhlins steering damper with Öhlins Smart control system EC 3.0
- Curb weight without fuel: 188 kg
- Alcantara seat
- Racing plexiglass
- Dry clutch kit
- Billet aluminum steering plate with model name and progressive number
- Dedicated dashboard animation for key-on
- Dedicated aluminum contact key with progressive number
- Adjustable billet aluminum footpegs
- Front Brake PRO braking system: double Brembo 338.5 x 6.2 mm T-drive ventilated front disc, Brembo HypureTM calipers, Brembo MCS 19.21 pump with remote adjustment
- Carbon fiber rims (approved for two-seater use)
- Front and rear mudguard, chain guard, heel guards, swingarm cover, exhaust guard, alternator cover in carbon fiber
- GPS module
