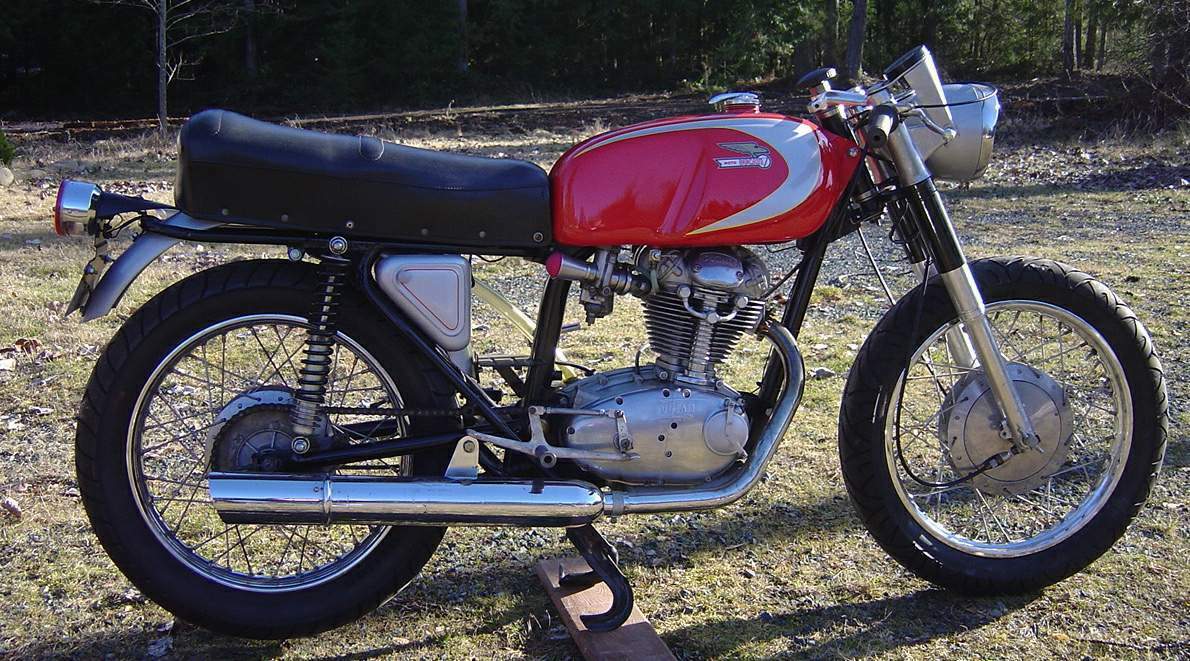

Ducati 250 Diana
|
Make Model |
Ducati 250 Diana |
Year |
1961 - 64 |
Engine |

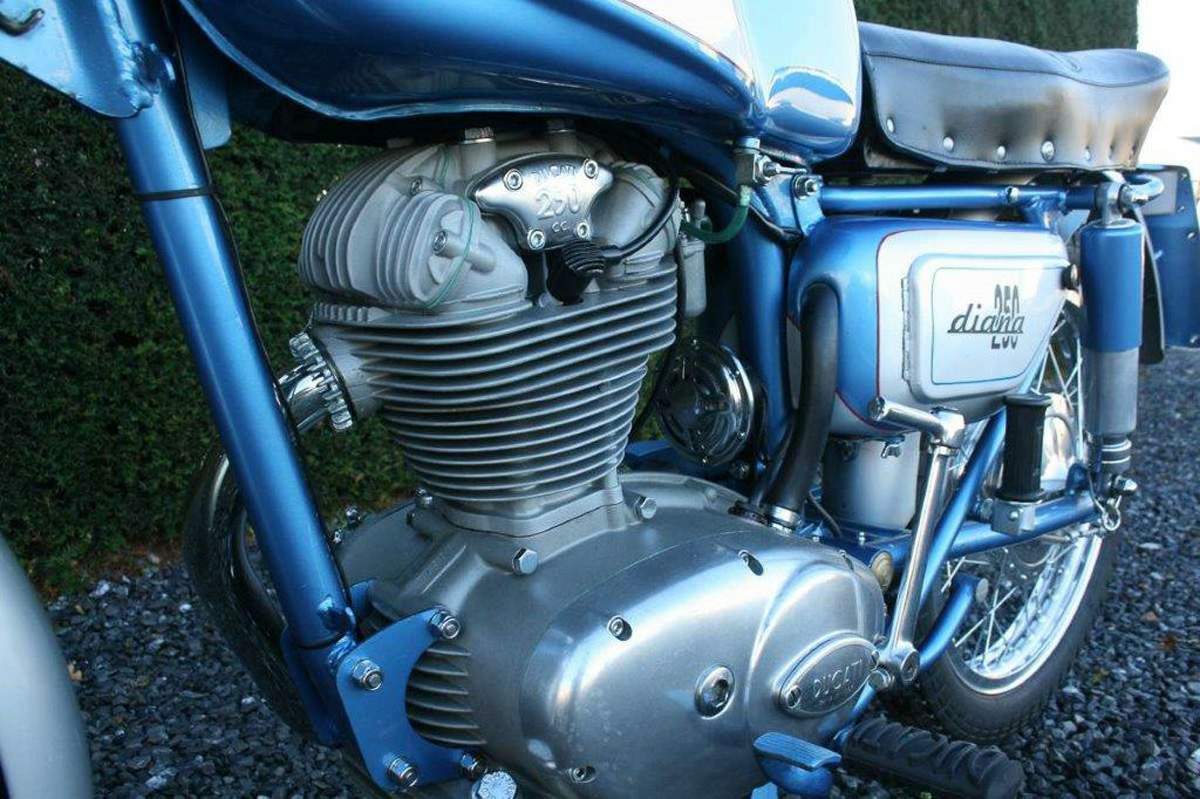

Four stroke, single cylinder, Desmo SOHC, bevel gear-driven |
Capacity |
248.6 cc / 15.2 cu in |
Bore x Stroke | 74 x 57.8 mm |
Compression Ratio | 8.0:1 |
Induction |
Dell'Orto UBF24BS carburetor |
Ignition |
6V 40W generator |
Spark Plug |
Marelli CW250A |
Starting |
Kick |
Max Power |
14.4 kW / 19.5 hp @ 7550 rpm |
Primary Drive Ratio |
2.500:1 |
Transmission |
4 Speed |
Gear Ratios |
1 st 2.75 / 2nd 1.65 / 3rd 1.18 / 4th 0.97:1 |
Final Drive |
Chain |
Final Drive Ratio |
2.647:1 |
Front Suspension |
Ducati 31.5 mm hydraulic telescopic forks |
Rear Suspension |
Swingarm, dual chocks, 3-way adjustable |
Front Brakes |
180 mm Drum |
Rear Brakes |
160 mm Drum |
Front Tyre |
2.75 -18 |
Rear Tyre |
3.00 -18 |
Dimensions |
Length: 2000 mm / 78.7 in Height: 960 mm / 37.8 in |
Wheelbase |
1320 mm / 52.0 in |
Seat Height |
750 mm / 29.5 in |
Dry Weight |
120 kg / 265 lbs |
Fuel Capacity |
17 L / 4.5 US gal / 3.7 Imp gal |
Top Speed | 140 km/h / 87 mph |
When talking about Ducati bikes with some serious racing pedigree in the 60’s, the Ducati 250 Diana has to be mentioned because it was the very first sporting 250 model that every young man had his eyes set on.
Aesthetically, the racing heritage was pretty evident, specifically the addition of racy clip-on handlebars, handsome new styling, and crackling exhaust note. It also weighed just 265 pounds, making its 249 cc SHC single engine more than capable of being a barn burner.
The horsepower output from the 250 Diana reaches 24 ponies and was capable of blasting off at a top speed of 85 mph. Eventually, the 250 Diana’s success spawned itself into a new model - the Mark 3 Super Sport - one that was more than adept at producing a stout 30 horsepower and mated to a five-speed transmission.
Any corrections or more information on these motorcycles will be kindly appreciated. |
