Ducati Diavel Carbon

.
Make Model Ducati Diavel Carbon
Year 2015
Engine Four stroke, 90°“L”twin cylinder, DOHC, desmodromic 4 valve per cylinder.
Capacity 1198.4
Bore x Stroke

106 x 67.9mm

Cooling System Liquid cooled,
Compression Ratio

11.5:1

Induction Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW

Exhaust

Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers

Ignition  Marelli electronic
Starting Electric
Max Power

162 hp / 119 kW @ 9500rpm

Max Torque

94 lb-ft / 127.5 Nm @ 8000rpm

Clutch Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Transmission  6 Speed
Final Drive Chain Front sprocket 15; Rear sprocket 43

Gear Ratio

1st 37/15 /  2nd 30/17 / 3rd 27/20  /  4th24/22  /  5th 23/24  /  6th 22/25
Frame

Tubular steel Trellis frame

Front Suspension Marzocchi 50mm fully adjustable USD forks,
Front Wheel Travel 120 mm / 4.72 in
Rear Suspension

Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm,

Rear Wheel Travel 120 mm / 4.72 in
Front Brakes 2 x 320mm semi-floating discs, radially mounted Monobloc Brembo callipers, 4-piston with ABS
Rear Brakes Single 265mm disc, 2-piston floating calliper with ABS
Front Tyre

120/70 ZR 17

Rear Tyre

240/45 ZR17

Rake 28°
Steering angle (total) 70°
Dimensions Length 2235 mm / 87.9 in
Width 860 mm / 33.8 in
Height 1192 mm / 46.9 in
Wheelbase 1590 mm / 62.6 in
Seat Height 770 mm  / 30.3in
Dry Weight

210 Kg / 463 lbs

Wet Weight 239 kg / 527lbs  ABS
Fuel Capacity  17 Litres / 5.3 gal
.

Ducati s latest Diavel introduces many new features to the highly awarded sport cruiser, including a new engine and exhaust system and styling refinements that combine the model s muscular and assertive look with an elegance and sophistication now synonymous with the premium Italian brand. The new Diavel now makes a bold statement and strengthens Ducati s Performance Redefined mantra by using latest technologies to produce super-smooth performance with enhanced comfort and usability.

Custom shop beauty, state-of-the-art technology, innovative design and extraordinary riding pleasure remain masterfully blended into the Diavel, a motorcycle that has firmly set a benchmark in the sport cruiser segment, just reward for the innovative designers and engineers that created it.

Built to have a commanding presence, though lightweight and agile like all Ducatis, the Diavel takes the man-motorcycle relationship to another level in absolute comfort. For connoisseurs of technology, the latest generation Testastretta 11 Dual Spark engine combines with full LED illumination, ABS, Ducati Traction Control and Ducati Riding Modes to deliver a confidence-inspiring superiority, while new styling, 162hp and 205kg* (452lb) of pure Ducati drives a comfortable sport lifestyle previously only dreamt of. Merging the worlds of power and style is now achieved with convincing precision. A specially engineered 240 section rear tyre combined with Ducati chassis technology serves up mind-blowing handling and lean angles which defy the laws of physics, whether carving through curves on your favourite road or simply cruising the boulevards.


With its laid-back street ergonomics, blistering performance and commanding style, the new Diavel now rolls out dressed in stylish Dark Stealth livery, a black trellis frame and black wheels. The Diavel Carbon offers the choice of traditional Ducati Red over Matte Carbon with red frame or the stunning new Star White over Matte Carbon with white frame, both with black, forged wheels by Marchesini, turned and milled to expose the natural aluminium. *Diavel Carbon version

Key Features

New for 2015

2015 Diavel new features overview
All Diavel models
- New Testastretta 11 DS engine
- New exhausts system
- Full LED illumination
- New headlamp cover and mounting
- New bar-risers
- New radiator covers
- New seat
- New fuel gauge and side-stand TFT instrumentation icons
Diavel
- Body: Dark Stealth
- Frame: Black
- Wheels: Black
- Silencers: Black

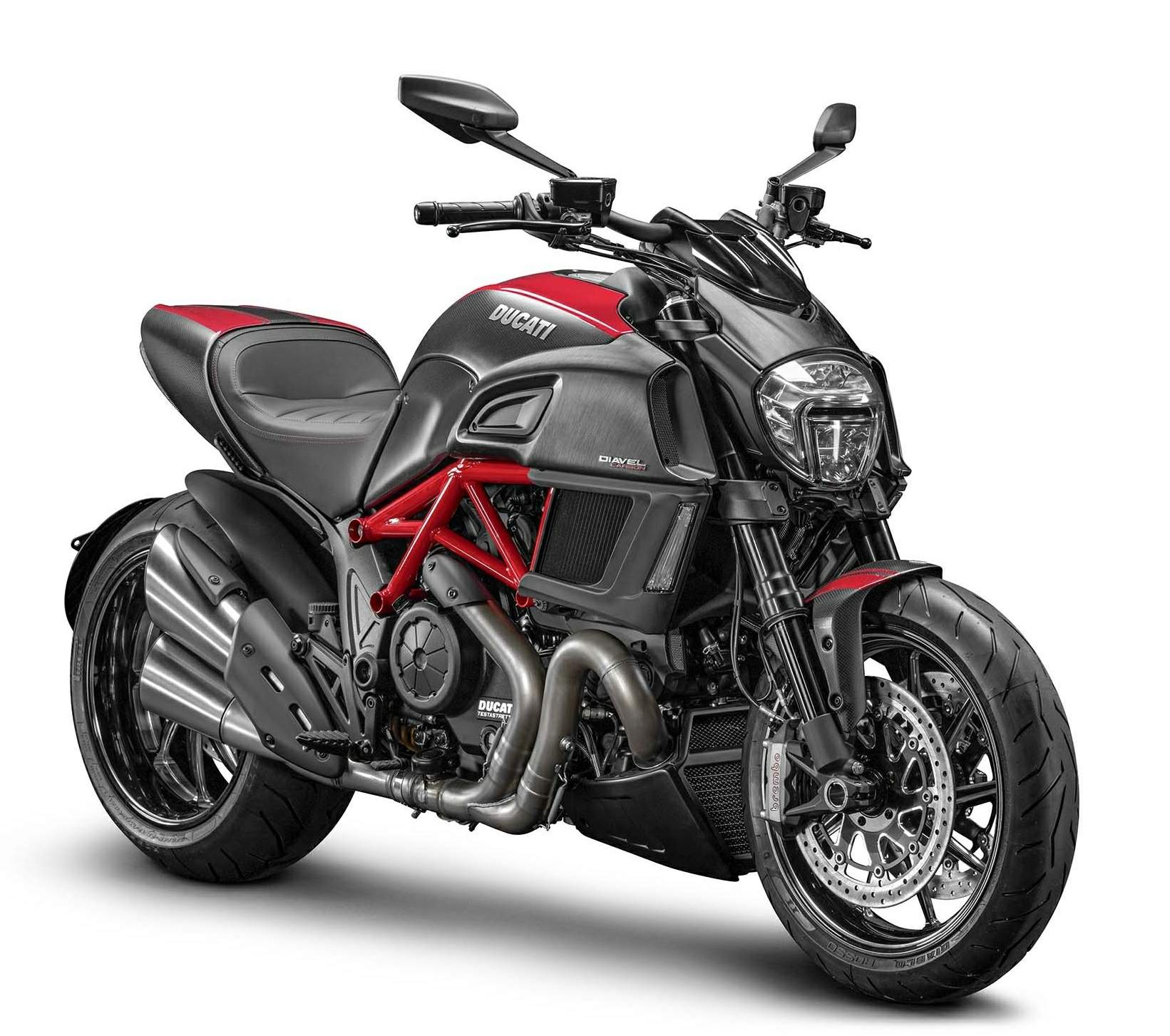

Diavel Carbon
- Colour 1:
o Body: red carbon (gloss red over matte carbon weave)
o Frame: Ducati red
- Colour 2:
o Body: Star White (white over matte carbon weave)
o Frame: Ducati white
- Wheels: Black. Marchesini, forged, turned and milled to expose the natural aluminium
- Silencers: Stainless-steel silver





Features and Benefits

Diavel Design

The stance of the Diavel is that of readiness, dominance, and confidence bordering on superiority. Lateral radiators add muscle to its broad "shoulders," which then taper down across the engine and into the belly-fairing with its oil cooler, giving shape to the athlete.
A massive 240 section rear tyre is the perfect example of how Diavel designers used a no-compromise attitude when applying their wish list of features. The sheer width of rubber communicates so much power and style that the R&D team vowed to find, and succeeded in finding, a way to make it handle - even if they knew the image would send a seismic shock through the industry.
The Diavel is a true Ducati, born from a passion for motorcycling and designed to deliver authentic Ducati performance in every respect.

Diavel concept

The Diavel project was born when Ducati designers applied their wish-list of a bike's "basic instincts" to a blank canvas. With a "what if?" approach to creating a dream bike, they sketched inspiring forms which became a low, long, sleek and aggressive motorcycle that was born to dominate the boulevard.
"The challenge of building a muscular silhouette over a pure-bred competition motor had to be met with determination and a delicate touch, and the result is a frontal area that looks like a power athlete on the starting blocks," explains the team at Ducati Design responsible for the project. "With the front wheel kept close to the Diavel's body and using the short tail of a sport bike, we were able to blend this muscular design with a chassis that matched."

Testrastretta 11°

The Diavel's heart is the Ducati Testastretta 11° Dual Spark (DS) - developed directly from the incredibly powerful, world-beating race engines of Ducati Corse. Ducati's Testastretta 11° DS harnesses the immense power of the Superbike engine and makes it smoother and more linear, combining high performance with an enjoyable and perfectly manageable ride.To create an engine with this blend of brute power and supreme usability, Ducati carefully developed its cam timing with a particular focus on the valve overlap angle. Defined as the period of crankshaft rotation (in degrees) during which both intake and exhaust valves are open at the same time, this overlap angle is set at 11° on the Diavel's engine - much less than the 41° used by Ducati's Superbike engines. As a result the fresh inlet charge is less compromised by exiting exhaust gases, resulting in smoother combustion, improved fuel economy, and lower exhaust emissions.

Along these same lines, the Testastretta 11° DS employs several other technological advances. Targeted injectors direct their charge to the intake valves, which provides better vaporization of the air/fuel mixture. This compressed intake charge is ignited by twin spark plugs in each chamber for rapid and even combustion. And after exiting the combustion chamber, a secondary air system burns off any residual fuel molecules, allowing a richer mixture to be used without increasing emissions. As a combined result of these technologies the Testastretta 11° DS is the perfect base for the Diavel - full of character, and producing tremendous power that give unmatched acceleration, along with smooth and controllable delivery for cruising the boulevard at any speed.
Twin lateral radiators




To keep the frontal lines of the Diavel clean, the technical solution of a highly efficient lateral radiator is placed on each side of the bike. These well-ducted units, located beneath the fuel tank, use aerodynamics to help draw cooling air flow through them and are assisted by high-flow electric fans when required. Their shape integrates seamlessly with the overall design, combining form and function to enhance the muscular presence of the bike.
Exhaust system

The massive 58mm (2.28in) section exhaust headers lead the 2-1-2 system through power-enhancing equal length pipes that enable the Diavel's efficient power delivery. The engine management system dedicates a lambda probe to each header, providing precise fueling via a large airbox, while the new slash-cut vertically stacked exhaust silencers carry catalytic converters to provide Euro 3 conformity and feature an electronically controlled mid-section valve to optimise exhaust pressures throughout the rev-range.
Power and Torque

With its 162hp and colossal 96lb-ft of torque, the Diavel Testastretta 11° DS engine defines authentic Ducati Desmodromic performance.
Thanks to dual spark plugs, high-compression pistons, and revised injection spray targeting, the engine's torque curve is strong and smooth at low rpm, and remains so through a wide rev-range. The engine output is managed by Ducati's Ride-by-Wire (RbW) system to ensure effortless ridability, with plenty of power on tap also for high-rpm riding.
Slipper clutch

The transmission features an oil bath clutch with "slipper" function and super-light feel at the lever. Its design uses a progressive self-servo mechanism that presses the plates together when under drive from the engine, enabling the use of lower clutch spring rates. This results in a much lighter lever feel at the handlebar, ideal in stop-and-go traffic or during long journeys.
When the drive force is reversed (over-run), the same mechanism reduces the pressure on the clutch plates, enabling them to provide a race-like "slipper" action, which reduces the destabilizing effect of the rear end under aggressive downshifting and also provides a much smoother feeling when closing the throttle or downshifting under normal riding conditions.
Ergonomics

The redesigned, more comfortable seat offers more room and has a low height of 770 mm, which allows for extended hours of riding pleasure and makes the Diavel accessible to a wide range of riders. A relaxed handlebar position sits naturally in the rider's reach, ensuring full control and comfort with the unmatched coolness of cruiser style.
Marzocchi forks with low-friction fork legs

The Diavel uses 50 mm Marzocchi front forks with fork legs finished in low-friction diamond-like carbon (DLC). These forks are fully adjustable for spring pre-load, compression and rebound damping.
The forks are equipped with slash-cut triple-clamps - the bottom yoke in die-cast aluminium and the upper in forged aluminium - with a rubber-mounted tapered alloy handlebar clamp. With a 28° steering rake, 130 mm trail and 24 mm offset, this set-up provides a sure-footed yet agile front end for incredible handling.
Fuel tank and air intakes

The Diavel's 17l (4.5 gal US) fuel tank represents an integral part of the bike's overall styling. Its wide, long lines sweep down from the headlamp assembly into the seat and rear sub-frame to create a seamless profile. While the focal point of the tank is the high resolution display panel, the steel tank skin and well-sculpted knee panels add a solid feel to the Diavel and a high tech composite look to the Diavel Carbon.
On each side of the front of the tank are massive air intakes formed in aluminium to feed the engine's large airbox.
Sachs rear suspension




The Diavel has a Sachs rear suspension unit slung low under the chassis in a horizontal position, operated by a progressive pull-rod linkage from the swingarm. Adjustable in compression and rebound damping, the unit uses a handy control for easy spring preload adjustment.
Braking system

The Diavel front brakes use Brembo's incredibly powerful Monobloc callipers, which deliver outstanding performance actuated by integral alloy master cylinders with uniquely shaped reservoirs sporting milled tops. The 4-piston, twin radially-mounted front callipers grip 320mm discs, while a single 265mm disc on the rear is gripped by a two piston calliper, also by Brembo.
Diavel frame assembly

The signature Ducati Trellis frame uses large diameter, thin wall tubing with two lateral die-cast aluminium sections that flow into the rear subframe. This achieves massive torsional rigidity while remaining lightweight and compact. The two sections form a rear-end structure by attaching onto either side of a complex techno-polymer component.
Riding Modes

The Diavel incorporates the very latest in innovative Ducati technologies, such as electronic Riding Modes. Selectable from the left-hand switchgear - even while riding - the choice of three pre-set modes are programmed to instantly change the character of the Diavel. The three modes are enabled by combining class-leading technologies such as Ride-by-Wire (RbW) and Ducati Traction Control (DTC). As riding on city streets can require more attention to the surroundings than to throttle inputs, the Urban Riding Mode instantly changes the Diavel to provide a manageable and confident ride in the city. Power output is reduced to 100hp and DTC is set at level 5, perfectly adapting the bike to variable pavement conditions and the chaos of stop-and-go traffic. The Touring Riding Mode allows the engine to deliver its full 162hp, but with a smooth, user-friendly power delivery curve. DTC system intervention is set at level 4, which provides an enjoyable and relaxing ride ideal for long distances while ensuring maximum comfort for both the rider and passenger. The Sport Riding Mode produces pure adrenaline, with the engine's full 162hp delivered with precise and sporty throttle response for maximum acceleration. For the undiluted Diavel experience, Sport mode also lowers the DTC system intervention to level 3, for riders who like to explore the bike's incredible performance a little closer to the limit of traction.
Lighting

At the forefront of innovation, the Diavel uses full LED technology for bright, efficient, and stylish lighting. In the rear, the Diavel trademark of two vertical LED strips follow the precise line of the under-seat panelling, keeping the lines of the bike sleek and minimal by serving as both the brake lamps and directional indicators. Echoing the same theme, front directional indicators are vertical LED strips on the leading edge of the lateral radiator covers.
The full LED headlamp perfectly lights the Diavel's way, and with two vertical LED positioning lights flanking the main illuminating beam, it gives unmistakable character to the bike while also creating a family feeling with the Monster 1200.
Hands-free ignition





The Diavel's ignition is actuated by an electronic key in the rider's pocket, which communicates with the motorcycle when within a distance of approximately 2 metres (6.5ft). The motorcycle recognises the dedicated key code and automatically enables the bike's systems. Pressing the key-on switch then activates all systems to "on" and the engine is ready to be started.
The electronic key, which internally consists of a radio circuit, externally doubles as a mechanical flip-key, required to open the seat and fuel tank cap. When parking the motorcycle, an electronic lock can be actuated on the steering simply by applying full steering-lock and pressing the ignition-off button a second time.
Controls

The Diavel handlebar shape and position leave the rider comfortable and in full command. Wide, tapered section aluminium bars with sleek new mounting clamps provide a clean and minimalist set-up, while stylish, aluminium mirrors deliver a generous view to the rear.
Switchgear is Ducati's latest, minimalist design, with slim-line bodies housing easy-to-use switches and buttons and a unique weapons-like "trigger catch" that slides down to cover the starter button when the kill-switch is engaged. The turn indicator cancelling button doubles as a scroll-and-select for fast and easy Riding Mode changes, while switches above and below serve to navigate the high-resolution display control panel.
Ducati Traction Control (DTC)

The racing-derived Ducati Traction Control (DTC) is a highly intelligent system which acts as a filter between the rider's right hand and the rear tyre. Within milliseconds, DTC is able to detect and control rear wheelspin, considerably increasing the bike's active safety and performance.
The system offers eight levels of sensitivity, each programmed with an amount of rear wheelspin tolerance. These levels are in line with progressive levels of intervention, and are classified from one to eight. Level one is programmed to offer the least amount of interaction for sport-oriented riders in good riding conditions, while level eight uses the most amount of interaction for complete confidence by all riders, even in wet or slippery conditions.
DTC levels are factory pre-set in each of the three Riding Modes, but can be individually customised and saved to suit the rider by accessing a user-friendly set-up menu. A "default"option is available to easily return all settings to factory pre-sets.
Footpegs and grab-rail

Diavel's passenger accomodations include slender footpegs which ingeniously fold down from the rear sub-frame, as well as an innovative T-bar shaped grab-rail assembly which slides out from the rear of the seat.
Deployed from a mechanism under the seat, the grab-rail provides a comfortable and confidence-inspiring handle for the passenger, while its shape perfectly blends into the lines of the tailpiece when retracted.
Both of these passenger-friendly features are crafted in forged aluminium and shot-peened for strength and a uniform finish before being black anodised to become almost invisible when folded away.
Split-level instrumentation

The upper LCD display is mounted on the handlebar riser and provides key information such as speed and rpm, in addition to showing warning lights, time and temperature.
The lower, full colour Thin Film Transistor (TFT) unit is integrated into the fuel tank and provides an incredibly clear display of the currently selected Riding Mode, gear, and DTC level as well as total and trip mileage. Used extensively on mobile phones and computers, TFT technology is superior to LCD and displays easy-to-read high resolution graphics. The Diavel's TFT display goes one step further by sensing the ambient light conditions to automatically select a black or white background colour. When the Diavel is stationary, its lower display also doubles as a user-friendly control panel to personalise and save DTC and RbW settings within each Riding Mode - creating a custom electronics configuration to suit any rider's preference.
Innovative number plate mount

Employing the double strip of multi-functional LEDs for the rear lighting of the Diavel required an innovative solution for the mounting of the number plate. The unique design uses mounts on the rear hub of the single-sided swingarm to extend an elegant and Ducati signature Trellis framework around the 240 section rear tyre, enabling a central mounting of the plate. The framework carries a hidden power feed to dedicated LED illumination for the number plate, eliminating any reliance on the main rear lights and creating a clean feeling around the rear of the seat. This design solution is the first of its kind and an example of the incredible attention to detail on the Diavel.
Pirelli tyres

Ducati's technical partner, Pirelli, worked with the Diavel's designers and engineers to develop the incredible Diablo Rosso II tyres. While the front uses a conventional 120/70x17 section with a tread pattern designed for enhanced wet weather performance, the 240/45x17 rear represents the latest innovation in tyre design with a sport-oriented profileapplied to custom-style width.
The massive rear employs bi-compound technology to enable high grip levels at full lean angle while also providing high mileage, and uses Enhanced Patch Technology (EPT) to maximise the contact patch at all angles. The tread pattern and compounds deliver great performance in all conditions, especially the wet.



DIAVEL DESIGN
Basic instincts

The Diavel project was born when Ducati designers applied their wish-list of bike basic instincts to a blank canvas. With a what if? approach to creating a dream bike, they sketched inspiring shapes which became a lower and longer motorcycle.

The challenge of building a muscular silhouette over a pure-bred competition motor had to be met with determination and a delicate touch, and the result is a frontal area that looks like a power athlete on the starting blocks, explained the team at Ducati Design responsible for the project. With the front wheel kept close to the Diavel's body and using the short tail of a sport bike, we were able to blend this muscular design with a chassis that matched.

If the stance of a Streetfigher is that of anger, the stance of the Diavel is of readiness, dominance, and confidence bordering on superiority. With lateral radiators adding muscle to its broad shoulders, which then taper down across the engine and into the belly-fairing with oil cooler, the athlete took shape.

A massive 240 section rear tyre was a perfect example of how Diavel designers used a no-compromise attitude when applying their wish list of features. The sheer width of rubber communicates so much power and style that the R&D team vowed to find a way to make it handle - even if they knew the image would send a seismic shock through the industry.

Ducatis philosophy for innovation has always been to push the boundaries of design in the name of exciting motorcycles. Sometimes gut feelings are what count, and having the strength to commit to them shows the bold statement that Ducati has made. The Diavel is a true Ducati, born from a passion for motorcycling and designed to deliver authentic Ducati performance in every respect.

Diavel
The name Diavel was inspired by the Bolognese dialect word for devil . One day, early in the development process of the bike, the first prototype was assembled and wheeled out in front of a group of Ducati engineers and technicians who were viewing the complete motorcycle for the first time. One person looking from the rear of the bike saw its silhouette and exclaimed in Bolognese dialect: Ignurant comm al diavel! Which means: Evil, just like the devil!

Reminiscent of how the Monster was named, the Diavel follows the same Bolognese tradition, shaping the future of motorcycling while staying faithful to its heritage.

Rider and passenger comfort
The Diavel's twin-level seat is wide, comfortable and now a little longer with a new shape and horizontally ribbed seat upholstery beautifully formed to fit the flowing lines of the machine, further enhanced with red stitching on the Carbon red model. The low 770mm (30.3in) seat and low slung chassis set-up that weighs in at just 210kg (463lb) - 205kg (452lb) for the Diavel Carbon - enables the rider to get both feet on the ground for a sure-footed and confident stance. The seat also comes with a stylish and easily removable single seat cover, which is formed in carbon fibre on the Diavel Carbon.

Passengers of the Diavel and Diavel Carbon will appreciate the way the slender passenger footpegs ingeniously fold down from the rear sub-frame as well as the innovative, T-bar shaped grab-rail assembly, which slides out from the rear of the seat. Deployed from a mechanism under the seat, the grab-rail provides a comfortable and confidence-inspiring grip for the passenger, while the shape perfectly blends into the lines of the tail-piece when retracted. Both passenger-friendly features are crafted in forged aluminium and shotpeened for strength and uniform finish before being black anodised to become almost invisible when folded away.

New LED Lighting
The new Diavel now extends its LED lighting package with a full LED headlamp to complement the characteristic twin vertical strips of LED lights, that provide tail and brake light illumination and directional indicators at the rear. The rear LED strips follow the precise line of the under-seat panelling, providing great visibility of the rear-end while keeping the external lines of the bike clean. The front directional indicators are clear lens LED, now updated to solid strip technology mounted vertically down the leading edge of the also restyled lateral radiator covers. Mounted in a brand new brushed-aluminium outer body, the totally redesigned headlamp gives the new Diavel immediate identity using stylish LED positioning lights to create a stunning surround effect for optimum visibility.

Innovative number plate mount
Employing the double strip of multi-functional LEDs for the rear lighting of the Diavel required an innovative solution for the mounting of the number plate. The unique design uses mounts on the rear hub of the singlesided swingarm to extend an elegant framework around the 240 section rear tyre, enabling a central mounting of the plate. The framework carries a hidden power feed to dedicated LED illumination for the number plate, eliminating any reliance on the main rear lights and enabling a clean feature around the rear of the seat.

Fuel tank and air Intakes
The Diavel's 17l (4.5 gal US) fuel tank represents an integral part of the bike s overall styling. Its wide, long lines sweep down from the headlamp assembly into the seat and rear sub-frame to create a seamless profile. While the focal point of the tank is the high resolution display panel, the steel tank skin and wellsculpted knee panels add a solid feel to the Diavel and a high tech composite look to the Diavel Carbon.

On each side of the front of the tank and feeding the engine s large airbox are muscular looking intake ducts, now further enlarged on the new Diavel and formed in black anodised, brushed-aluminium. Their design is completely functional and contributes to the performance of the Diavel Testastretta 11 DS power plant.

Controls
The Diavel handlebar shape and arrangement leaves the rider feeling comfortable and in command, while a brand new bar-riser and air-deflector design further enhance the clean and minimalist look to the entire cockpit area. Wide, black-finished, tapered section aluminium bars with custom designed, integral brake and clutch master-cylinders by Brembo complete with milled reservoir tops, blend functionality with a custom shop level of attention to detail, while stylish, forged-aluminium supported mirrors deliver a generous view to the rear.

Switchgear control uses Ducati s slim-line bodies, housing easy-to-use switches and buttons and a unique weapons-like trigger catch that slides down to cover the starter button when activating the kill-switch. While the indicator cancel button doubles as a scroll-and-select for fast and easy Riding Mode changes, switches above and below serve to navigate the high-resolution display control panel.

DIAVEL PERFORMANCE
The new Diavel Testastretta 11 DS engine

The heart of the new Diavel is Ducati s new Testastretta 11 DS engine, which harnesses the famous 1198s immense power and now makes it even smoother with even more torque, an ingenious step forward in balancing high-performance with an enjoyable ride.

With its 162hp @9,250rpm and increased torque of 96.2lb-ft (130.5Nm) @8,000rpm, the Diavel Testastretta 11 DS engine is all about authentic Ducati Desmodromic performance. The revised intake and exhaust ports combined with radical adjustment of the cam timing have enabled Ducati to achieve a fantastic torque curve at low rpm, which remains strong through a wider rev-range. The increase in bottom-end torque is managed by Ducati s Ride-by-Wire (RbW) system to considerably enhance the Diavel's effortless ridability, while ensuring plenty of power remains on tap ready to be unleashed.

A number of well-proven technical advancements in Ducati s twin-cylinder technology have been combined with the 1198 s torque-laden 106mm x 67.9mm bore and stroke to create an exciting, customisable and user-friendly character for the new Diavel.

Breathing through elliptical Ride-by-Wire throttle bodies, the 1198 Testastretta 11 DS uses the latest fuel injector positioning to target spray directly onto the rear of the hot intake valve instead of the relatively cold surface of the intake port wall. The enhanced vaporisation achieved as the fuel hits the valve, fully atomises the incoming charge, eliminating the chance of compromised combustion efficiency experienced if droplets of fuel enter in liquid form. With the delivery of a fully vaporised inlet charge, the concept of Dual Spark (DS) with two spark plugs per cylinder-head, provides a twin flame-front that ensures complete and efficient
combustion across a shorter period of time. New pistons with an 1198 Superbike-style crown shape further enhance that combustion with a higher 12.5:1 compression ratio.

The new engine, which is cooled by twin lateral radiators - positioned on either side of the bike and fed with highly efficient and stylish air ducts, also uses Ducati s secondary air system, maintaining performanceoptimised fuel mapping for smoother cycle-to-cycle engine operation, without compromising emissions.

The Testastretta 11 engine effectively took the original fire-breathing 1198 Superbike power plant and reengineered it with increased user-friendliness. Engineers achieved this to great effect by reducing the amount of valve over-lap from around 41 - typical in performance engines that operate constantly at high RPM - to just 11 , which reduced peak horse-power slightly, but considerably enhanced mid-range and overall smoothness.

The massive 58mm (2.28in) section exhaust headers lead the 2-1-2 system through power-enhancing equal lengths before terminating in brand new short, slash-cut silencers, stylishly angled to match the rear wheels radius and underlining the focus on custom detail. The new stainless steel silencers are finished in black for the Diavel and natural brushed stainless steel for the Diavel Carbon. The engine management system dedicates a lambda probe to each header, providing precise fueling, while the catalytic converters provide Euro 3 conformity and the electronically controlled mid-section valve optimises exhaust pressures throughout the rev-range.

The Diavel's gearbox uses high-strength materials to manage the power output and enhanced grip generated by the 240 section rear tyre, which also requires the use of a 16mm longer gearbox output shaft for drive chain routing.

The transmission features an oil bath clutch with slipper function and super-light feel at the lever. Its design uses a progressive self-servo mechanism that presses the plates together when under drive from the engine, enabling the reduction of the clutch spring rates. This results in a much lighter clutch lever at the handlebar, ideal in stop-start traffic or during long journeys. When the drive force is reversed (over-run), the same mechanism reduces the pressure on the clutch plates, enabling them to provide a race-like slipper action, which reduces the destabilizing effect of the rear-end under aggressive down-shifting and provides a much smoother feeling when closing the throttle or down-shifting under normal riding conditions. The Diavel's clutch and alternator covers are specially styled with enhanced detail and shaping and the cam belt covers with an aluminium mid-section.

30,000km between major services
The new Diavel's Testastretta 11 DS engine reaches another milestone in Ducati s constant investment in quality by enabling the distance between major service intervals (valve clearance check) to be set at an owner-friendly 30,000 kilometres (18,000 miles).

DIAVEL CHASSIS
Frame assembly
The Ducati Trellis frame uses large diameter, light gauge tubing with two lateral die-cast aluminium sections that flow into the rear subframe. This achieves massive torsional rigidity while remaining lightweight and compact. The two sections form a rear-end structure by attaching onto either side of a complex technopolymer component. The long, die-cast aluminium, single-sided swingarm provides great feel at the rearend with a wheelbase of 1590mm (62.6in) and a stance that provides lean angles of up to 41 .

Suspension
The Diavel uses black-bodied 50mm Marzocchi front forks, fully adjustable for spring pre-load, compression and rebound damping. They are gripped by a slash-cut triple-clamp - cast aluminium for the lower and forged for the upper - with a rubber-mounted riser to tapered alloy bars. With a rake of 28 , trail of 130mm (5.12in) and an offset of 24mm (0.945in), the set-up provides a sure-footed and agile front-end for incredible handling and 70 of total steering lock for maximum manoeuvrability. Both Diavel and Diavel Carbon use the same suspension with fork sliders black-finished in super low-friction diamond-like carbon (DLC).

All versions of the Diavel have a Sachs rear suspension unit slung low under the chassis in a horizontal position, operated by a progressive pull-rod linkage from the swingarm. Adjustable in compression and rebound damping, the unit uses a handy control for easy spring pre-load adjustment.

Wheels and tyres
The Diavel rolls on stunning, custom 14-spoke wheels with machine-finished detailing. The front rim is 3.5x17, while the rear, which is flow-formed for enhanced structure and lightness, boasts a massive 8x17 rim. The Diavel Carbon has custom shop-finished, lightweight, forged, turned and milled rims by Marchesini that not only score an impressive total weight saving of 5.5lb (2.5kg), but also look spectacular. These highly intricate nine-spoke wheels highlight the delicate machining in natural aluminium set against a black finish.

Ducati s technical partner, Pirelli, worked with the Diavel's designers and engineers to develop the incredible Diablo Rosso II tyres. While the front uses a conventional 120/70x17 section with a tread pattern designed for enhanced wet weather performance, the 240/45x17 rear represents the latest innovation in tyre design with a sport-oriented profile being applied to custom-style width.

The massive rear employs bi-compound technology to enable high grip levels at full lean angle while providing high mileage and uses Enhanced Patch Technology (EPT) to maximise the contact patch at all angles. The tread pattern and compounds deliver great performance in all conditions, especially the wet.

This tyre design enabled Ducati to achieve the style they had envisioned for the Diavel without compromising the authentic Ducati performance of the chassis. This partnership of parallel development between chassis and tyre design contributed massively to Ducati changing the rules in this segment.

Braking system & ABS
The Diavel front brakes use Brembo s incredibly powerful Monobloc callipers, which deliver outstanding performance actuated by integral alloy master cylinders with unique shape reservoirs sporting milled tops.

The 4-piston, twin radially-mounted callipers grip 320mm discs, while a single 265mm disc on the rear is gripped by a two piston calliper, also by Brembo. The Diavel Carbon uses specially milled aluminium disc carriers which have natural aluminium coloured recesses machined around the weight saving cut-outs in contrast to the carrier s black finish around the centre. Typical of Ducati, these top-of-the-range components provide outstanding levels of braking and set a benchmark in this category.

The system is equipped with the latest, most compact, Ducati Bosch-Brembo ABS system as original equipment on both versions, providing a major contribution towards performance control. Top Brembo components combined with Bosch ABS, the special Diavel chassis configuration and Pirelli s Enhanced Patch Technology (EPT) result in a braking performance even greater than that of the awesome Ducati Superbikes.

DIAVEL TECHNOLOGY
Lateral radiators
The technical solution employed for keeping the frontal lines of the Diavel clean was to place two highly efficient lateral radiators on either side of the bike. These well-ducted units, located beneath the fuel tank, are aerodynamically designed to draw air flow through the radiators and are assisted by high-flow electric fans when required. The design combines form and function to enhance the muscular shape of the bike.

Split-level instrumentation
The Diavel's instrumentation is a masterpiece of cutting-edge technology with an upper LCD display mounted on the bar-riser, providing main information such as speed and rpm, warning lights, time and temperature and a lower, full colour Thin Film Transistor (TFT) display styled into the fuel tank to provide a clear account of the current Riding Mode, gear selection and DTC setting as well as total mileage and trips.

Used on mobile phones and computers, TFT technology is a variant of LCD and displays easy-to-read high resolution graphics. The Diavel's TFT display goes one step further by using the sensitivity of its surrounding light to decide upon black or white background colour. When stationary, the lower display also doubles as the latest user-friendly control panel to personalise DTC and RbW settings within each Riding Mode before saving.

Constantly developing its instrumentation technologies further, Ducati now introduces new fuel gauge and side-stand warning icons to the Diavel's TFT display. Positioned in the top left corner of the display, the new fuel gauge is animated with five graphic bars to signify fuel capacity, gradually reducing the number of bars until the icon changes from green to yellow when capacity is down to just one bar, simultaneously illuminating the fuel reserve warning list. The fuel icon is programmed to start flashing if the fuel capacity is
falls to 1.1 litres or less. The side-stand icon illuminates in the central area of the display to remind riders that the stand is deployed and functions in parallel to the usual safety system, which kills the engine if a gear is selected while the stand is still deployed.

Hands-free ignition
The Diavel's ignition is actuated by an electronic key in the rider s pocket, which communicates with the motorcycle when within a distance of approximately 2 metres (6.5ft). The motorcycle recognises the dedicated key code and automatically enables the bike s systems. Pressing the key-on switch then activates all systems to on and the engine is ready to be started. The electronic key, which internally consists of a radio circuit, externally doubles as a mechanical flip-key, required to open the seat and fuel tank cap. When
parking the motorcycle, an electronic lock can be actuated on the steering simply by applying full steeringlock and pressing the ignition-off button a second time.

Ride-by-Wire
The Ride-by-Wire (RbW) system is an electronic interface between the Diavel's twistgrip and engine, which configures an ideal power response depending on the Riding Mode selected. The twistgrip no longer has a throttle cable connected directly to the throttle body butterflies, but instead delivers a signal to a control unit, which in turn operates the butterfly opening electronically. The RbW system uses three different mappings to regulate the power delivery: 162hp with a sports-type delivery, 162hp with a progressive delivery suitable for touring, and 100hp with progressive delivery for city use.

Riding Modes
The Diavel incorporates the very latest in innovative Ducati technologies, including electronic Riding Modes.Selectable from the left-hand switchgear - even while riding - the choice of three pre-set modes are programmed to instantly change the character of the Diavel. The three modes are enabled by combining class-leading technologies such as Ride-by-Wire (RbW) and Ducati Traction Control (DTC).

The RbW system administers different mappings to regulate power delivery by interpreting the rider s throttle input, while the world-beating DTC uses eight levels of system interaction to enhance control by reducing rear wheel-spin under heavy acceleration. Although each mode has pre-set values of RbW and DTC, each of these two elements can be finely adjusted within each of the three Riding Modes and saved to create a personalised riding experience.

Sport
The Sport Riding Mode provides the Diavel rider with an adrenalin-fuelled 162hp ride and enables the rider to have full-on throttle response for maximum acceleration. Ensuring the full Testastretta 11 experience, the Sport mode also lowers the DTC system intervention to level 1 for riders who prefer their performance a little closer to the traction limit.

Touring
The Touring Riding Mode is also programmed to produce 162hp, however, with a smoother, more userfriendly power delivery. Rear end traction is enhanced by increasing DTC system intervention to level 3, specifically intended for an enjoyable and relaxing ride ideal for long distance and ensuring maximum comfort for both the rider and passenger.

Urban
As riding on city streets can require more attention to the surroundings than to throttle inputs, the Urban Riding Mode instantly changes the Diavel to provide a manageable and confident ride. Power output is reduced to 100hp and DTC is further enhanced to level 5 to provide a higher system intervention during the most chaotic of stop-start traffic.

Ducati Traction Control
The racing-derived Ducati Traction Control (DTC) is a highly intelligent system which acts as a filter between the rider s right hand and the rear tyre. Within milliseconds, DTC is able to detect and control rear wheelspin, considerably increasing the bike s active safety and performance. DTC is an integral part of the preprogrammed Riding Modes on the Ducati Diavel and enables riders to fully enjoy the power of the Testastretta 11 engine.

The system offers eight levels of sensitivity , each programmed with an amount of rear wheel-spin tolerance. These levels are in line with progressive levels of riding skills classified from one to eight. Level one is programmed to offer the least amount of interaction for sport-oriented riders, while level eight uses the most amount of interaction for complete confidence.

DTC levels are factory pre-set in each of the three Riding Modes, but can be individually customised and saved to suit the rider by accessing the new user-friendly set-up menu. A default option is available to easily return all settings to factory pre-sets.

DUCATI DIAVEL CARBON
Performance combined with style

The 205kg (452lb) Diavel Carbon embodies the true nature of the Diavel concept, where performance combines with style to celebrate Italian engineering at its best. Lightweight composites and milled aluminium components meld the two worlds of sport and style with features that are both visually beautiful and functionally high-performance.

The Diavel Carbon comes in stunning Red Carbon (gloss red over matte carbon) with red frame or the brand new Star White Carbon (gloss white over matte carbon) and white frame. Carbon fibre is used for the tank panels, single-seat cover and front mudguard, reducing weight and applying a race-like feature that runs deep in the DNA of Ducati.

Helping the Diavel Carbon to accelerate faster, stop sooner and change direction with even more agility is a valuable 5.5lb (2.5kg) saving of unsprung weight by using beautifully forged, lightweight Marchesini wheels. The wheels, which are finished in black, are machine-turned and milled for maximum weight reduction and intricately engineered decoration. The black disc carriers undergo a similar milling process to enhance the recess around the weight saving cut-outs, the natural aluminium colour contrasting effectively
against the original black carrier.

Diavel colours and defining features
The new Diavel is exclusively dressed in Dark Stealth livery with a continuing theme of black trellis frame and wheels and matching black-finished silencers. The Diavel Carbon offers the choice of traditional Ducati Red with high-tech Matte Carbon and red frame or the stunning new Star White with Matte Carbon and white frame. Both Carbon Diavel models roll on black, forged wheels by Marchesini, turned and milled to expose the natural aluminium.

All models feature tank-side air-ducts and headlamp body in black anodised, brushed aluminium and blackfinished foot control pedals, bars and mirrors.. Additionally, all three colour versions are equipped with - stylish, horizontally-ribbed seat upholstery with prominent red stitching on the Diavel Carbon red model.
