2020 Ducati Monster 1200S Black

Make Model	Ducati Monster 1200S Black
Year	2020
Engine	Four stroke, Testastretta 11° L-Twin, DOHC, 4 Desmodromically actuated valves per cylinder
Capacity	1198 cc / 72.9 cu-in
Bore x Stroke	106 x 67.9 mm
Cooling System	Liquid cooled
Compression Ratio	13.0:1
Lubrication	Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Induction	Electronic fuel injection system, 56mm oval throttle bodies with full Ride-by-Wire
Exhaust	Lightweight 2-1-2 system with catalytic converter and 2 lambda probes, twin stainless steel mufflers with aluminium covers and end caps
Ignition	Marelli electronic
Starting	Electric
Max Power	147 hp / 108 kW @ 9250 rpm
Max Torque	124 Nm / 91 lb-ft @ 7750 rpm
Clutch	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Transmission	6 Speed with Ducati Quick Shift up & down (DQS)
Final Drive	Chain, front sprocket Z=15, rear sprocket Z=41
Gear Ratio	1st 37/15 2nd 30/17 3rd 27/20 4th 24/22 5th 23/24 6th 22/25
Primary Drive	Straight cut gears, ratio 1.84:1
Frame	Tubular steel trellis frame attached to the cylinders head
Front Suspension	48 mm Öhlins fully adjustable USD fork
Front Wheel Travel	130 mm / 5.1 in
Rear Suspension	Progressive linkage with fully adjustable Öhlins monoshock, aluminium single-sided swingarm
Rear Wheel Travel	149 mm / 5.8 in
Front Brakes	2 x 320 mm Semi-floating discs, radially mounted Monobloc Brembo Evo M50 callipers, 4-pistons, radial pump with Bosch ABS as standard
Rear Brakes	Single 245mm disc, 2-piston floating calliper with Bosch ABS as standard equipment
Front Tyre	120/70 - ZR17 Pirelli Diablo Rosso III
Rear Tyre	190/55 - ZR17 Pirelli Diablo Rosso III

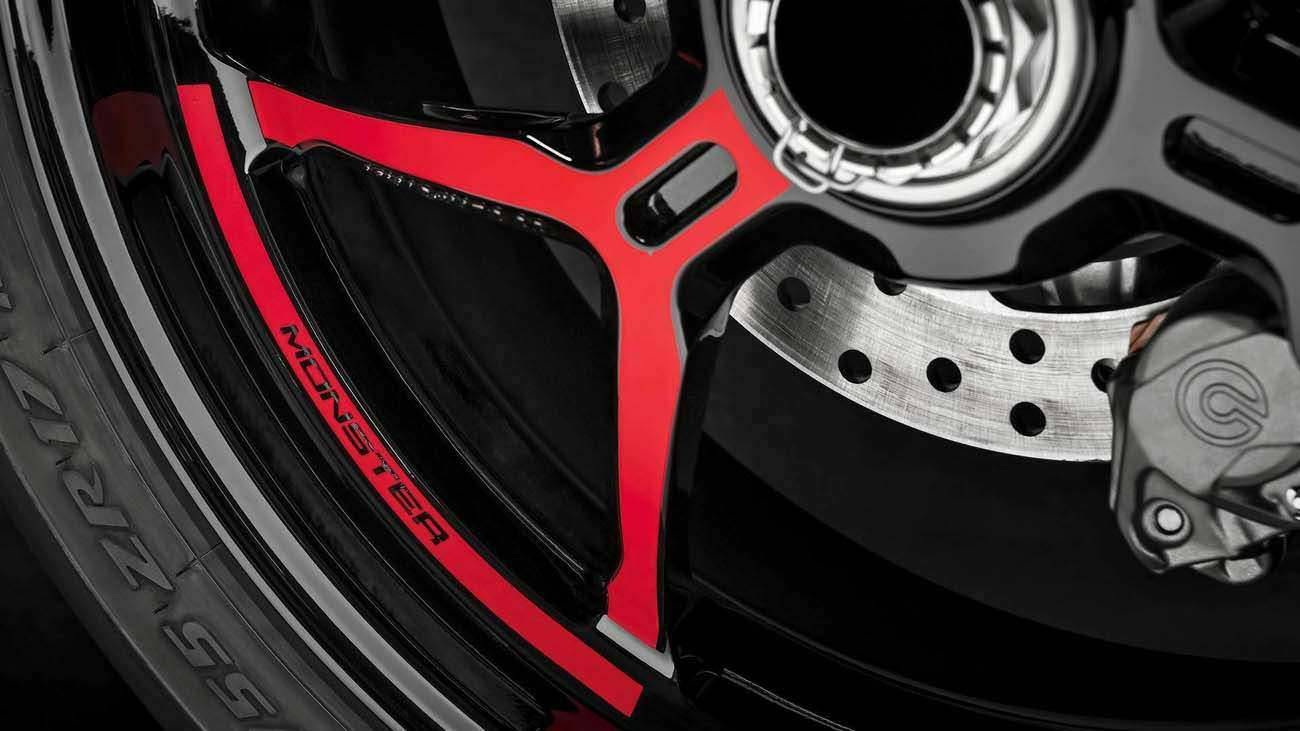

Front wheel	Y shaped 3-spoke light alloy with ‘S’ graphics, 3.50 in x 17 in
Rear wheel	Y shaped 3-spoke light alloy with ‘S’ graphics, 6.00 in x 17 in
Wheelbase	1485 mm / 58.46 in
Rake	23.3°
Trail	86.5 mm / 3.4 in
Seat Height	795 mm - 820 mm / 31.30 in - 32.28 in, adjustable
Dry Weight	185 kg / 408 lbs
Wet Weight	211 kg / 465 lbs
Fuel Capacity	16.5 Litres / 4.36 US gal

Ducati launched the Monster 1200 S for 2020 with a new Black on Black livery. The Monster 1200 S will also remain available in the traditional Ducati Red.

The new Black on Black colour alternates matte black elements with others painted in glossy black and with streaks of red, which enhances the character of this naked bike, its sporty lines and elegance, which always has been synonymous with the Monster.

The engine is powerful and full-bodied at every speed, the compact dimensions, the agile chassis and the world-class electronic equipment including Riding Modes, DTC, DWC, Cornering ABS and Ducati Quick Shift up/down, as standard on the S version, guarantee maximum riding enjoyment and at the same time, maximum security.

The pre-set Riding Modes allow the rider to optimise bike behaviour depending on riding style. Each of the three Riding Modes (Sport, Touring and Urban), is programmed to act on the electronic Ride-by-Wire (RbW) engine control system and on the ABS, Ducati Traction Control and Ducati Wheelie Control intervention levels.

The Monster 1200 S engine is the Testastretta 11° DS twin-cylinder, 1198 cm3 with 4 valves per cylinder, liquid cooled and produces 145bhp at 9250rpm. Euro 4 type-approved (only for countries where Euro 4 standard applies) it is the structural element of the suspension set-up with coupling points for the trellis frame.

The cutting-edge materials and technologies of the Testastretta 11° DS ensure particularly long maintenance intervals. With an oil change required every 15,000 km or 12 months and valve clearance check every 30,000 km, the values are of absolute reference for its category.

Thanks to the elliptical throttle body and the dedicated impressive side-mounted 2-1 staggered shotgun exhaust, the second generation Testastretta 11° DS engine generates a power which can be compared with that of a 3/4 cylinder engine and is able to reach great performance levels.

The Ride-by-Wire (RbW) system is an electronic interface between the Monster's twistgrip and engine, which manages an ideal power response depending on the riding mode selected.

The 1200 S comes with fully-adjustable Öhlins suspension all around, Brembo M50 monoblock front brake calipers, forged aluminum three-spoke Y-rim wheels and a carbon mudguard.
