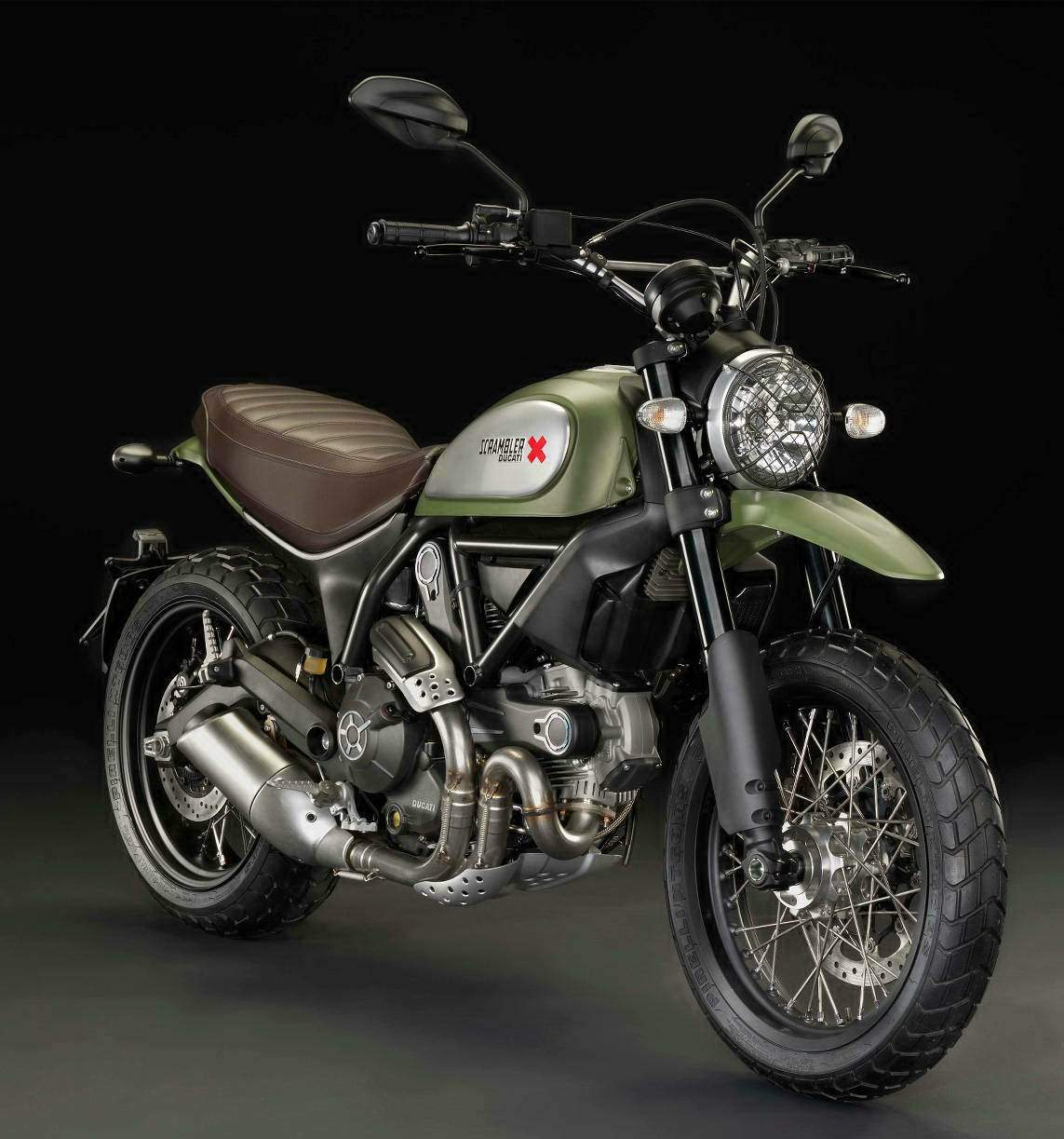

Ducati Scrambler Urban Enduro

.

Make Model

Ducati Scrambler Urban Enduro

Year

2015 - 16

Engine

Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valve per cylinder

Capacity

803 cc / 49.0 cub in
Bore x Stroke 88 x 66 mm
Cooling System Air cooled
Compression Ratio 11.0:1

Induction

Electronic fuel injection, 50 mm throttle bodies

Ignition

Marelli electronic
Starting Electric
Exhaust Exhaust system with single stainless steel muffler with aluminium exterior cover, catalytic converter and 2 lambda probes

Max Power

55 kW / 75 hp @ 8250 rpm

Max Torque

68 Nm / 6.9 kgf-m / 50 lb-ft @ 5750 rpm
Clutch APTC wet multiplate with mechanical control

Transmission

6 Speed
Final Drive Chain, front spocket 15, rear sprocket 46
Primary Drive Straight cut gears, ratio 1.85:1
Gear Ratio 1st 20/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Frame Tubular steel trellis frame

Front Suspension

Upside down Kayaba 41 mm fork
Front Wheel Travel 150 mm / 5.9 in

Rear Suspension

Kayaba rear shock, pre-load adjustable
Rear Wheel Travel 150 mm / 5.9 in

Front Brakes

Single 330 mm disc, 4-piston caliper with ABS as standard equipment

Rear Brakes

Single 245 mm disc, 1-piston caliper with ABS as standard equipment
Front Wheel 10-spoke in light alloy 3.00" x 18"
Rear Wheel 10-spoke light alloy 5.50" x 17"

Front Tyre

110/80 R18 Pirelli MT 60 RS

Rear Tyre

180/55 R17 Pirelli MT 60 RS
Rake 24°
Trail 112 mm / 4.4 in
Total steering lock 35°

Dimensions

Length   2100 - 2165 mm / 82.7 - 85.2 in

Height   1150 mm / 45.3 in

Width      845 mm / 33.3 in

Wheelbase 1455 mm / 57.3 in
Seat Height 790 mm / 31.1 in. low seat 770 mm / 30.3 in. available as accessory

Dry Weight

170 kg / 375 lbs

Wet Weight 186 kg / 410 lbs

Fuel Capacity

13.5 Litres / 3.57 US gal / 3.0 Imp gal
Equipment Steel tank with interchangeable aluminium side panels, headlight with glass lens, LED light-guide and interchangeable aluminium cover, LED rear light with diffusive lens, LCD instruments with interchangeable aluminium cover, machine-finished aluminium belt covers, 18’’ front, 17’’ rear wheels, underseat storage compartment with USB socket

Classic equipment Spoked aluminium wheels, front and rear aluminium mudguards, seat with dedicated design, fuel tank with black stripe, dedicated logo, high plate support.

Instrumentation LCD
Ducati electronics dual-channel ABS
Versions Dual seat

Ducati presents the Ducati Scrambler brand in Cologne and its iconic style, modern design and creative spirit.

"Presenting the new Ducati Scrambler brand means for us opening the doors to an entirely new, fascinating, and absolutely contemporary world”, said Cristiano Silei, Vice President of Sales and Marketing at Ducati Motor Holding, during the unveiling of the new bikes. “We have reinterpreted an iconic motorcycle, part of our history for more than 50 years, in a fully modern way, designing and building the Ducati Scrambler as if we’d never stopped making it. The four bikes of the Ducati Scrambler family represent starting points on a path to personalisation that will make every single Ducati Scrambler a unique, free-spirited bike as individual as the person riding it.”

The waiting is finally over. The Ducati Scrambler is finally out of the yellow container that has so jealously guarded it over the last few months and is now – after the previews granted to employees and Ducatisti at World Ducati Week 2014 – officially ready. This is more than just a new bike: it’s a whole new world, one that expresses itself via a range of options and versions that provide a starting point for satisfying the different needs and wants of individual motorcyclists.

The Ducati Scrambler is a contemporary bike that expresses the pure essence of motorcycling. Tried and tested materials such as the aluminium of the rear swingarm and engine covers and the steel of the teardrop tank and frame are combined with new-generation components such as front and rear LED lighting and LCD instruments. Wide handlebars and a long seat provide a comfortable, relaxed riding position and, together with the low weight, low centre of gravity and slightly knobby tires, ensure pure riding fun whatever the situation.

“Post-heritage” design gives a contemporary take on the iconic bike built by Ducati back in the 60s and 70s. This Ducati Scrambler, though, is no retro bike: it is, rather, intended to be just how the legendary Bologna-built motorcycle would be today if Ducati had never stopped building it.

The Icon version, in yellow and red, is joined by three others – Urban Enduro, Full Throttle and Classic – each offering its own style and performance-related interpretation of the Scrambler spirit. The Urban Enduro, with its “Wild Green” paintjob, is for enduro style enthusiasts and ready to switch from city streets to country backroads in an instant. The Full Throttle is for riders enthralled by the flat-track racing world who have a penchant for pushing things to the limit. And the Classic is for devotees to details and a 1970s look who want the uncompromising riding pleasure and comfort of a modern-day bike.

The headlamp, together with the tank, forms a key part of the Ducati Scrambler look. Rounded, classically designed yet extremely modern (i.e. post-heritage) it features a glass parabola and an ultra-modern LED light guide around the rim that acts as a side light.

Seat and tank have been carefully designed to give the Ducati Scrambler appealing proportions. A compact bike, the Ducati Scrambler instils confidence from the very moment you set eyes on it. It’s been sized to make it accessible to all motorcyclists while the long seat maximises comfort and can also accommodate a passenger comfortably.

An oil and air-cooled L-twin two-valve 803 cc engine powers the Ducati Scrambler; it has an 88 mm bore, a 66 mm stroke and has been redesigned to give smooth acceleration throughout the rev range.

Moreover, thanks to a vast range of apparel and bike accessories, to be presented in November, the Ducati Scrambler offers a virtually unlimited range of exclusive personalisation and lifestyle options.

The Ducati Scrambler name has much in common with the verb to scramble – mixing up, blending, letting the imagination run free, sharing with others. The Ducati Scrambler is the two-wheeled alter ego of those who ride it, a cultural movement in and of itself. It’s free-spirited, positive and anti-conformist, open to encounters with other philosophies and styles. Ducati Scrambler isn’t just a bike, it’s a world.
