Ducati Panigale V2 Bayliss 1st Champion 20th Anniversary

.

Make Model

Ducati Panigale V2 Bayliss 1st Champion 20th Anniversary

Year

2021

Engine

Four stroke, Superquadro, 90° L-twin cylinder, DOHC, Desmodromic 4 valves per cylinder

Capacity

955 cc / 58.3 cu in

Bore x Stroke

100 x 60.8 mm

Compression Ratio

12.5:1

Cooling System

Liquid cooled

Induction

Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies

Exhaust

2-1-2-1 system, with 2 catalytic converters and 2 lambda probes

Emission

Euro 5

Ignition

Electronic

Starting

Electric

Max Power

114 kW / 155 hp @ 10750 rpm

Max Torque

104 Nm / 76.7 lb-ft @ 9000 rpm

Clutch

Hydraulically controlled slipper and self-servo wet multiplate clutch. Self bleeding master cylinder

Transmission

6 speed with Ducati Quick Shift (DQS) up/down EVO 2

Final Drive

Chain; Front sprocket 15; Rear sprocket 43

Primary Drive

Straight cut gears; Ratio 1.77:1

Gear Ratio

1st 37/15  /  2nd 30/16  /  3rd 27/18  /  4th 25/20  /  5th 24/22  /   6th 23/24

Frame

Monocoque Aluminium

Front Suspension

Öhlins NIX30 43mm with TiN treatment, fully adjustable usd fork

Front Wheel Travel

120 mm / 4.72 in

Rear Suspension Fully adjustable Öhlins TTX36 monoshock. Aluminum single-sided swingarm

Rear Wheel Travel

130 mm / 5.1 in

Front Brakes

2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston calipers, Self bleeding master cylinder.

Rear Brakes

245 mm disc, 2-piston caliper

ABS Bosch Cornering ABS EVO
Wheels 5-spokes light alloy

Front Wheel

3.50 x 17

Rear Wheel

5.50 x 17

Front Tyre

120/70 ZR17 Pirelli Diablo Rosso Corsa II

Rear Tyre

180/60 ZR17 Pirelli Diablo Rosso Corsa II

Display

Digital unit with 4,3 in TFT colour display

Rake

24°

Trail

99 mm / 3.9 in

Wheelbase

1.438 mm / 56.6 in

Seat Height

835 mm / 32.9 in

Dry Weight

174,5 kg / 385 lbs

Wet Weight

197 kg / 434 lbs

Fuel Capacity

17 Litres / 4.5 US gal

Safety Equipment

Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO 2, Ducati Wheelie Control (DWC) EVO, Engine Brake Control (EBC) EVO, Auto tire calibration

Standard Equipment

Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL), Öhlins steering damper, Auto-off indicators, Lithium-ion battery, Silencer outlet cover in carbon fiber and titanium

Additional Equipment Passenger seat and footpegs kit
.

From a press release issued By Ducati:

A special motorcycle as a tribute to Troy Bayliss: the Ducati Panigale V2 Bayliss 1st Championship 20th Anniversary

- Produced in a numbered series, the motorcycle is characterized by the special celebratory livery that recalls that of the  Ducati 996 R of the first World Superbike title won by the Australian rider in 2001

- Equipped with Öhlins components and embellished with details that enhance its sportiness, the Panigale V2 Bayliss 1st - Championship 20th Anniversary is destined to enter the hearts of Troy fans around the world.

21 has been a magic number for Ducati ever since Troy Bayliss sculpted it with his victories in motorcycling history. Precisely in 2021, twenty years after winning the 2001 Superbike World Championship, Ducati is paying homage to the legendary career of the Australian rider by dedicating to him a special motorcycle, produced in a numbered series, which celebrates the first of the three World SBK titles won by Bayliss: the Ducati Panigale V2 Bayliss 1st Championship 20th Anniversary.

The bond between Bayliss and Ducati Corse in the Superbike World Championship is one of the most fascinating stories in the motorsport universe. The results of this beautiful adventure are 52 victories, 94 podiums and three world titles (2001, 2006 and 2008) won with three different bikes: the twin-cylinder 996 R, the 999 R and the 1098 R. Troy Bayliss is the only motorcycle racer in history capable of winning in MotoGP and World Superbike in the same season (2006) and his achievements in the race have indelibly imprinted the Australian's name in the hearts of all Ducatisti. Now the winning chemistry between Ducati and "Baylisstic" is rekindled with the creation of this celebratory motorcycle, the name of which was chosen directly by the rider, who also actively contributed to the creation of the graphic concept.

Made starting from the base of the Panigale V2, the "Bayliss 1st Championship 20th Anniversary" version is characterized by its special livery , whose graphics are inspired by that of the 996 R which in the 2001 season powered Bayliss to the conquest of his first world title, revisiting its colours and cuts. Ducati red is the main colour of the bike, and it joins green and white in a tribute to the Italian spirit of the Bologna-based motorcycle manufacturer, while the iconic #21, Troy Bayliss' race number, and the Shell logo, which visually strengthen the link with the racing bike, stand out on the sides and front. Troy's autograph is reproduced on the fuel tank, while the billet aluminium triple clamp shows the name of the bike and the progressive numbering of this unique model.

To make the motorcycle even more effective in track riding, Ducati has chosen to equip the Panigale V2 Bayliss 1st Championship 20th Anniversary with Öhlins components . The NX30 front fork and TTX36 rear shock absorber guarantee maximum smoothness and are designed to achieve the best performance on the circuit, with a set-up that makes the bike more precise and offers the rider greater feeling and greater support in all riding phases. The steering damper, thanks to the adjustments it is equipped with, allows you to customize its calibration by adapting it to riding style and the characteristics of the track.

Compared to the standard version, the Panigale V2 Bayliss 1st Championship 20th Anniversary is also 3 kg lighter, thanks to the adoption of a lithium-ion battery and the choice of the single-seater configuration that explicitly recalls the look of the racing bike (passenger seat and footrests are available in the equipment supplied).

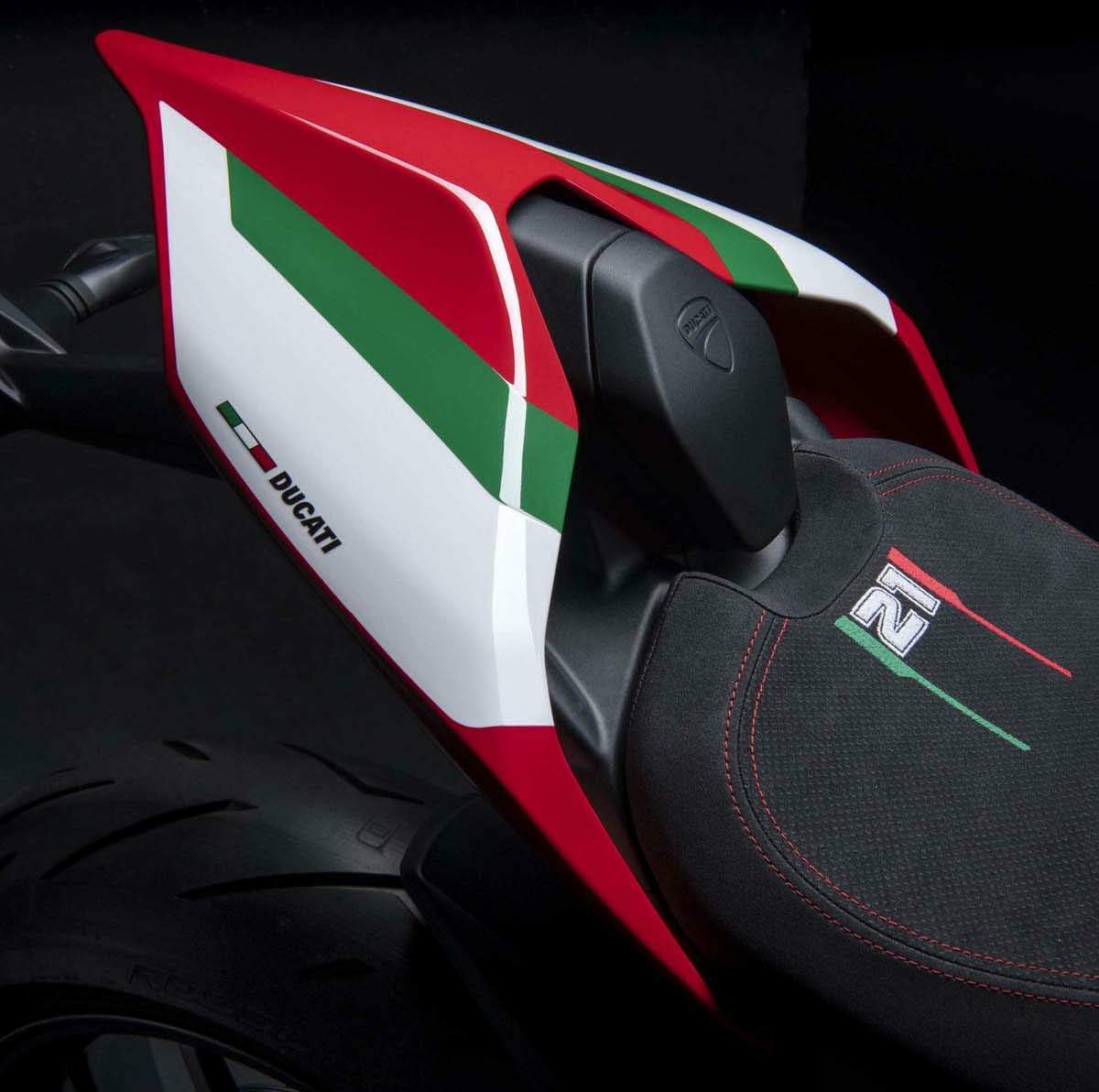

The equipment is completed by the sport grips, the silencer outlet cover in carbon fibre and titanium and the rider seat made by combining two different technical materials with double red stitching. Troy’s number 21 is embroidered in white on the saddle and, together with the green and red bands, makes up the Italian flag. The motorcycle is also equipped with self-cleaning brake and clutch pumps with smoke grey oil tanks.

The Panigale V2 is the super-mid of Ducati sports bikes and represents the entry model to the Panigale family. It is powered by the 955 cc Superquadro twin-cylinder unit (Euro 5 compliant), with a maximum power of 155 hp at 10,750 rpm and a maximum torque of 104 Nm at 9,000 rpm. The chassis is based on the monocoque frame, while the elegant and sporty design is inspired by that of the Panigale V4.

The electronic package, dedicated to active safety and vehicle dynamics control, includes the "cornering" function applied to Bosch ABS, the electronic quick shift that also works when downshifting and traction, engine brake and wheelie controls (Ducati Quick Shift, Ducati Traction Control, Ducati Wheelie Control, Engine Brake Control). All the controls are integrated into the three Riding Modes (Race, Sport and Street) that can be modified using the 4.3" colour TFT dashboard with graphics and interface designed to make menu navigation and settings adjustment intuitive, as well as immediate identification of the selected Riding Mode.
