Harley Davidson Tri Glide Ultra 115th Anniversary

.

Make Model

Harley Davidson FLHTCUTG Tri Glide Ultra 115th Anniversary

Year

2018

Engine

Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder

Capacity

1746 cc / 107 cub in.
Bore x Stroke 100 x 111 mm / 3.937 x 4.374 in
Cooling System Air cooled
Compression Ratio 10.0:1
Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Lubrication Pressurized, dry-sump with oil cooler

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

154 Nm / 113.6 lb-ft @ 3250 rpm

Clutch Multi-plate, wet

Transmission

6 Speed
Primary Drive Chain, 34/46 ratio
Final Drive Belt
Gear Ratio 1st 10.534  2nd 7.302  3rd 5.423  4th 4.392  5th 3.741  6th 3.157
Frame Mild steel, square-section backbone with twin downtubes Swingarm Mild steel, rectangular tube sections with plate junctions; MIG welded

Front Suspension

41.3 mm telescopic, triple-circuit damping,

Front Wheel Travel 117 mm / 4.6 in

Rear Suspension

Air-adjustable

Rear Wheel Travel 76 mm / 2.9 in

Front Brakes

2x 300mm disc, 4 piston caliper

Rear Brakes

2x 229mm disc, 1 piston caliper

Parking Brake

Foot actuated dual parking brake
Front Wheel Black, 7-spoke cast aluminium
Rear Wheels Black, 7-spoke cast aluminium

Front Tyre

MT90B16 72H

Rear Tyre

2x P205/65R15

Rake  26°
Trail 100 mm / 3.94 in
Dimensions Length 2670 mm / 105.1 in
Wheelbase 1670 mm / 65.8 in
Ground Clearance 115 mm / 4.5 in
Seat Height Unladen 735 mm / 28.3 in

Laden     688 mm / 27.1 in

Dry Weight

545 kg / 1195 lbs

Wet Weight

560 kg / 1230 lbs
Oil Capacity (w/filter)  4.7 Litres / US 5 qts.

Fuel Capacity

22.7 Litres / 6.0 US gal

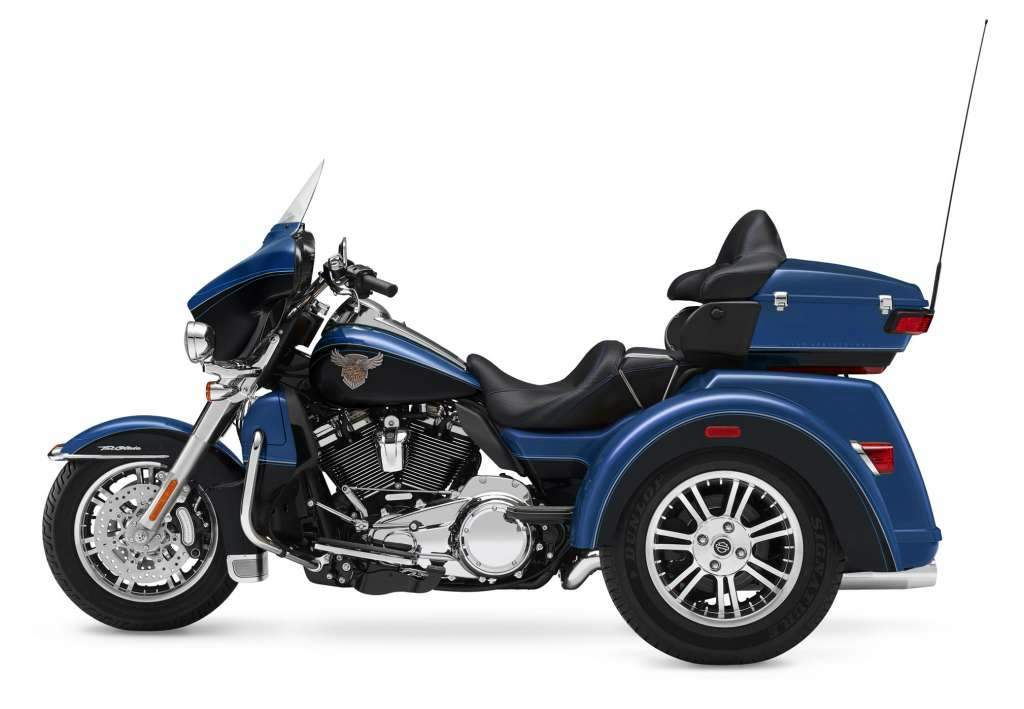

The 115th Anniversary Tri Glide Ultra is the ultimate three-wheeled touring machine. This limited-edition model comes with exclusive paint and numbering. How much motorcycle can you fit on three wheels? One look at the Tri Glide® Ultra motorcycle and you’ll have your answer.

Featuring:
• Exclusive Legend Blue/Vivid Black two-tone paint scheme
• Triple pinstripe
• 115th Anniversary multi-metal tank cloisonné
– Eagle holding the Bar and Shield in its talons
• Perforated seat with blue stitching and embossed “HDMC”
• 115th Anniversary script on console, timer cover and air cleaner
• Serialization on trim

THERE’S MORE THAN AN ADDED WHEEL AT WORK HERE

Milwaukee-Eight® V-Twin Engine

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.

Premium BOOM!™ Box 6.5 Infotainment System

A stylish 6.5-inch full-color touch screen display with hands-free mobile phone, media, and navigation. Delivers powerful, pure sound and dynamic full-range audio

6-Speed Cruise Drive® Transmission

Provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed.

Trunk and King Tour-Pak™ Storage

The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the waterproof, injection-molded Tour-Pak™ luggage carrier keeps things classy and neat with soft woven-nylon luggage liner and plenty of storage pockets.

Daymaker™ LED Headlamp and LED Foglamps

Darkness-defying headlight to see and be seen.

Batwing Fairing & Splitstream Air Vent

Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front. It opens and closes with one touch of a button.
