Harley Davidson Softail Low Rider ST

.

Make Model

Harley Davidson Softail Low Rider ST

Year

2022

Engine

Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder

Capacity

1923 cc / 117 cu-in

Bore x Stroke

103.5 x 114.3 mm

Cooling System

Air cooled

Compression Ratio

10.2:1

Exhaust

2-into-2 offset shotgun; catalyst in muffler

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Lubrication

Pressurized, dry-sump with oil cooler

Ignition

Single-fire, non-wasted, map-controlled spark ignition

Starting

Electric

Max Power 103 hp / 77 kW @ 4750 rpm

Max Torque

169 Nm / 125 lb-ft @ 3500 rpm

Clutch

Mechanical, 10 plate wet, assist & conventional

Transmission

6 Speed

Primary Drive

Chain, 34/46 ratio

Final Drive

Belt, 32/66 ratio

Gear Ratio

1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79

Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports
Swingarm Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer

Front Suspension

Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring

Front Wheel Travel 130 mm / 5.1 in

Rear Suspension

Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment

Rear Wheel Travel 112 mm / 4.4 in

Front Brakes

2 x 300mm discs, 4 piston caliper

Rear Brakes

Single 292mm disc, 2 piston floating caliper

ABS Standard

Wheels

Dark bronze, Radiate cast aluminum wheel

Front Tyre

110/90B19,62H,BW

Rear Tyre

180/70B16,77H,BW

Rake

28°

Trail

145 mm / 5.7 in

Dimensions

Length  2365 mm / 93.1 in
Width     870 mm / 34.3 in
Height  1300 mm / 51.2 in

Wheelbase

1615 mm / 63.6 in

Ground Clearance

150 mm / 5.9 in

Seat Height

Laden     686 mm / 27 in
Unladen 720 mm / 28.3 in

Dry Weight

315 kg / 694 lbs

Wet Weight

327 kg / 721 lbs

Fuel Capacity

18.9 Litres / 5 US gal

.

From a press release issued by Harley-Davidson:

Harley-Davidson injects exciting performance and adds versatility to its 2022 Cruiser motorcycle line-up with the introduction of the new Low Rider ST and more powerful Low Rider S models. Both motorcycles offer the taut handling performance of the Harley-Davidson Softail chassis and the V-Twin muscle of a Milwaukee-Eight 117 powertrain. The Low Rider S 117 model is an aggressive performance kingpin designed for the rider seeking unapologetic power. The new Low Rider ST model offers the versatility of hard bags and a fixed fairing. Both of these new models have a lean, performance-comes-first posture that defines West Coast custom style.

Milwaukee-Eight 117 High-Performance Engine

The Milwaukee-Eight 117 V-Twin engine with precision oil/air cooling is the pinnacle of torque and displacement from a factory-installed, regular-production Harley-Davidson powertrain. This engine delivers outstanding performance and instant bragging rights on the street.

- 117 cubic inch displacement
- 125 ft. lbs. of torque at 3500 RPM for a performance boost the rider can feel with every twist of the throttle
- High-performance camshaft is matched to displacement and air flow intended to maximize performance
- High-performance, tuned Heavy Breather intake with forward-facing exposed filter element flows more air into the engine to produce exciting mid-range torque, and gives the motorcycle added hot rod presence
- High-performance 2-into-2 offset shotgun exhaust is tuned to provide smooth and broad mid-range torque while producing a stirring tone
- Dual counter-balancers reduce primary vibration at idle for improved rider comfort
- Dealer-installed Screamin’ Eagle Performance Parts Stage Upgrades from Harley-Davidson Genuine Motor Parts & Accessories are available to boost engine performance even further

Low Rider ST Model

This is how Harley-Davidson does sport-touring, with style rooted in the California “tall bike” movement. The saddlebags ride high and tight, the rear suspension is jacked up, the handlebar is high, and the FXRT-inspired fairing is frame-mounted. The Low Rider ST model puts the rider in a commanding position on top of the bike, and the riding sensation is direct and reflexive. When the road trip is over, simply pop off the saddlebags to convert the Low Rider ST model from cross-country mode to urban performance cruiser.

“A key element of this model is the frame-mounted fairing, which has a shape inspired by the classic FXRT Sport Glide model fairing favored by West Coast customizers,” said Brad Richards, Harley-Davidson Vice President of Design. “With a dominant central headlamp flanked by side vents, the genetic connection to the original FXRT remains familiar. The sharper creases and revised proportions in the Low Rider ST fairing provide a look that is intended to be modern, athletic and aerodynamically superior to the FXRT fairing. The raised fitment of the saddlebags high above the exhaust reinforces the performance of the model – the message being that these bags will not limit lean angle when the bike is pushed to the limit.”

The shape of the new frame-mounted fairing was developed through CFD (computational fluid dynamics) analysis and real-world testing. Triple fixed splitstream vents help limit rider head buffeting at highway speeds. A six-inch high windshield has a Dark Smoke tint, and the fairing holds a single 5.75-inch LED headlamp.

The lockable, rigid saddlebags feature a sleek clam-shell design that makes them easy to load and unload. The bags can be opened with one hand by a seated rider, and a damping device allows the saddlebag lids to open smoothly. The bags can be removed in seconds with an internal quick-release mechanism. Combined saddlebag capacity is 1.9 cubic feet (53.8 liters).

A deep solo seat helps hold riders in place during aggressive acceleration and cornering. A one-inch moto handlebar is mounted on four-inch pull-back risers while a low-profile textured-black console tops the five-gallon fuel tank. Instrumentation is presented by a compact digital display inset in the handlebar riser for a custom, “no gauges” look.

Ride and handling are enhanced by the chassis, optimized to reduce weight without sacrificing rigidity. The Milwaukee-Eight 117 powertrain is rigid-mounted in the frame to further enhance chassis stiffness. A 43mm inverted fork stiffens the front end for a responsive ride, and its single-cartridge internal technology keeps the front wheel planted for improved braking and handling performance. Fork rake is 28-degrees.

The Low Rider ST is equipped with a taller rear monoshock than the standard Softail chassis monoshock (1/2-inch more stroke, 1-inch more rear wheel travel, ¾-inch higher at the seat) which raises the rear of the motorcycle. This provides improved ride comfort and increases lean angle by more than one degree, which improves dynamic performance for enhanced ground clearance and improved rider confidence during aggressive cornering. Under-seat hydraulic pre-load adjustment allows the rider to maintain optimal suspension performance for the prevailing load and road conditions. Dual front brakes with 300mm discs deliver the responsive braking demanded by aggressive riders. Standard ABS (antilock braking system) provides confident braking performance when conditions are less than ideal. Premium Michelin Scorcher 31 tires (Front 110/90B19, Rear 180/70B16) enhance ride and handling performance. Other features include a Signature LED headlamp, bright LED tail/brake lamps and a USB charging port.

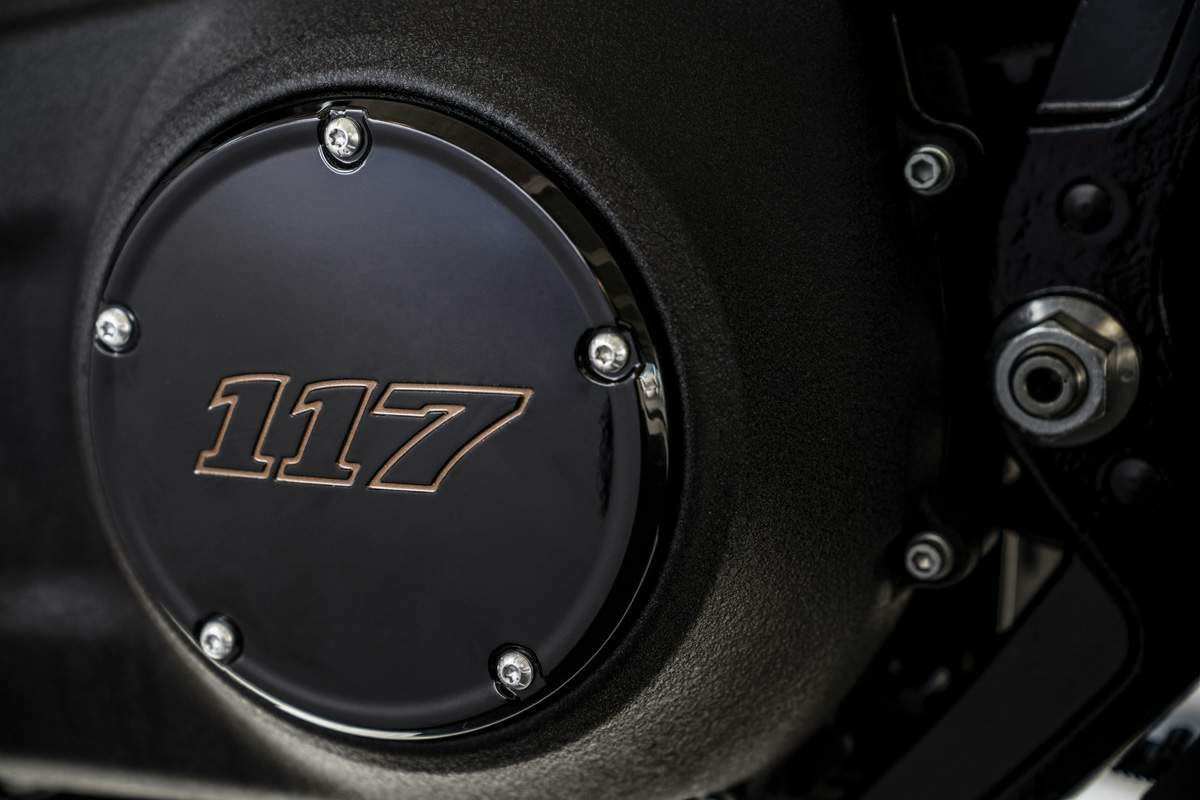

Rugged, blacked-out styling includes Wrinkle Black finish on the powertrain, primary cover, triple clamps, top clamp, rear fender supports and tank console; the derby cover, intake, lower rocker covers, and handlebar riser are Gloss Black. The handlebar is Satin Black. The forks are anodized black. Mufflers and exhaust shields are Jet Black. Radiate cast-aluminum wheels (19-inch front and 16-inch rear diameter) are finished in Matte Dark Bronze for an intriguing contrast to the motorcycle’s dark components.

Accessory Audio: A high-performance motorcycle deserves high-output audio. The accessory Harley-Davidson Audio powered by Rockford Fosgate – Inner Fairing Audio Kit was designed alongside the Low Rider ST for outstanding performance and an ideal fit within the fairing. The system includes a compact 250-watt amplifier with digital signal processing (DSP) technology and a pair of 5.25-inch woofers and two remote tweeters. Connect to a mobile device via Bluetooth to play stored or streaming audio. Learn More about the Harley-Davidson Audio powered by Rockford Fosgate.

Available Paint Colors: Vivid Black, Gunship Gray
