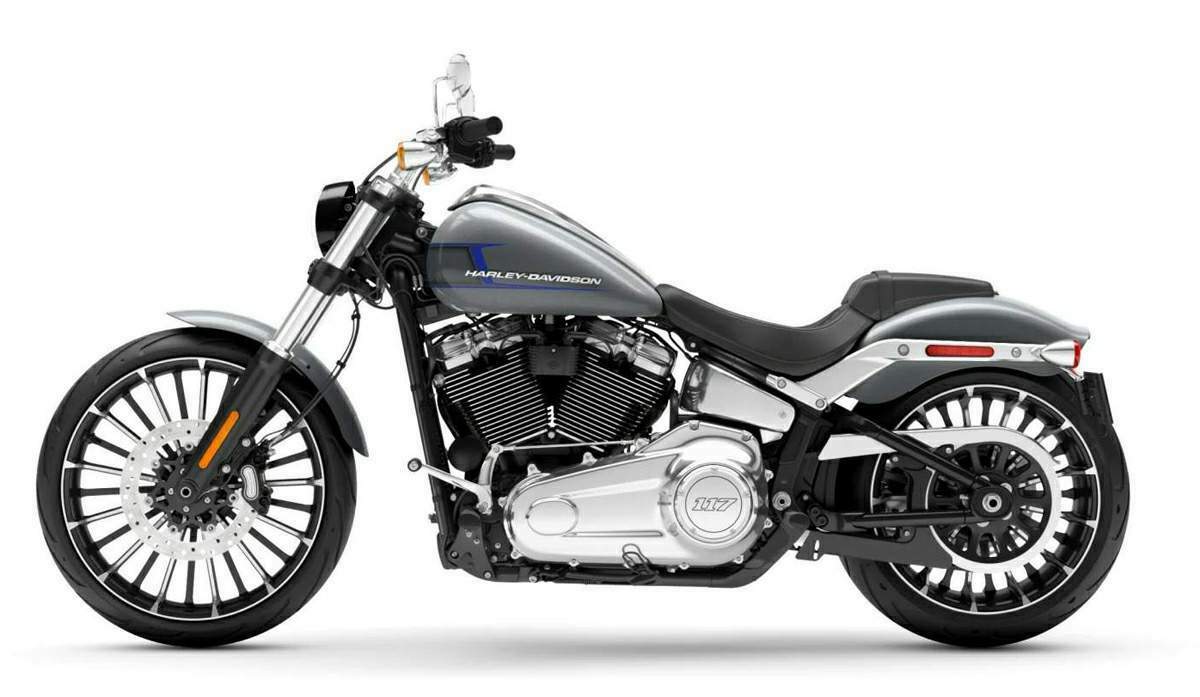

2023 Harley Davidson Softail Breakout 117

Make Model	Harley Davidson Softail Breakout 117
Year	2023
Engine	Four stroke, V-Twin, Milwaukee-Eight 117, pushrod-operated, overhead valves with hydraulic self-adjusting lifters, 4 valves per cylinder
Capacity	1923 cc / 117cu-in
Bore x Stroke	103.5 x 114 mm
Cooling System	Air cooled
Compression Ratio	10.2:1
Exhaust	2-into-2 staggered; catalyst in muffler
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication	Pressurized, dry-sump with oil cooler
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starting	Electric
Max Torque	169 Nm / 124.6 lb-ft @ 3500
Clutch	Mechanical, 10 plate wet, assist & conventional
Transmission	6 Speed
Primary Drive	Chain, 34/46 ratio
Final Drive	Belt, 32/66 ratio
Gear Ratio	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79
Frame	Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Swingarm	Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer
Front Suspension	Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Front Wheel Travel	130 mm / 5.1 in
Rear Suspension	Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
Rear Wheel Travel	86 mm / 3.4 in
Front Brakes	Single 300mm disc, 4 piston fixed caliper
Rear Brakes	Single 292mm disc, 2 piston floating caliper
ABS	Standard
Wheels	Gloss black, 26-spoke cast aluminum
Front Tyre	130/60B21,63H,BW
Rear Tyre	240/40R18,79V,BW
Rake	34°
Trail	145 mm / 5.7 in
Dimensions	Length: 2370 mm / 93.3 in Width 950 mm / 37.4 in Height 1085 mm / 42.7 in
Wheelbase	1695 mm / 66.7 in
Ground Clearance	115 mm / 4.5 in
Seat Height Unladen	665 mm / 26.2 in
Seat Height Laden	650 mm / 25.6 in
Dry Weight	296kg / 653 lbs
Wet Weight	310 kg / 683 lbs
Fuel Capacity	18.9 Litres / 5 US gal

From a press release issued by Harley Davidson:

2023 Breakout™ Wake up your senses while stealing glances.

The Breakout® model returns to the North America model line, flexing more muscle and flashing bright new styling over its long-and-lean chopper profile. The muscle is provided by the Milwaukee-Eight® 117 V-Twin engine, the pinnacle of torque and displacement in a factory-installed, regular-production Harley-Davidson® powertrain that gives the Breakout rider instant bragging rights on the street. New for 2023, the bike has a five-gallon fuel tank topped with a low-profile chrome console shaped to lengthen the motorcycle profile and extend riding range. Also, a new handlebar riser and polished stainless steel handlebar is ¾-inch taller for improved rider reach to controls.

KEY FEATURES

BRIGHT NEW LOOK
Chrome Finishes: Fender supports, side covers, muffler shields, turn signals, mirrors, Heavy Breather intake.

CHASSIS
An improvised Harley-Davidson Softail chassis reduces weight without sacrificing stiffness while maintaining the classic look of a hard tail.

RESHAPED SEAT
A new shape to the seat helps accommodate the 5-gallon fuel tank.

2-INTO-2 EXHAUST
High-performance 2-into-2 offset shotgun exhaust for smooth and broad exciting mid-range torque with a stirring tone.

WHEELS
26-spoke cast aluminum wheels; Gloss Black finish with machined details; 21-inch front/18-inch rear diameter.

OBSCENE PERFORMANCE

MILWAUKEE-EIGHT 117 V-TWIN ENGINE
Get instant bragging rights on the street with this precision air/oil cooled engine that is the new pinnacle of torque and displacement in factory-installed, regular-production Harley-Davidson powertrains.

HEAVY BREATHER
High-performance, tuned Heavy Breather intake with forward-facing exposed filter element flows more air into the engine to help produce exciting mid-range torque, and gives the motorcycle added hot rod presence.

Colour Options:
- Vivid Black
- Black Denim
- Baja Orange
- Atlas Silver Metalic
