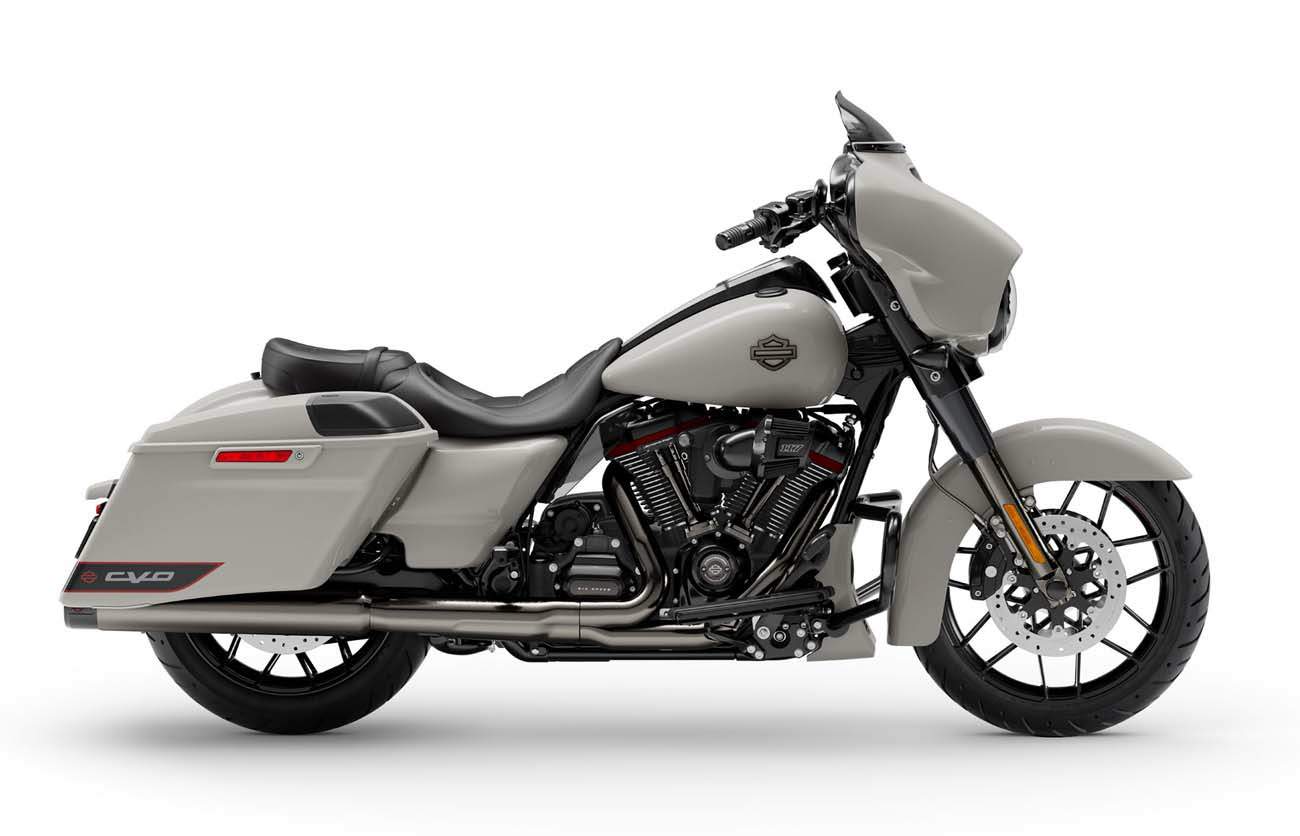

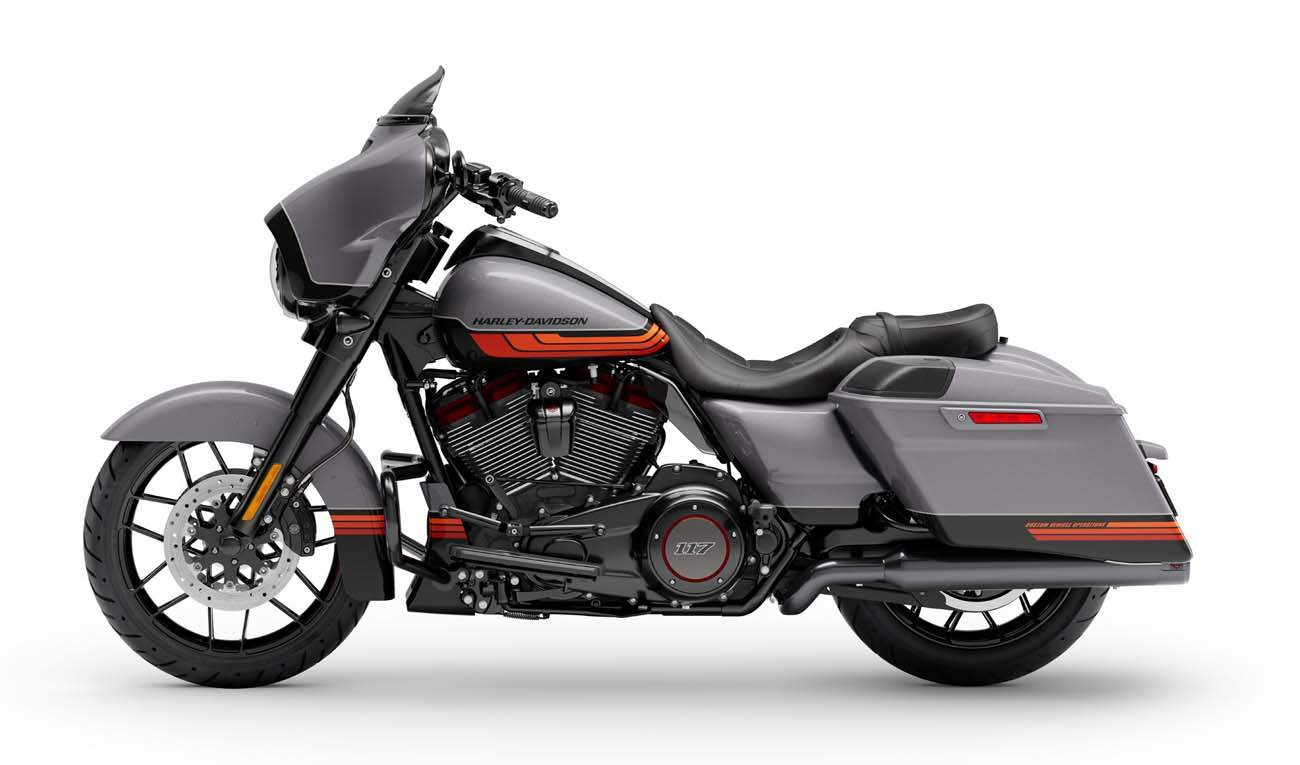

Harley Davidson CVO Street Glide

.

Make Model

Harley Davidson CVO Street Glide

Year

2020

Engine

Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder

Capacity

1923 cc / 117 cu-in
Bore x Stroke 103.5 X 114.3 mm
Cooling System Air cooled
Compression Ratio 10.2:1
Exhaust Dual, with crossover

Induction

Electronic Sequential Port Fuel Injection

Lubrication Pressurized, dry-sump with oil cooler
Exhaust Dual, with crossover

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

169 Nm / 124.6 lb-ft @ 3500 rpm

Transmission

6 Speed
Primary Drive Chain, 34/46 ratio
Final Drive Belt
Gear Ratio 1st 9.593  2nd 6.65  3rd 4.938  4th 4  5th 3.407  6th 2.875
Frame Mild steel, square-section backbone with twin downtubes

Lean Angle, Left

31º

Lean Angle, Right

32º

Front Suspension

Showa dual bending valve front suspension

Rear Suspension

Emulsion rear suspension with hand-adjustable pre-load

Front Brakes

Caliper Type 32 mm, 4-piston fixed

Rear Brakes

Caliper Type 32 mm, 4-piston fixed
Wheels Optional Style Type Charcoal Gray Fugitive
Front Wheel Gloss Black and Contrast Chrome Talon
Rear Wheel Gloss Black and Contrast Chrome Talon

Front Tyre

130/60B19 61H

Rear Tyre

180/65B16 80H

Rake 26°
Trail 170 mm / 6.7 in
Dimensions Length 2435 mm / 95.9 in
Seat Height 695 mm / 27.1 in
Wheelbase 1625 mm / 64.0 in
Ground Clearance 130 mm / 5.1 in
Dry Weight 377 kg / 831 lbs

Wet Weight

393 kg / 866 lbs

Oil Capacity

4.7 Litres / US 5 qts

Fuel Capacity

22.7 Litres / US 6.0 gal
.

The pinnacle of the custom touring look taken to the edge and loaded with power. No corners were cut, no shortcuts were taken. We sweat every detail and then polished it like a jewel. Get the power of the Milwaukee-Eight 117 V-Twin engine, red rocker covers, premium custom paint, premium Talon wheels and custom controls, all-new BOOM! Box GTS infotainment with 3 separate amplifiers, 75 watts per channel and 900 watts of clear audio performance on the CVO Street Glide. There’s a wireless headset interface that lets you use your Bluetooth headset to communicate with infotainment system, passenger and other riders. Keep your bike safe and sound and always ready to go with the smartphone-linked H-

D Connect.

The pinnacle of the custom touring look taken to the edge and loaded with power. No corners were cut, no shortcuts were taken. We sweat every detail and then polished it like a jewel.

CVO Model: The Pinnacle of Harley-Davidson Style and Design

The new CVO™ Tri Glide® model joins the CVO™ Limited and CVO™ Street Glide® models in the portfolio of limited-production, super-premium CVO motorcycles for 2020. Created for discerning customers, CVO models offer show-stopping finishes, advanced technology, exclusive components and attention to detail that borders on obsessive, engineered and assembled to factory-quality standards and backed by the Harley-Davidson® warranty. The Milwaukee-Eight® 117 powertrain – the most displacement and power offered from the H-D factory – is exclusive to CVO models.

Since its creation in 1999, the Harley-Davidson Custom Vehicle Operations™ program has created exclusive motorcycle models for the most-discerning customers, often using finishes, materials, technology and accessories that are only available on a CVO model. The Milwaukee-Eight® 117 powertrain – the most displacement and power offered from the H-D factory – is exclusive to CVO models.

The CVO Street Glide model is a pavement-hugging, premium hot rod bagger that combines muscular performance, insane custom detailing and an outrageous audio system.

New features of the 2020 CVO Street Glide model include:

Fugitive cast aluminum wheels
Low-profile two-piece fuel tank console
Heavy Breather air cleaner with two paint treatments
Smoked mid-frame air deflectors
Billet fairing-mount mirrors

There are three new paint/styling options available for the 2020 CVO Street Glide model:

Black Stardust Fade to Stormcloud with subtle graphic treatment highlighted by Satin Chrome and Bright Chrome finishes. Fugitive wheels finished in Gloss Black/Satin. Ventilator air cleaner.
Smokey Gray and Black Hole with new 1970s/race-inspired graphics highlighted by Gloss Black, Satin Black and Black Onyx finishes. Fugitive wheels finished in Denim Black/Gloss Black. Gloss Black Heavy Breather air cleaner.
Premium Sand Dune monotone finish with pearl topcoat and subtle graphics highlighted by Smoked Satin Chrome, Gloss Black and Black Onyx finishes. Fugitive wheels finished in Gloss Black/Smoked Satin. Gloss Black Heavy Breather air cleaner.

H-D™ Connect Service**: Standard on all 2020 CVO models, the H-D Connect service introduces subscription-based cellular connectivity to equipped Harley-Davidson motorcycles to keep riders connected to their motorcycle through their smart phone using the latest version of the Harley-Davidson® App.

Reflex™ Defensive Rider Systems (RDRS): Standard equipment on all 2020 CVO models, RDRS is a new collection of technology designed to match motorcycle performance to available traction during acceleration, deceleration and braking, utilizing the latest chassis control, electronic brake control and powertrain technology.

Daymaker Adaptive LED Headlamp: Standard on the CVO Limited and CVO Street Glide models, the Daymaker Adaptive headlamp features patented sensors and electronics integrated into the headlamp control 12 additional LED lights that activate based on the lean of the bike to project light into corners, illuminating areas of the road that are unlit by traditional LED headlamps. The adaptive light feature works in both the high- and low-beam functions. The projector-style LED beam pattern is focused on the road ahead and is engineered to reduce wasted light that can impact oncoming traffic. A signature LED light outer ring operates as a position lamp.

Wireless Headset: All 2020 CVO models are shipped a single Boom!™ Audio 30K Bluetooth® Helmet Headset designed for cordless interface with the Boom!™ Box GTS infotainment system. This new headset features Mesh Intercom™ Network wireless communication technology –. The protocol automatically connects to a number of riders while in public mode.The headset can connect with up to 16 riders in private mode up to 5 miles (8.05 km), and enables the same functions as a wired headset (CB, phone, navigation prompts, radio and audio, with voice commands) and fulfills the Apple Car Play microphone requirement for the Boom! Box GTS. A Quick Charge feature can provide up to five hours of additional talk time with a 20-minute charge.

PREMIUM BOOM!™ AUDIO

CVO Street Glide model: Boom! Box GTS infotainment system with four Boom! Stage II bi-amplified three-way speakers, 150 watts RMS power handling per speaker; each pair of speakers is powered by its own 4-channel, 300-watt amplifier for 600 watts of total power – an outrageous Harley-Davidson® audio system designed to surround the rider in rich, clear sound.

CVO Limited model: Boom! Box GTS infotainment system with four Boom! Stage I two-way speakers (located in fairing and Tour-Pak luggage carrier), powered by a single, 4-channel, 300-watt RMS amplifier.

CVO Tri Glide model: Boom! Box GTS infotainment system with four Boom! Stage I 2-way speakers (located in fairing and Tour-Pak luggage carrier), powered by a single, 4-channel, 300-watt RMS amplifier.

EXCLUSIVE MILWAUKEE-EIGHT 117 ENGINE POWER

The largest-displacement factory-installed engine available from Harley-Davidson, the Milwaukee-Eight 117 engine (117 CID; 1923cc) is rated at 125 ft. lbs. of torque.

A high-performance camshaft is matched to displacement and air flow
A high-performance intake flows more air into the engine
