Harley Davidson CVO Limited

.

Make Model

Harley Davidson CVO Limited

Year

2018

Engine

Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder

Capacity

1923 cc / 117 cu-in
Bore x Stroke 103.5 X 114.3 mm
Cooling System Air cooled
Compression Ratio 10.2:1
Exhaust Dual, with crossover

Induction

Electronic Sequential Port Fuel Injection

Lubrication Pressurized, dry-sump with oil cooler

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

169 Nm / 124.6 lb-ft @ 3500 rpm

Transmission

6 Speed
Primary Drive Chain, 34/46 ratio
Final Drive Belt
Gear Ratio 1st 9.593  2nd 6.65  3rd 4.938  4th 4  5th 3.407  6th 2.875

Lean Angle, Left

33.4º

Lean Angle, Right

34.3º

Front Suspension

Showa dual bending valve front suspension

Rear Suspension

Emulsion rear suspension with hand-adjustable pre-load

Front Brakes

Caliper Type 32 mm, 4-piston fixed

Rear Brakes

Caliper Type 32 mm, 4-piston fixed
Front Wheel Gloss Black and Contrast Chrome Slicer
Rear Wheel Gloss Black and Contrast Chrome Slicer

Front Tyre

130/80B17 65H

Rear Tyre

180/65B16 81H

Rake 26°
Trail 170 mm / 6.7 in
Dimensions Length 2600 mm / 102.4 in
Wheelbase 1625 mm / 64.0 in
Seat Height 760 mm / 29.9 in
Ground Clearance 125 mm / 4.9 in
Dry Weight 411 kg / 906 lbs

Wet Weight

428 kg / 944 lbs

Oil Capacity

4.7 Litres / US 5 qts

Fuel Capacity

22.7 Litres / US 6.0 gal

The CVO Limited offers best-in-class power, BOOM!™ Box 6.5 GT infotainment, show-stopping paint and premium comfort. It is powered by the refined Twin-Cooled™ Milwaukee-Eight® 117 engine, with handling enhanced by dual bending valve front suspension and emulsion rear suspension with hand-adjustable preload. Equipment includes a colour-matched split-stream air vent, and Tour-Pak® carrier LED bezel, LED indicators and LED lighting surround. You also get a custom seat cover, insert and stitching you can’t get anywhere else, as well as a pair of wireless headsets, an integrated security system with a power-locking fob. It’s all here, right down to a system that monitors the pressure in your tires.

This is what happens when Grand American Touring arrives at the very top of the mountain of comfort and style. Power, custom features and premium audio for the rider who wants it all.

NEW FOR 2018
Premium heated hammock seats
Remote locking luggage
Wireless headsets with Wireless Headset Interface Module

ONE WITH EVERYTHING PLEASE, TO GO

Milwaukee-Eight® Twin-Cooled 117 Engine
The most powerful V-Twin engine ever offered from the factory, and only available in CVO™. Features color accented Rocker Box Lowers with deep orange finish.

Custom Touring Style
Features custom, limited-edition finishes and a luxurious, super-premium paint scheme.

High-Performing Front and Rear Suspension
Showa® dual bending valve front suspension and emulsion rear suspension with hand-adjustable pre-load put you in control of a plush ride.

Color-Matched Split-Stream Air Vent
Opens and closes with the push of a button for smooth air-flow and features custom, limited edition finishes for a bold look that’s all your own.

LED Turn Signals and LED Lighting Surround
Attention-grabbing light all around your ride, from the headlight to taillight to turn signals, so you can see and be seen.

Integrated Security System with a Power Locking Fob
A next-generation security system featuring a hands-free fob that locks and unlocks your machine, your luggage plus automatically arms and disarms its electronic security functions as you approach and walk away from the bike.

Premium Heated Hammock Seats
A custom seat with leather inserts and heated seats for a luxurious riding experience, both for the rider and their passenger.

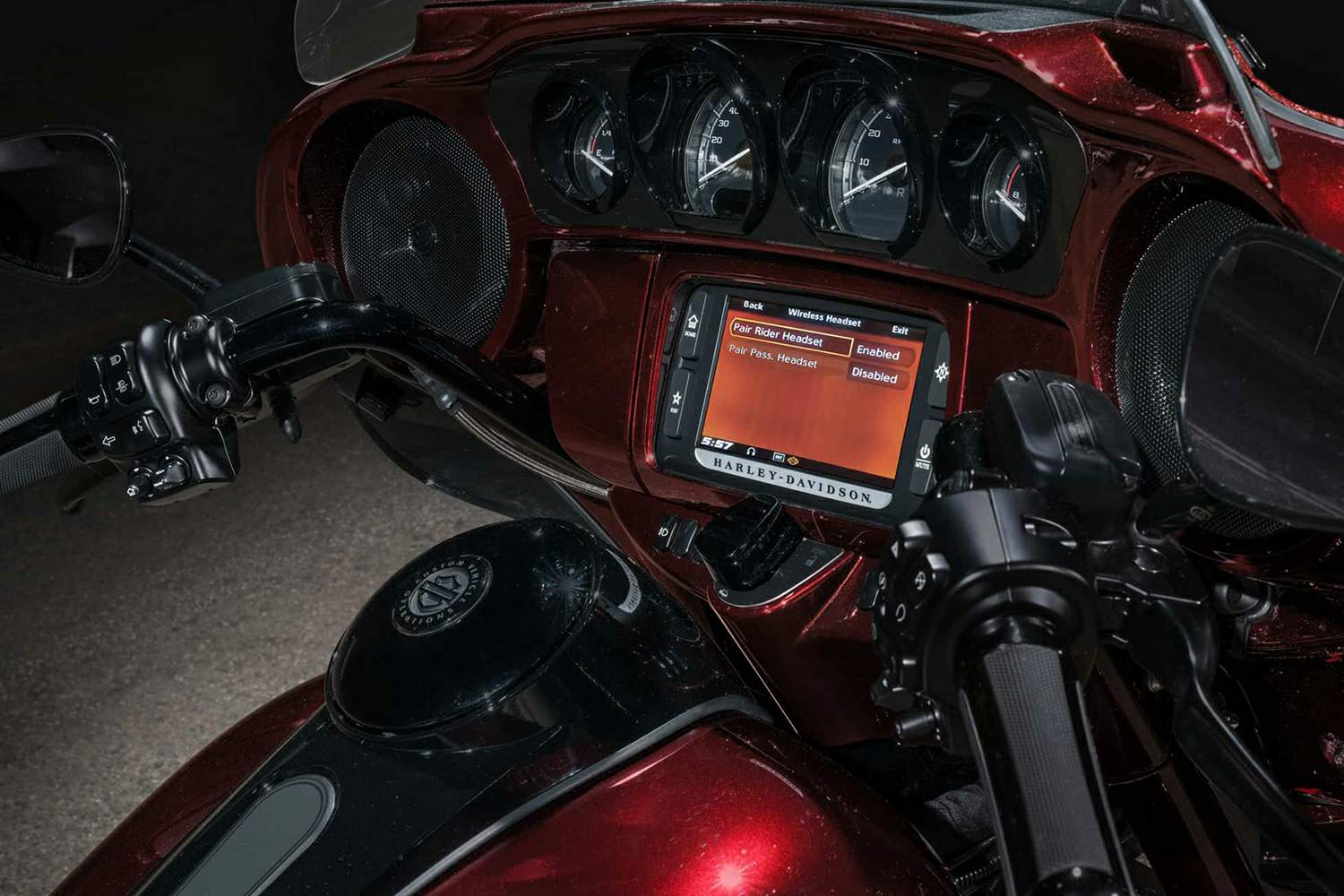

Two Wireless Headsets with Wireless Headset Interface Module
Call hands-free on your Bluetooth® mobile phone, listen to stereo music or voice instructions of GPS navigations, and have intercom conversations with your passenger or fellow riders.

Reflex™ Linked Brembo® Brakes with Standard ABS
The front and rear brakes are electronically linked to provide exactly the right amount of brake to each tire no matter the road condition. No matter how good you are, this will make you a better rider.

Three New CVO Models Feature Largest-Ever Stock Engine Displacement

The 2018 Harley-Davidson Motorcycle line-up introduces the most robust array of custom Touring bikes the company has ever produced, boasting show-stopping style and plush comfort ready to attack rough city streets or winding country roads. Three new completely restyled Touring models enter the limited-edition Custom Vehicle Operations™ family with the largest-ever stock engine from Harley-Davidson, while new Street Glide® Special and Road Glide® Special models get sinister, blacked-out styling.

“Our new Touring motorcycles will be some of our most sought-after bikes in 2018,” said Harley-Davidson Vice President of Product Planning and Portfolio Management, Dave Foley. “For CVO, we’ve rebooted the styling tone of the overall line-up and added some exclusive performance enhancements. And our two new custom baggers are the most aggressive, on-trend Touring bikes in the market. I can’t wait for riders to throw a leg over and experience the new rides for themselves.”

The CVO tradition of giving customers the ultimate in Harley-Davidson styling, innovation and performance continues in 2018 with the CVO Limited, the CVO Street Glide and the CVO Road Glide models. Each model offers its owners a fully customized, limited-edition motorcycle straight from the factory with a two-year unlimited warranty.

Starting with the largest stock engine displacement ever offered by the Motor Company, and available only in CVO models, all three bikes have upgraded Screamin’ Eagle® power and exclusive bragging rights with the Milwaukee-Eight® engine in a new 117-cubic-inch displacement, rated at up to 125 ft. lbs. of torque.

CVO models are limited in number and this year’s models feature some of the most distinctively crafted paint offerings the company has ever designed and produced. Also new for all three CVO models is an advanced integrated communication technology that features a wireless headset interface module. Customers can use the included Bluetooth® headset to communicate with the motorcycle Infotainment system, their passenger and other riders.

“The level of fit, finish and performance of CVO has never been higher,” added Foley. “CVO owners will appreciate the intricate details like the new color trim on the rocker box lowers that marks the CVO engine’s exclusivity. It features a deep orange finish specially developed for placement on the engine that is unique in the motorcycle industry.”

“The new direction our Styling department took with the design formula on the bikes is truly seismic,” added Harley-Davidson Vice President of Styling and Design, Brad Richards. “Take a look at the level of finish on any of the nine CVO paint sets, but especially the Fade on the CVO Limited, the depth of the paint layers and how it glows in the sunlight is just stunning.”
