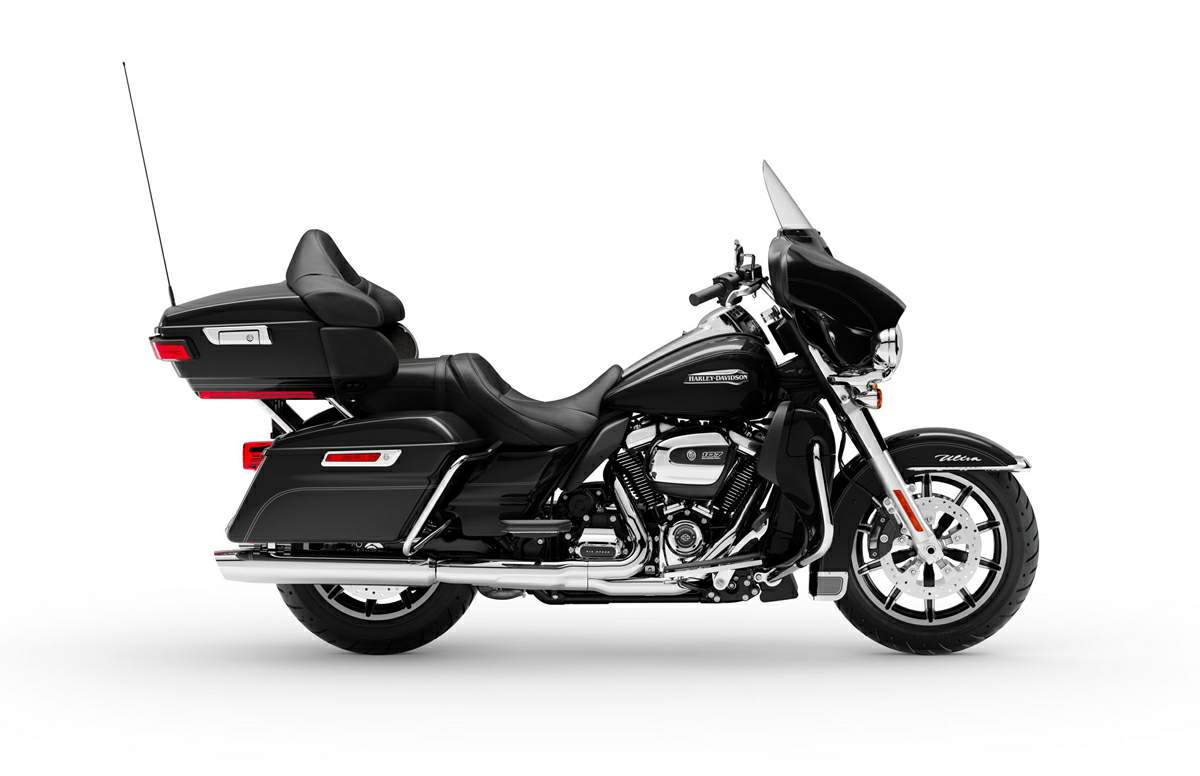

Harley Davidson FLHTCU Ultra Classic Electra Glide 2017

Make Model	Harley Davidson FLHTCU Electra Glide Ultra
Year	2019
Engine	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity	1746 cc / 107 cub in
Bore x Stroke	100 x 111 mm / 3.937 x 4.374 in
Cooling System	Air cooled
Compression Ratio	10.0:1
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication	Pressurized, dry-sump with oil cooler
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starting	Electric
Max Torque	154 Nm / 113.6 lb-ft @ 3250 rpm
Clutch	Multi-plate, wet
Transmission	6 Speed
Primary Drive	Chain, 34/46 ratio
Final Drive	Belt
Gear Ratio	1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Frame	Mild steel, square-section backbone with twin downtubes
Lean Angle, Left	31.8º
Lean Angle, Right	31.9º
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Short, air-adjustable shock
Front Brakes	2 x 292mm disc, 4 piston caliper
Rear Brakes	Single 292mm disc, 4 piston caliper
Wheels, Front and Rear	Impeller, cast aluminium
Front Tyre	130/80B17 65H
Rear Tyre	180/65B16 81H
Rake	26°
Trail	170 mm / 6.7 in
Dimensions	Length 2593 mm / 102.1 in
Wheelbase	1625 mm / 64 in
Ground Clearance	139 mm / 5.5 in
Seat Height	Unladen 740 mm / 29.1 in Laden 696 mm / 27.4 in
Gross Vehicle Weight Rating	616.89 kg / 1360 lbs
Dry Weight	390 kg / 860 lbs
Wet Weight	406 kg / 894 lbs
Oil Capacity	4.9 Litres / 5.2 US qts
Fuel Capacity	22.7 Litres / 6.0 US gal

Classic style meets the passing power of the Milwaukee-Eight® 107 engine, responsive front and rear suspension, Reflex™ linked Brembo® brakes with ABS, and a powerful LED headlight and spot lamps on the Electra Glide® Ultra Classic. Comfort is unsurpassed, thanks to a two-up seat with a deep bucket and a luxurious passenger area with back and arm rests.

It’s the essential two-up long-haul touring machine. Classic style, unsurpassed comfort, and the passing power of the Milwaukee-Eight® 107 engine.

There’s a wide-open world to experience out there. We’ve been building the motorcycles to help you discover it in the most epic way possible since we invented the fully dressed touring machine in the 1960’s. Entire continents; and all the mountain ranges, canyons, glaciers, small towns, deserts, cities, roadside attractions, adventures, and stories they contain; are yours for the taking in the saddle of a Harley-Davidson® Touring machine. no one builds them better.

Harley Davidson FLHTCU Electra Glide Ultra
