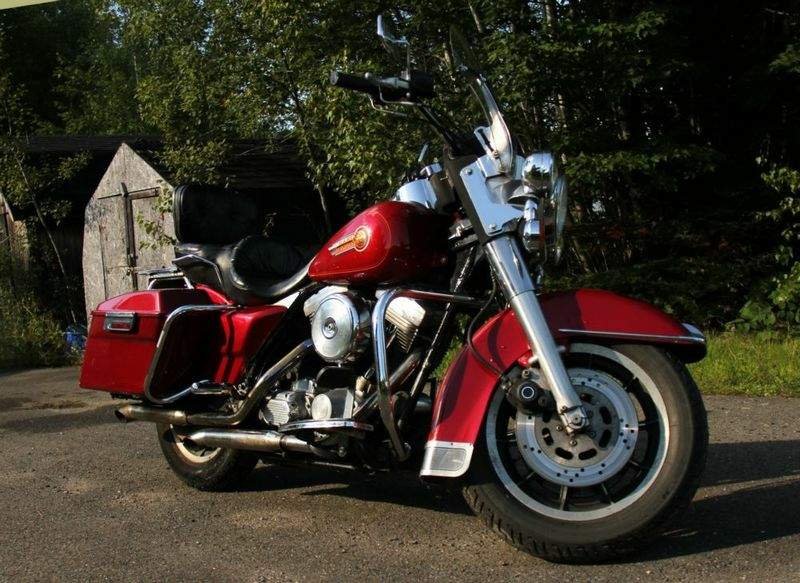

Harley Davidson FLHS 1340 Electra Glide

.

Make Model

Harley Davidson FLHS 1340 Electra Glide

Year

1993

Engine

Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.

Capacity

1337 cc / 81.5 cu-in
Bore x Stroke 88.8 x 108.0 mm
Cooling System Air cooled
Compression Ratio 8.5:1

Induction

40mm Keihin CV carburetor

Ignition  /  Starting

Single-fire, non-wasted, map-controlled spark ignition

Max Power

54 hp / 40.2 kW @ 5000 rpm

Max Torque

82.5ftlb

Transmission

5 Speed
Final Drive Belt

Front Suspension

Telescopic forks

Rear Suspension

Dual shocks

Front Brakes

2x 292mm discs 4 piston calipers

Rear Brakes

Single 292mm disc 4 piston caliper

Front Tyre

90/90-16

Rear Tyre

150/85-16

Dry Weight

332 kg / 710 lbs

Fuel Capacity

18.9 Litres / 4.5 US gal
