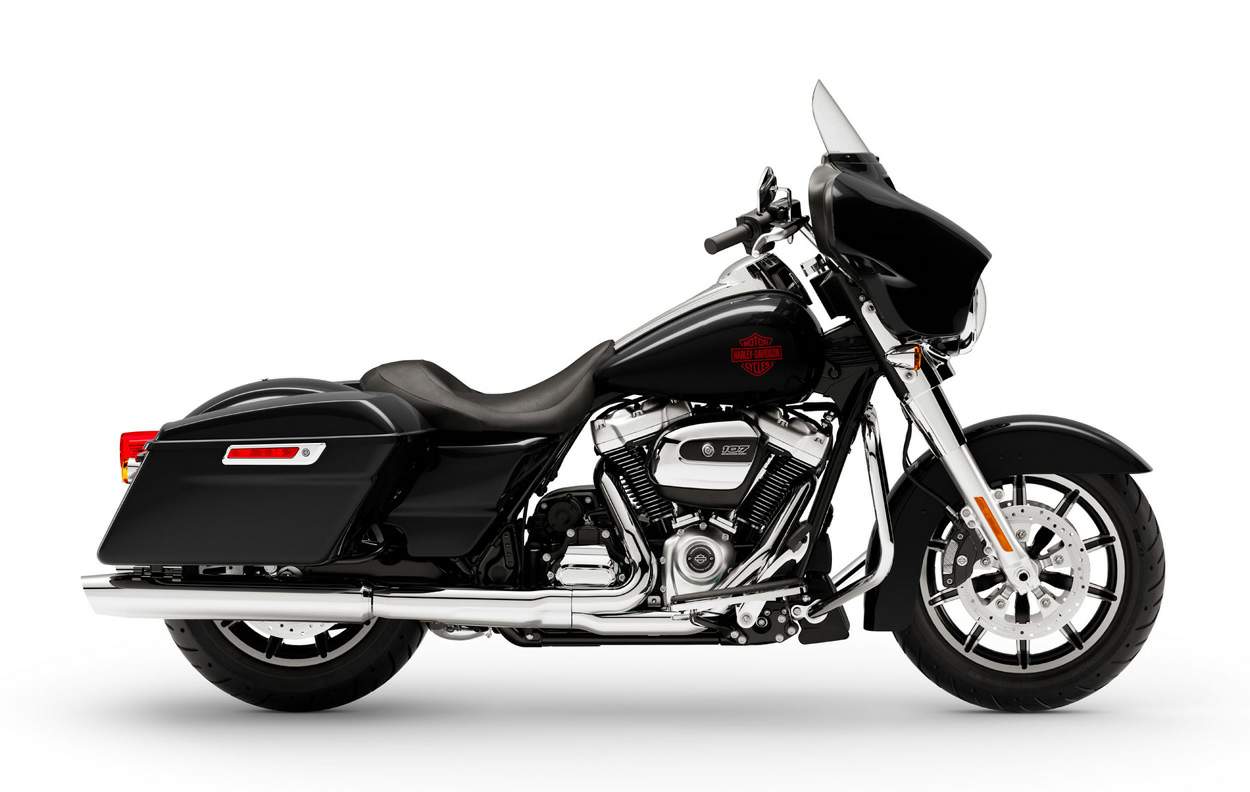

Harley Davidson Electra Glide Standard

Make Model	Harley Davidson Electra Glide Standard
Year	2019 - 20
Engine	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity	1746 cc / 107 cub in
Bore x Stroke	100 x 111 mm / 3.937 x 4.374 in
Cooling System	Air cooled
Compression Ratio	10.0:1
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication	Pressurized, dry-sump with oil cooler
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starting	Electric
Max Torque	150 Nm / 110.6 lb-ft @ 3250 rpm
Clutch	Multi-plate, wet
Transmission	6 Speed
Primary Drive	Chain, 34/46 ratio
Final Drive	Belt
Gear Ratio	1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Frame	Mild steel, square-section backbone with twin downtubes
Lean Angle, Left	29º
Lean Angle, Right	31º
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Short, air-adjustable shock
Front Brakes	2 x 292mm disc, 4 piston caliper
Rear Brakes	Single 292mm disc, 4 piston caliper
Wheels, Front and Rear	Impeller, cast aluminium
Front Tyre	130/80B17 65H
Rear Tyre	180/65B16 81H
Rake	26°
Trail	170 mm / 6.7 in
Dimensions	Length 2400 mm / 94.5 in
Wheelbase	1625 mm / 64 in
Ground Clearance	120 mm / 4.7 in
Seat Height	Unladen 680 mm / 26.8 in
Gross Vehicle Weight Rating	616.89 kg / 1360 lbs
Dry Weight	354 kg / 780 lbs
Wet Weight	372 kg / 820 lbs
Oil Capacity	4.9 Litres / 5.2 US qts
Fuel Capacity	22.7 Litres / 6.0 US gal

Powered by the muscular Milwaukee-Eight^™ 107 engine, the new Electra Glide Standard is a “Dressed down Dresser” that provides a raw, fundamental riding experience inspired by Harley-Davidson’s Grand American Touring roots.

Designed for the traditional touring customer, the Electra Glide Standard is for the rider seeking to disconnect from all the noise of the day-to-day through riding. No screens, simply a motorcycle that provides and heightens the experience of the journey. This fundamental experience is a key element in the design and engineering of the Electra Glide Standard.

The Electra Glide Standard features essential Harley-Davidson styling elements such as the iconic batwing fairing, chrome trim, standard saddle bags, and cast aluminum wheels. Chrome accents are added in high-impact design areas and complemented by polished rocker, cam and derby covers and select blacked out components – a blend of traditional elements and modern trends.

“To express the stripped-back essence of the Electra Glide Standard we focused on finishes that were simple, timeless, and fundamental to the Harley-Davidson’s touring line. Chrome was added to key components and complimented by polished and blacked out parts, said Harley-Davidson’s Vice President of Styling & Design Brad Richards. “The rocker, cam, and derby covers are finished with chrome to emphasize the V-Twin shape of the Milwaukee-Eight 107 engine. In addition, they add a dose of nostalgia that draws a through-line all the way back to the first Electra Glide.”

To provide a raw touring motorcycle experience without riding compromises, the Electra Glide Standard features all the latest ride and handling technology of Harley-Davidson’s Touring line such as standard electronic cruise control, hand-adjustable emulsion-technology rear shock absorbers, 49mm front forks with Showa dual bending valve suspension, and Brembo brakes with optional Reflex Linked and ABS features.

A central part of the riding experience, and a highlight of the Electra Glide Standard, is its Milwaukee Eight 107 cu. in. V-twin engine that features sleek, modern styling that respects the heritage of previous Harley-Davidson big twin engines.

In the Electra Glide Standard, the Milwaukee Eight provides the performance and riding benefits that riders the world over regard and appreciate with quick throttle response, plenty of passing power, and the iconic Harley-Davidson big twin sound.

The Electra Glide Standard is a showcase of an aspect of Harley-Davidson’s More Roads promise to continue to lead the heavyweight Touring segment with compelling products that inspire more riders to fully engage in the sport of motorcycling.
