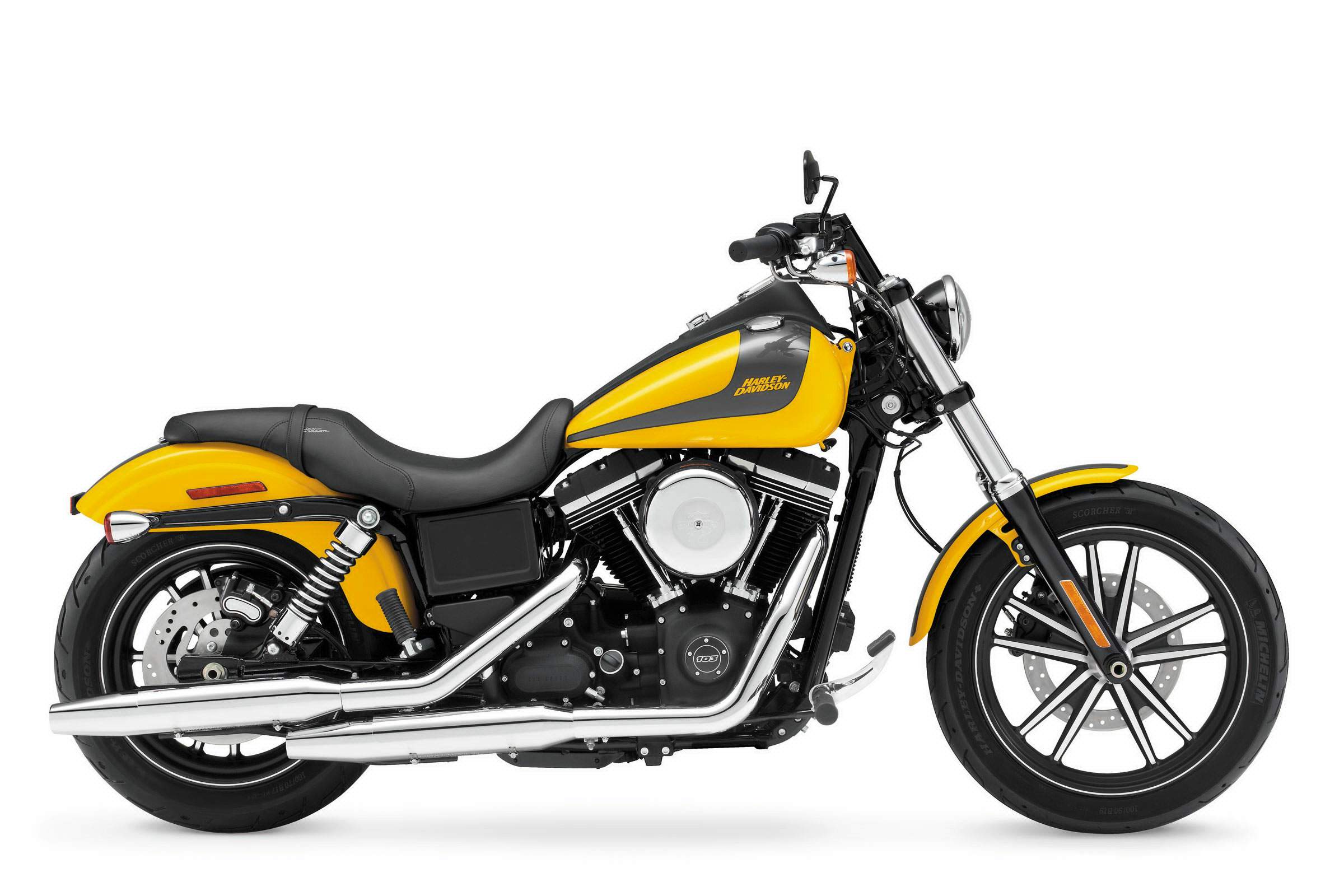

Harley Davidson Dyna Street Bob

.

Make Model

Harley Davidson Dyna Street Bob

Year

2013

Engine

Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder

Capacity

1584 cc / 96 cu-in
Bore x Stroke 95.3 x 111.1 mm
Cooling System Air cooled
Compression Ratio 9.2:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

124.7 Nm / 92 ft/ lbs. @ 3000 rpm

Transmission

6 Speed
Final Drive Belt
Primary Drive Chain, 34/46 ratio
Gear Ratio 1st 9.311   2nd 6.454   3rd 4.793   4th 3.882   5th 3.307   6th 2.79
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded

Front Suspension

49 mm with polished aluminum fork triple clamp and dual-rate springs,

Rear Suspension

Coil over shock ,

Front Brakes

Single 300mm disc 4 piston caliper

Rear Brakes

Single 292mm disc 2 piston caliper

Front Tyre

100/90-19 57H

Rear Tyre

160/70-17 73V
Rake 29°
Trail 120 mm / 4.7 in
Dimensions Length  2357 mm / 92.8 in
Width  953 mm / 37.5 in.
Height  1280 mm / 50.4 in
Wheelbase 1630 mm / 64.2 in
Seat Height Laden   648 mm / 25.5 in.
Unladen  678 mm / 26.7 in.
Gross Vehicle Weight Rating 492.2 kg / 1085 lbs

Wet Weight

302.6 kg / 667 lbs.
Oil Capacity 2.8 Litres

Fuel Capacity

17.8 Litres / 4.7 gal

The Harley-Davidson® Street Bob® is restyled for 2013 as a stripped-down and rowdy bobber based on the Harley-Davidson® Dyna® platform to capture the pure essence of motorcycling; a brawny American V-Twin engine powering a bike with essential equipment and not much more. The Street Bob also serves as a great starting point for the rider intent on personal customization, which is now why it can also be personalized through H-D1™ factory customization. This web-based program allows customers to select factory-installed options that personalize fit, function and style in more than 2,000 combinations. New styling features include a black Twin Cam 96™ powertrain with highlighted details, blacked-out front end, clean rear fender with combination stop/tail/turn lighting and side-mount license plate, a round air cleaner and new scallop graphics in a two-tone paint option.

"Our focus for the Street Bob® model is always on street appeal," said Harley-Davidson Styling Manager, Tony Pink. "This bike is for the owner who would order a muscle car with the biggest motor and no radio. As part of this restyle, we cleaned off the rear fender, ditched the battery box trim, and bolted on a classic round air-cleaner cover. The goal is to create the elemental Big Twin that a Customer can define as his own. Then we selected an array of options for H-D1TM that allow the owner to take the Street Bob® [model] in many different stylistic directions."

The defining elements of the Street Bob® model are retained for 2013 - a solo seat, chopped rear fender, and mini ape-hanger handlebar give this motorcycle an unmistakable profile. New styling features include a black Twin Cam 96TM powertrain with highlighted details, blacked-out front end, chopped rear fender, a round air-cleaner, and new scallop graphics in a two-tone paint option.

NEW Can be personalized through H-D1™ Factory Customization
NEW Blacked out triple clamps, powertrain, and battery box
NEW Full-length wrinkle-black cast console with integrated ignition
NEW Clean chopped rear fender with side mounted license plate and stop/turn/tail lights
NEW Round nostalgic air cleaner cover with Bar and Shield logo
NEW Rubber-isolated handlebar risers with forged top clamp for reduced vibration and simplified customization
NEW Available Hard Candy Big Red Flake paint
NEW Tank medallion or optional scallop two tone paint

• Michelin® Scorcher® tires
• All-black powertrain
• Chrome exhaust with dual straight-cut staggered shorty mufflers
• 4.7-gallon Street Bob® fuel tank
• Black Steel Laced wheels
• Chopped rear fender without support covers
• Solo seat
• Stainless steel, internally-wired mini apehanger handlebar
• Wrinkle-black battery box and belt guard
• Street Bob® air-cleaner trim ring

Stripped down to the bare essentials, and as “naked” as the law allows, the Street Bob® model goes right to the heart of riding with
no distractions along the way. Inspired by the minimalist roots of the bobber scene, the Street Bob features a mini ape-hanger handlebar, Fat Bob® fuel tank, solo seat, mid-mounted foot controls and a big, black Twin Cam 96™ engine.

The combination stop/tail/turn lighting and side-mounted license plate keep the chopped rear fender clean and smooth. The Street Bob can be personalized through H-D1™ Factory Customization, the web-based program that allows customers to select factory-installed options that personalize fit, function and style in more than 2,000 combinations.

• Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI), rated at 92 ft. lbs. of torque

• 6-speed Cruise Drive® transmission
• Exposed under-seat battery box
• Exposed rear coil-over shock absorbers
• Mid-mounted rider footpegs with brake and shift levers
• Optional Harley-Davidson® Smart Security System with hands-free security fob and Anti-lock Braking System (ABS)

H-D1™ Factory Customization

Make it yours from the start. Now with H-D1™ factory customization, your personalized Street Bob® motorcycle is built just for you from the Harley-Davidson factory. It's easy: use the online H-D1™ Bike Builder tool to configure a bike that fits your style and personality. Select from extended paint offerings and genuine H-D engines, wheels, seats, handlebars, footpeg positions and security. Bring your plan to your Harley-Davidson dealer for consultation and to place your order. Our employees go to work, building your motorcycle, according to your design, and in about 4 weeks* your masterpiece will be ready for you at your dealer.

New Black Out Styling

You demanded it and we heard you. We’ve re-imagined the Street Bob® motorcycle for 2013, stripping it back to its roots with a classic, essential bobber style and massive amounts of black finish: gloss black front end triple clamps, textured black console, blacked out powertrain with textured covers. It's an aggressive, unpolished street attitude that pulls no punches and delivers only what you need, nothing you don’t.

Hard Candy Custom™ Paint Color (Optional)

New for 2013, Hard Candy Custom™ paint is a large metal flake finish that’s more than just paint job, it’s a shining declaration of independence—bright, bold and unique. The Dyna® Street Bob® model is available in Hard Candy Big Red Flake (or, through H-D1™ Factory Customization, in Hard Candy Lucky Green Flake, Hard Candy Coloma Gold Flake, or Hard Candy Big Red Flake with Waterslide graphics.)

Recalling the iconic rebel styling of ‘70s custom bikes, Hard Candy Custom™ paint marks another milestone in The Motor Company’s legacy of innovation. We start with several passes of 200 micron flake over a black base, then clear coat it, hand-lay the graphics, and apply the many layers of clear coat to allow the flake to shine through. It’s a painstaking process that delivers a premium custom look straight from the factory, so you can start flying your colors with no waiting or extra effort.

Mini "Ape-Hanger" Handlebar

Grab hold of the stainless steel mini ape-hanger handlebar and put your fists way into the wind. The style is pure post-war bobbers, and we keep it clean and minimalist by routing the wires inside the steel. And new for 2013, we've rubber-isolated the bars with separate risers and blacked out top triple clamps, so you can ride more comfortably, with less vibration, and can accessorize with less hassle.

Bobber Solo Seat

True to the old school bobber look, a slammed, 25.5-inch low solo seat drops you in nice and snug to the bike and close to the pavement beneath you. It's the ultimate bond with the road and your machine. Get the quintessential bobber style without sacrificing the comfort of the ride.

Blacked Out Rims & Large Front Wheel

Raw, gritty and no-nonsense—minimalist, yet premium in every detail—the Street Bob® motorcycle's overall blacked out styling includes black laced steel wheels and stainless steel spokes with an aggressive 19" wheel up front to lead your way out of the mundane. Blacked out like the Harley-Davidson® Twin Cam engine, these wheels make a bold statement and provide a smooth, true ride.

New Bobber Powertrain & Air Cover

As part of its back-to-basics 2013 restyle, we’ve refined the Street Bob® model's powertrain’s along more classic, minimal lines. Along with the retro-style air cleaner cover, stamped with The Motor Company Bar and Shield, this gives the engine an authentic old-iron soul and genuine Bobber presence.

New Blacked Out Console

A big part of the 2013 Street Bob® model’s raw look—and another refinement you asked for—this blacked-out, gas tank-mounted console delivers minimalist style and big functionality. The full-length console is textured-black and includes an integrated barrel-key ignition switch and LED indicator lights, electronic speedometer with gear/RPM indicator, tach, clock, trip-meter, and engine diagnostics.

Chopped Rear Fender

Lose the support covers and a good chunk of metal and you get another important feature of the bobber from yesteryear: the chopped rear fender. Stripped down clean, this fender offers just enough surface for low-profile taillights and a side mounted license plate bracket. Give other riders more tire to look at when you blow past them.

Stop-Turn-Tail Lights

Old school looks meet new-school engineering. Minimalist chrome retro-style bullet taillights combine functionality to work twice as hard—stop beams and running lights plus turn indicators in two low-profile rear lamps.

Fuel Tank Medallions

When it comes to motorcycles, there's one name that people will never mistake for another: Harley-Davidson. The 2013 Street Bob® model features newly designed cast fuel tank medallions with classic styling that oozes the iconic Harley-Davidson attitude. Consider it your badge of honor bolted on the side of the fuel tank so everyone can see exactly how you roll.

Personalized Paint Options

Basic black is bad to the bone but a little color can go a long way to creating a unique look. Add even more retro flair and Bobber attitude with Denim paint. Or take it to the next level of authentic Bobber styling with Big Blue Pearl and hand-laid Scallop graphics. And if you've got an eye for brilliance, add gleaming, 1970s custom-style metal flake shine with the new Hard Candy Custom™ paint option. Want to go even further with your custom? Check out the Street Bob® model's H-D1™ factory customization offerings and see how easy it can be to create your custom of one, straight from the factory.

Hand Finished Fuel Tank

All Harley-Davidson® fuel tanks are finished by hand—that's what makes them stand out from the competition. Their seamless design and unmatched style are unique among all motorcycles on the road. The tanks are one of the first and last things people notice when they lay their eyes on a Harley-Davidson® motorcycle—so we make it worth their time.

Premium Paint

Up to two times thicker than the competition, custom quality paint comes standard on all Harley-Davidson® motorcycles. Clearcoat layering up to five mils deep. Bigger metal flakes. Unique effects in the sunglo and pearl colors. Skimping simply is not in our vocabulary.

Step up to 103 Power with H-D1™

With the 2013 Street Bob® model a part of our H-D1™ Factory Customization program, you can easily personalize your bobber custom. Tell us how you want it and we'll build it for you, straight from the factory—including stepping up your engine to a Twin Cam 103™. With more stump-pulling torque, the Twin Cam 103™ delivers a performance punch you’ll definitely appreciate on the road, along with lower cruising rpm, for smoother riding, with less vibration and better highway fuel economy. So live life to the power of 103 on your Street Bob®, with H-D1™, only from Harley-Davidson.

Twin Cam 96™ Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 96™ engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson's unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution® and Twin Cam 88® engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century's worth of commitment to life on two wheels.

Twin Cam 96™ Engine Innovation

Fire up the Twin Cam 96™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn't feel better.

Pure Blacked Out Styling

Feast your eyes on the Twin Cam 96™ engine and there's no mistaking its roots. From the classic edge of the cooling fins to the clean lines of cases and covers, this is authentic Harley-Davidson style through and through with an attention to detail you won't find from any other motorcycle company. The finish, newly designed for 2013 as part of the Street Bob model's re-imagined dark styling, features a blacked out powertrain, a gloss black battery cover and textured wrinkle-black rockers with highlighted fins. It's pure, minimal styling that makes an elemental statement about holding to what's right and staying true to what satisfies.

Six-Speed Cruise Drive®

You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. It's a rare ride when a bike responds like this, and a low growl goes a long way when you're opening up the road ahead.

Artfully Hidden Technology

Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It's just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.

Intuitive Controls

Hand controls on a Harley-Davidson® motorcycle are incredibly intuitive. The turn signals are self-canceling and, based on the speed and angle of the motorcycle, they know how long to stay on. Engaging the controls quickly becomes second nature so you can focus less on turning off your signal and more on basking in the freedom of the ride.

H-D® Smart Security System (Optional)

The factory-installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It's this attention to details and security that make Harley-Davidson® motorcycles unique. Offered as a part of the 'Security Package' (which includes Anti-Lock Brakes).

Anti-Lock Brakes (Optional)

You may be cruising with swagger, but you know safety counts. This sophisticated, factory-installed ABS gives 'stopping power' a double meaning. Its components are tastefully hidden within the wheel hub, so you'll still turn heads with clean, streamlined design. But more importantly, you get certainty in the saddle knowing your bike's going to behave when you need it. Offered as a part of the 'Security Package' (which includes the H-D® Smart Security System).

Adjustable Suspension

Preload is easily adjusted with a spanner wrench to make your suspension suit you and your riding style. The slammed low rear suspension gives you a more laid-back riding position and style. Low-profile, kicked back for profiling down the boulevard and hugging corners.

Tuned to Be Ridden

Harley-Davidson® motorcycles are different from any other bike out on the road. There's a balance to them. The steering, the maneuverability—it's all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let's face it, we didn't get to where we are by being like everyone else.

Michelin® Scorcher™ Tires

Michelin® Scorcher™ Tires provide the superior performance, sensational grip, impressive durability and excellent handling expected on a race-bred bike. The exclusive deep-cut tread design improves grip and water evacuation capability. Grip performance and durability is also enhanced by the tire's rubber compounds, which use the latest generation of Michelin synthetic polymers. Under the rear rubber, aramid belts are used to stabilize your ride, which helps inspire confidence in handling.

Mid-Mounted Controls

Let your boots fall where they may, naturally to the mid-mounted controls and rider foot pegs on the Street Bob® model. An easy reach and tight rider triangle is confidence-inspiring for new riders eager to set off on their journey and riders whose legs run slightly shorter than others.

Seat Engineering and Design

The seat is home for Harley-Davidson® motorcycle riders. They want a seat that has unique style without sacrificing comfort. Because of that, Harley-Davidson invests a lot of time in researching, designing and testing seats so that every bike has just the right saddle.


Engine Idle Temperature Management Strategy

Our motorcycles are built to be ridden. A lot. So that means that rider comfort is top of mind. Always. With the Engine Idle Temperature Management Strategy (EITMS) feature, the motorcycle automatically cuts fuel and fire from rear cylinder when idling, which helps reduce engine heat felt by rider and passenger. This feature can easily be turned on by your dealer.
