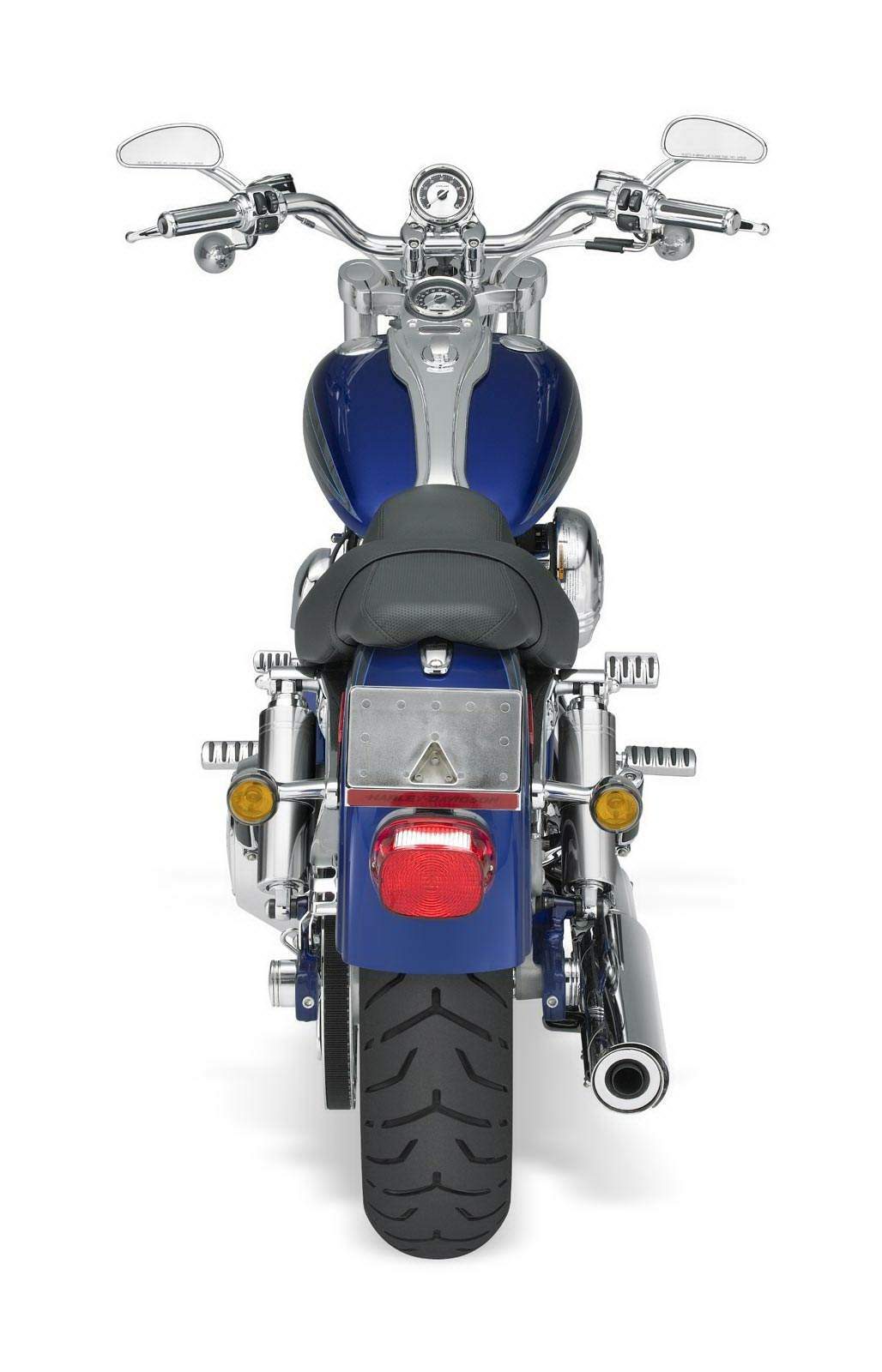

Harley Davidson FXD-SE Screamin' Eagle Dyna CVO

.

Make Model

Harley Davidson FXD-SE Screamin' Eagle Dyna CVO

Year

2007 - 08

Engine

Four stroke, Twin Cam 110™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder

Capacity

1804 cc / 110.1 cub in.
Bore x Stroke 101.6 x 111.3 mm
Cooling System Air cooled
Compression Ratio 9.15:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition

Starting

Electric

Max Torque

142.3 Nm /  105 ft-lb @ 3000 rpm
Clutch Hydraulically actuated, 9-plate, wet, with high performance spring

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 9.312 9.312
2nd 6.421 6.421
3rd 4.774 4.774
4th 3.926 3.926
5th 3.279 3.279
6th 2.790 2.790
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast and forged junctions; forged fender supports; MIG welded; color-matched to vehicle Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded; color-matched to the vehicle

Front Suspension

43 mm inverted forks; chrome fork tubes and triple clamps, 150mm wheel travel

Rear Suspension

Lowered with progressive rate springs; full chrome covers with hand-adjustable pre-load, 47mm wheel travel

Front Brakes

Single disc 4 piston caliper

Rear Brakes

Single disc 4 piston caliper

Front Tyre

D402F MH90-21

Rear Tyre

D407 170/60R17 78H
Rake 29°
Fork Angle 29°
Trail 132 mm / 5.2 in
Dimensions Length 2346.4 mm / 92.3 in
Width  940.56 mm / 37.03 in
Height  1158.75 mm / 45.6 in
Wheelbase 1630.6 ,, 64.2 in
Seat Height Laden2  695.9 mm / 26.5 in
Unladen 673 mm / 27.4 in
Ground Clearance 117 mm / 4.6 in

Dry Weight

307 kg / 678 lbs
Wet Weight 317 kg / 698 lbs

Fuel Capacity

17 7 Litres / 4.7 US gal

As good as a street machine gets, the 2008 FXDSE2 Screamin' Eagle Dyna boasts potent performance and straightforward style from Harley-Davidson Custom Vehicle Operations (CVO). The Screamin' Eagle Dyna commands respect on the street with its unique Granite finished Twin Cam 110 engine and high level of hot rod styling.

The Screamin' Eagle Dyna is based on the versatile and spirited Harley-Davidson FXD Dyna Super Glide platform. For 2008, the Screamin' Eagle Dyna boasts the Twin Cam 110, the largest-displacement production engine offered by Harley-Davidson. This 110-cid (1800cc) high-performance V-Twin engine produces 105 ft. lbs. of torque at 3000 rpm. A low-restriction air cleaner feeds standard Electronic Sequential Port Fuel Injection (ESPFI), and exhaust flows through chrome staggered shorty dual exhaust and straight-cut mufflers with full-length covers. The 6-speed Cruise Drive transmission offers lower cruising rpm in top gear. The powertrain is finished in a new CVO-exclusive Granite coat with chrome covers.

Going even farther with a wicked combination of street style and performance, the Screamin' Eagle Dyna features new Mirror Chrome, Slotted Six-Spoke Cast Aluminum wheels. The 21-inch front wheel is covered by a swept-back custom fender and is held by 43 mm lowered inverted forks with chrome tubes and triple clamps, and has a matching brake rotor. The 17-inch rear wheel holds a 170 mm tire. A new lowered front suspension with decreased fork angle sets the stage for a smooth ride and razor sharp cornering.

The Harley-Davidson CVO program creates limited-production, exclusive motorcycles produced by teams of technicians in a special assembly area at the Harley-Davidson plants in York, Pa., and Kansas City. Approximately 2,600 examples of the 2008 Screamin' Eagle Dyna with a maximum of 1,050 serialized 105th Anniversary Edition vehicles will be assembled at the Kansas City Vehicle and Powertrain Operations facility. The suggested U.S. retail price for the 2008 Screamin' Eagle Dyna is $24,995 ($25,095 in California and an additional $495 for the serialized 105th Anniversary Edition).

Versatility and individuality are encouraged with the new custom adjustable handlebar, which is internally wired and integrated with a new four-inch spun aluminum tachometer. Grips are from the Stealth collection and match the Stealth foot pegs, brake pedal and shift peg.

A new chrome full-length fuel tank console now includes the speedometer and easily accessible ignition switch and lock. The fuel tank is finished with a flush mount gas cap and chrome fuel gauge with hidden LED indicators. The console rises over a new reduced reach custom seat with perforated leather inserts providing an ergonomically comfortable ride. Profile mirrors with new shortened, solid stems add a final touch of flair to the front end.

The Screamin' Eagle Dyna will be offered in three exclusive color combinations with two unique graphic schemes: 105th Anniversary scheme with Crystal Copper with Black Onyx, and Flames and Marbled Graphics with Scarlett Red Pearl with Dark Crimson or Candy Cobalt with Midnight Blue. The battery box, coil cover and electrical panel are matched with each paint pattern, while the chin spoiler, frame and swing arm are all color matched. A Harley-Davidson Smart Security System with Smart Siren, an indoor storage cover with CVO logo, and a commemorative CVO key in a presentation box are also included.

Two unique schemes and three exclusive paint colors :
Serialized 105th Anniversary CVO Package
Crystal Copper/Black Onyx Paint Scheme
Gold Leafing Graphics
Serialized 105th Anniversary Cloisonné
Color matched air cleaner insert
Flames and Marbled Graphics
Scarlet Red Pearl with Dark Crimson
Candy Cobalt with Midnight Blue
Twin Cam 110 granite powder-coated engine and chrome treatment covers
6-speed Cruise Drive transmission
Color matched frame and swingarm
Flamed battery box, electrical panel cover, coil cover, with color matched chin spoiler
Rolled-back front fender
Screamin' Eagle SYN3 Synthetic Lubricant in the engine, transmission and primary case
High performance clutch with hydraulic actuation
Black high-torque 1.4 kW starter
Chrome voltage regulator
Chrome lowered inverted front forks with forged chrome triple clamps
Covered low rear shocks with hand-adjustable preload
Mirror Chrome Slotted six-spoke wheels with matching rotors
Chrome Slotted Six-Spoke sprocket
Chrome sprocket bolt covers
Chrome tapered wheel bearing spacers
170 mm rear tire
Granite brake calipers with billet-style inserts
Straight cut mufflers with chrome end caps and full length chrome shields
Chrome 1.25-inch diameter internally wired handlebar
Chrome handlebar clamp with integrated tach mount
Chrome clutch and brake master cylinders with chrome switch housings and hand levers.
Spun aluminum metal-faced speedometer
Spun aluminum metal-faced four-inch tach
Flush mount fuel cap and LED fuel gauge
Custom reduced reach bucketed seat with perforated leather inserts
Stealth collection footpegs, shift peg, brake pedal pad, and hand controls
Slotted chrome belt guard
Chrome debris deflector
Chrome upper shock mount covers
Chrome forward controls
Chrome rider and passenger footpeg supports
Chrome full length fuel tank console
CVO Laser etched ignition switch
Chrome extended headlamp trim ring
Chrome Profile custom mirrors with new solid stems
Chrome valve stem caps
Chrome clutch line clamp
Polished stainless steel rear brake pushrod
Polished stainless steel shift rod assembly
Chrome air cleaner cover with 110 ci insert
Chrome timer and derby covers with brushed aluminum inserts
Chrome dipstick
Diamondback braided brakes lines
Diamondback braided clutch line
Diamondback braided throttle and idle cables
Chrome layback license plate frame
Bullet style front and rear turn signals with smoked lenses
CVO insert on chin spoiler
CVO Owners key
Indoor storage cover with embroidered CVO logo
