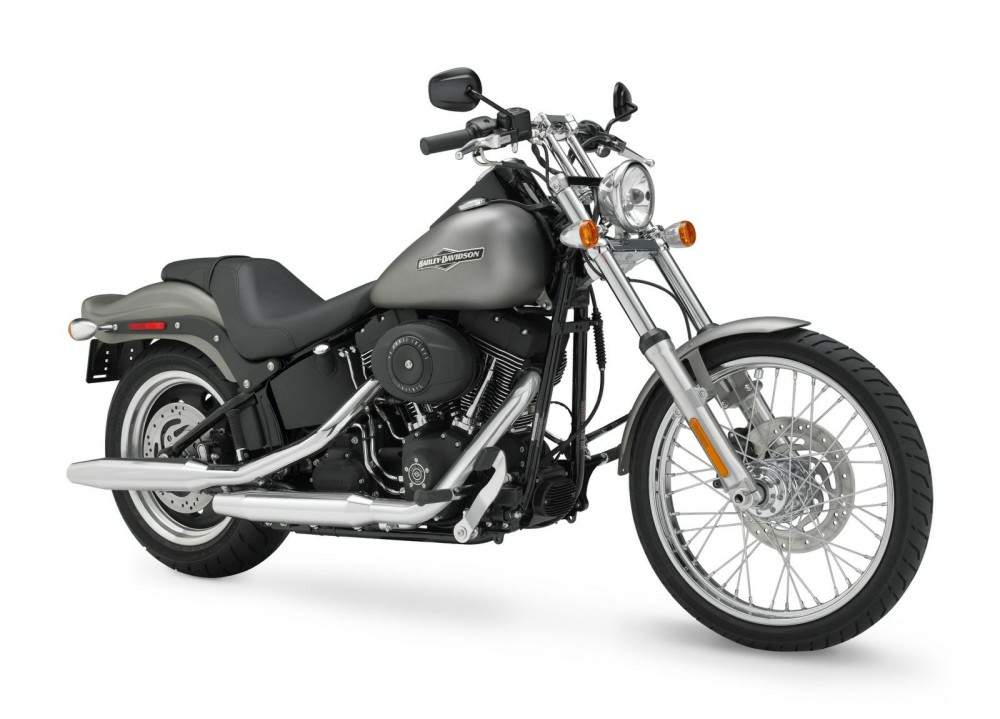

Harley Davidson FXSTB Softail Night Train

Make Model	Harley Davidson FXSTB Softail Night Train
Year	2007 - 08
Engine	Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Capacity	1584 cc / 96 cu-in
Bore x Stroke	95.3 x 111.1 mm
Cooling System	Air cooled
Compression Ratio	9.2:1
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starting	Electric
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Clutch	Multi-plate, wet
Transmission	6 Speed
Final Drive	Belt
Frame	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, “beer can” covers
Rear Suspension	Hidden, horizontal-mounted, coil-over shock
Front Brakes	Single 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 2 piston caliper
Front Tyre	D407 MH90-21
Rear Tyre	D407 200/55R17
Rake	33.5°
Trail	127 mm / 5.0 in
Dimensions	Length 2400.3 mm / 94.50 in Width 784.8 mm / 30.90 in Height 1137.92 mm / 44.0 in
Wheelbase	1699.3 mm / 66.9 in
Seat Height	Laden 640.08 mm / 25.2 in Unladen 680.7 mm / 26.8 in
Dry Weight	297.5 kg / 656 lbs
Wet Weight	309 kg / 682 lbs
Fuel Capacity	18.9 Litres / 5.0 US gal

The sinister FXSTB Night Train features an all-black powertrain with wrinkle-black trim on the engine covers and air cleaner, oil tank and rear fender supports, and a black fuel tank console. The raked-out FX front end and narrow 21-inch laced front wheel contrast with a meaty 200 mm rear tire on a slotted cast disc covered with a wide bobtail fender. Drag bars and forward foot controls create an aggressive posture for the rider.

Rigid-mount, 1584cc Twin Cam 96B balanced engine
6-speed Cruise Drive transmission
Black powder-coated engine with wrinkle-black and texture-black covers
Chrome Staggered Shorty Dual exhaust
Black oil tank
200 mm-17 rear / MH90-21 front tire
Black Bullet Hole Disc Cast Aluminum rear wheel
Chrome Laced Steel front wheel
Bobtail rear fender
Low-slung Badlander seat
Drag-style handlebar on six-inch risers
Five-gallon Fat Bob fuel tank
33.5-degree FX front forks with FX front fender
Black drive belt sprocket
Black tank console, air cleaner, oil tank and rear fender supports
Forward foot controls
Optional Chrome Profile Aluminum Laced front and Forged Polished Aluminum
Disc rear wheels
Optional Smart Security System
