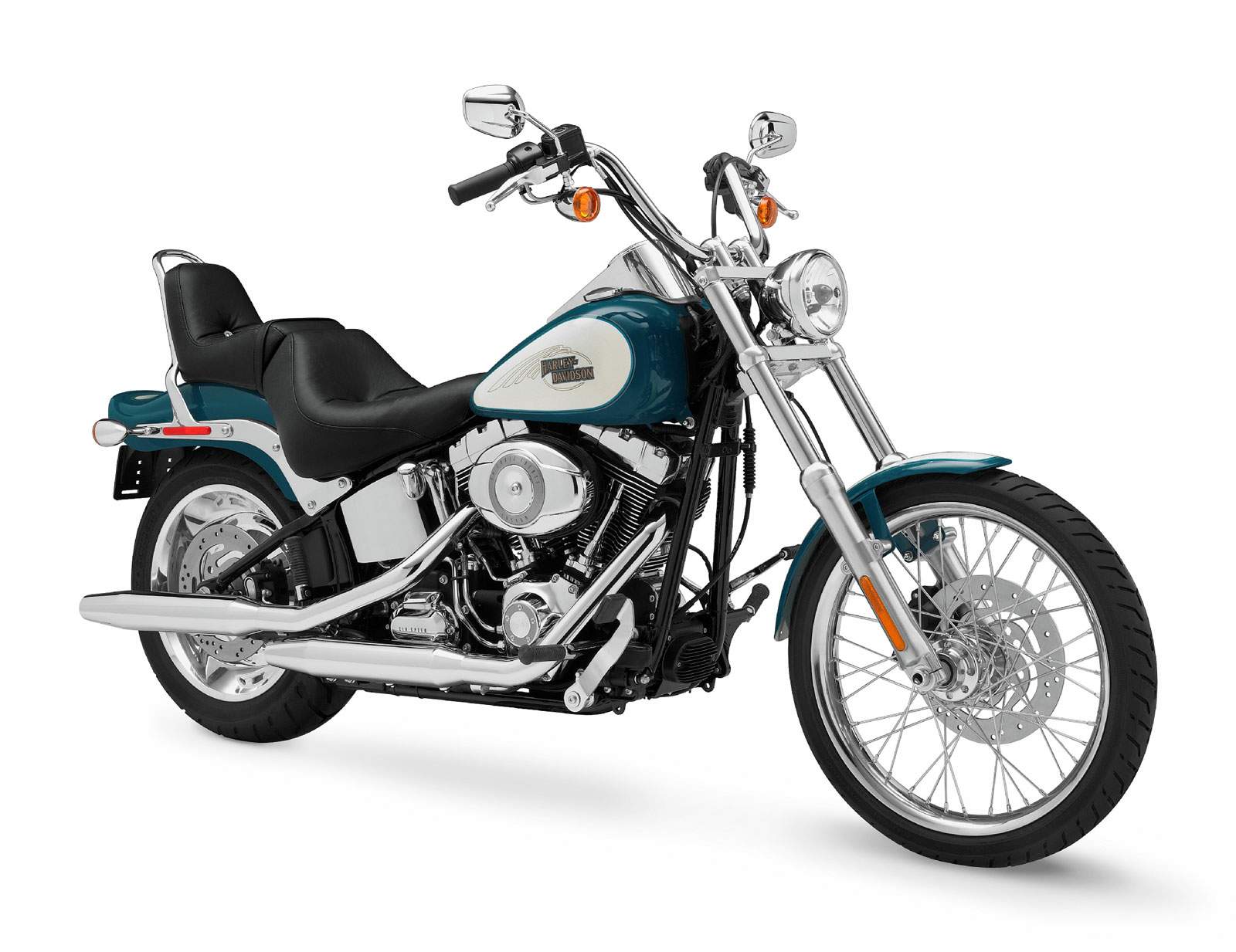

Harley Davidson FXSTC Softail Custom

Make Model	Harley Davidson FXSTC Softail Custom
Year	2009 - 10
Engine	Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Capacity	1584 cc / 96 cu-in
Bore x Stroke	95.3 x 111.1 mm
Cooling System	Air cooled
Compression Ratio	9.2:1
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starting	Electric
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Clutch	Multi-plate, wet
Transmission	6 Speed
Final Drive	Belt
Frame	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, chrome dust covers
Rear Suspension	Hidden, horizontal-mounted, coil-over shock
Front Brakes	Single 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper
Front Tyre	MH90-21 54H
Rear Tyre	200/55R17 78V
Rake	32°
Trail	127 mm / 5.0 in
Fork Angle	33.5°
Dimensions	Length 2400.3 mm / 94.5 in Width 927.1 mm / 36.5 in Height 1313.1 mm / 51.7 in.
Wheelbase	1699.2 mm / 66.90 in
Seat Height	Laden 670.56 mm / 26.40 in Unladen 718.82 mm / 28.30 in
Dry Weight	304.8 kg / 672 lbs
Wet Weight	318 kg / 703 lbs
Fuel Capacity	18 9 Litres / 5 US gal

The Softail® Custom puts fists in the breeze and feet forward with a chopper profile straight from the FX custom era.

New Fuel tank sender for accurate fuel level readings
New Helical cut 5th gear for improved transmission sound
New Tank graphics

- Black powder-coated powertrain with chrome covers
- Chrome exhaust with dual staggered short mufflers
- Chrome, Profile Laced Aluminum front wheel
- Polished, Slotted Disc Forged Aluminum rear wheel
- 34-degree fork angle
- 200 mm rear tire
- Chrome nostalgic tank console
- Chrome bullet headlamp
- Chrome oil tank
- Chrome button tufted two-up seat with passenger backrest
- Stainless steel ape-hanger handlebar
- Skinny custom front fender
- Bobtail rear fender

The Softail® Custom puts fists in the breeze and feet forward with a chopper profile straight from
the FX custom era.

The Softail rear suspension mimics the clean lines of a vintage hardtail frame but offers the comfort of a modern suspension that is hidden under the chassis. The rigid powertrain allows tight packaging of the engine and frame and creates a solid connection between the rider and the power that moves the motorcycle.

- Rigid-mounted, counter-balanced Twin Cam 96B™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
- 6-Speed Cruise Drive® Transmission
- Horseshoe oil tank
- Forward foot controls
- Five-gallon fuel tank
- Optional Harley-Davidson® Smart Security System with hands-free security fob
- Optional Chrome, Profile Laced Aluminum rear wheel
- Optional Custom Color program
