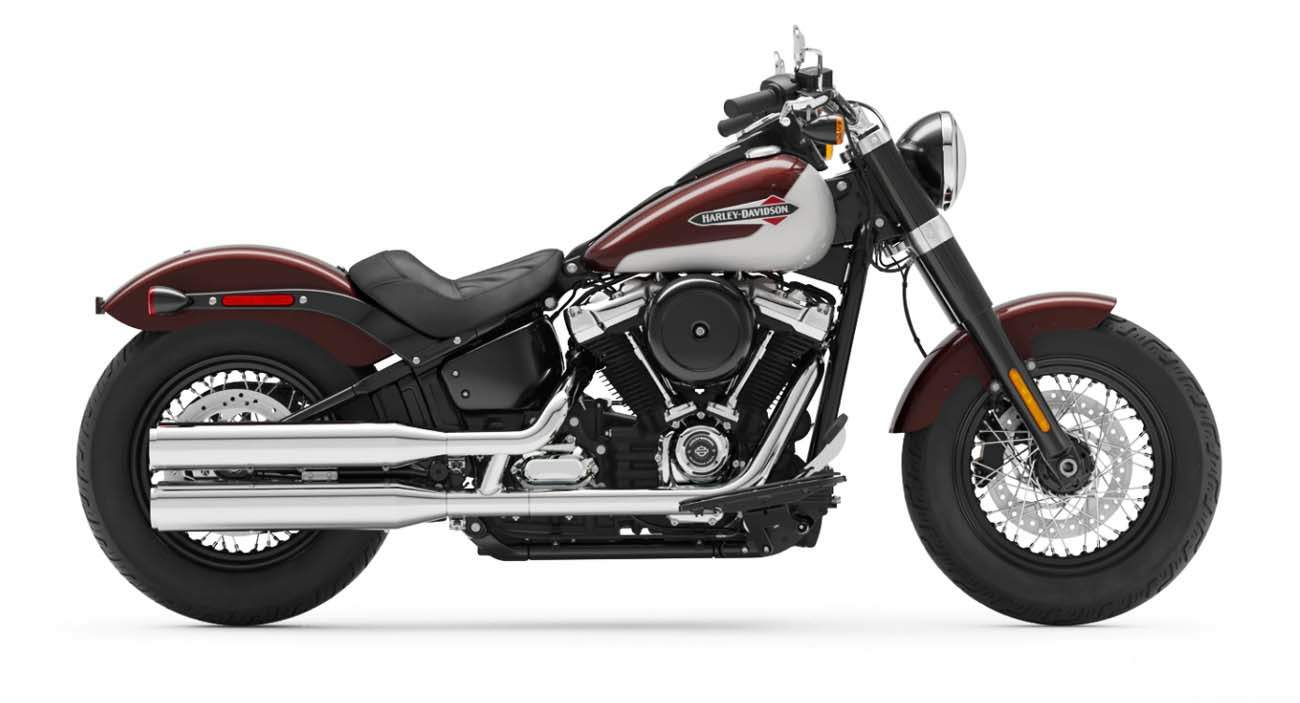

Harley Davidson Softail Standard

.

Make Model

Harley Davidson Softail Standard

Year

2020
Engine Four stroke, V-Twin, Milwaukee-Eight 107, pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity 1746 cc / 107 cu-in
Bore x Stroke 100 x 111 mm
Cooling System Air cooled
Compression Ratio 10.0:1
Exhaust 2-into-2 shotgun, catalyst in muffler
Induction Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication Pressurized, dry-sump with oil cooler
Ignition  Single-fire, non-wasted, map-controlled spark ignition
Starting Electric
Max Torque 149 Nm / 110 lb-ft @ 3,000 rpm
Clutch Mechanical, 10 plate wet, assist & conventional

Transmission

6 Speed
Final Drive Belt, 32/66 ratio
Primary Drive Chain, 34/46 ratio
Gear Ratio 1st 9.311  /  2nd 6.454  /  3rd 4.793  /  4th 3.882  /  5th 3.307  /  6th 2.79
Primary Drive Chain, 34/46 ratio
Frame Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Swingarm Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer

Front Suspension

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps, dual rate spring

Front Wheel Travel 130 mm / 5.1 in

Rear Suspension

Hidden, free piston, coil-over monoshock, 43mm stroke, cam-style preload adjustment

Rear Wheel Travel 86 mm / 3.4 in

Front Brakes

Single 300mm disc, 4 piston fixed caliper

Rear Brakes

Single 292mm disc, 2 piston floating caliper
ABS Optional
Wheels Chrome Steel Laced

Front Tyre

100/90B19,57H,BW

Rear Tyre

150/80B16,77H,BW
Rake 30°
Trail 157 mm / 6.2 in
Dimensions Length: 2320 mm / 91.3 in
Width:    865 mm / 34.1 in
Height: 1160 mm / 45.7 in
Wheelbase 1630 mm / 64.2 in
Seat Height Laden:      655 mm /  25.8 in
Unladen:  680 mm / 26.8 in
Ground Clearance 125 mm / 4.9 in

Dry Weight

286 kg / 630 lbs

Wet Weight

297 kg / 655 lbs

Fuel Capacity

13.2 Litres / 3.5 US gal
.

From a press release issued by Harley-Davidson:

The new Harley-Davidson® Softail® Standard motorcycle offers the essential Harley-Davidson cruiser experience: a lean bobber profile steeped in attitude, the dynamic performance of the Harley-Davidson Softail chassis, and the unrelenting power of the Milwaukee-Eight® V-Twin powertrain. Featuring classic Vivid Black paint and highlighted with gleaming chrome and polished finishes, the Softail Standard model is a Harley-Davidson motorcycle presented in its most elemental form.

The contrast of black and bright components gives the Softail Standard motorcycle a look that’s both classic and minimalist. Offered only with Vivid Black painted sheet metal, the Softail Standard model is equipped with a solo seat that exposes the chopped rear fender, and a smooth, 3.5-gallon fuel tank that reveals the frame and engine. The powertrain is styled to draw attention to the center of the motorcycle, with an all-black Milwaukee-Eight 107 engine highlighted with polished rocker, primary and timer covers. Cylinder head fins are not highlighted. A center-bolt, round air cleaner cover further exposes the engine. With chrome shields and mufflers the 2-into-2 offset shotgun exhaust enhances the long, low profile of the Softail Standard model.


The steel rims of the classic laced wheels (front 19-inch, rear 16-inch) are finished in brilliant chrome for dazzling style. The front end features clear-coated fork sliders, polished triple-clamps, polished top clamp and riser, and chromed headlamp bezel and turn signals for additional contrast to the Vivid Black paint. The mini-ape handlebar puts riders of the Softail Standard model in a fists-in-the-wind posture with instant attitude. A compact electronic instrument with digital display set in the handlebar riser keeps the front end clean and uncluttered.

The Solid Softail Foundation

The Harley-Davidson Softail chassis give the Softail Standard model a solid foundation. The steel frame is optimized for stiffness and light weight. A rigid-mounted powertrain further enhances chassis stiffness. The Softail swingarm is designed to be stiff for dynamic handling and creates the look of a classic hardtail frame. Mono-shock rear suspension places a coil-over shock with emulsion technology out of sight and under the seat. Suspension pre-load adjustment is accomplished by simply removing the seat to gain access to the shock body, making it easy to dial in the ride and handling for rider weight. Dual bending valve front suspension responds quickly to inputs for enhanced braking and handling performance. Front and rear disc brakes offer confident stopping power. Anti-Lock Braking System (ABS) is optional on the Softail Standard model.

Milwaukee-Eight Power

The Milwaukee-Eight 107 V-Twin engine delivers inspiring performance and the look, sound and feel that is classic Harley-Davidson. Dual counter-balancers reduce primary vibration at idle for improved rider comfort. Four valve cylinder heads provide ample airflow while advanced cylinder head design, dual knock sensors, and precision cooling allow a 10.0:1 compression ratio for strong torque output and acceleration. For the rider focused on performance this engine accepts select Harley-Davidson® Screamin’ Eagle® Stage Upgrade kits.

A Rider’s Blank Canvas

The Softail Standard model offers an attainable entry point to Harley-Davidson Big Twin ownership and is an ideal blank canvas for customization Whether a starting point for owners seeking attention-grabbing style, increased performance, or a look that amplifies their personality, Harley-Davidson has created four Genuine Motor Parts & Accessories packages designed specifically for the Softail Standard model.


Four Dedicated Accessory Packages

Four packages of Genuine Motor Parts & Accessories have been created by Harley-Davidson as a customization starting point for the Softail Standard Model. Each represents different custom direction and all components of each package can be ordered by an authorized Harley-Davidson™ dealer using a single part number.

Day Tripper Custom Package: Combine classic bobber style with next-level versatility by adding a pillion and a 21-inch detachable sissy bar with pad so a passenger can come along for the ride. This package also includes passenger footpegs and mounts, forward foot controls, and a black leather Single-Sided Swingarm Bag designed to hold essentials.

Coastal Custom Package: Capture the elements of the performance-oriented, West Coast style. Components include a Softail Quarter Fairing, black anodized aluminum Moto Bar handlebar and matching 5.5-inch tall riser, a Bevel two-up seat and passenger footpegs, and BMX-style foot pegs from the rugged 80GRIT™ Collection.

Touring Custom Package: This package outfits the Softail Standard model for the long haul, with a comfortable Sundowner™ two-up seat and passenger footpegs, a 14-inch-high light smoke quick-release windshield, classic black Detachables saddlebags, and a 14.5-inch detachable sissy bar and backrest pad.

Performance Custom Package: Amplify throttle response and mid-range acceleration with a Screamin’ Eagle® Stage II Torque kit for the Milwaukee-Eight 107 engine and a Screamin’ Eagle Pro Street Tuner to dial it in. Complete the package with a free-flowing Screamin’ Eagle Heavy Breather Performance Air Cleaner and Screamin’ Eagle Street Cannon mufflers for a deep-bass exhaust note. It’s a 50-state street legal, factory-engineered performance upgrade that retains the original equipment factory warranty when installed by an authorized Harley-Davidson dealer.
