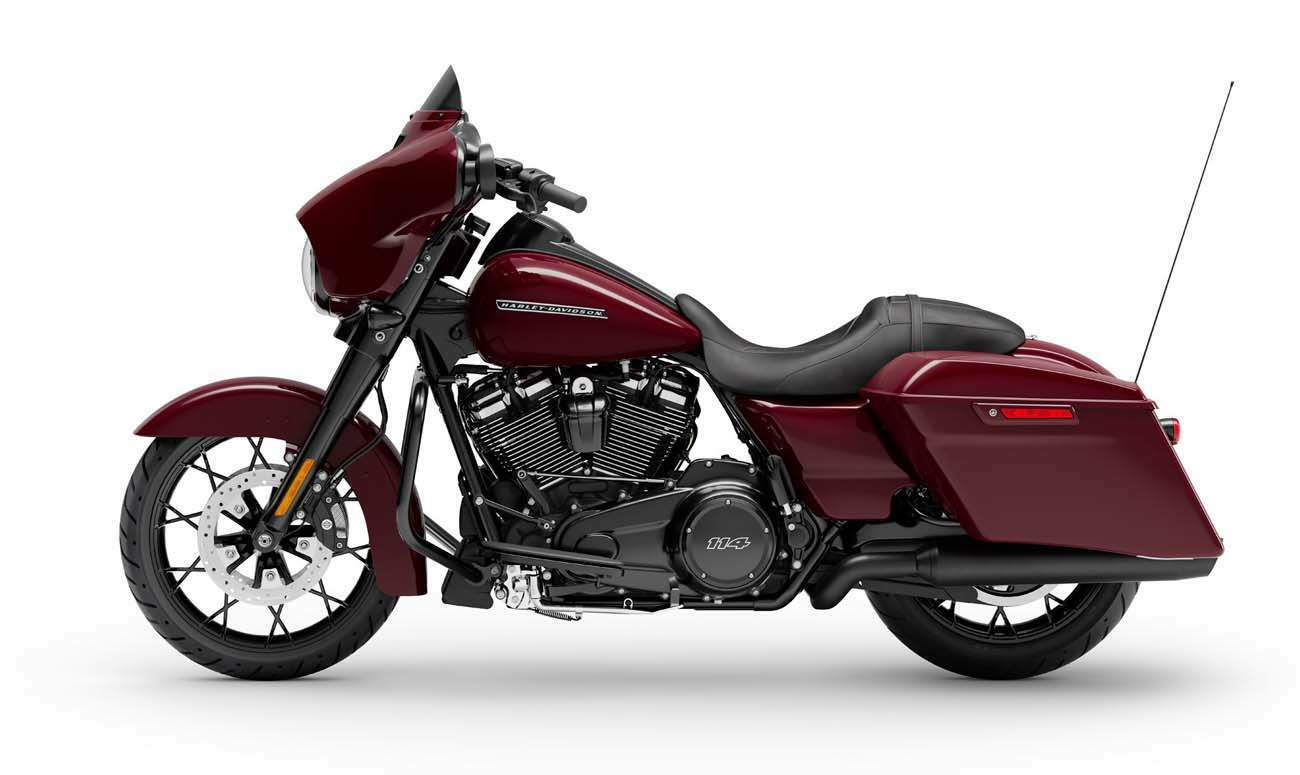

2019 - 2020 Harley Davidson Street Glide Special 114

Make Model	Harley Davidson Street Glide Special 114
Year	2019 - 20
Engine	Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity	1868 cc / 114 cu in
Bore x Stroke	102 x 114 mm
Cooling System	Air cooled
Compression Ratio	10.5:1
Exhaust	Black, 2-1-2 dual exhaust with tapered mufflers
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication	Pressurized, dry-sump with oil cooler
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starting	Electric
Max Torque	167 Nm / 122 lb-ft @ 3250 rpm
Clutch	Hydraulically actuated 9 plate wet, Assist & Slip
Transmission	6 Speed
Final Drive	Belt
Primary Drive	Chain, 34/46 ratio
Gear Ratio	1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Frame	Mild steel, square-section backbone with twin downtubes
Front Suspension	41.3 mm telescopic, cartridge-style damping,
Front Wheel Travel	117 mm / 4.6 in
Rear Suspension	Short, air-adjustable shock,
Rear Wheel Travel	51 mm / 2.0 in
Front Brakes	Caliper Type 32 mm, 4-piston fixed
Front Brakes	2x 300mm discs 4-piston fixed caliper
Rear Brakes	Single 300mm discs 2-piston caliper
ABS	Standard
Rear Wheel	Black, Talon Cast Aluminum
Front Tyre	130/60B19 61H
Rear Tyre	1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Rake	26°
Fork Angle	29.2°
Trail	173mm / 6.8 in
Dimensions	Length 2450 mm / 96.5 in Width 960 mm / 37.8 in Height 1350 mm / 53.1 in
Wheelbase	1625 mm / 64 in
Seat Height	Laden 7 663 mm / 26.1 in Unladen 690 mm / 27.2 in
Ground Clearance	125 mm / 4.9 in
Dry Weight	362 kg / 798 lbs
Wet Weight	379 kg / 836 lbs
Fuel Capacity	22.7 Litres / US 6.0 gal

The Street Glide® Special model kicks the hot rod bagger style into a higher gear. It starts with the Milwaukee-Eight® 114 engine that comes standard this year. This model also features the all-new, big screen BOOM! ™ GTS infotainment system.

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

Big, bold black wheels with spokes that extend all the way to the edge of the rim, so you can roll in with style and attitude.

Blacked-out front forks, handlebars, tank console and exhaust for an aggressive, modern look.

A new, evolved interface experience that offers a contemporary look, feel and function of the latest mobile devices and tablets, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

High-performing front and rear suspension with easily hand-adjustable rear shocks put you in control of a plush ride.

The new Boom! Box™ GTS infotainment system is an evolved interface experience for riders of select Harley-Davidson Touring and Trike motorcycles. The Boom! Box GTS system offers the contemporary look, feel and function of the latest mobile devices and tablets, with durability and features designed specifically for motorcycling, plus Apple CarPlay compatibility and hands-free voice recognition. Every element has been optimized to enhance the rider’s interaction with the motorcycle and connectivity with the world to ultimately improve the motorcycle touring experience.

The Boom! Box GTS is standard equipment on 2019 Harley-Davidson Ultra Limited, Ultra Limited Low, Road Glide® Ultra, Road Glide® Special, Street Glide® Special, CVO™ Limited, CVO™ Street Glide®, CVO™ Road Glide® and Tri Glide® Ultra models. Boom! Box GTS is a factory-installed option for Harley-Davidson Street Glide®, Road Glide® and Electra Glide® Ultra Classic® models.

The factory installed Boom! Box GTS audio features 25 watts per channel through two or four speakers, depending on motorcycle model. System upgrades available from Harley-Davidson® Genuine Motor Accessories support up to four sets of Boom! Stage II speakers and 1,200 watts total power. Audio sources include AM, FM, WB, XM, Bluetooth streaming and Digital Mass Storage compatibility. The Boom! Box GTS supports the Harley-Davidson Wireless Headset Interface Module (sold separately) which permits full access to the infotainment features through Bluetooth technology and compatible wireless headsets.

The 6.5-inch Boom! Box GTS is glass from edge to edge and has the sleek, modern appearance of the latest tablet devices and premium automotive displays. The Corning® Gorilla® Glass touch-screen surface is the same durable and scratch resistant cover glass used on billions of mobile devices worldwide. It includes an advanced surface treatment designed to minimize reflection for exceptional visibility in bright sunlight. The screen is optimized for use in wet or dry conditions, even when used with riding gloves. The glass is optically bonded to a TFT display (thin-film-transistor, a type of liquid-crystal display noted for high image quality and contrast) with 100 percent more resolution and a four-times higher contrast ratio than the 6.5GT display it replaces, for a crisp and clean appearance even in bright sunlight.

The new Boom! Box GTS processes faster, has more memory and is more responsive than the Boom! Box 6.5GT infotainment system it replaces. Start-up time is reduced from 21 seconds to 10 seconds, and route calculation time is reduced from 10 seconds to 2.5 seconds versus the 6.5GT system.

Like a smart phone, the navigation engine display responds to two-finger gestures: swipe, pinch, and drag. The new home screen display is simplified to three key system buttons: Navigation, Phone, and Music. A new Back button has been added to the right-hand control. The Navigation, Phone and Music screens feature condensed information that’s easy to read and navigate. The new Quick Jump feature allows easy access to Navigation, Audio and Vehicle information (press and hold Home on left hand control for the pop-up menu). Background colors and a high-contrast viewing mode are user-selectable. The entire GTS system can be managed through the touch screen and with the thumb-operated five-way joysticks located on the left- and right-hand controls.

Boom! Box GTS is Apple CarPlay compatible (when the microphone is in use with optional Harley-Davidson® Genuine Motor Accessories headsets) and can project phone functions to the screen, including streaming apps, weather, and traffic, so riders can enjoy and use familiar functions installed on their phone.

A new navigation engine features a voice recognition enabled “one box search” function (similar to a search engine) for added rider convenience. Using the Alternate Routes function, the rider can choose a route based on Fastest, Shortest, Twisty and Scenic features. The Boom! Box GTS navigation system features a new integration with the Harley-Davidson™ App for iOS or Android. Leveraging this integration a rider can easily find a destination in the App and send that point of interest or addresses to the navigation system. In addition, the integration with the App eliminates the need to use a USB jump drive to import ride routes. Riders can import routes from the App into the navigation over a Bluetooth or USB smartphone connection. Ride routes can be created in the App or on the redesigned Harley-Davidson™ Ride Planner website at www.h-d.com/rideplanner.

The Harley-Davidson App helps riders get the most out of their time on the road with features including recommended rides, ride planning, ride recording, riding challenges and the ability to find Harley-Davidson dealerships, gas stations, hotels, restaurants, motorcycle events and other attractions. Learn more at New Electronic Reflex Linked Brake System with Cornering Control Features

The all-new Reflex Linked Brake system for 2019 Harley-Davidson Tri Glide Ultra and Freewheeler® three-wheeled motorcycles is fully electronic and utilizes the latest inertial measurement unit (IMU) and ABS sensor technology to enhance traction, stability and braking control in both a straight line and in corners. The Reflex Linked Brake system is designed to aid the rider in controlling the vehicle while accelerating, decelerating, and braking in a straight line, in adverse road conditions, and in emergency situations. It includes four key elements:

Traction control system (TCS) is designed to prevent the rear wheels from excessive spinning under acceleration, which could occur on wet or slippery road surfaces or when abrupt acceleration is commanded by the rider. If the TCS detects that a rear wheel is losing traction under acceleration it will apply brake pressure to limit wheel spin.

Drag-torque slip control system (DSCS) is designed to prevent excessive rear wheel slip under deceleration, which typically occurs when the rider makes an abrupt down-shift gear change or decelerates on wet or slippery road surfaces. When DSCS detects excessive rear wheel slip under deceleration it will adjust engine torque delivery to better match rear-wheel speed to road speed.

ABS is designed to prevent the wheels from locking up under braking, with the goal of maximizing deceleration while maintaining straight-line stability when braking on wet or slippery road surfaces or over-braking due to an unexpected hazard. The ABS detects if wheels are approaching lock up under braking and if so, modulates the brake pressure to limit wheel slip.

The Reflex Linked Brake System electronically links braking through both the front brake hand lever and the rear brake foot pedal. Linking will be active any time the brakes are applied and vehicle speed is above approximately 4.3 mph (7 kph mph). The brakes will remain linked as long as the rider continues to apply a brake control.

When the front or rear brake is actuated above approximately 4.3 mph (7 kph mph) the system applies a proportional amount of pressure to both brakes on the other axle. The amount of brake pressure applied to the other axle depends upon many factors including how hard the rider is applying the brake, the vehicle speed, and if the vehicle is turning. The amount of pressure electronically applied to the other axle is less than what a rider could apply directly with the linked axle’s lever or pedal.

The linked brakes are a rider aid, and do not replace proper braking techniques. The maximum vehicle deceleration on most surfaces is still reached by the rider applying both the front and rear brake controls.

A technical highlight of the system is its ability to measure lateral acceleration – the force the rider feels in turns – and adjust accordingly as that lateral force affects available traction. For example, the brake pressure required to limit wheel slip when cornering is typically lower than the pressure required under straight line operation, so when the system senses lateral acceleration that indicates the trike is cornering, the ABS response is adjusted accordingly. The action of Traction Control and linked braking also adjust based on lateral acceleration.

All-new premium Harley-Davidson Touring suspension technology gives the 2019 Harley-Davidson Tri-Glide Ultra and Freewheeler three-wheeled motorcycle models a significant improvement in ride quality compared to previous models. Both front and rear suspension components have been calibrated specifically for these Trike models.

The new front suspension features dual bending valve internal technology for linear damping performance, a smooth ride and confidence-inspiring handling and braking performance.

Emulsion technology rear suspension features a single-knob pre-load adjustment that is easy to reach below the seat and requires no maintenance. The hand adjustment and expanded pre-load range enable easy pre-load adjustment for optimal suspension performance to suit rider preference and the weight of a passenger and luggage.

Harley-Davidson® Genuine Motor Accessories will offer the same suspension technology in a Premium Ride Front Fork Kit and the Premium Ride Hand-Adjustable Trike Shocks for 2014-2018 Tri-Glide Ultra and 2015-2018 Freewheeler models.

Select 2019 Harley-Davidson Touring and Trike motorcycles will be powered by the Milwaukee-Eight® 114 engine. At 114 cubic inches, the Milwaukee-Eight 114 engine has the most displacement offered from the Harley-Davidson factory in standard Touring models. This performance upgrade is designed especially for riders who enjoy quicker acceleration or tour with a passenger and cargo.

The following Harley-Davidson models will be powered only by the Milwaukee-Eight 114 for 2019: Ultra Limited, Ultra Limited Low, Road Glide Ultra, Road Glide Special, Street Glide Special, Road King Special, Tri Glide Ultra and Freewheeler.

The Milwaukee-Eight 114 delivers up to 5 percent more torque than the Milwaukee-Eight 107 (123 ft. lb. vs. 117 ft. lb.) and up to 5 percent quicker 0-to-60 mph acceleration than Milwaukee-Eight 107. This engine upgrade will give riders additional power – to merge effortlessly with freeway traffic, pull away from the stoplights, and to execute passing maneuvers with confidence and fewer down-shifts, especially when laden with a passenger and touring gear.

New Daymaker™ Adaptive Headlamp from Harley-Davidson Genuine Motor Accessories

The 7-inch Daymaker™ Adaptive LED headlamp combines advanced motorcycle headlight performance with modern styling. The projector-style LED offers superior punch and spread with a pure white light that produces a “Daylight Color Impression” that appears more natural to the user and is conspicuous in traffic. The signature LED light outer ring operates as a position lamp.

The most-advanced headlamp system ever developed for a Harley-Davidson motorcycle utilizes patented sensors and electronics integrated into the headlamp to determine lean angle of the motorcycle and automatically projects additional light into corners to illuminate areas of the road that may be unlit by traditional LED headlamps. Extensive engineering and testing was completed on the lamp to ensure every part of the road in front of the rider is equally lit. The adaptive light feature works in both the high- and low-beam functions.

The night-time beam pattern is focused on the road ahead and is engineered to reduce wasted light that can impact oncoming traffic. The solid-state LEDs are designed for long life and low energy draw, and installation of the shock and vibration-resistant lamp assembly is quick and easy with a plug-in connection to the factory headlamp wiring.

The 7-inch Daymaker™ Adaptive LED headlamps feature a top-mount low beam, a large bottom-mount projector high beam, two additional D-shaped lenses, an outer signature ring and 12 adaptive lights and is offered in Black or Chrome finish. It fits 2009-later Touring models (except Road Glide), 2012-2016 Switchback™ and 2004-2017 Softail® models with a 7-inch headlamp. DOT and ECE compliant for all markets.
