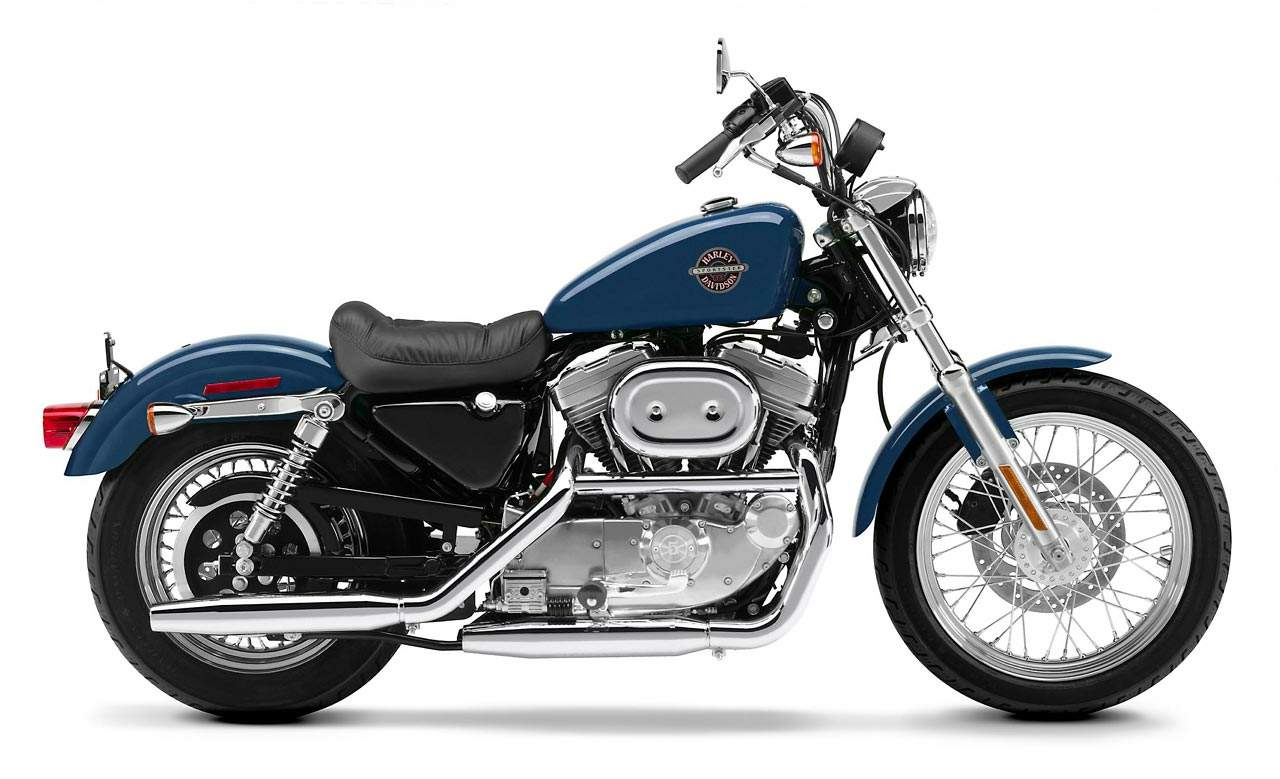

Harley Davidson XLH 883 Sportster Hugger

.

Make Model

Harley Davidson XL 883 Sportster Hugger

Year

2001 - 02

Engine

Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.

Capacity

883 cc / 53.9 cub in.
Bore x Stroke 76.2 x 96.8 mm
Cooling System Air cooled
Compression Ratio 8.8:1

Induction

Carburetion (40 mm constant velocity with enrichener and accelerator pump)  Air Cleaner/Filter Oval “racetrack”;

Ignition

Digital CDI
Starting Electric

Max Torque

69 Nm 52 lb-ft @ 4300 rpm

Clutch Multi-plate clutch with diaphragm spring in oil bath

Transmission

5 Speed
Final Drive Belt
Gear Ratio 1st 10.944 9.792 9.467
2nd 7.542 6.732 6.663
3rd 5.834 5.220 5.143
4th 4.806 4.301 4.278
5th 4.071 3.643 3.643
Frame Mild steel, tubular frame; circularsections; cast junctions
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded

Front Suspension

39mm Conventional cartridge forks

Rear Suspension

Dual shocks Coil-over; preload dual-adjustable

Front Brakes

Single 292mm disc 2 piston calipers

Rear Brakes

Single 292mm disc 1 piston calipers

Front Tyre

100/90-19

Rear Tyre

130/90HB16
Dimensions Length 2237 mm / 88.3 in
Wheelbase 1505 mm / 59.3 in
Seat Height 720 mm / 28.3 in
Ground Clearance 112 mm / 4.4 om
Wet Weight 235 kg / 518.1 lbs

Fuel Capacity

12.5 Litres / 3.3 US gal

By taking the distinctive styling of the Harley-Davidson® Sportster® and lowering the seat to just over 27 inches off the ground, you get the perfect angle for appreciating the solid muscle of the 883cc Evolution® V-Twin engine. The Hugger is closer to the ground than any other Sportster with easy-to-reach handlebars and footpegs that make it a very manageable bike to ride.

-Lowest Sportster seat height
-Rigid mount 883cc Evolution® engine
-Silver powdercoated engine with polished covers
-Short stroke front forks and rear shocks
-Buckhorn handlebars
-Low profile solo seat (Two-up seat available via P&A)
-Mid-mount foot controls

Vehicle specifications and features may vary from country to country depending on local laws, and some models are not available in certain countries.
