Husqvarna SMR 634 Eddy Seel Replica

.

Make Model

Husqvarna SMR 634 Eddy Seel Replica

Year

2006

Engine

Four stroke, single cylinder, SOHC, 4 valves

Capacity

634 cc /
Bore x Stroke 98 x 84 mm
Compression Ratio

Induction

41 mm Keihin MX

Ignition

Digital
Starting Electric & kick

Max Power



Max Torque


Clutch Wet, multiplate; hydraulic actuated

Transmission

6 Speed
Final Drive Chain
Front Suspension 45mm Marzocchi inverted telescopic forks, adjustable

Rear Suspension

Sachs progressive shock, adjustable spring.

Front Brakes

Single Brembo 320 mm disc

Rear Brakes

Single Brembo 220 mm floating disc

Front Tyre

120/70 -16.5

Rear Tyre

164/55 -17
Wheelbase 1475 mm / 58.0 in
Seat Height 919 mm / 35.8 in

Dry Weight

116 kg / 255.7 lbs

Fuel Capacity

9 Litres / 2.3 US gal
.

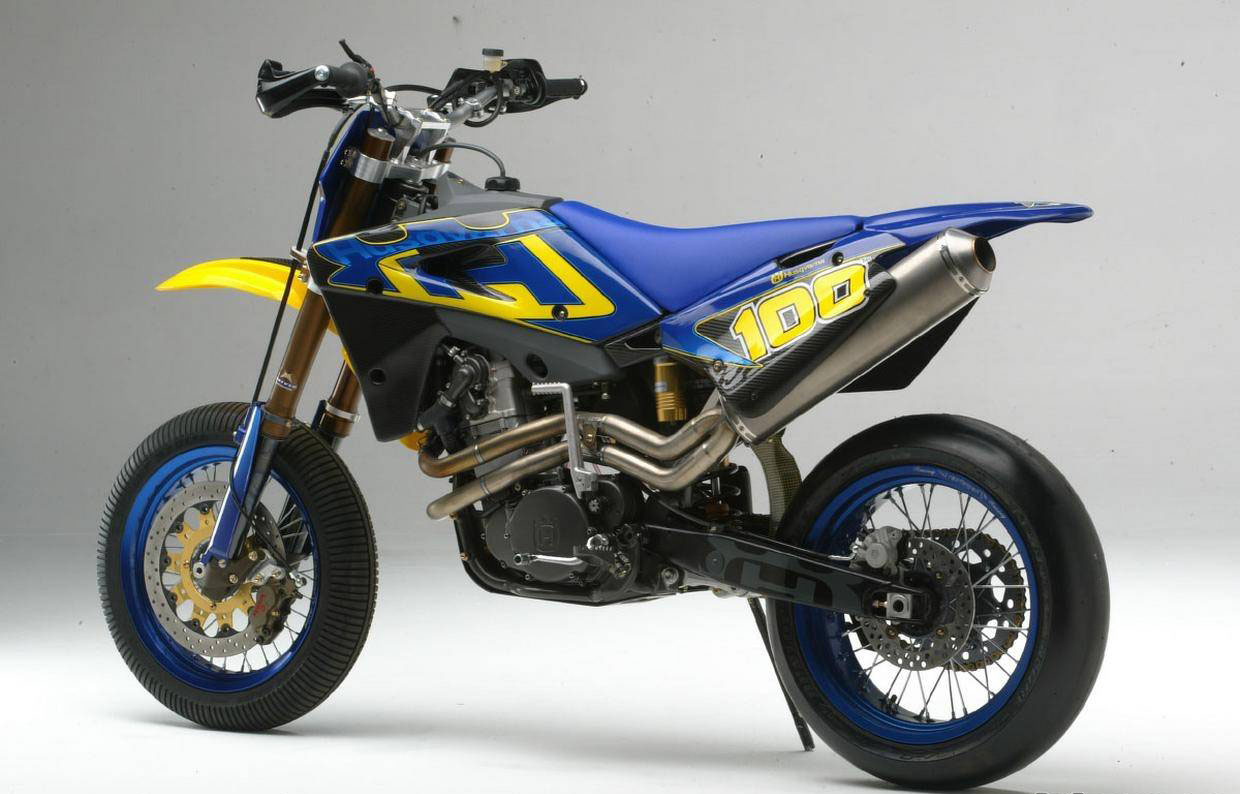

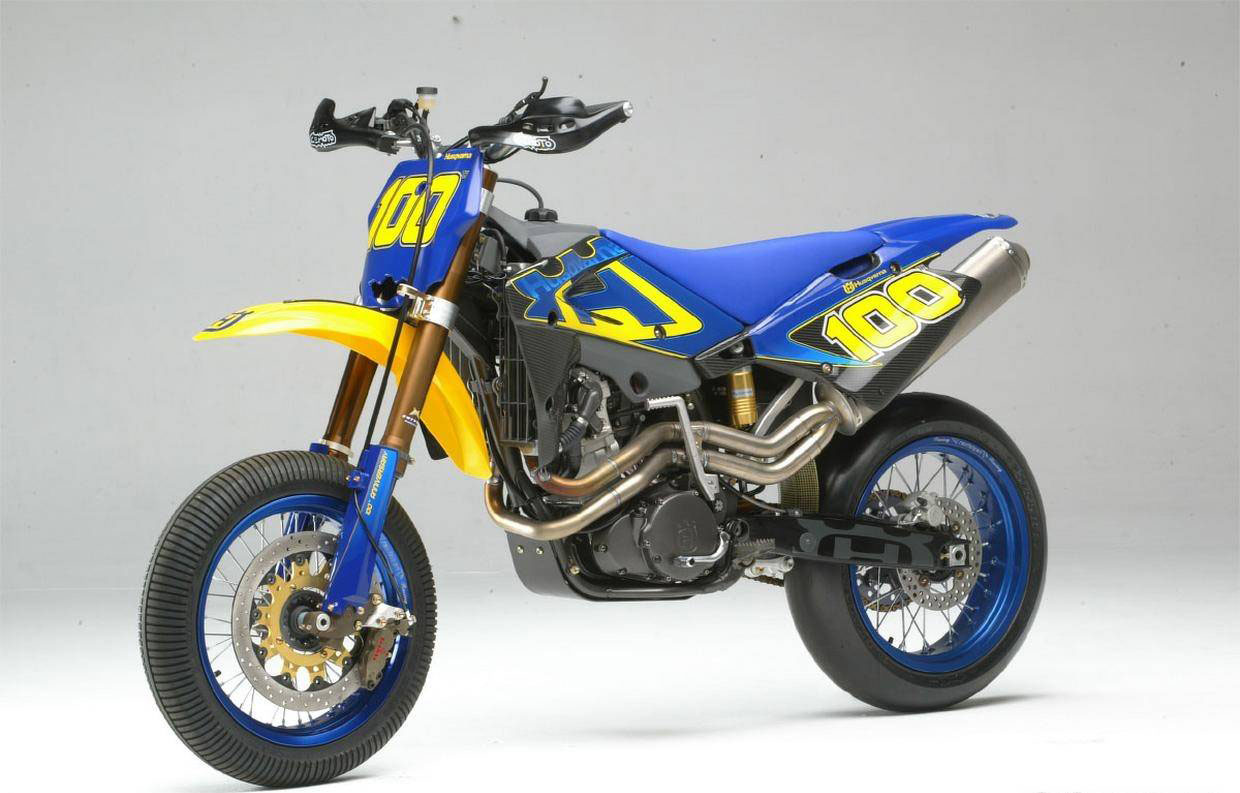

This Husqvarna SMR 634 Eddy Seel Replica came in a limited edition of only 100 units, to celebrate Husqvarna's 100th year.    The special edition has the same the same livery as the Eddy Seel's world championship bike.

It is powered by a liquid-cooled, four-stroke, 634cc, single cylinder engine mated to a six-speed manual transmission. In addition, it comes with a high-end Brembo braking system, and a race-derived 45 mm Marzocchi inverted fork and a Sachs progressive rear shock.
