Husqvarna Vitpilen 401

Make Model	Husqvarna Vitpilen 401
Year	2020 - 21
Engine	Four stroke, single cylinder, DOHC, 4 valve
Capacity	373.2 cc / 22.8 cu-in
Bore x Stroke	89 x 60 mm
Cooling System	Liquid cooled
Compression Ratio	12.6:1
Lubrication	Wet sump
Exhaust	Stainless steel/ Aluminum silencer with regulated catalytic converter
Induction	Fuel injection
Ignition	Digital CDI
Starting	Electric
Max Power	43 hp / 32 kW @ 9000 rpm
Max Torque	37 Nm / 27.3 lb-ft @ 7000 rpm
Clutch	PASC™ antihopping clutch, mechanically operated
Transmission	6 Speed
Final Drive	Chain, X-Ring 5/8 x 1/4″
Secondary Gear Ratio	15:45
Primary Gear Ratio	30:80
EMS	Bosch EMS
Frame	Steel trellis frame, powder coated
Front Suspension	43mm WP upside-down forks
Front Wheel Travel	142 mm / 5.5 in
Rear Suspension	WP monoshock
Rear Wheel Travel	150 mm / 5.9 in
Front Brakes	Single 320mm disc, 4 piston floating calliper
Rear Brakes	Single 230mm disc 1 piston floating calliper
ABS	Bosch 9M+ two-channel ABS (disengageable)
Front Wheel	Wire-spoked w/ aluminum rims 3.00 x 17
Rear Wheel	Wire-spoked w/ aluminum rims 4.00 x 17
Front Tyre	110/70 - 17 Pirelli Scorpion Rally STR
Rear Tyre	150/60 - 17 Pirelli Scorpion Rally STR
Steering Head Angle	65°
Rake	25°
Triple Clamp Offset	32 mm / 1.8 in
Trail	95 mm / 3.7 in
Wheelbase	1357 ± 15.5 mm / 53.4 in
Seat Height	835 mm / 32.8 in
Ground Clearance	170 mm / 6.7 in
Wet Weight	150kg / 330.6 lbs
Fuel Capacity	9.5 Litres / 2.5 US gal

The Vitpilen 401 is an unassuming hero of the sub-500 cc world. Its surefootedness, light weight and immersive riding position guarantee helmet-hidden smiles. You don't ride it as much as guide it with feather-light inputs. It reacts to the smallest response, moves at the lightest touch and feeds back every road texture through low-slung bars. It's an all-encompassing and sensory ride which resonates with new and experienced riders alike.

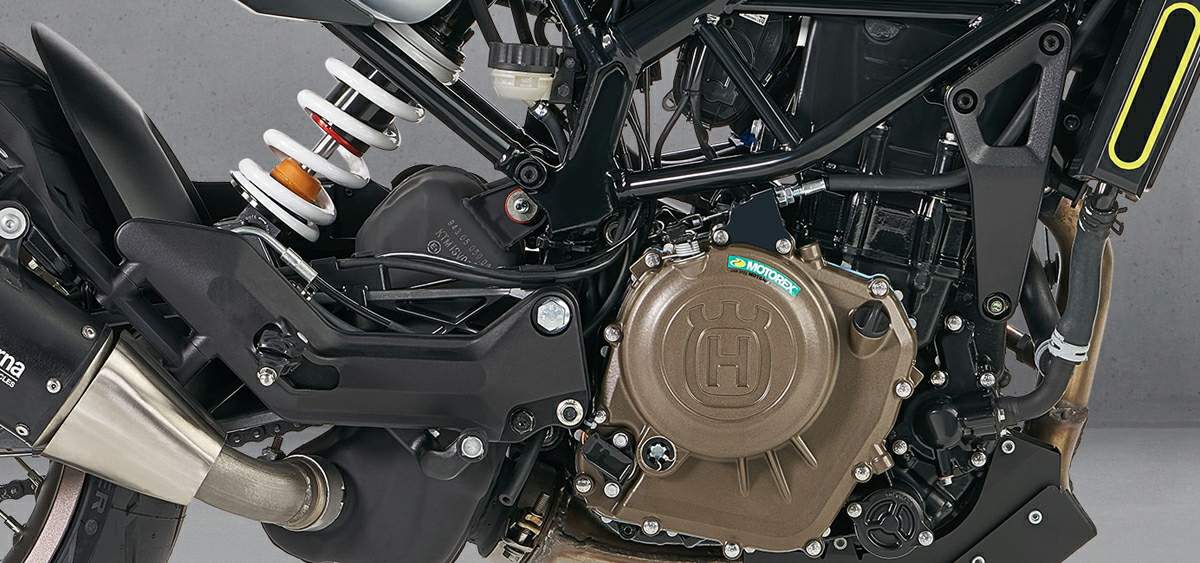

ENGINE & GEARBOX

The Vitpilen 401 is powered by a modern 373cc single-cylinder engine that is remarkably compact. With 37Nm of torque from low down in the RPM range and a 6-speed gearbox, it is perfect for urban riding. The electronic fuel injection is operated by a ride-by-wire system and delivers a controlled and refined power. With a peak horsepower of 32 kW (44 hp), the Vitpilen 401 is accessible to a wide variety of riders, while its lightweight construction means the power-to-weight ratio will also excite more experienced riders.

FRAME

The trellis frame is central to the Vitpilen 401 character and agility. Made from high strength chromium molybdenum steel using hydro formed tubes and robot welding, the frame is not only strong but also lightweight ensuring nimble handling and detailed feedback to the rider. Designed with specific flex characteristics, the frame works in harmony with the WP suspension to offer a comfortable and confident feel combined with a tight turning circle for ease of use in urban environments. The optimized subframe is extended by 40 mm for improved comfort when accompanied by a pillion rider.

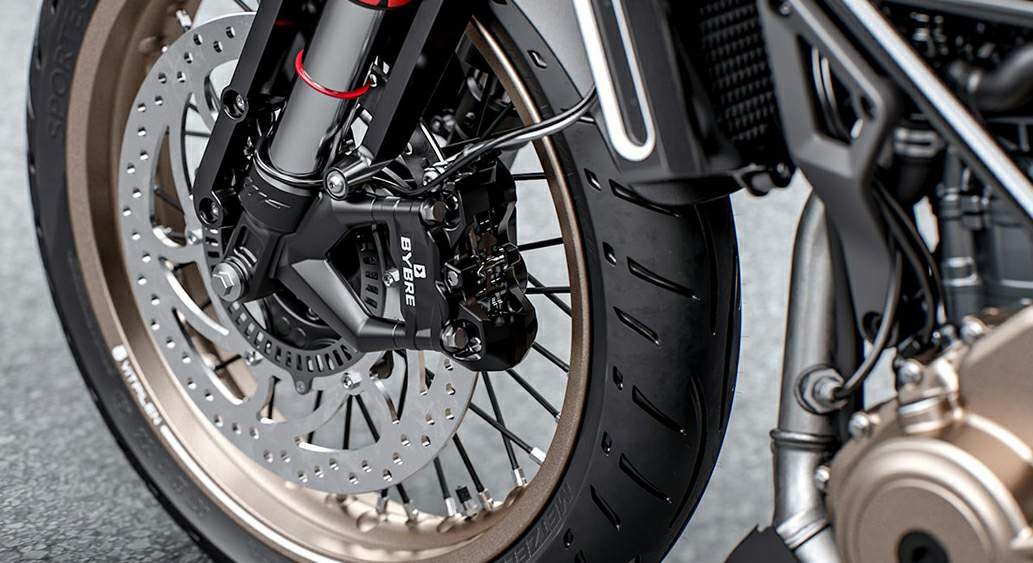

BRAKES

The VITPILEN 401 is fitted with hydraulic ByBre brake callipers, which are manufactured to the highest standards, and in combination with 320mm front and 230mm rear perforated steel discs, deliver controllable and confident braking performance.The VITPILEN 401 is also fitted with a state-of-the-art Bosch ABS system, ensuring the highest level of safety in varying braking conditions.

SUSPENSION

The WP suspension on the VITPILEN 401 is made to exacting standards, ensuring the highest level of quality and craftsmanship. The front suspension features 43 mm open cartridge forks, while the rear features a progressive damping system connected directly to the swingarm. The high-quality components offer dynamic handling optimal for challenging urban environments.

EXTERIOR

Reduced to an authentic mix of classic thinking and modern design. This Vitpilen 401 is synonymous with the Swedish heritage of Husqvarna Motorcycles. The lightweight and narrow bodywork is shaped into the Vitpilen 401´s progressive design and intelligently allows for seamless movement while riding.

WHEELS

The 17" anodised spoked wheels are a design highlight of the Vitpilen 401. The wheels offer a unique sense of style and are also very robust, offering premium reliability on unpredictable and challenging urban terrain.

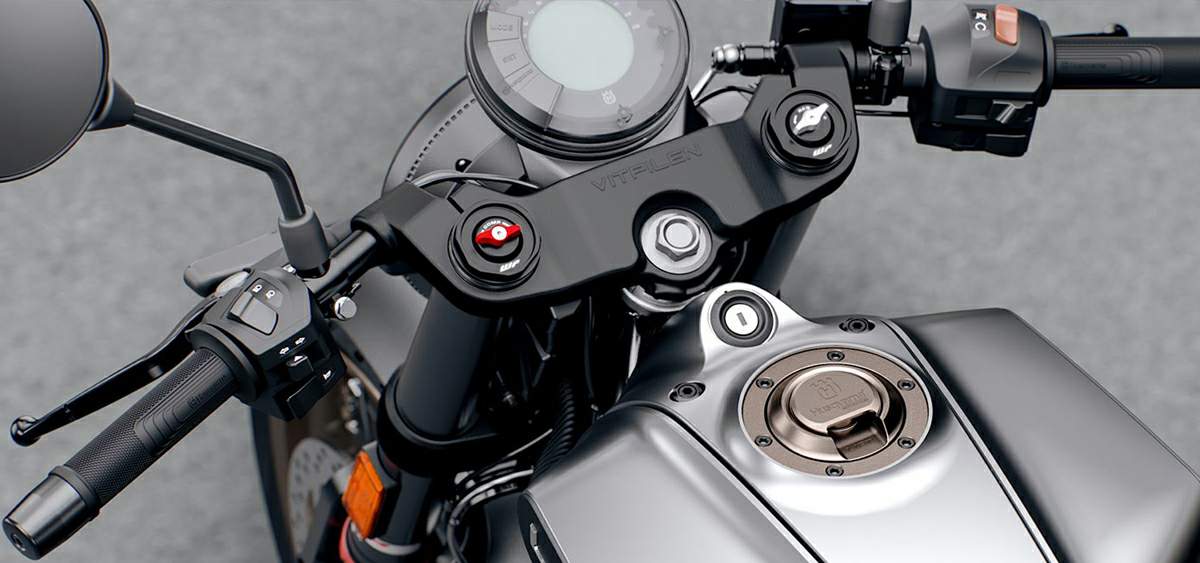

CONTROL ZONE & TRIPLE CLAMP

Clip-on handlebars attach to forged aluminium triple clamps, a central focal point to the Vitpilen 401. In keeping with the minimalistic look and authentic design, the control zone is not obstructed by any fairings and features a digital display unit with the necessary information.

LIGHTS

The front and rear lights are distinct elements on the Vitpilen 401 and use the latest LED technology, the lights are more than just designer pieces and offer advanced lighting performance and visibility in urban environments.

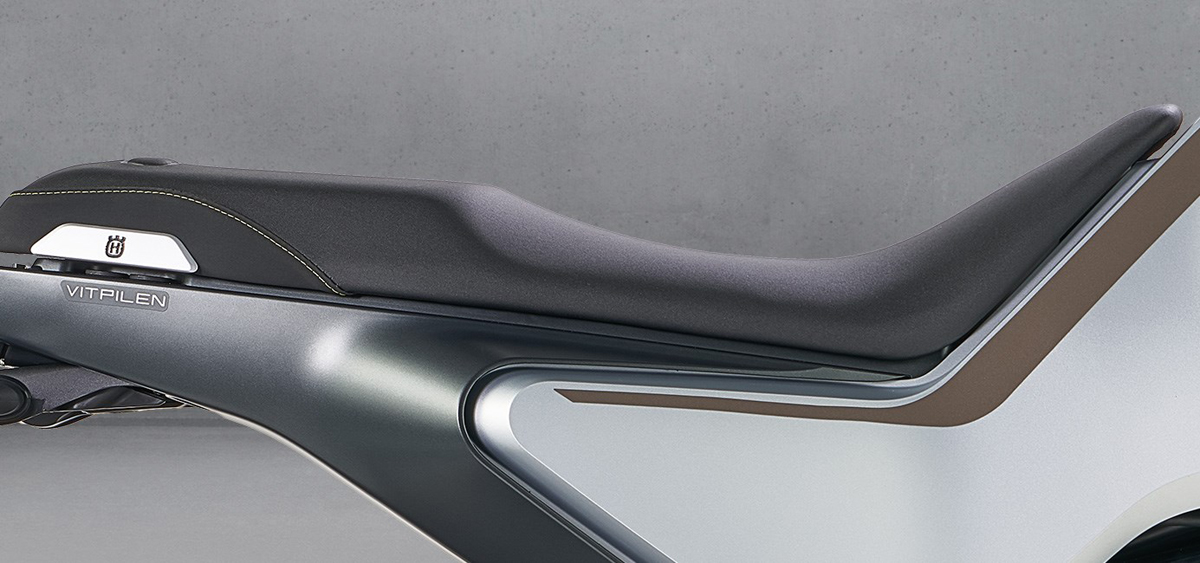

SEAT

The seat of the Vitpilen 401 uses high-quality foam and leather fabric, which, despite its reduced appearance, remains comfortable for the rider. Extending from the main bodywork and seamlessly floating above the rear wheel, the seat adds to the unique riding experience that the Vitpilen 401 provides.

TANK & FILLER CAP

The aluminium filler cap proudly displays the Husqvarna Motorcycles logo, like a stamp of premium quality, standing humble but bold on the fuel tank. The tank is seamlessly integrated into the design, and is a central focal point of the Vitpilen 401, while painted finishes and subtle accents highlight its progressive and unique design.

Source Husqvarna
