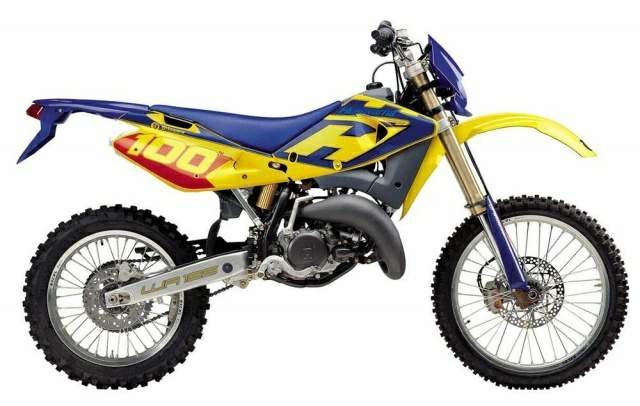

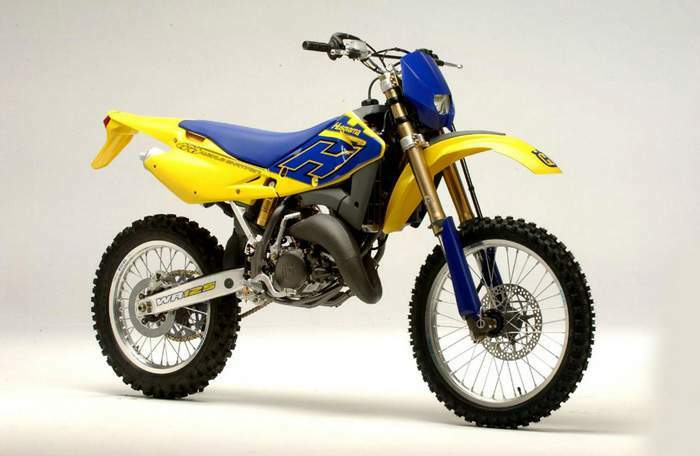

Husqvarna WR125E

Make Model	Husqvarna WR 125
Year	2005 - 07
Engine	Two stroke, single cylinder.
Capacity	124.8 cc / 7.6 cu-in
Bore x Stroke	54 x 54 mm
Cooling System	Liquid cooled
Compression Ratio	8.8:1
Induction	MIKUNI TMX 38 carburettor
Ignition	Digital
Starting	Kick
Max Power	15 hp / 11.2 kW @ 10500 rpm
Clutch	Wet plate
Transmission	6 Speed
Final Drive	Chain
Frame	Steel single tube cradle (round tubes); rear frame in light alloy
Front Suspension	Marzocchi "Upside-Down" telescopic hydraulic fork with advanced axle, compression and rebound stroke adjustment
Rear Suspension	Sachs progressive "Soft Damp" type with single hydraulic shock absorber, spring preload adjustment, compression and rebound adjustment
Front Brakes	Single 260mm disc
Rear Brakes	Single 220mm disc
Front Tyre	90/90 -21
Rear Tyre	140/80 -18
Wheelbase	1465 mm / 57.7 in
Seat Height	970 mm / 38.2 in
Ground Clearance	360 mm / 14.2 in
Dry Weight	99.5 kg / 220.5 lbs
Fuel Capacity	8.5 Litres / 2.2 US gal
