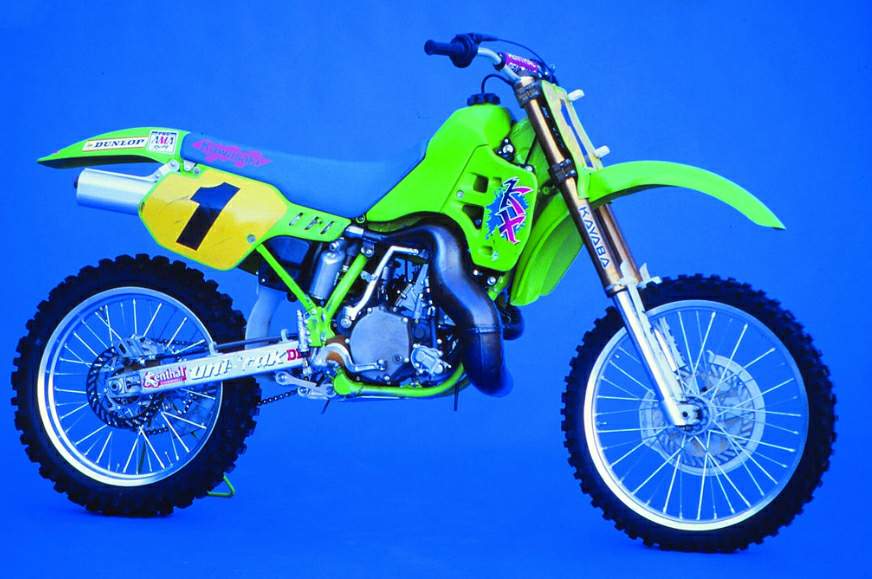

Kawasaki KX 500

Make Model	Kawasaki KX 500
Year	1990
Engine	Two stroke, single cylinder, read valve
Capacity	499 cc / 30.5 cu-in
Bore x Stroke	86 x 86mm
Compression Ratio	8.4:1
Cooling System	Liquid cooled
Exhaust	Expansion chamber
Lubrication	Premix
Induction	KeihinPWK39 carburetor
Ignition	Electronic CDI
Starting	Kick
Max Power	66 hp / 49.2 kW @ 7000 rpm
Max Torque	65,7 Nm 48.4 lb-ft / @ 6000 rpm
Clutch	Wet, multi-plate, cable operated
Transmission	5 Speed
Final Drive	Chain
Primary Reduction	2.538
Final Reduction	3.357
Gear Ratio	1st 2.000 2nd 1.450 3rd 1.181 4th 0.954 5th 0.791
Frame	High-tensile steel semidouble cradle with aluminum bolt-on.
Front Suspension	41mm upside-down cartridge fork with 20-way compression and 20-way rebound damping
Front Wheel Travel	310 mm / 12.2 in
Rear Suspension	Bottom-Link UN'1-TKAK with adjustable preload and 20-way compression and 20-way rebound damping
Rear Wheel Travel	330 mm / 13.0 in
Front Brakes	Single 220mm disc
Rear Brakes	Single 190mm disc
Front Tyre	80/100-21 51M
Rear Tyre	120/90-18 64M
Trail	122 mm / 4.8 in
Wheelbase	1514 mm / 59.6 in
Seat Height	950 mm / 37.4 in
Ground Clearance	325 mm / 12.8 in
Dry Weight	100 kg / 220.5 lbs
Fuel Capacity	9.8 Litres / 2.6 US gal

THE ROOST Power hungry? Feel like a born leader? Then check out Kawasaki's KX500.

Super/Moto Cross said ofthe'89KX500when they named it winner of their Open Class shootout: "The KX s fantastic powerband, excellent suspension, stable chassis and precise cornering move it to the front of the pack in a clean, well-deserved victory."

With a refined engine, upside-down fork, and new seat, the winner is better than ever.
Now everyone will be eating your roost as you blast out of berms...
Following your flight plan over the doubles...

And trying to keep you in sight through the whoops. Thel990KX500isso fast, so stable, so manageable, that all it needs to blast the pack on race day is a well-prepared rider.
Only Kawasaki could make the best even better.
But it takes you to rule the roost.
You, and your new KX500.

•Mom engine compression means more■power throughout the rev range. •Greaterflywheel effect makes the best open-class power delivery smoother than ever.
•Open the newairbox shutter in dry conditions for more power— close it when it's wet. •39 mm crescent-slide carb speeds intake velocity for quicker throttle response and rheostat-smooth low end power.
•Automatic decompression system means easier starts.
•Last year's front end uas simply the best: Tiie neiv
fork still is. but with less unsprung weight it reacts quicker and has no slider overhang.
•Adjustable UNI-TRAK9 flattens tire nastiest stuff on the traek with 13 inches of rising-rate travel. •New rear axle brackets increase overall rigidity of the rear whecl/stvtngann assembly.
• Tank holds fuel low in
handling.
iityfor more precise handlingon rough tracks. •Aluminum swingarm maximizes strength, mini-
win—with a helping hand in tlte pits and Team Green Bucks in the winner's circle. Ask one of the 650 Team Green dealers how you can get both.
