2013 Kawasaki Ninja 250R

Make Model	Kawasaki Ninja 250R
Year	2013 - 14
Engine	Four stroke . parallel twin, DOHC, 4 valve per cylinder
Capacity	248 cc / 15.1 cu-in
Bore x Stroke	62 х 41.2mm
Cooling System	Liquid cooled
Compression Ratio	11.6:1
Lubrication	Wet sump
Engine Oil	Semi-Synthetic
Induction	Fuel injection, 2x 28 mm throttle bodies (US 2x Keihin CVK30 carburetors
Ignition	TCBI with Digital Advance
Starting	Electric
Max Power	29.9 hp / 22 kW @ 10500 rpm
Max Torque	21.7 Nm / 2.21 kgf-m / 16.0 lb-ft @ 10000 rpm
Clutch	Wet, cable operated
Transmission	6 Speed
Final Drive	O-ring chain
Frame	Semi-double cradle, high-tensile steel,
Front Suspension	37mm hydraulic telescopic fork
Front Wheel Travel	119 mm / 4.7 in
Rear Suspension	Uni-Trak® with aluminum linkage
Rear Wheel Travel	130 mm / 5.1 in
Front Brakes	Single 260mm hydraulic petal disc 2 piston caliper
Rear Brakes	Single 220mm petal disc 2 piston caliper
Front Tyre	110/70-17
Rear Tyre	130/70-17
Rake	26°
Trail	84 mm / 33 in
Dimensions	Length 2080 mm / 80.0 in. Width 711 mm / 28.0 in. Height 1115 mm / 43.1 in.
Wheelbase	1389 mm / 5.1 in.
Seat Height	780 mm / 29.3 in
Dry Weight	151 kg / 304 lbs.
Wet Weight	170 kg / 374.7 lbs
Fuel Capacity	17 Litres / 4.4 US gal

The Kawasaki 2013 Ninja 250R has been updated with a new 249cc Parallel Twin engine, it receives new sleeveless die-cast cylinders as well as updated pistons, crankcases and a new exhaust. The 2013 Kawasaki Ninja 250 makes use of dual throttle valves like its big brothers the ZX-10R and ZX-6R. According to Kawasaki, the second ECU-controlled throttle valve helps to regulate intake airflow for a linear response, more efficient combustion and added power.

Kawasaki also updated the Ninja 250 with a new diamond-style frame that is said to be stiffer than the previous frame. Combined with revised damping and softer spring rates in the suspension system, Kawasaki claims the 250 offers increased comfort for city riding and firmer feeling for sportier riding.

Visibly, the 250 receives styling influences from the larger Ninjas. The new design uses dual headlamps instead of the previous model’s W-shaped single unit. Like the ZX-10R, the Ninja 250 gets a floating windscreen attached using only the mirror mounts. The side fairings feature new finned openings inspired by the ZX-14R to direct airflow.

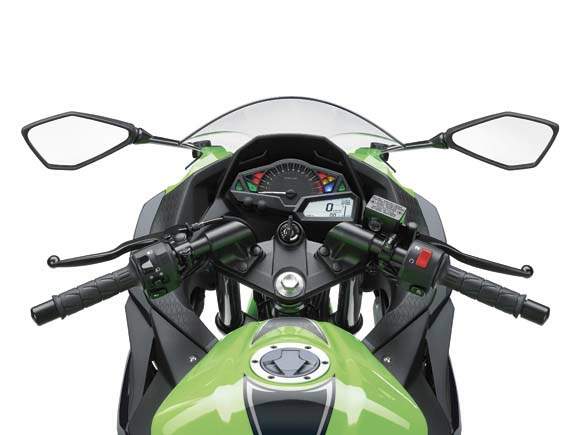

Other updates include ZX-14R-styled 10-spoke wheels, a larger 140mm rear tire and a new instrument panel with analog tachometer and multi-function LCD screen displaying fuel gauge, dual trip meters, clock and an “economical riding indicator”.
