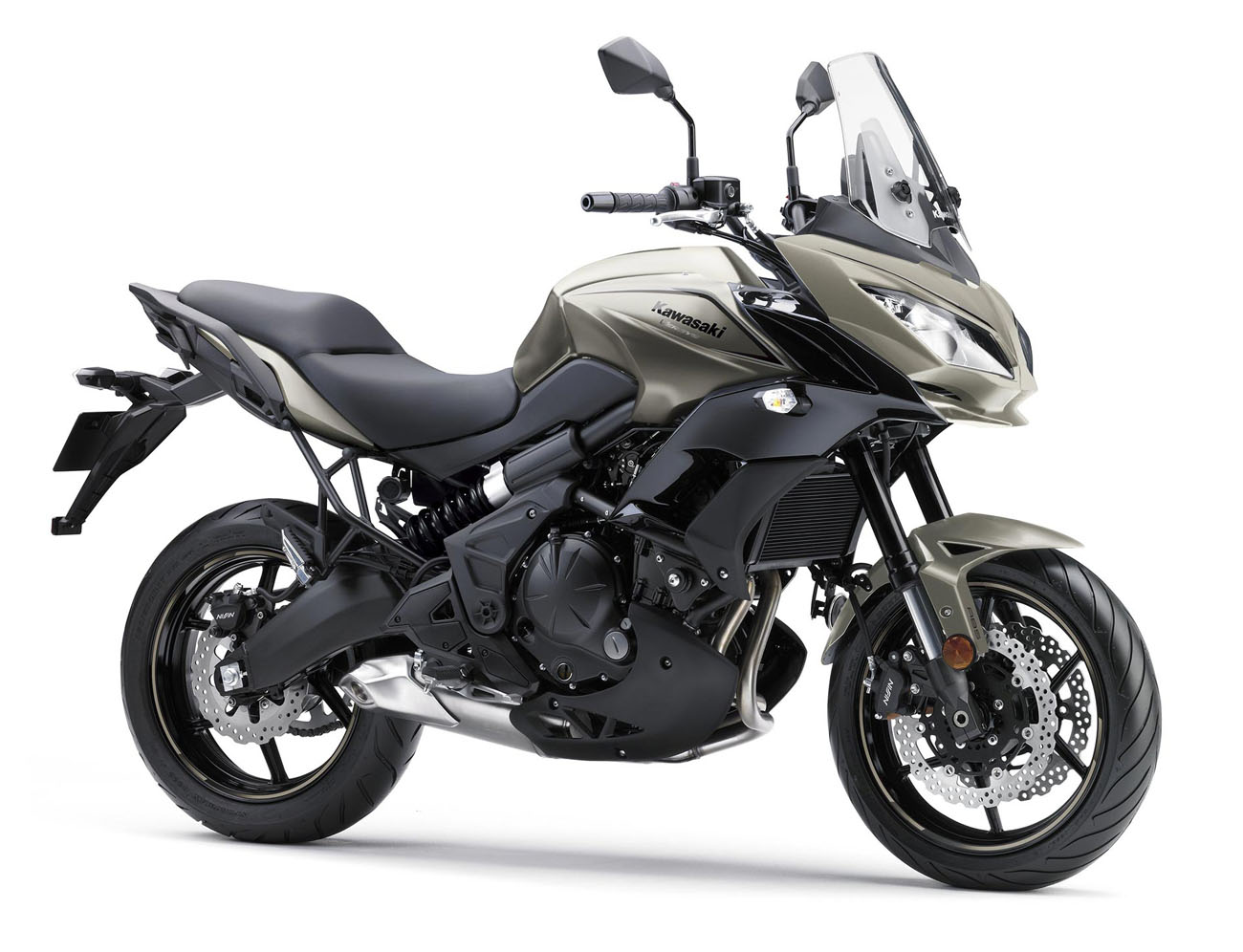

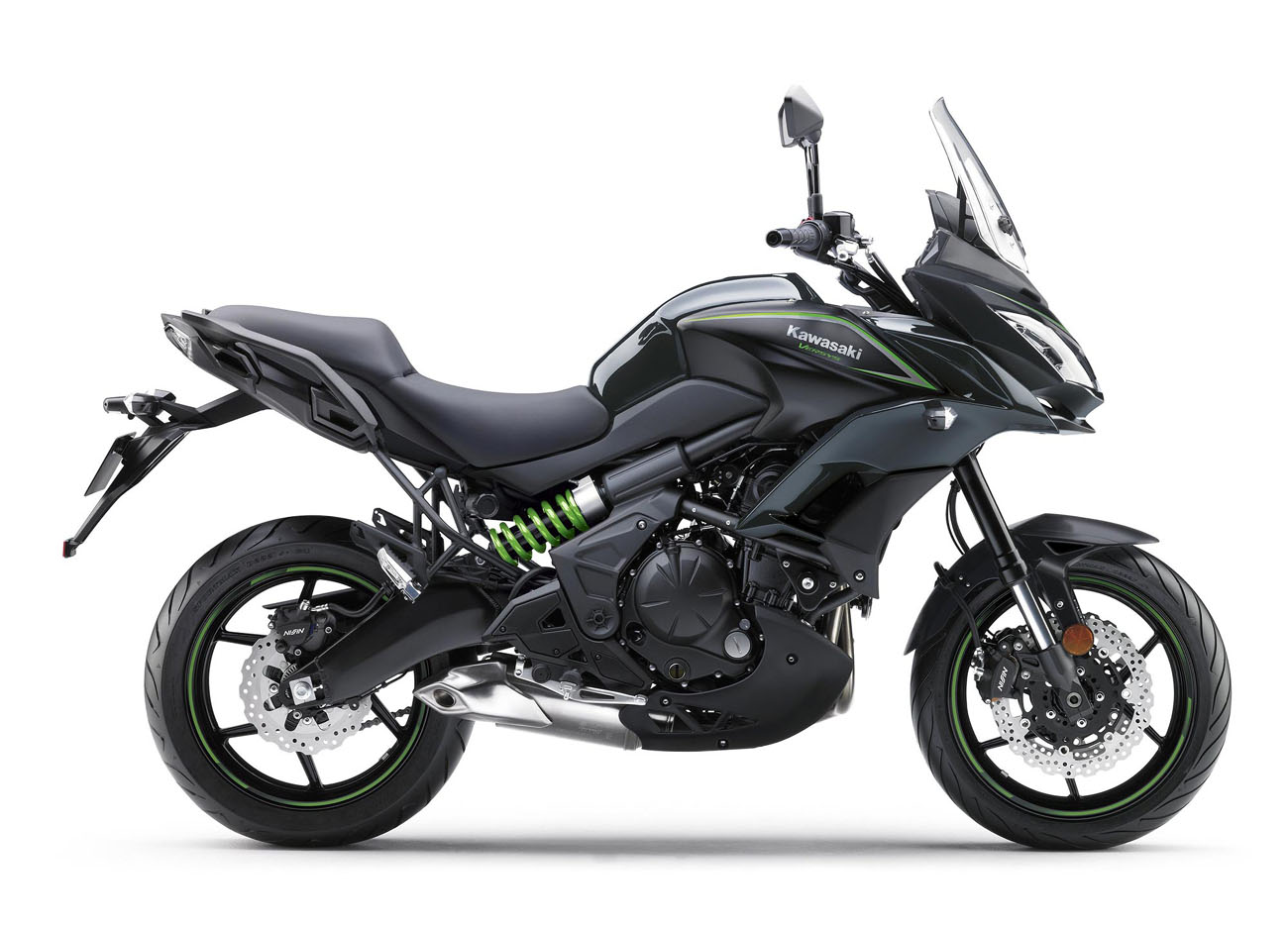

Kawasaki Versys 650

.

Make Model

Kawasaki Versys 650

Year

2017

Engine

Four stroke, parallel twin, DOHC, 4 valves per cylinder

Capacity

650 cc / 39.6 cu-in
Bore x Stroke 83 X 60mm
Cooling System Liquid cooled
Lubrication Forced lubrication (semi-dry sump)
Compression Ratio 10.6:1

Induction

Fuel injection, 2x 38 mm  Keihin

Ignition

Digital CBI
Starting Electric

Max Power

51 kW / 69 hp @ 8500 rpm

Max Torque

64 Nm / 6.5 kgƒ·m @ 7000 rpm
Clutch Wet multi-disc, manual

Transmission

6 Speed
Final Drive Chain
Gear Ratio 1st 2.438 (39/16)  2nd 1.714 (36/21)   3rd 1.333 (32/24) 4th 1.111 (30/27)  5th 0.966 (28/29)  6th 0.852 (23/27)
Final Reduction Ratio 3.067 (46/15)
Frame Diamond, high-tensile steel

Front Suspension

41 mm inverted telescopic fork with stepless (right-side) adjustable rebound damping and adjustable preload.
Front Wheel Travel 150 mm / 5.9 in

Rear Suspension

Offset laydown single-shock with 13-way adjustable rebound damping and 7-way adjustable preload.
Rear Wheel Travel 145 mm / 5.7 in

Front Brakes

2x 300mm discs 2 piston calipers

Rear Brakes

Single 220mm disc 1 piston caliper

Front Tyre

120/70ZR17

Rear Tyre

160/60ZR17M
Rake 25°
Trail 110 mm / 4.3 in
Dimensions Length 2165 mm / 85.2 in
Width     840 mm / 33.1 in
Height  1400 mm / 55.1 in
Wheelbase 1415 mm / 55.7 in
Seat Height 840 mm / 33.1 in
Ground Clearance 170 mm / 6.6 in

Wet Weight

217 kg / 476 lbs

Fuel Capacity

21 Litres / 5.5 US gal
.

RIDING POSITION AND A COMPACT PARALLEL-TWIN ENGINE RESULTS IN A HIGHLY VERSATILE PACKAGE, OFFERING RIDERS MAXIMUM RIDING EXCITEMENT.

•Compact 649cc parallel-twin engine combines maximum low- and mid-range torque and high-rpm performance for an exhilarating ride
•Slim, upright riding position offers a high level of comfort and nimble handling
•Windscreen with 2 inches of tool-free adjustment adds comfort for highway cruising
•Equipped with a gear position indicator
•GPS mount accessory available

THE RETURN OF THE VERSYS® FAMILY MEANS EVERY ROAD IS AN ADVENTURE
The Kawasaki Versys® family of motorcycles is designed for adventure-style touring.

The award-winning lineup starts with the nimble, easy to maneuver Versys®-X 300 ABS motorcycle. The Versys-X 300 ABS was met with rave reviews when it was introduced to the public earlier this year. It is now returning with new color options, while retaining its adventure capability.

The new colors for the 2018 Versys-X 300 ABS includes Metallic Spark Black/Metallic Flat Raw Graystone and Passion Red/Metallic Flat Raw Graystone.

The Versys® 650 ABS and Versys® 650 LT motorcycles are capable machines designed for fun and comfortable riding. Known for Kawasaki’s torquey 650cc parallel twin engine and lightweight chassis, the Versys 650 LT has smooth handling and responsive feedback. It’s a capable motorcycle that sits nicely in the middleweight category, meeting a variety of riders’ needs. The Versys 650 LT models come standard with hand guards and saddlebags.

The Versys 650 ABS and Versys 650 LT are both returning for 2018 with new color offerings in Metallic Flat Spark Black/Metallic Carbon Gray and Pearl Blizzard White/Metallic Spark Black.

The Versys® 1000 LT rounds out the Versys family of motorcycles, offering the most powerful engine in the lineup, with premium suspension components. ABS is standard on all models along with accessories like saddlebags and hand guards. The Versys 1000 LT has been highly regarded by the media and customers for its immense performance, smooth maneuverability and the ability to eat up miles with ease.

Features

Digital Fuel Injection (KP)
• 38mm Keihin throttle bodies feature dual throttle valves(KP) for optimum performance and rideability. The sub throttles, located behind the main throttle valves, are controlled by the ECU so that the DFI® system has more precise throttle response, similar to a constant-velocity carburetor.
• Precise fuel injection plus exhaust catalyzer significantly reduce emissions.
• Automatic fast idle system makes starting and warm-up easy.

6-Speed Transmission
• Cassette-style transmission puts the transmission shafts and shift drum into a compact layout.
• Positive Neutral Finder, a Kawasaki exclusive user-friendly feature.

Frame
• Rubber front engine mounts help reduce vibration for rider comfort.
• Double-pipe perimeter-frame(KP) is simple and unique and contributes to light handling character. A backbone-style rear subframe keeps the seat narrow for an easy reach to the ground while allowing a thick cushion for comfort.
• Strong rear sub-frame accommodates optional accessory top case for increased touring capacity.
• Double-pipe swingarm matches the frame design and contributes to light, easy handling. Gull-wing shape on the right side allows clearance for the aggressive muffler design.

Triple Petal Design Brake Discs
• Anti-Lock Brake System (ABS) helps assist braking under certain conditions and features a compact Bosch control unit to save space and weight.
• Nissin brake calipers convey a sporty image and contain front and rear brake specific pads; the front providing strong initial bite and the rear offering optimum control and high overall brake force.
• Large rear petal brake disc helps handle heavier loads when accessories are added.
• Front brake calipers have large 27mm pistons for excellent brake feel.
• Petal design offers improved cooling and warp resistance.

CHASSIS
ENGINE

Showa Front Fork
• Derived from high-spec forks on Kawasaki Ninja® sportbikes, the Showa fork separates damping and spring functions into each fork leg. Rebound damping adjustability is in the right fork leg and spring preload in the left leg.
