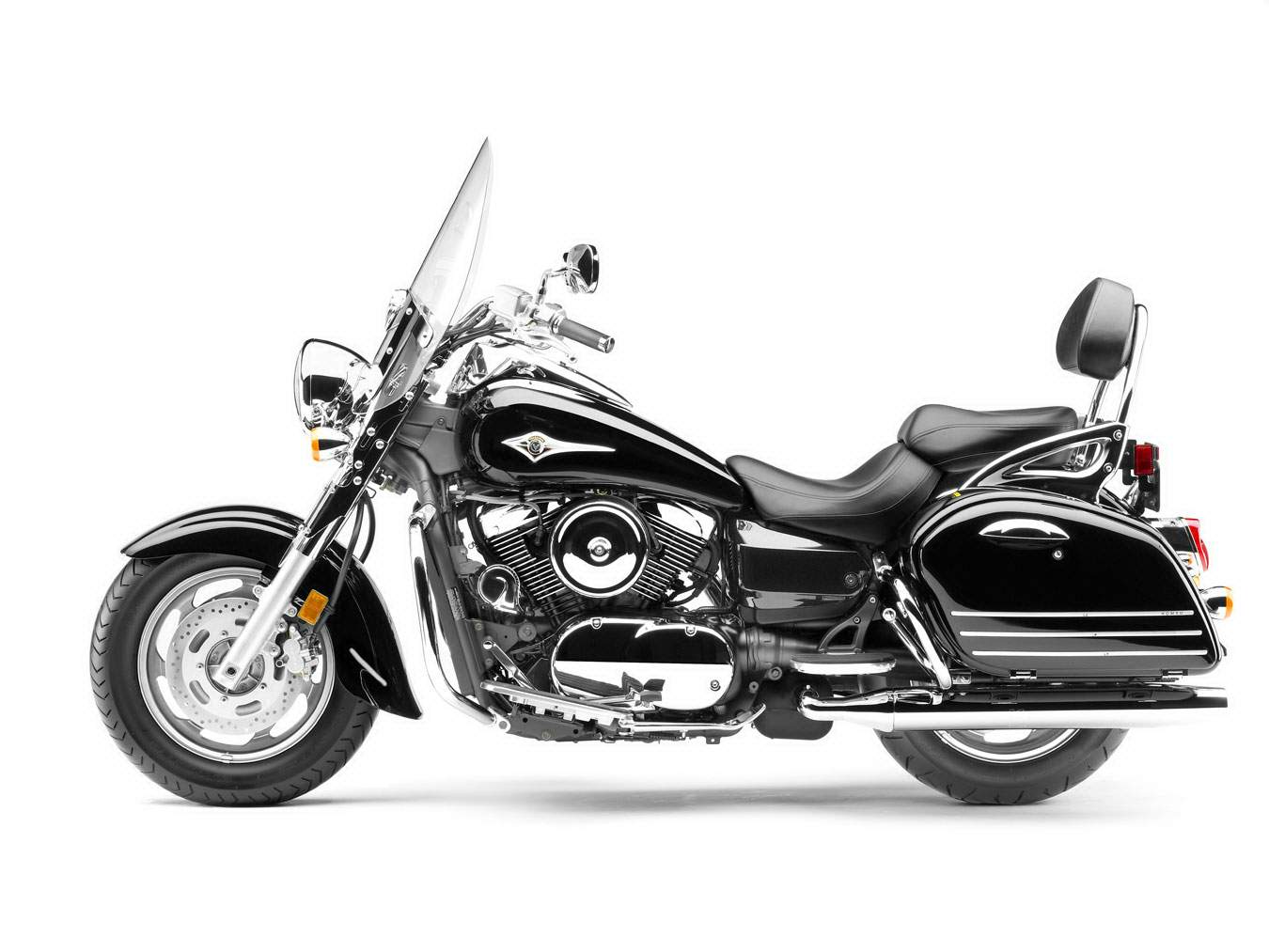

Kawasaki VN 1600 Vulcan Nomad

.

Make Model

Kawasaki VN 1600 Nomad

Year

2007 - 08

Engine

Four stroke, V-Twin, SOHC, 4 valves per cylinder

Capacity

1552 cc / 94.7 cu-in
Bore x Stroke 102 x 95 mm
Cooling System Liquid cooled
Compression Ratio 9.0:1
Induction Electronic fuel injection, 2 x 40mm throttle bodies

Ignition

Electronic
Starting Electric

Max Power

65.7 hp / 48 kW @ 4700 rpm

Max Torque

127 Nm / 93.7 lb-ft @ 2700 rpm

Transmission

5 Speed
Final Drive Shaft

Front Suspension

43mm inverted forks

Rear Suspension

Swingarm with dual air-assisted shocks, adjustable for rebound and preload

Front Brakes

2x 300mm discs 2 piston calipers

Rear Brakes

Single 300mm disc 2 piston caliper

Front Tyre

150/80 x 16

Rear Tyre

170/70 x 16
Rake 32.0°
Wheelbase 1680 mm / 66.1 in
Seat Height 706 mm / 27.8 in
Ground Clearance 135 mm / 5.3 in

Dry Weight

307 kg / 676.8 lbs

Fuel Capacity

20 Litres / 5.2 US gal

KAWASAKI’S VULCAN® 1600 NOMAD™ BRINGS POWER AND STYLE TO THE TOURING CRUISER UNIVERSE

Sleek saddlebags and touring windscreen for the open road

True to its name, Kawasaki’s Vulcan® 1600 Nomad™ is ready to travel and there’s no surprise this ready made touring-cruiser is a popular choice. Highlighted by a strong frame and excellent power from a 95-cubic inch V-Twin, the Nomad also has extensive touring features, a stylish appearance, and excellent riding dynamics.

Propelling this roaming beauty is a 1,552cc V-twin engine generating plenty of low-end torque and highway power to take its rider anywhere the road leads them. A gear-driven engine counter balancer and well-designed engine mounts reduce handlebar and floorboard vibration, yet these features do not interfere with the engine’s distinctive V-twin rumble or power-pulse feeling from its single-pin crankshaft.

Crucial on a laden tourer - as when maneuvering in parking lots - the 1600 Nomad’s steering geometry is designed so that the motorcycle feels more neutral at low speeds, while an air-adjustable rear suspension allows the Nomad to maintain the correct geometry even when loaded with a passenger and luggage.

The 1600 Nomad is highlighted by several standard chrome and creature comforts: Chrome engine guards and a thick passenger seat equipped with a backrest and aluminum grab bars. Floorboards for the rider and passenger combine to make long-distance rides more comfortable and pleasurable. Streamlined and stylish hard saddlebags are standard fare and provide generous storage for those overnight rides.

Self-canceling turn signals, a 5.3-gallon fuel tank, topped by an elegant electronic speedometer and LED odometer/tripmeter display let Nomad owners fully enjoy their ride. Other standard features such as an adjustable windshield, plush air-assisted rear suspension and adjustable levers tailor the Nomad to its rider.

FEATURES:

V-Twin Engine

- 1,552cc (95 cu. in.) engine delivers gutsy acceleration and a broad spread of satisfying power

- Oversquare 102 x 95mm bore and stroke helps ensure punchy response

- Digital Fuel Injection with dual 36mm throttle bodies

- Four valves per cylinder provide maximum valve area for optimum flow

- Dual mufflers allow more clearance for saddlebags

Liquid-Cooling

- Maintains consistent engine temperatures for long engine life and sustained power

- Auxiliary fan keeps things cool during all operating conditions

Gear-Driven Engine Balancer

- Counter-rotates at engine speed to cancel vibration

- Allows use of single-pin crankshaft for the desirable power-pulse feeling

Rubber-Mounted Engine

- Virtually eliminates all engine vibration

Five-Speed Transmission

- Great around-town acceleration with relaxed highway cruising

- Positive neutral finder, just lift the shift pedal from first at a stop to find neutral easily

Triple Disc Brakes

- Dual discs up front for maximum stopping power

- Large, single rear disc because touring bikes carry so much of the load on the rear wheel

5.3-Gallon Fuel Tank

- Rounded-edge finish for clean, upscale look

- Large capacity allows extended touring range

Shaft Drive

- Reliable, clean and quiet low-maintenance system

Air-Adjustable Rear Shocks

- Rebound damping is four-way adjustable to tailor fit the ride

Large, Adjustable Windshield

- Adjustable up and down two inches, it gives excellent rider and passenger weather protection

- Heavy-duty chromed support hardware holds the windshield rock steady

Hard Saddlebags

- Designed for easy packing, these saddlebags carry an amazing amount of gear

- Lockable, side-open design for smooth looks and quick access

- Soft, removable inner bags available as an optional accessory

- Color-matched for integrated style

Passenger Comfort

- Floorboards, standard backrest and thick seat provide maximum passenger comfort on long rides
