KTM 1290 Super Duke RR

.

Make Model

KTM 1290 Super Duke RR

Year

2021
Production 500 Units

Engine

Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder

Capacity

1301 cc / 79.3 cu-in

Bore x Stroke

108 x 71 mm

Compression Ratio

-

Cooling System

Liquid cooled

Exhaust

Akrapovič "slip-on line" exhaust system, Made from titanium with a carbon fiber end cap
Emission EURO5
Lubrication Forced oil lubrication with 3 oil pumps

Ignition

Keihin EMS with RBW and cruise control, double ignition

Starting

Electric

Max Power

132 kW / 180 hp

Max Torque

140 Nm / 103 lb-ft

Clutch

PASC (TM) slipper clutch, hydraulically actuated

Transmission

6-speed

Final Drive

525 X-Ring

Frame

Chrome-moly tubular space frame, powder-coated
Subframe Carbon fiber

Front Suspension

Fully adjustable WP APEX PRO 7548 close cartridge forks

Front Wheel Travel

130 mm / 5.1 in

Rear Suspension

APEX PRO 7746 Monoshock

Rear Wheel Travel

140 mm / 5.5 in

Front Brakes

2 x 320 mm Brembo Stylema Monobloc four piston, radially mounted caliper

Rear Brakes

Single 240 mm disc

ABS System

Bosch 9.1MP 2.0 (with cornering ABS and SUPERMOTO ABS)

Wheels

7 spoke forged wheels

Front Rim

3.5 x 17

Rear Rim

6.00 x 17

Front Tyre

Michelin Power Cup2

Rear Tyre

Michelin Power Cup2
Steering Head Angle 65.6°

Seat Height

837 mm / 32.9 in

Ground Clearance

160 mm / 6.2 in

Dry Weight

180 kg /  396.8 lbs

Fuel Capacity

16 Litres / 4.2 US gal
.

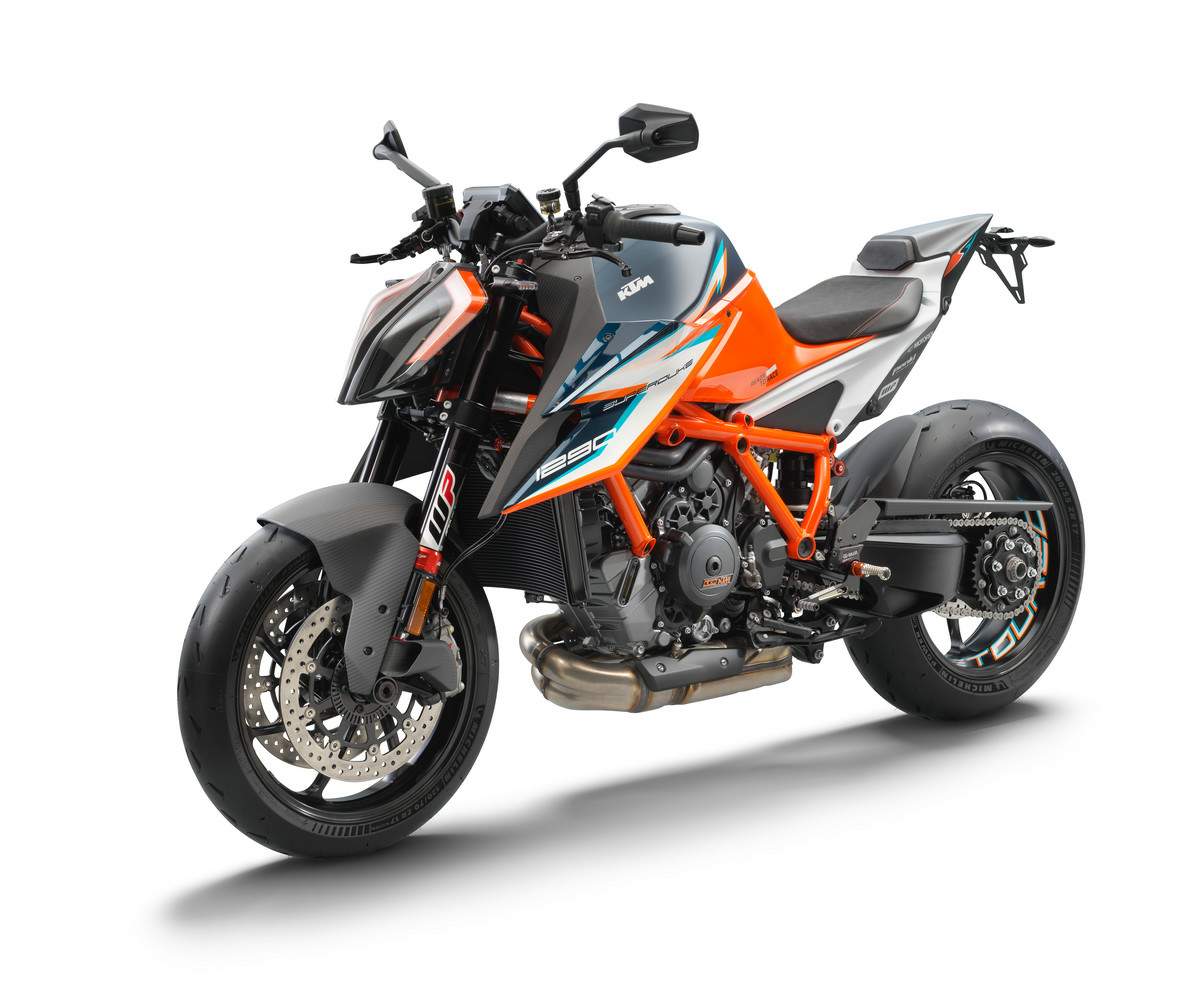

NO REST FOR THE WICKED: THE KTM 1290 SUPER DUKE RR ROARS ONTO THE SCENE

KTM has once again rewritten the rule book when it comes to its NAKED category of motorcycles. Introducing the KTM 1290 SUPER DUKE RR – THE BEAST with even more ‘fright’.

KTM continues to surprise, taking the ever-popular KTM 1290 SUPER DUKE R platform and forging an even angrier BEAST. Being the first machine menacing enough to wear an ‘RR’ badge, it sits proudly at the top of KTM’s street range as a limited-edition flagship motorcycle, developed around one key statement: Pure Performance.

Only 500 of these ultra-rare Naked machines will be built, with the European allocation being available exclusively via an online pre-order portal.

Based on the latest KTM 1290 SUPER DUKE R prototype, the RR is a demonstration of what happens when your R&D department is allowed free reign. It’s a true definition of READY TO RACE, with added exclusivity, exotic componentry, and premium workmanship.

The figures tell the story – 1,301 cc, 180 hp, 180 kg, and 140 Nm, translating into a power-to-weight ratio of 1:1, with enough torque to tear open the bitumen. Make no mistake, this BEAST is all about track-ripping performance. It is a no-compromise Hyper Naked motorcycle that has been conjured up from the darkest depths of the performance lab to decimate lap records.

Weighing in at a whole 9 kg lighter, the RR is more agile, stiffer, and offers better high-speed stability than the standard KTM 1290 SUPER DUKE R. The wheels too have gone under the knife, shedding a massive 1.5 kilograms of unsprung weight. These are wrapped in ultra-sticky Michelin Power Cup2 tires, dramatically upping the track readiness of the KTM 1290 SUPER DUKE RR.

However, the biggest area of influence comes in the form of WP’s finest components. Up front, the KTM 1290 SUPER DUKE RR makes use of fully adjustable WP APEX PRO 7548 Close Cartridge forks, together with an adjustable WP APEX PRO 7117 steering damper. At the rear, an APEX PRO 7746 Shock takes charge, which has been custom-made to the specification of the KTM 1290 SUPER DUKE RR.

Carbon fiber has been used extensively in the KTM 1290 SUPER DUKE RR’s construction, with the subframe also receiving the lightweight carbon treatment. This has allowed designers to reimagine the tail of the BEAST, creating a unique single-seat unit, with redesigned LED taillights incorporated into new LED turn signals. These also include KTM’s adaptive brake light as standard.

All of this, not to mention the biggest Euro5-compliant V-Twin engine currently available in a Hyper Naked motorcycle, makes the KTM 1290 SUPER DUKE RR the ultimate backstreet weapon or track day tormentor.

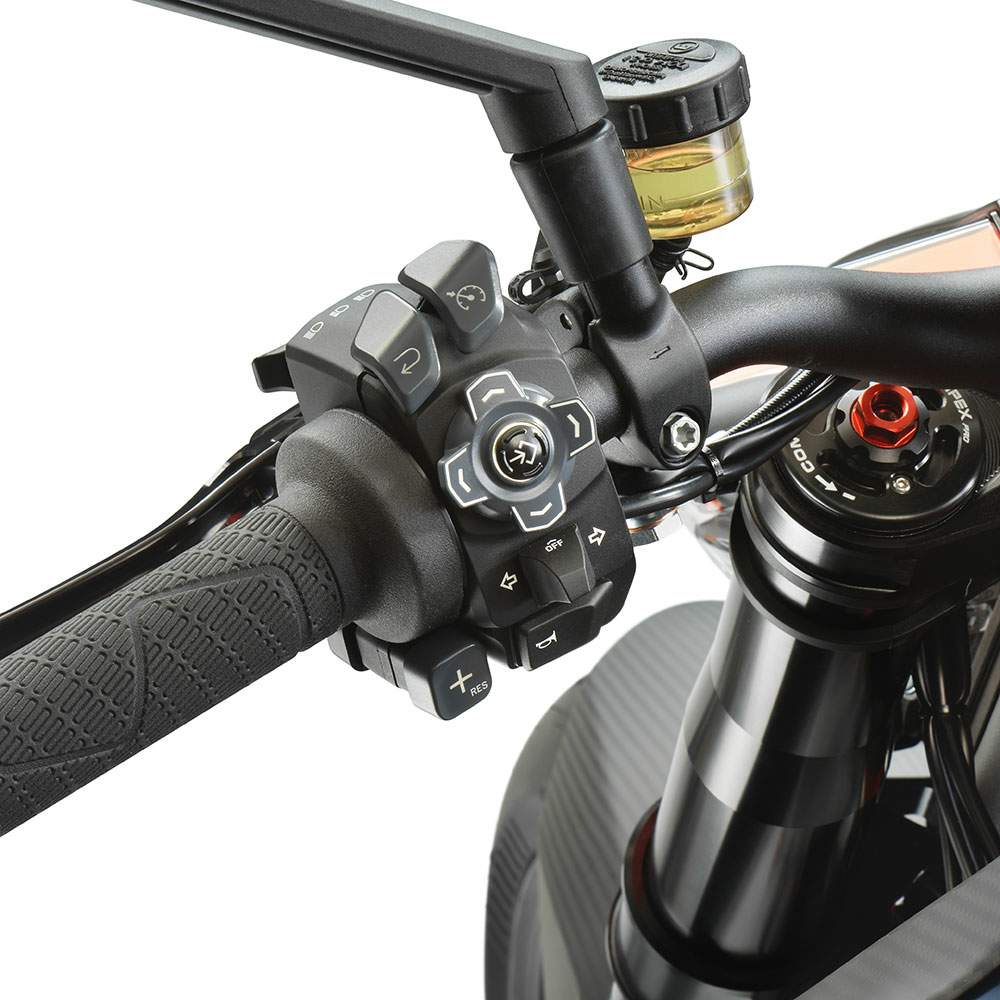

It gets its power down to the ground thanks to a new quick-turn throttle twist grip, with a 65-degree opening angle – a 7-degree reduction over the standard KTM 1290 SUPER DUKE R’s 72-degree grip. This was developed to deliver improved throttle response, but also to reduce the rider’s wrist angle and elbow drop at full opening.

As with all extreme track terrors, this BEAST would not be complete without a lightweight AKRAPOVIČ "SLIP-ON LINE" exhaust system. Made from titanium with a carbon fiber end cap, it provides the ‘bark’ to the BEAST’s bite. For the absolute power-hungry, a full system AKRAPOVIČ KIT "EVOLUTION LINE" is available as an optional extra.

Notable features on the KTM 1290 SUPER DUKE RR include:

- The most powerful V-Twin engine to ever power a naked motorcycle
- 180 hp and 180 kg give the KTM 1290 SUPER DUKE RR a 1:1 power/weight ratio
- New WP APEX PRO suspension and Michelin Power Cup2 tires
- New carbon fiber bodywork
- Lightweight lithium-ion battery, saving 2.5 kg
- Ultra-lightweight forged wheels, saving 1.5 kg of unsprung weight
- Carbon fiber subframe with a redesigned single seat
- Prototype-inspired CTG
- Exclusive KTM PowerParts package
- Limited to only 500 units worldwide

The KTM 1290 SUPER DUKE RR isn’t only impressive when it comes to hardware. Under its carbon-scaled skin hides the most complete track-orientated electronics package ever seen on a KTM – and all as standard.

Most notable of all in this package are the advanced Track and all-new Performance modes, which allow riders near-unlimited adjustability options for rear-wheel slip, throttle response, Launch Control, and Motor Slip Regulation.

While the KTM 1290 SUPER DUKE RR already boasts a full range of never before seen components and bodywork, a full range of KTM PowerParts has also been developed for those riders looking to boost its already frightening performance and track-ready viciousness.
