KTM 390 Duke
|
. |
Make Model |
KTM 390 Duke |
Year |
2019 - 20 |
Engine |
Four stroke, single cylinder. DOHC with finger followers, 4 valves |
Capacity |
373 cc / 22.7 cu-in |
Bore x Stroke | |
Cooling System | Liquid Cooled |
Compression Ratio | 12.6:1 |
Induction |
|
Wet sump | |
Ignition |
Bosch EMS |
Starting | Electric |
Max Power |
43.5 hp / 32 kW @ 9500 rpm |
Max Torque |
3.6 kg-m / 35.3 Nm @7000rpm |
Clutch | PASC™ antihopping clutch, mechanically operated |
Transmission |
6 Speed |
Primary Drive Ratio | 30:80 |
Final Drive Ratio | 15:45 |
Final Drive | Chain 5/8 x 1/4" X Ring |
Frame | Steel trellis frame, powder coated |
Front Suspension |
|
Front Wheel Travel | 142 mm / 5.6 in |
Rear Suspension |
|
Rear Wheel Travel | 150 mm / 5.9 in |
Front Brakes |
Single |
Rear Brakes |
Single |
ABS |
Bosch 9MB two-channel ABS |
Front Tyre |
110/70 -17 |
Rear Tyre |
150/60-17 |
Steering Head Angle | |
Seat Height | |
Wheelbase | |
Ground Clearance | 185 mm / 7.3 in |
Dry Weight |
149 kg / 328 lbs |
Fuel Capacity |
13.4 L / 3.5 US gal / 2.9 Imp gal |
. |
The KTM 390 DUKE is a pure example of what draws so many to the thrill of street motorcycling. This Corner Rocket maximizes enjoyment and user value, taking the honors wherever nimble handling counts. Light as a feather, powerful and packed with state-of-the-art technology, it guarantees a thrilling ride, whether you’re fighting your way through the urban jungle or carving your name into a forest of bends.
ENGINE & EXHAUST
The KTM 390 DUKE finds itself more at home the steeper you lean it. Its
state-of-the-art, single-cylinder engine with twin overhead camshafts is
perfectly tuned to conquer every turn you take on – with the torque to hold the
line, and the snappy response to blast out from the apex and into the next bend.
ENGINE
Premium Power
The KTM 390 DUKE engine not only delivers arm-wrenching torque and hair-raising
acceleration, but also good manners in everyday use, all with outstanding fuel
economy. This lightweight, compact engine really packs a punch and with 32 kW
(44 hp) it’s one of the most powerful options out there for A2 riders. Thanks to
the ingenious intake design and the meticulous fuel injection system, the KTM
390 DUKE is ready and waiting to tear-up the streets and the circuits alike.
EXHAUST
Make it sing
The KTM 390 DUKE’s lightweight and precision-crafted exhaust system comprises of
a side exhaust, link pipe and silencer. The three-chamber silencer has been
positioned close to the bike’s overall center of gravity, improving balance and
handling, whilst also delivering smooth, instant and beast-like power. Oh, and
it looks angry as hell too.
CHASSIS
The KTM 390 DUKE’s state-of-the-art chassis, with its lightweight steel trellis
frame, makes this bike a real master in the bends. With mass grouped close to
the center of gravity, it has maximum maneuverability and precision – ready to
win the rush-hour slalom day in, day out.
WHEELS
Ultra-light
As light as they are stable, the 17-inch cast alloy racing wheels help you put
the power down with confidence, utilizing a 110 mm wide wheel at the front and
an impressive 150 mm at the rear. Wrapped in premium rubber, the pro-spec tires
will keep your KTM 390 DUKE glued to the road. They offer outstanding grip in
both wet and dry conditions, as well as providing supreme durability, even for
riders that know how to push tires to their absolute limits.
BRAKES
Stopping power
A high-tech BREMBO braking system works in perfect harmony with the advanced
ABS, providing riders with firm, controlled stopping power when they need it
most. With a 300 mm brake disc on the front, paired with a 320 mm disc on the
rear, the KTM 390 DUKE delivers exceptional pro-level stopping power, and you
know what they say: ‘braking harder makes you faster!’
FUEL TANK
Perfect knee contact
The innovative and ergonomic 13.4 liter steel fuel tank not only provides riders
with perfect knee contact for attacking every corner, but also with an
unbelievably long range, even when you ride as fast as you dare all day long.
ERGONOMICS & COMFORT
The KTM 390 DUKE is all motorcycle. It’s a 390, but with plenty of room to move
around on it, the only numbers that count are the number of corners you can drop
into and the number of days you can head out on the tarmac. The upright riding
position and relaxed geometry add up to unlimited amounts of cornering fun.
SEATS
Seated for speed
The two-part seat offers first class sport riding ergonomics with perfect
support for both rider and pillion. A seat height of 820 mm enables riders to
have a super- secure position, whilst also being high enough for ultimate
cornering fun. The Pillion seat has been integrated into the bodywork so as not
to compromise the stunt-ready look of the KTM 390 DUKE, whilst also ensuring
excellent comfort for the passenger.
HANDLEBAR
Ultimate control
Hi-tech upright handlebars offer KTM 390 DUKE riders a controlled yet aggressive
body position, allowing you to dominate in all aspects of riding. From
destroying corners to pulling the perfect stoppie, these bars will give you the
balance and confidence you need to attack the tarmac like never before. Clutch
and brake levers are fully adjustable, allowing you to customize your cockpit to
suit your individual riding style.
BODYWORK & GRAPHICS
The KTM 390 DUKE, although small in size, boasts huge riding attitude. One look
at its sharp lines and twin LED headlights and you’re hooked by its
full-offensive stance. Its READY TO RACE glare definitely grabs attention
wherever it goes and, on closer inspection, it’s the high-quality parts that
seal the deal.

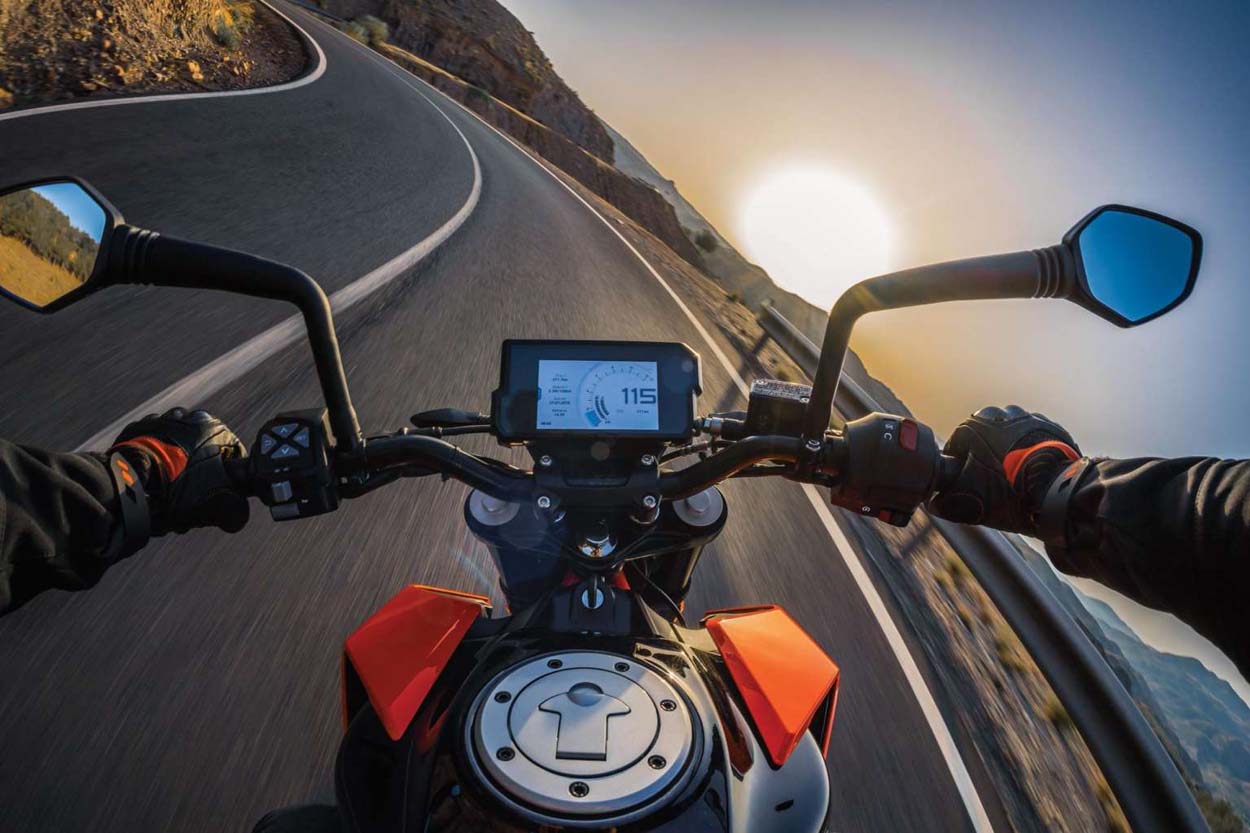

TFT COLOR DISPLAY
Multicolor display
As an absolute first in its class, the KTM 390 DUKE boasts an innovative
multicolor TFT display, presenting all the data you need to go faster in a
clear-cut, uncluttered way. As you rev the engine, the display bars change color,
either spurring you on or telling you to back off when the engine’s still cold.
The display also automatically adapts its color to best suit the light
conditions around you. Innovation at its best!!!
LED-SCHEINWERFER
Mean illumination
The aggressively styled LED headlight on the KTM 390 DUKE is a big highlight in
this bike’s design and a clear referral to its big brother, the KTM 1290 SUPER
DUKE R. Practical as well as looking ultra-mean, it produces outstanding
visibility for riding in low light or dark conditions. The parking light, which
consists of 20 LEDs, ensures that the bike is highly visible to other road
users, keeping you safe while you dominate the streets.
SOFTWARE & ELECTRONICS
Highly sophisticated equipment and a TFT dash make this KTM 390 DUKE a force to
be reckoned with. Its racy looks and flat-out performance are matched only by
the ease-of-use that modern electronics offer.
ACCESSORIES & LUGGAGE
No two KTM owners are alike. The KTM PowerParts range boasts a huge variety of
accessories across its motorcycle range, which are all developed alongside their
chosen machines, meaning that KTM riders only get parts that perfectly
complement their ride and provide the same ‘factory fit’ straight from the
dealer. The ultimate tool for creating a ride that fits your unique style and
needs.
Any corrections or more information on these motorcycles will be kindly appreciated. |
