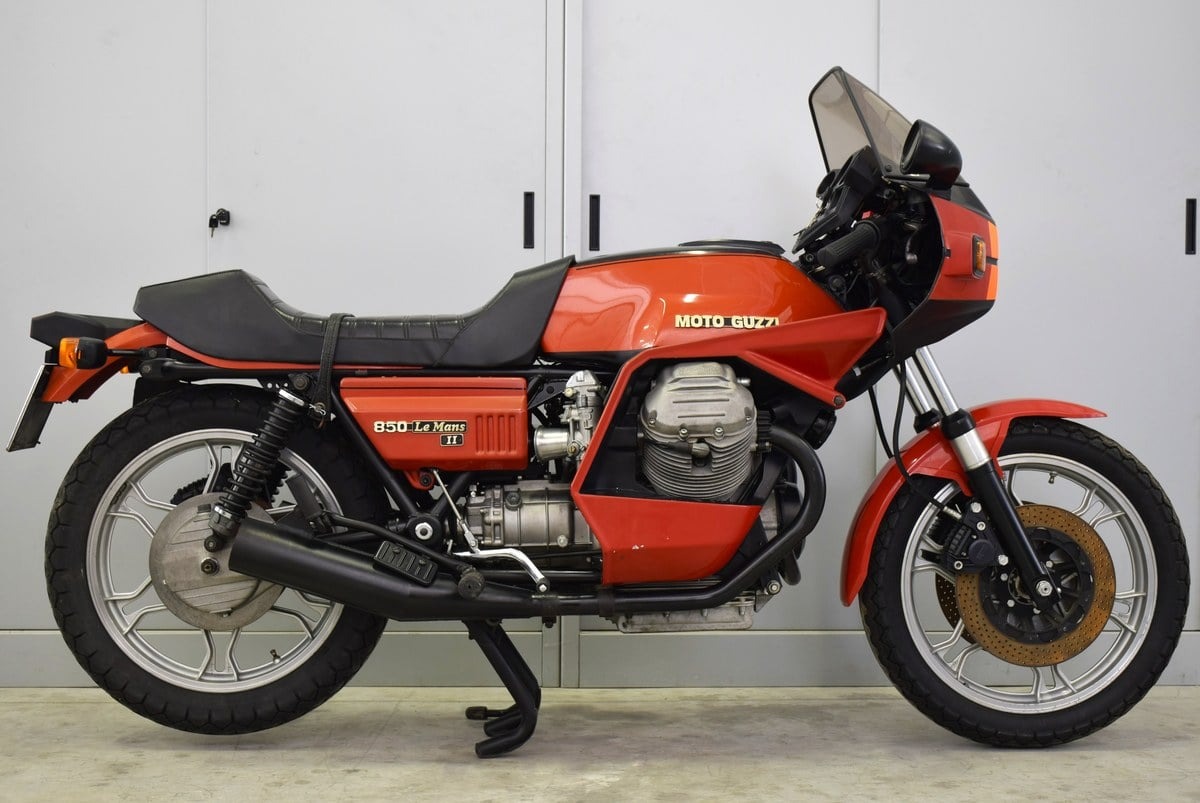

1979 Moto Guzzi 850 Le Mans Mark II

Moto Guzzi 850 Le Mans Mark II

Make Model	Moto Guzzi 850 Le Mans Mark II
Year	1979 - 80
Engine	Four stroke, 90° V twin, longitudinally mounted, OHV pushrod, 2 valves per cylinder
Capacity	844 cc / 51.5 cu-in
Bore x Stroke	83 x 78 mm
Cooling System	Air cooled
Compression Ratio	10.2:1
Lubrication	Gear driven oil pump with replaceable full flow oil filter
Induction	2x 36mm Dell'Orto carburetors
Ignition	Battery with double contact breakers and coils
Starting	Electric
Max Power	73 hp / 53.7 kW @ 7700 rpm
Max Torque	76.4 Nm / 56.4 lb-ft @ 6600 rpm
Transmission	5 Speed
Final Drive	Shaft
Frame	Duplex cradle
Front Suspension	Oil damped telescopic fork
Rear Suspension	Swing arm with 3-pos preload
Front Brakes	2x 310mm discs
Rear Brakes	Single 242mm disc
Front Tyre	3.50 H18
Rear Tyre	4.10 V18
Wheelbase	1473 mm / 58 in
Seat Height	762 mm / 30 in
Dry Weight	196 kg / 433 lbs
Fuel Capacity	22.5 Litres / 4.8 gal
Road Test	Bike magazine
