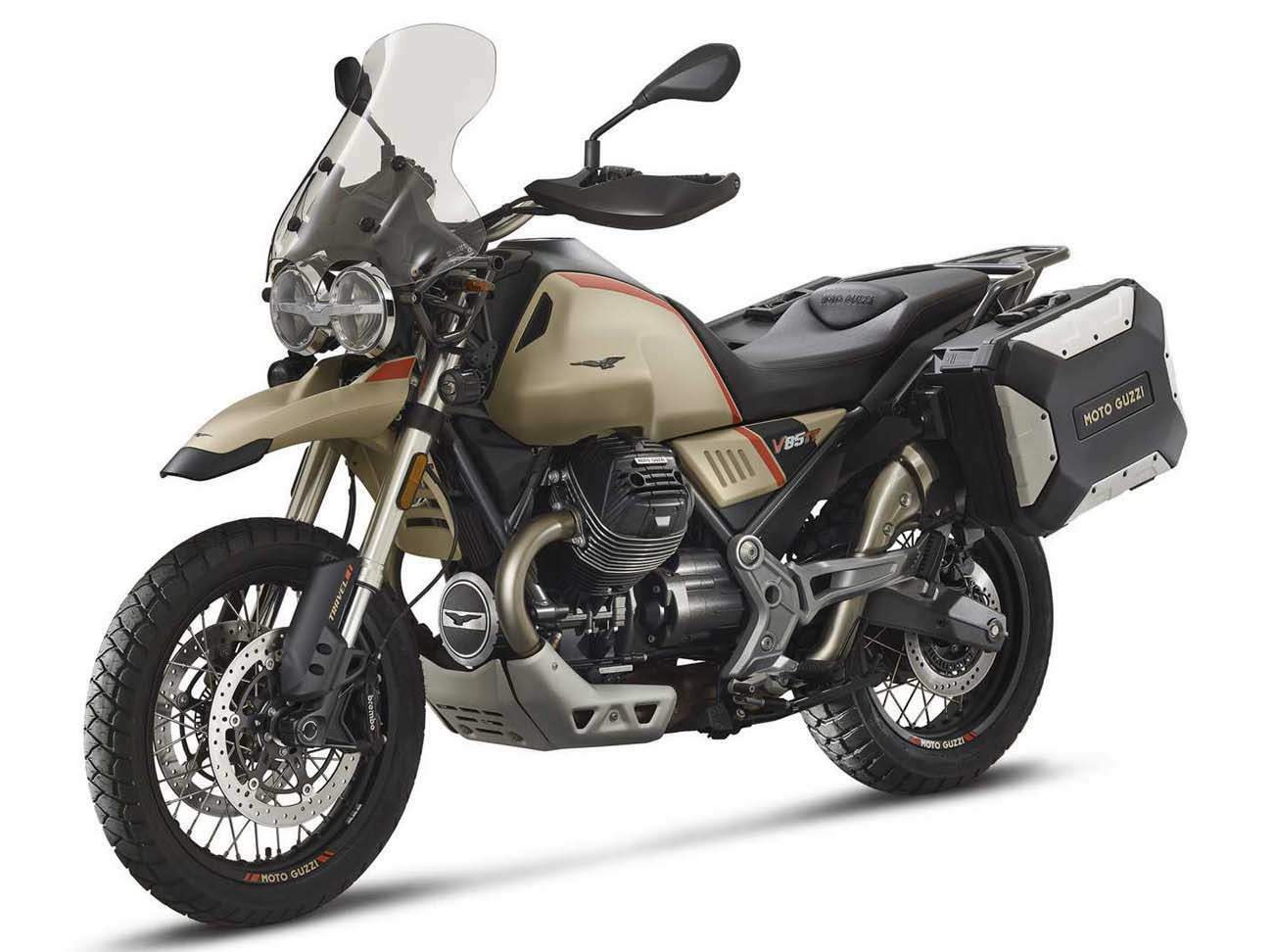

Moto Guzzi V85 TT Travel

.

Make Model

Moto Guzzi V85 TT Travel

Year

2020

Engine

Four stroke Transversal 90° V-twin, 2-valves per cylinder

Capacity

853 cc / 52.0 cu in
Bore x Stroke 84 x 77 mm
Cooling System Air cooled
Compression Ratio 10.5:1
Emission Euro 4

Induction

Electronic injection; Ø 52 mm single throttle body, Ride-by-Wire

Ignition

Electronic
Starting Electric
Battery 12V – 12 Ah
A/C generator 430 W System voltage 12 V

Max Power

80 hp / 59 kW @ 7750 rpm

Max Torque

80 Nm / 59 lb-ft @ 5000 rpm

Clutch

Dry single disc

Transmission

6 Speed
Final Drive Shaft, double universal joint and double bevel gear units, 8:33 ratio
Gear Ratios 1st 16/39 = 1: 2.437 2nd 18/32 = 1: 1.778 3rd 21/28 = 1: 1.333 4th 24/26 = 1: 1.083 5th 25/24 = 1: 0.960 6th 27/24 = 1: 0.889
Frame High strength steel tubular frame

Front Suspension

41 mm hydraulic telescopic USD fork, with adjustable spring preload and hydraulic rebound

Front Wheel Travel 170 mm / 6.7 in

Rear Suspension

Double-sided swingarm in box-type aluminum with a single shock on the right side, with adjustable spring preload and hydraulic rebound

Rear Wheel Travel 170 mm / 6.7 in

Front Brakes

2x stainless steel floating discs, Brembo radial-mounted calipers with 4 opposed pistons

Rear Brakes

Single 260 mm stainless steel disc, floating caliper with 2 pistons

Front Wheel

Spoked 2.50 x 19

Rear Wheel

Spoked 4.25 x 17

Front Tyre

With air chamber 110/80 – R19

Rear Tyre

With air chamber 150/70 – R17

Seat Height

830 mm / 32.6 in
Dry Weight 210 kg / 463 lbs - not including side panniers

Wet Weight

242 kg / 534 lbs - including side panniers

Fuel Capacity

23 Litres / 6.0 US gal

THE NEW VERSION HIGHLIGHTS THE GRAND TOURING QUALITIES OF THE V85 TT

WITH STANDARD EQUIPMENT INCLUDING PANNIERS, A HIGH WINDSHIELD AND HEATED HAND GRIPS, THE V85 TT IS READY FOR ADVENTURE

Following the critical and public acclaim achieved by the V85 TT, the first classic travel enduro that knows how to excite motorcyclists thanks to its combination of sophisticated and evocative style with cutting-edge technical qualities, Moto Guzzi presents the Travel version – ready to take to the road thanks to its complete dedicated range of equipment. Moto Guzzi has listened to the requests of Guzzisti, creating a V85 TT version that is prepared as standard with a selection of essential adventure touring accessories.

Moto Guzzi V85 TT reflects a construction philosophy in which simplicity, practicality and handling make for an unfiltered relationship between bike and rider, one that is dedicated to adventurous travels, a true Moto Guzzi legacy, something that the Travel version further highlights. The equipment, made up of accessories that are all available in the catalogue, includes the higher Touring windshield, able to offer the rider greater air protection, thanks to a surface area that is 60% larger than the original part, as well as two panniers in plastic material with aluminium inserts. The panniers stand out for their significant capacity (37 litres for the right-hand case, which can hold a full-face helmet, and 27.5 litres for the left), locks that use the same contact key, and the absence of any voluminous supports to install them, hence the line of the vehicle remains intact when they are removed. Their lateral bulk is limited to just 928 mm, in that they are designed during development of the bike itself.

Also included as standard are the heated hand grips with buttons already incorporated in the original left-hand switch block of the V85 TT, and a pair of additional LED lights. The range of special equipment is rounded out with Moto Guzzi MIA, the multimedia platform that allows the rider to connect a smartphone to the vehicle, extending the functions of the instrument cluster. The Moto Guzzi V85 TT Travel is offered in the exclusive Sabbia Namib colour: the grey frame is paired with the matte colour of the chassis, while the tank and side panels are enhanced with dedicated graphics. Michelin Anakee Adventure tyres underline the adventure touring attitude.

The winning technical characteristics of the V85 TT are of course confirmed, the bike created on the basis of values such as simplicity, practicality and riding ease, typical of those 1980s enduro bikes with which riders could do anything, from carrying out daily errands to adventurous trips.

Well proportioned and far from prohibitive in size, it can be used by riders of any level or experience (the seat is only 830 mm from the ground) and is narrow in girth to allow freedom of movement. The V85 TT mounts a 23-litre engine able to guarantee a range of more than 400 km. Moto Guzzi V85 TT is created from a brand-new technical base. That Moto Guzzi ability to build superb chassis is once again confirmed with the V85 TT. The tubular structure exploits the engine as a load-bearing element that ensures the necessary stiffness to guarantee efficiency and riding enjoyment on the road, as well as optimum balance during light enduro use.

The V85 TT mounts a new Moto Guzzi engine with the same exclusive construction framework seen across all Moto Guzzi models currently in production, specifically an air-cooled transverse 90° V twin with OHV distribution and two valves per cylinder, the pride and tradition of the

Mandello Eagle. Engine capacity is 853 cc, thanks to a bore to stroke ratio of 84 x 77 mm. The most modern of all engines in the range, it can boast specific power of almost 100 HP/litre. Thanks to its complete new design and the use of materials generally destined for race bikes, such as titanium, the new “eight and a half” is able to deliver a maximum power of 80 HP, as well as an impressive maximum torque value of 80 Nm at 5,000 rpm, with 90% of the torque already available at 3,750 rpm, in keeping with the tradition of the Mandello twin, which has always offered excellent drive even at very low revs. This is the first Moto Guzzi small block engine that can easily reach 8000 rpm, an aspect that showcases its modern and exuberant nature. The V85 TT is the only bike in its segment to use shaft drive transmission (it makes no mess and requires no maintenance).

For the V85 TT project to achieve its main goal, or rather to satisfy Guzzista in their daily riding as well as in their touring and adventurous off-road riding, Moto Guzzi has designed a complete range of standard electronic equipment, without any inopportune technological overload, for maximum travel enjoyment. To make life on board easier and safer, Moto Guzzi introduces three different riding modes on the V85 TT: Road, Rain and Off-road. Each of these Riding Modes corresponds to a different engine mapping and a different calibration of the MGCT traction control (which can be disabled) and ABS, as well as a different response from the Ride-by-Wire throttle control.
