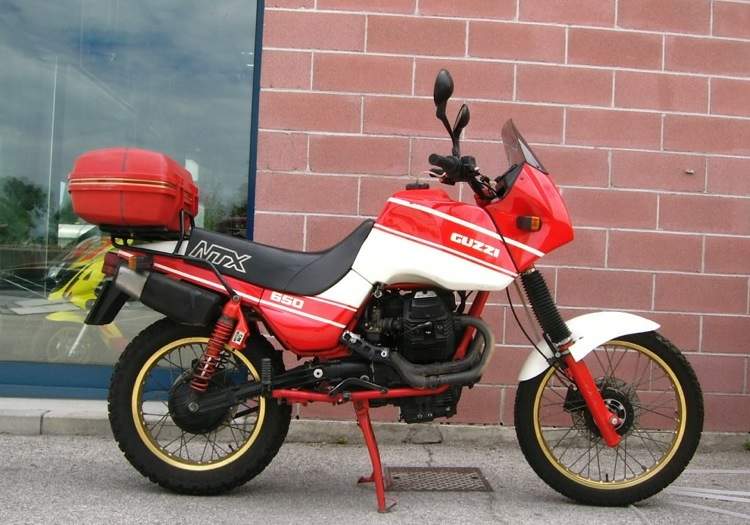

Moto Guzzi NTX 650

.

Make Model

Moto Guzzi NTX 650

Year

1990 -

Engine

Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder.

Capacity

644 cc / 39.2 cu-in
Bore x Stroke 80 x 64 mm
Cooling System Air cooled
Compression Ratio 9.8;1

Induction

2x 30mm Dell'Orto PHF carburetors
Ignition Electronic
Starting Electric

Max Power

48 hp / 35 kW @ 7400 rpm

Max Power Rear Tyre

44.9 hp / 32.8 kW @ 7300 rpm

Max Torque

46 Nm / 34 lb-ft @ 6000 rpm

Transmission

5 Speed
Final Drive Shaft

Front Suspension

Hydraulic telescopic forks

Rear Suspension

Twin shocks

Front Brakes

Single 260mm disc 2 piston caliper

Rear Brakes

Single 260mm disc 1 piston caliper

Front Tyre

3.00 -21

Rear Tyre

4.00  -18

Dry Weight

170 kg / 375 lbs

Fuel Capacity

32 Litres / 8.4 US gal

Consumption  average

15.0 km/lit

Braking 60 - 0 / 100 - 0

15.8 m / 44.9 m

Standing ¼ Mile

14.2 sec / 145.1 km/h

Top Speed

164.7 km/h
