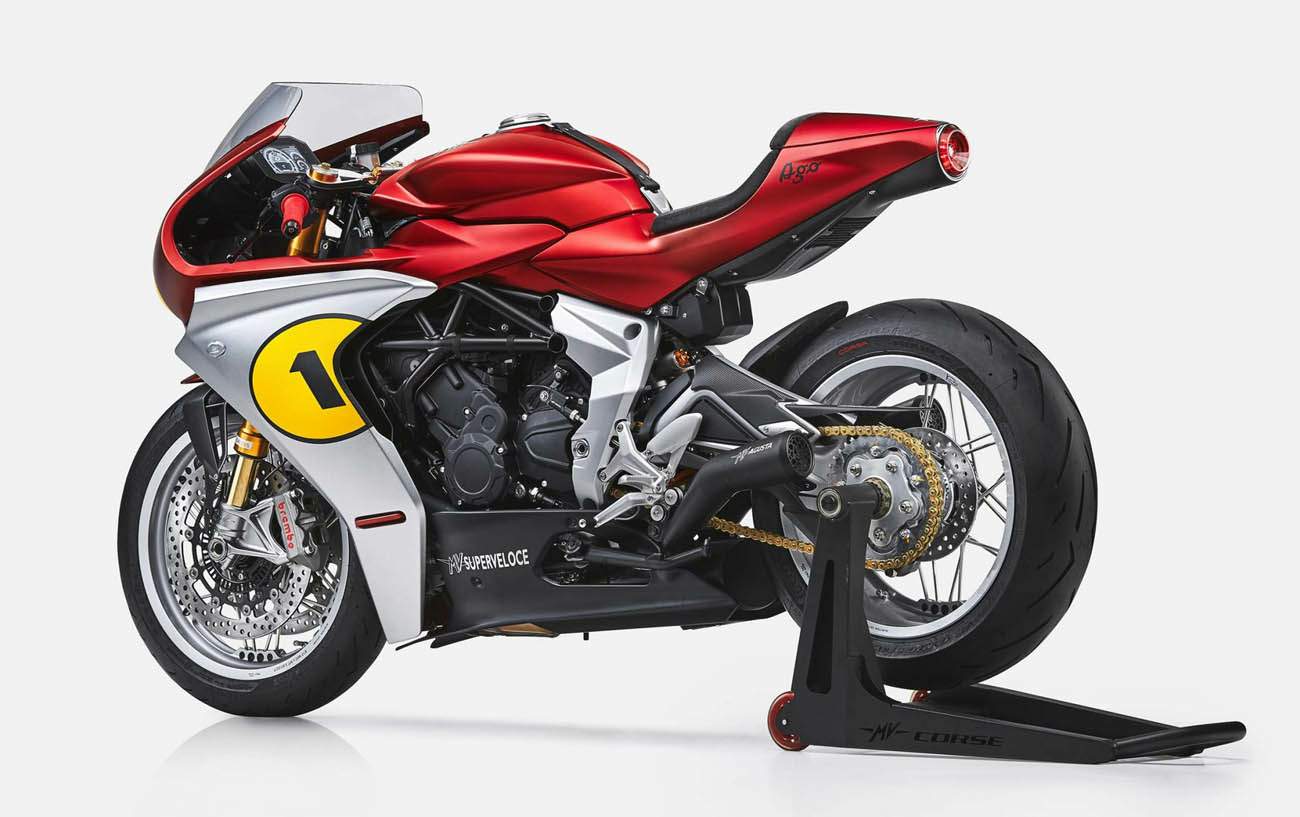

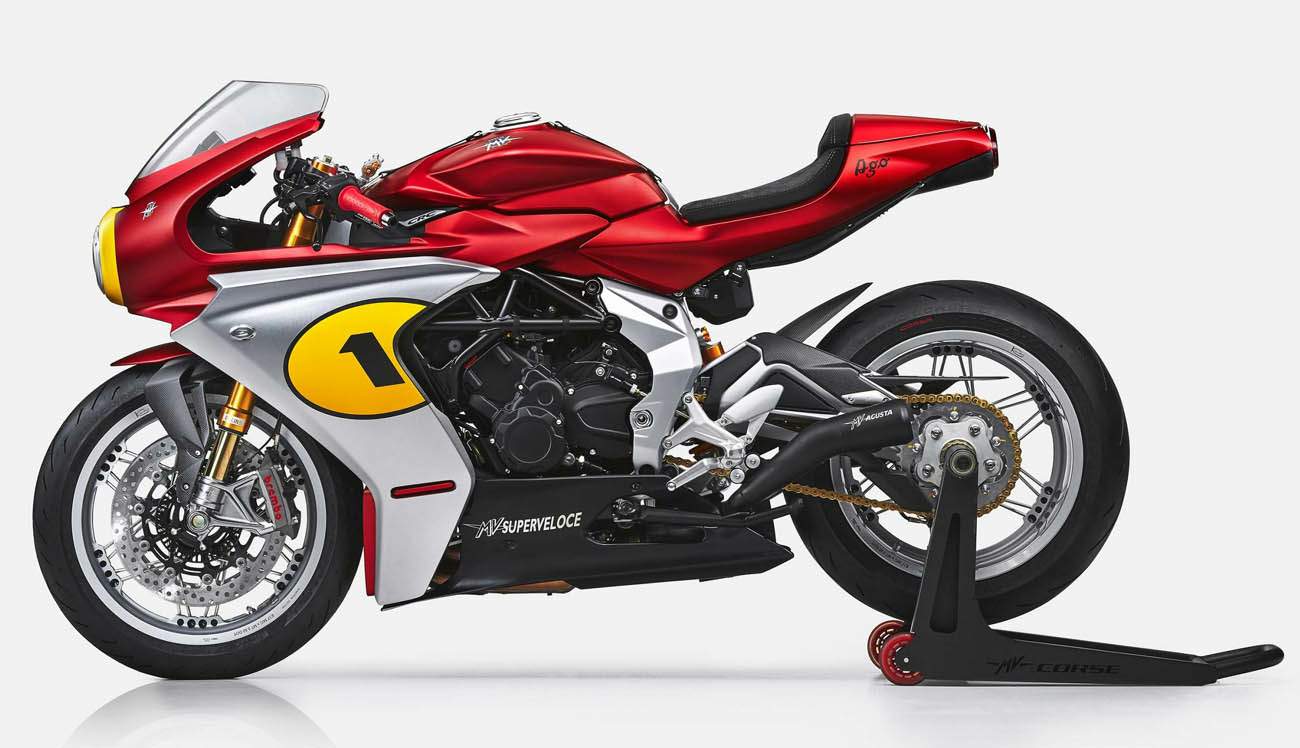

MV Agusta Superveloce 800 Ago Limited Edition

.

Make Model

MV Agusta Superveloce 800 Ago Limited Edition

Year

2022

Production 311 units

Engine

Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder

Capacity

798 cc / 48.7 cu-in

Bore x Stroke

79 x 54.3 mm

Cooling System

Cooling with separated liquid and oil radiators

Compression Ratio

13.3:1

Engine Management System

Integrated ignition - injection system MVICS 2.1 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor Nemo 2.1, throttle body bore 50 mm diameters full ride by wire Mikuni, pencil-coil with ion- sensing technology, control of detonation and misfire. Torque control with four maps. Traction Control with eight levels of intervention

Exhaust Arrow 3-exit exhaust system (homologated for road use)

Emission

Euro 5

Starting

Electric

Max Power

147 hp / 108 kW @ 13000 rpm

Max Power Race Kit

151 hp / 111 kW @ 13250 rpm (Racing Kit with Arrow exhaust and dedicated ECU Map)

Max Torque

88 Nm / 65 lb-ft @ 10100 rpm

Electronic Quick Shift

MV EAS 3.0 (Electronically Assisted Shift Up & Down)

Clutch

Wet, multi-disc slipper clutch

Transmission

Cassette-style 6-speed, constant mesh

Primary Drive

22/41

Final Drive

Chain

Gear Ratio

1st 13/37  2nd 16/34  3rd 18/32  4th 19/30  5th 21/30  6th 22/29

Final Drive Ratio

17/43

Frame

ALS Steel tubular trellis with aluminium alloy rear swing arm pivot plates

Front Suspension

43 mm Öhlins Nix USD telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment

Front Wheel Travel

125 mm / 4.9 in

Rear Suspension

Progressive Öhlins TTX, single shock absorber with rebound and compression damping and spring preload adjustment with aluminium alloy single sided swing arm

Rear Wheel Travel

130 mm / 5.1 in

Front Brakes

2x 320mm double floating discs with steel braking disc and flange, 4 pistons Brembo radial-type monobloc

Rear Brakes

Single 220mm disc, Brembo 2 piston caliper

ABS

Continental MK100 with RLM (Rear Wheel Lift-up Mitigation) and with cornering function

Wheels

Alloy spoke

Front Wheel

3.50 x 17

Rear Wheel

5.50 x 17

Front Tyre

120/70 - ZR 17 M/C (58 W) Pirelli Diablo Rosso Corsa II

Rear Tyre

80/55 - ZR 17 M/C (73 W) Pirelli Diablo Rosso Corsa II

Trail

99 mm / 3.89 in

Dimensions

Length: 2015 mm / 79.92 in
Width:    760 mm / 28.74 in

Wheelbase

1380 mm / 54.33 in

Ground Clarence

120 mm / 4.72 in

Seat Height

830 mm / 32.7 in

Dry Weight

173 kg / 381.4 lbs - 165 kg / 363.8 lbs (Racing Kit)

Fuel Capacity

16.5 Litres / 4.36 US gal

.

From a press release issued By MV Agusta:

THE NEW SUPERVELOCE AGO MY22

He is the rider who holds the unrivalled record of having won 15 world-championships and has been victorious in 311 Grand Prix races. Introducing Giacomo Agostini, an authentic icon of the era that regularly tempted fate at every corner, he has become a legend while continuously rocketing to the chequered flag. The bike is the the Superveloce Ago, the most exclusive version among the limited-edition models.

MV Agusta pays a tribute to the legend with a unique limited edition series of the original Superveloce, now an even more exclusive top-of-the-range Superveloce Ago. Following the iconic MV Agusta F4 Ago and F3 Ago debut, the paths of the glorious Italian motorcycle manufacturer and those of the Bergamo-based world champion meet once again. The reason? To give life to the most technologically advanced and exclusive Superveloce ever. Once again, a unique bike that will remain forever in the hearts of all the passionate motorcycle enthusiasts.

A UNIQUE PALMARES: 15 WORLD TITLES, 311 RACES WON

To celebrate every single one of Giacomo Agostini’s race victories, MV Agusta has handcrafted 311 units, the first 15 of which are dedicated to the 15 world titles won in his spectacular racing career.

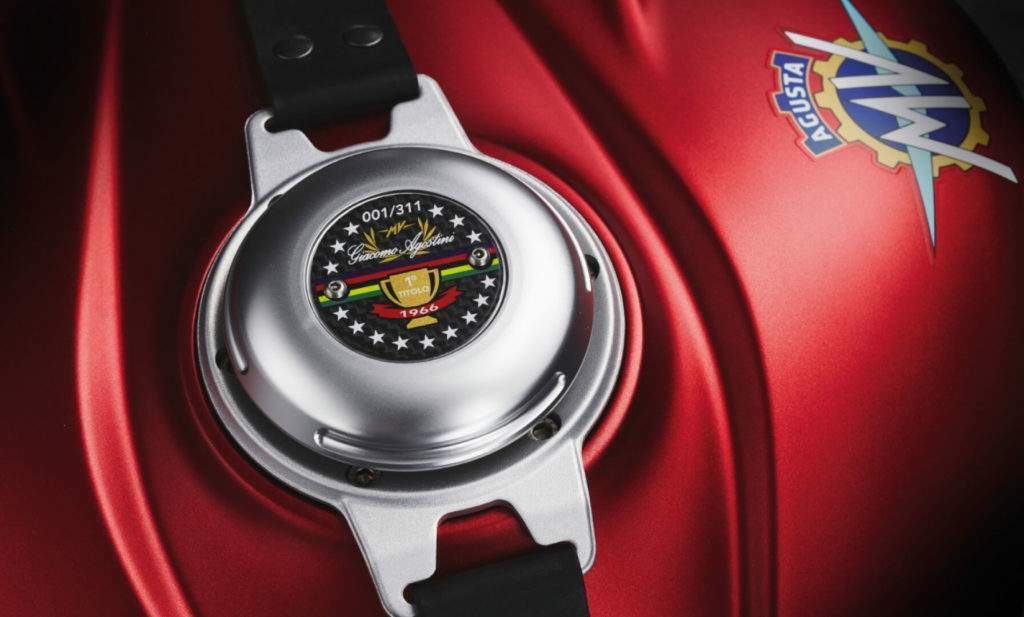

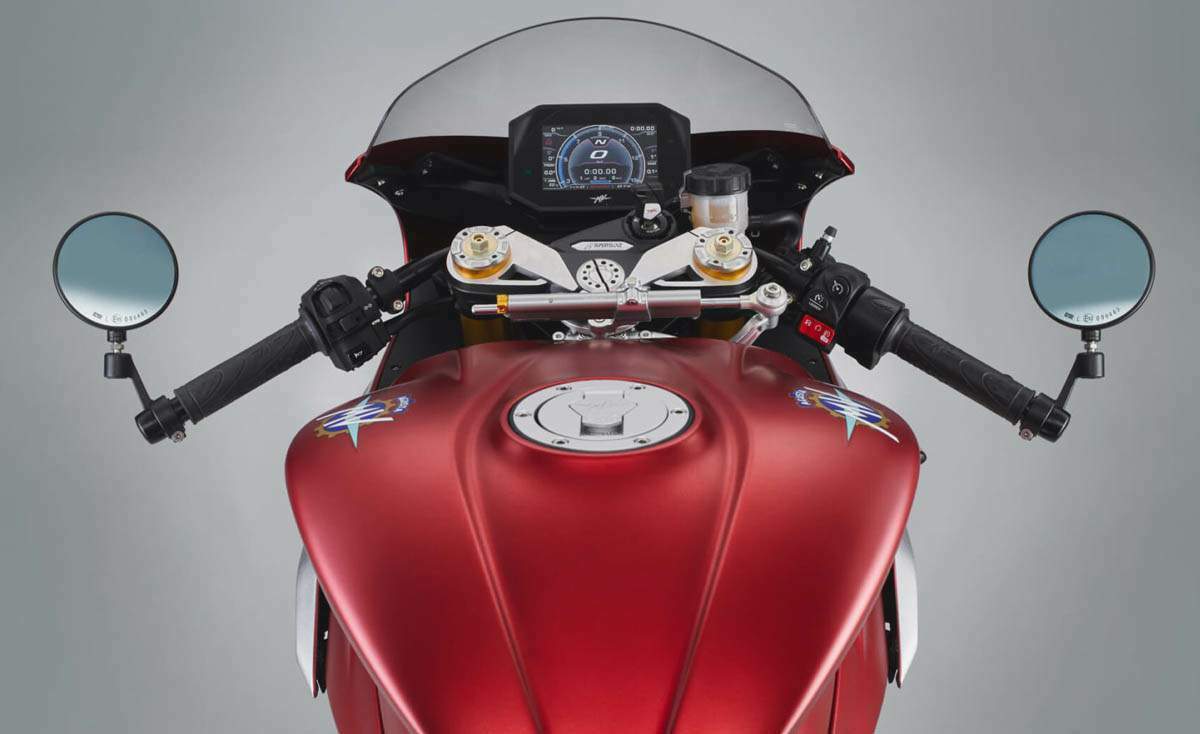

The elegant fuel tank, characterized by an unmistakable racing form thanks to the refined leather strap is offered with a celebratory carbon fibre plate. What’s more, this exclusive plate – available from 01 to 15 units only – has unique graphics carrying both the trophy and the year of the world title won by Agostini. The Bergamo-based champion’s personal signature represents a further indelible value which makes this piece of motorcycle art even more desired by collectors.

PREMIUM COMPONENTS

The Superveloce Ago not only is one-of-a-kind bike in terms of styling, but it also features numerous top-level technical components never seen before on the Superveloce range.

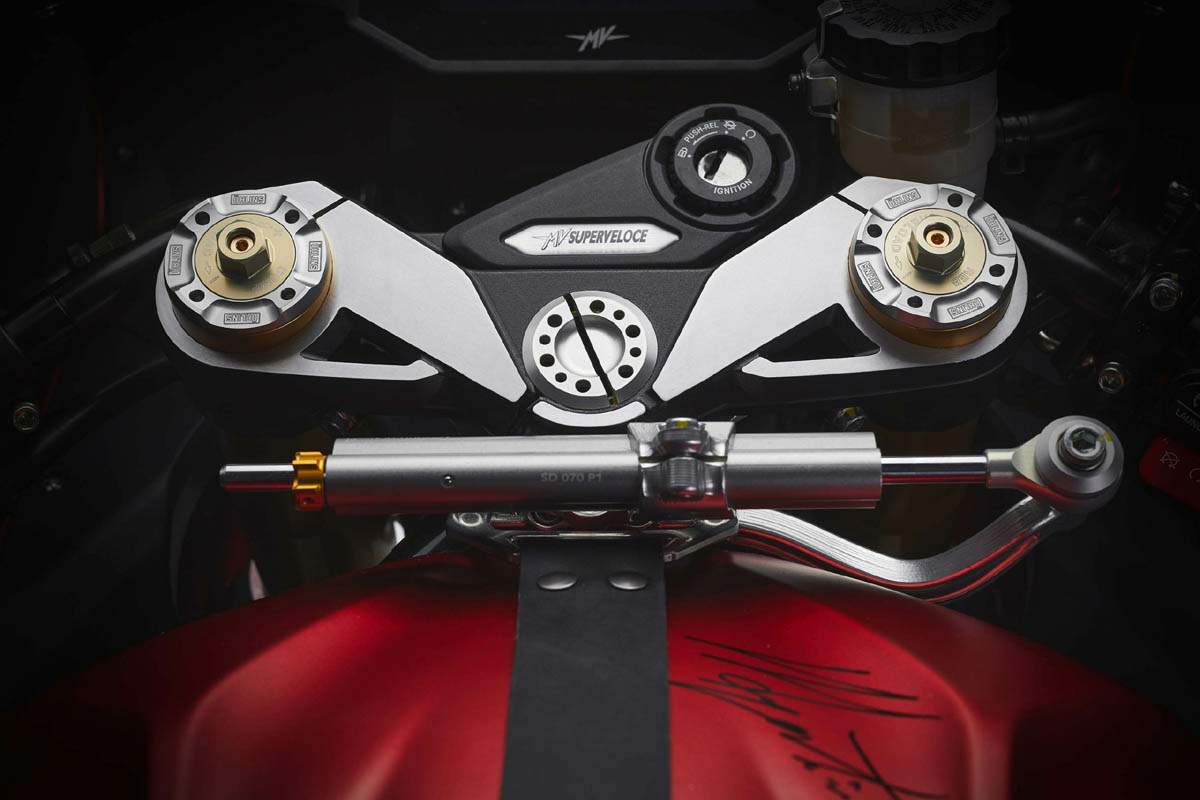

The chassis, for example, stands out for Öhlins suspension components, in particular the 43 mm Nix fork and the TTX 36 rear shock absorber; both adjustable in preload, compression and rebound. The settings have been developed on the road and track with a specific valving which truly aims to intensify the dynamic features of the Superveloce. Moreover, the adjustable Öhlins steering damper features a CNC machined support. An additional characterizing element of the new Superveloce Ago is the new forged aluminum top triple clamp, embellished with CNC machining on the in top surfaces.

A special mention must be made of the superbly handcrafted elements of the fairing: the side panels, the fenders, the lower tail section and passenger seat cover are all made of carbon fibre. Thanks to the new higher windshield, the Superveloce Ago not only offers better protection but has a distinctive look with a decidedly closer resemblance to the MV Agusta’s three-cylinder ridden race bikes by Agostini and successful in many competitions around the world. The beautiful 3.5” front and 5.5” rear spoked wheels host 120/70 ZR17 and 180/55 ZR17 tyres.

DEDICATED KIT

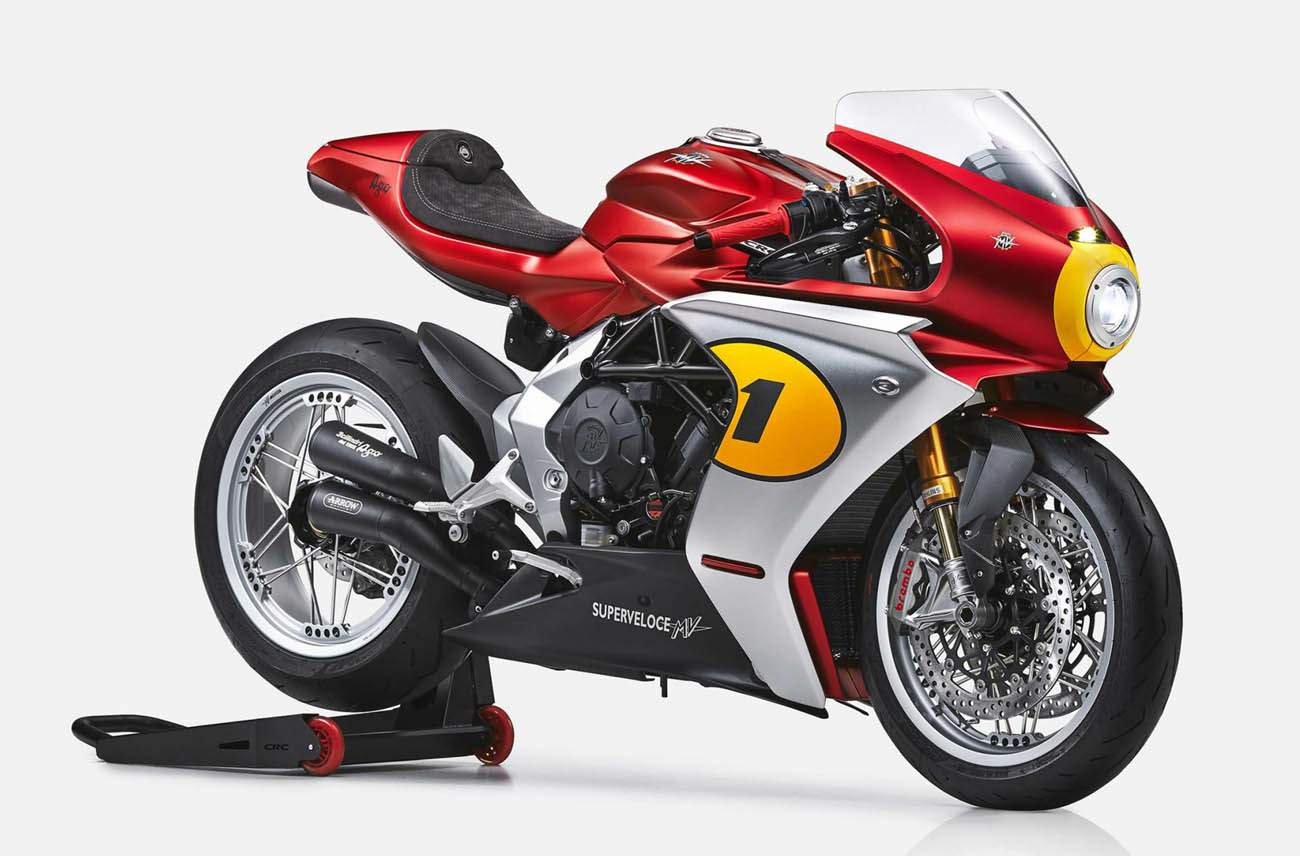

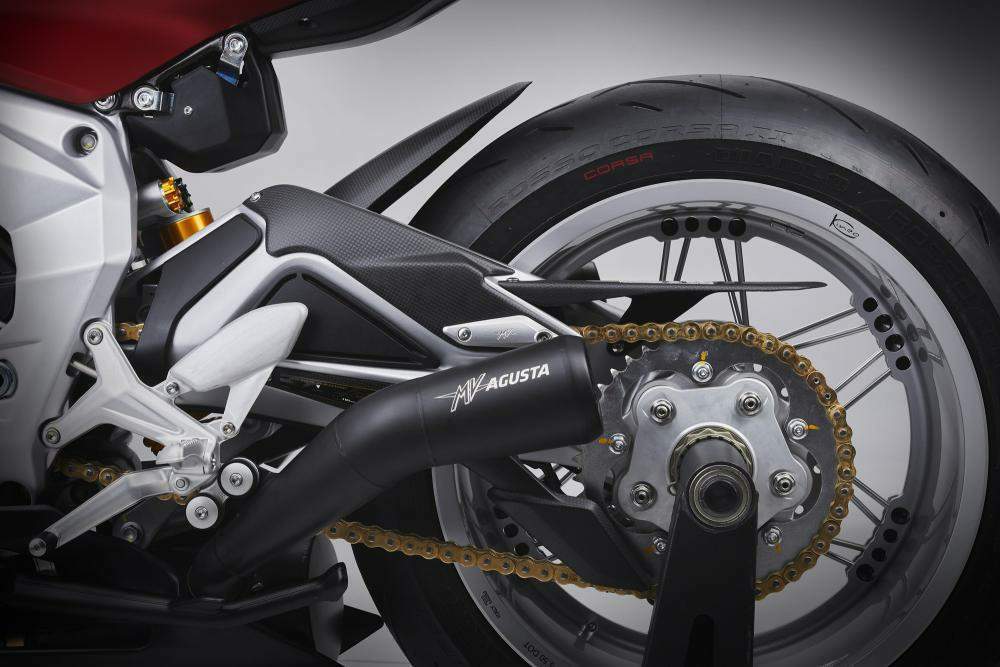

The new Superveloce Ago features a unique kit, which includes the captivating Arrow 3-exit exhaust system (homologated for road use) which is immediately recognizable by two silencers on the right side and one on the left. The triple exit right-side silencer is fitted as standard.

What’s more, the Arrow asymmetrical exhaust system not only significantly guarantees an increase in power and torque but also contributes to intensify the Superveloce Ago racing character. Without a doubt, this new Arrow exhaust system was inspired by the racing bikes of the past, protagonists of many glorious victories. The dedicated Engine Control Unit with dedicated engine mapping is another exclusive element that allows the maximum performance of the exhaust system. One of the many details that make the MV Agusta Superveloce Ago kit unique are a pair of icon red handle grips, just like the ones used by Agostini, and the carbon fibre seat cowl fitted with an Alcantara pad. An exclusive bike cover as well as a certificate guaranteeing the authenticity of the limited series is also included.

RACING KIT

- ARROW 3-WAY EXHAUST SILENCER HOMOLOGATED FOR STREET USE
- CONTROL UNIT WITH RACING MAP
- DEDICATED MOTORCYCLE COVER
- CNC FUEL CAP WITH “LIMITED EDITION” CARBON PLATE
- BLACK LEATHER TANK STRAP
- PASSENGER SEAT COVER WITH ALCANTARA PAD
- RH ALUMINIUM RIDER HEEL GUARD
- RED HANDGRIPS
- LIMITED SERIES CERTIFICATE OF ORIGIN
- RACING KIT BOX

ENGINE AND ELECTRONICS

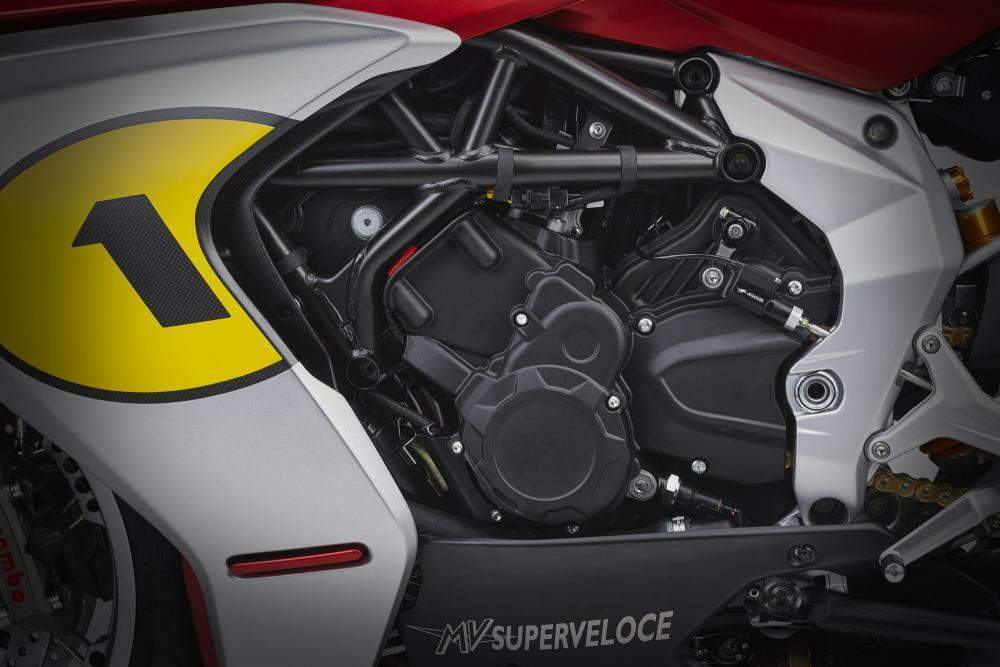

The 798 cc three-cylinder engine maintains its technical features, including the outstanding supersport performance. With a 79 mm x 54,3 mm bore and stroke, 147 hp at 13,000 rpm, and a peak torque of 88 Nm (8.98 kgm) at 10,100 rpm: these are its record numbers.

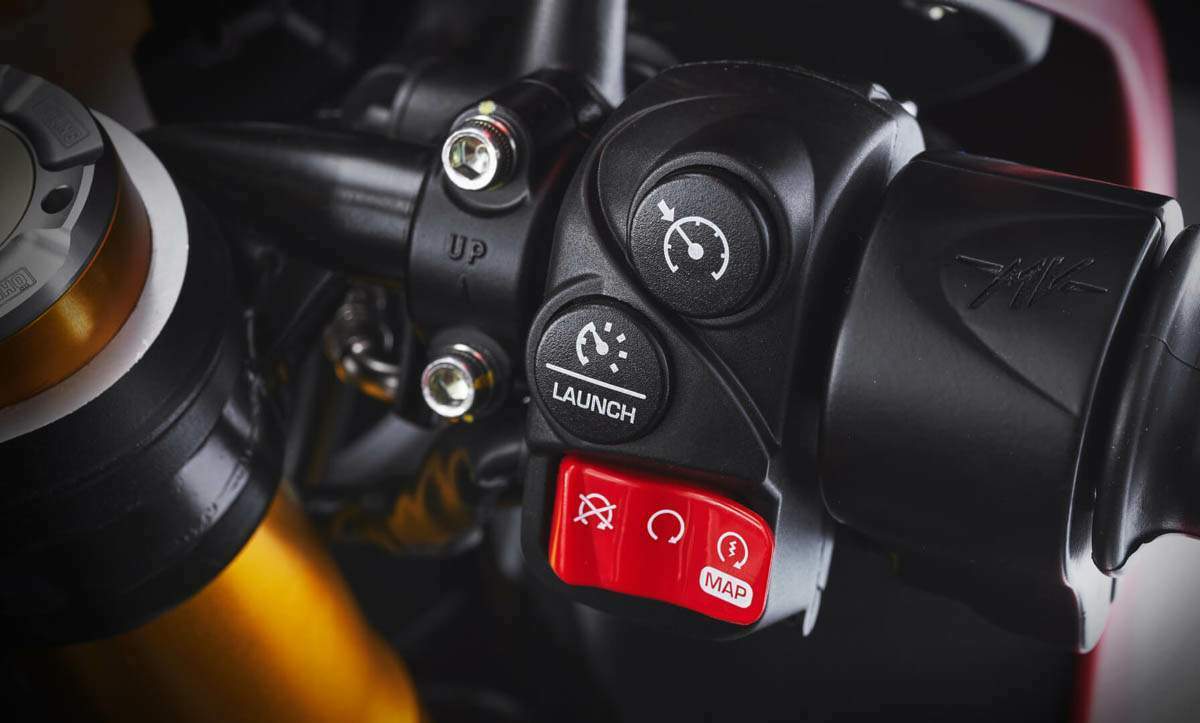

The counter-rotating crankshaft, a solution employed in Moto GP, represents a distinctive technical element, not to mention the comprehensive electronics and rider aids package. This latter is focused on the MVICS 2.1 platform, which controls the 6 injectors, interfaces with the inertial platform, manages the 4 engine maps and 8-level traction control. In addition, the MV EAS 3.0 (Electronically Assisted Shift up & down) contributes to lightning-fast and precise shift changes.

COLOURS

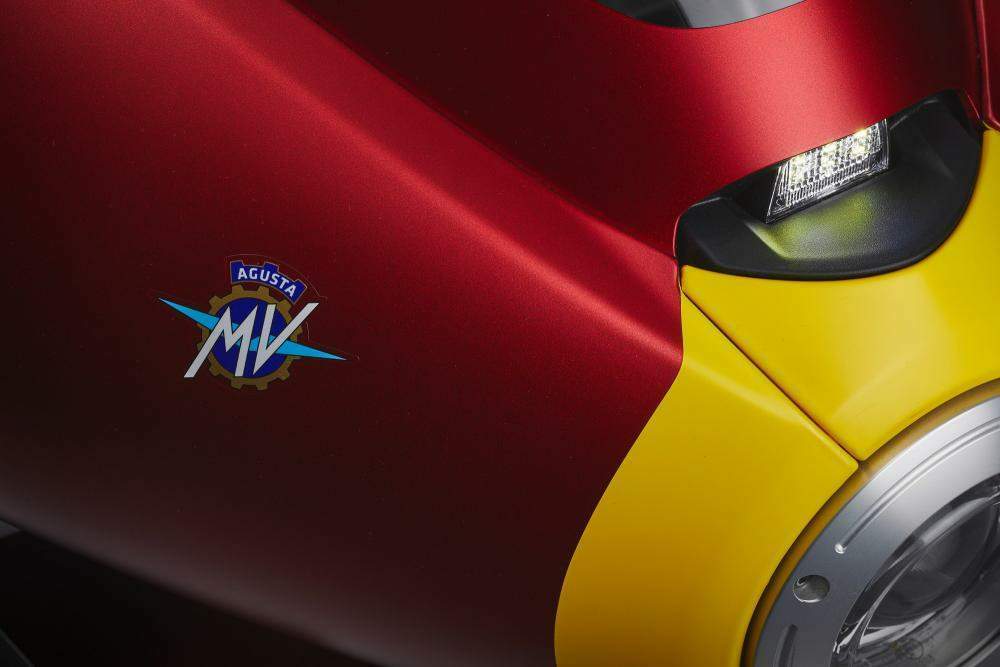

MV Agusta Superveloce Ago comes with some of the most advanced colors and trims ever applied to a motorcycle. Even graphics and colour schemes have been designed specifically for this new work of art. In fact, its livery comes in Matt Fire Red, Matt SV Ago Magnum Silver and Matt Ago Yellow
