2013 MV Agusta Brutale 1090RR California ï¿½Wood Vibrationsï¿½

Make Model	MV Agusta Brutale 1090RR California ‘Wood Vibrations’
Year	2013
Engine	Four stroke, transverse four cylinder. DOHC, 4 radial valves per cylinder
Cooling system	Cooling with separated liquid and oil radiators
Capacity	1078 cc / 65.7 cu-in
Bore x Stroke	79 x 55 mm
Compression Ratio	13.0;1
Induction	Magneti Marelli IAW 5SM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; sequential timed “Multipoint” electronicinjection
Alternator	350 W at 5000 r.p.m
Battery	12 V - 8.6 Ah
Starting	Electric
Max Power	116.5 kW / 158 hp @ 11900 rpm
Max Torque	100 Nm / 10.2 kg-m @ 8100 rpm
Clutch	Wet, multi - disc with mechanical anti-surging device
Transmission	6 Speed
Final Drive	Chain
Gear Ratio	1st 13/38 2nd 16/34 3rd 18/32 4th 20/30 5th 22/29 6th 19/23
Final Drive Ratio	15/43
Frame	CrMo Steel tubular trellis ALS Rear swing arm pivot plates material Aluminium alloy
Front Suspension	43mm UPSIDE - DOWN"Öhlins Nix telescopic hydraulic fork with adjustable reboundcompression damping and external spring preload
Front Wheel Travel	125 mm / 4.9 in
Rear Suspension	Progressive, Sachs single shock absorber with rebound and compression (High speed/Low speed) damping and spring preload adjustment Single sided swing arm material Aluminium alloy
Rear Wheel Travel	120 mm / 4.72 in
Front Brakes	2x 320mm discs 4 piston caliper
Rear Brakes	Single 210mm disc 4 piston caliper
Rim Front	Aluminium alloy 3,50” x 17”
Rim Rear	Aluminium alloy 6,00” x 17”
Front Tyre	120/70 ZR 17
Rear Tyre	190/55 ZR 17
Trail	103,5 mm / 4.07 in.
Dimensions	Length 2100 mm / 82.6 in Width 780 mm / 30.7 in Height 830 mm / 32.6 in
Wheelbase	1438 mm / 56.6 in
Seat Height	830 mm / 32.6 in
Ground Clearance	150 mm / 5.9 in
Dry Weight	183 kg / 403.5 lbs
Fuel Capacity	23 Litres / 6.0 US gal

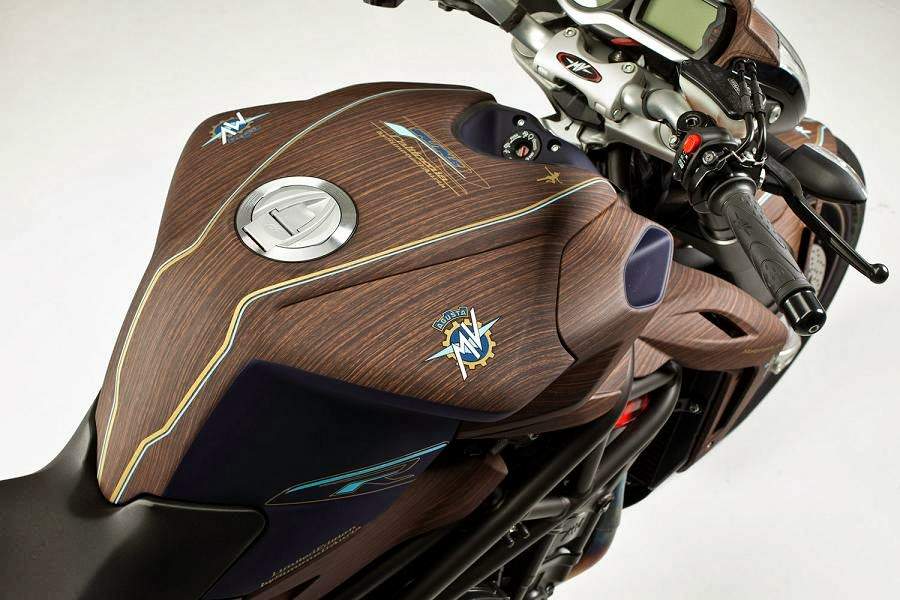

The collaboration between MV Agusta and designer Simone D’Auria continues this year resulting in the 2013 Brutale California in D’Auria’s signature timber inspired styling called ‘Wood Vibrations’. Based on the 2012 MV Agusta Brutale 1090 R with unaltered underpinnings, the 2013 California model comes clad with carbon fibre wrapped in a dark walnut wooden finish with detailing done in MV Agusta’s traditional blue and gold colours.

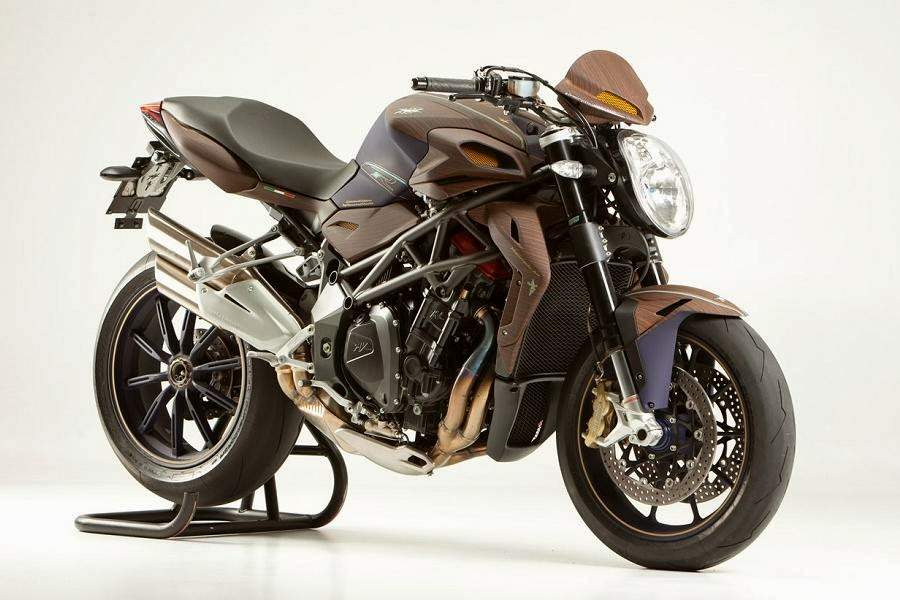

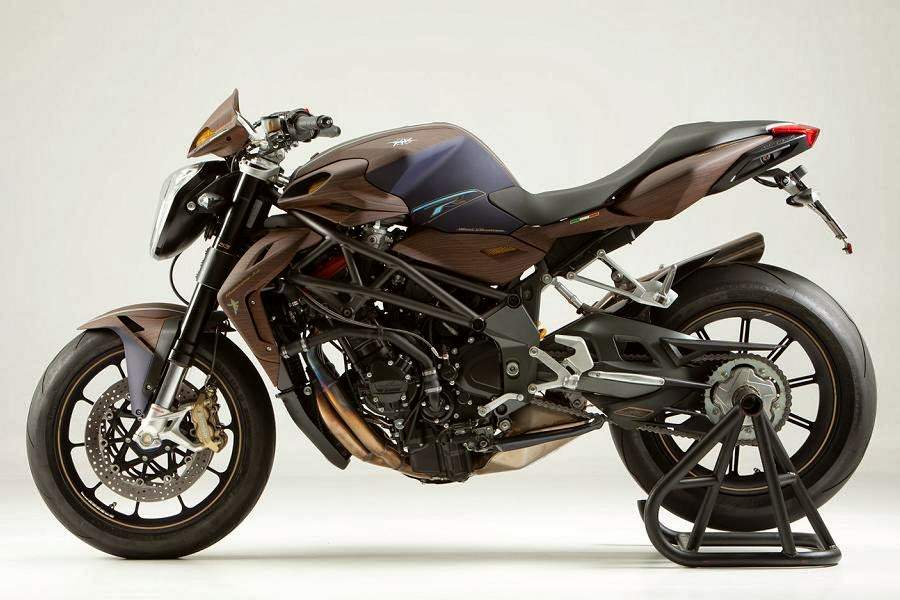

MV Agusta Brutale 1090RR California ‘Wood Vibrations’
