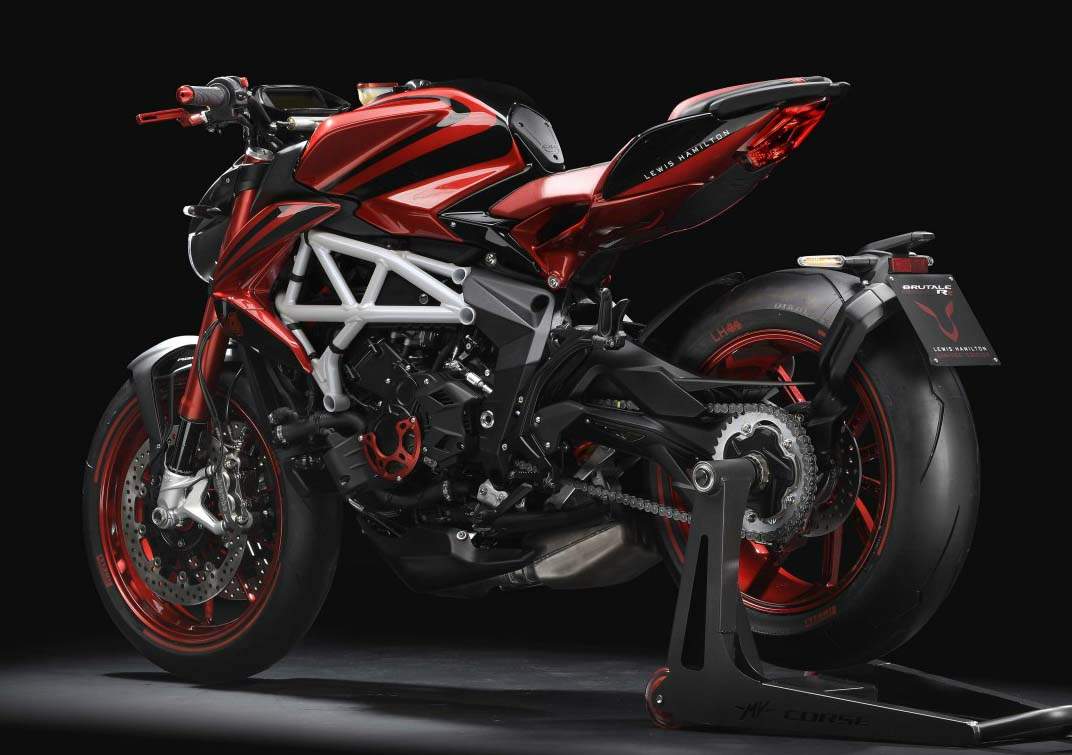

MV Agusta Brutale 800 RR LH44 Edition

Make Model	MV Agusta Brutale 800 RR LH44 Edition
Year	2018
Engine	Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder
Capacity	798 cc / 48.68 cu. in
Bore x Stroke	79 x 54.3 mm
Cooling System	Cooling with separated liquid and oil radiators
Compression Ratio	12.3:1
Engine management system	Engine management system Integrated ignition - injection system MVICS 2.0 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire. Torque control with four maps, Traction Control with eight levels of intervention Electronic quick-shift MV EAS 2.0 (Electronically Assisted Shift up & down)
Environmental Standard	Euro 4
Ignition	Multipoint electronic injection
Starting	Electric
Battery	12 V - 8.6 Ah
Alternator	350 Wat 5000 rpm
Max Power	103 kW / 140 hp @ 13100 rpm
Max Torque	86 Nm / 8.77 kgm @ 10100 rpm
Electronic Quick-shift	MV EAS 2.0 (Electronically Assisted Shift up & down)
Clutch	Multi-disk wet clutch with hydraulic actuation
Transmission	Cassette style 6 speed constant mesh
Final Drive	Chain
Primary Drive	19/36 - Gear ratio
Gear Ratio	1st 13/37 2nd 16/34 3rd 18/32 4th 19/30 5th 21/30 6th 22/29
Final Drive Ratio	16/41
Frame	ALS Steel tubular trellis Aluminium alloy
Front Suspension	43 mm Marzocchi “UPSIDE DOWN” telescopic hydraulic fork in DLC treated aluminium, with gold colour anodized fork legs and having rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel	125 mm / 4.9 in
Rear Suspension	Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment Single sided swing arm material Aluminium alloy
Rear Wheel Travel	124 mm / 4.8 in
Front Brakes	2x 320mm floating discs Brembo 4 piston calipers
Rear Brakes	Single 220mm disc Brembo 2 piston caliper
ABS	ABS System Bosch 9 Plus with RLM
Rim Front	Aluminium alloy 3.50 x 17 in
Rim Rear	Aluminium alloy 5.50 x 17 in
Front Tyre	120/70 - ZR 17 M/C (58 W)
Rear Tyre	180/55 - ZR 17 M/C (73 W)
Trail	103.5 mm / 4.0 in.
Dimensions	Length 2045 mm / 80,51 in Width 875 mm / 34,45 in
Wheelbase	1400 mm / 55,12 in
Seat Height	830 mm / 32,6 in
Ground Clarence	135 mm / 5.3 in
Dry Weight	175 Kg / 385.8 lbs
Fuel Capacity	16.5 Litres / 4.36 US gal

STYLED BY LEWIS HAMILTON

A new, exciting addition to the Brutale 800 RR exhilarating riding sensations: the Brutale 800 RR LH44 was born from the collaboration with Formula 1 champion Lewis Hamilton, a perfectionist like no other, except perhaps ourselves here at MV Agusta.

PERFECTION IN EVERY DETAIL

Produced in a limited series of only 144 units, it features Hamilton’s number “44”, which he ran victoriously on all the Formula 1 tracks.

THE CHAMPION'S TOUCH

The colour scheme is inspired by the celebrated F4 LH44 and replicates its black, red and white livery. The graphics enhance the typical aggressiveness of the Brutale design, which is further elevated by Lewis Hamilton’s logo and racing number.

RACING DNA

Attention to detail contributes to its stunning performance: specific seat, machined-from-billet controls, and high-tech carbon fibre components make the Brutale 800 RR LH44 truly exclusive.

TOP OF THE BRUTALE RANGE

The technical platform is that of the 800 RR. Particular attention was paid to materials and craftsmanship, an exclusive trait of this specific model. This motorcycle features top electronics for maximum performance and safety.

ROARING PANTHER

The Euro 4 inline-three cylinder engine has undergone extensive technical updating. This engines stands out for its compact dimensions, its light weight and the particular design choices such as the counter-rotating crankshaft that reduces inertia and provides better handling.

NEXT GENERATION ELECTRONICS

On the electronics front, the Brutale 800 RR LH44 features Ride by Wire throttle and four riding modes (Normal, sport, Rain and custom maps), in addition to 8-level traction control and EAS 2.0 gearbox that also manages downshifting.

THE SAFEST RIDE

For MV Agusta, safety and performance go hand in hand: for this reason the Brutale 800 RR LH44 has two-channel ABS 9 Plus, small and lightweight but packed with useful features for a sport bike, such as RLM (Rear Wheel Lift-up Mitigation), a system that controls the pressure applied on the front brake to avoid involuntary rear wheel lift-up.

Source MV Augusta
