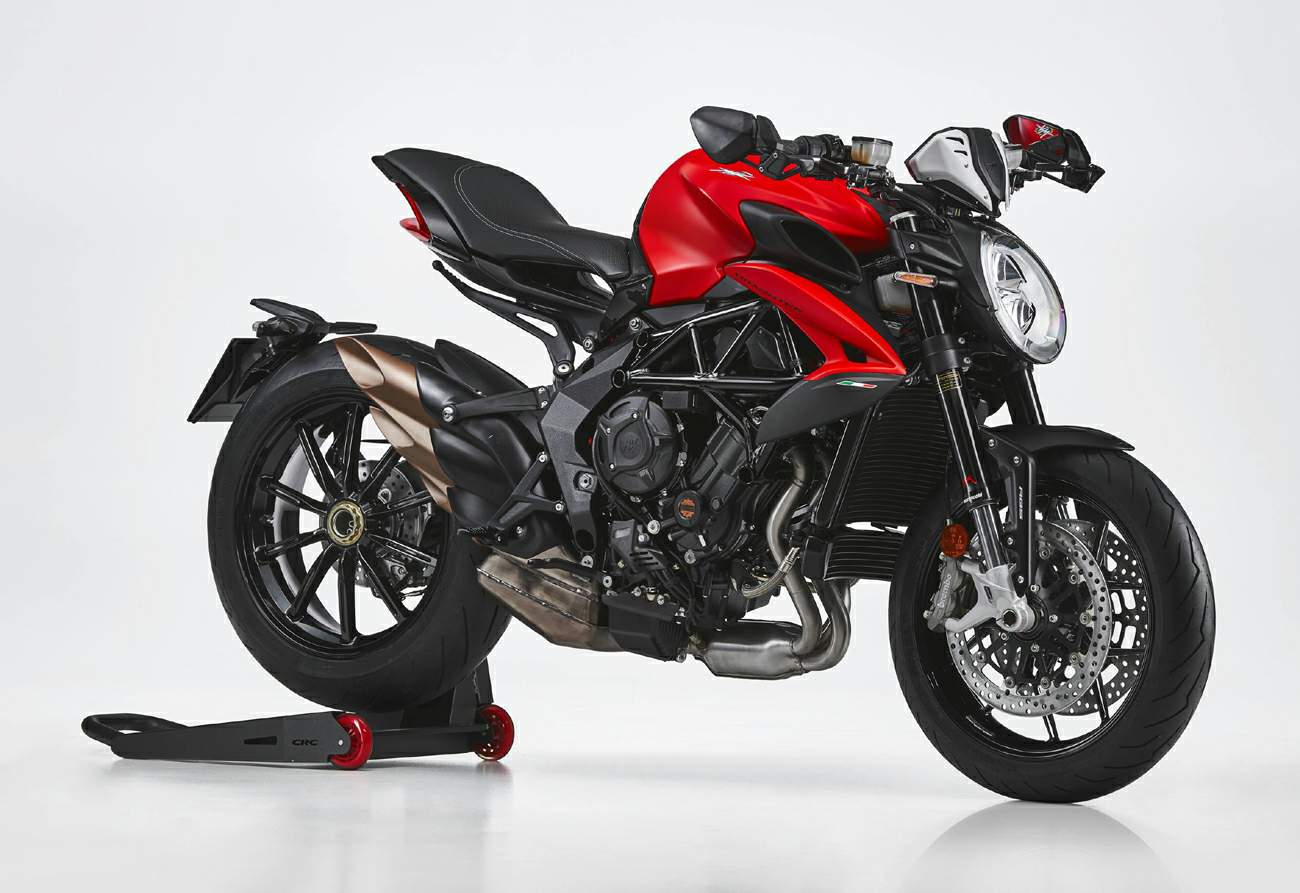

MV Agusta Dragster 800 Rosso

.

Make Model

MV Agusta Dragster 800 Rosso

Year

2021

Engine

Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder

Capacity

798 cc / 48.68 cu-in
Bore x Stroke 79 x 54.3 mm
Cooling System Cooling with separated liquid and oil radiators
Compression Ratio 12.3:1
Engine management system Integrated ignition - injection system MVICS 2.1 (Motor & Vehicle Integrated Control System) with three injectors. Engine control unit Eldor Nemo 2.1, throttle body full ride by wire Mikuni, pencil-coil. Torque control with four maps, Traction Control with eight levels of intervention.
Electronic Quick-Shift MV EAS 3.0 (Electronically Assisted Shift up & down)
Environmental Standard Euro 5

Ignition

Multipoint electronic injection and back torque limiting device
Starting Electric

Max Power

82 kW / 112 hp @ 11000 rpm

Max Torque

85 Nm / 63 lb-ft @ 8500 rpm
Electronic Quick-shift MV EAS 2.0 (Electronically Assisted Shift up & down)
Clutch Multi-disc wet clutch with hydraulic actuation and back torque limiting device

Transmission

Cassette style, 6 speed, constant mesh
Final Drive Chain
Final Drive Ratio 16/41
Primary Drive Ratio 22/41
Gear Ratio 1st 13/37  2nd 16/35  3rd 18/32  4th 20/30  5th 22/29  6th 21/25
Frame ALS Steel tubular trellis, aluminium alloy rear swing arm pivot plates

Front Suspension

43mm Marzocchi USD aluminium telescopic hydraulic fork with DLC treatment, with anodized fork legs and having rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel 125 mm / 4.9 in

Rear Suspension

Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment, aluminium alloy single sided swing arm
Rear Wheel Travel 130 mm / 5.1 in

Front Brakes

2x 320mm floating discs, with steel braking disc and flange, Brembo radial-type with 4 piston calipers

Rear Brakes

Single 220mm disc, Brembo 2 piston caliper
ABS Continental MK100 with RLM (Rear Wheel Lift-up Mitigation) and with cornering function
Rim Front Aluminium alloy 3.50 x 17 in
Rim Rear Aluminium alloy 6.00 x 17 in

Front Tyre

120/70- ZR 17 M/C (58 W)

Rear Tyre

200/55- ZR 17 M/C (78 W)
Trail 103.5 mm / 4.07 in
Dimensions  Length: 2035 mm / 80.1 in
Width:     935 mm / 36.8 in
Wheelbase 1400 mm / 55.1 in
Seat Height 845 mm / 33.3 in
Ground Clarence 135 mm / 5.3 in

Dry Weight

175 kg / 385.8 lbs

Fuel Capacity

16.5 Litres / US 4.36 gal
Exclusive features MV Ride App - GPS sensor - Bluetooth - Cruise control
Optional The full Special Parts range is available on the MV Agusta Special Parts website
.

2021 MV Agusta Dragster Rosso: UPGRADE YOUR RIDE.

Introducing the 2021 MV Agusta Dragster Rosso…
All the power, aggression, and character of a true Dragster. The pleasure of riding, available to everyone

DESIGN. EXCLUSIVE FROM EVERY ANGLE

The most distinctive hallmark of the Dragster Rosso is its exclusive colouring. The exuberance of red, alternating with the elegance of black, serves to highlight the design architecture.


FEEL THE POWER OF SOUND

The Rosso brings the style and aggression of the Dragster to the most accessible level ever for riders of all abilities.The three-cylinder engine is a benchmark for performance, elasticity and usability in every situation. The 110 HP and 83 Nm torque guarantee an intense yet accessible riding pleasure.

CONTROL AND CUSTOMISATION

The MVICS with full Ride-By-Wire has been further improved. There are eight levels of traction control on offer, and four riding modes: Sport, Race, Rain, Custom. Changing the character of the engine has never been so quick and intuitive — it’s just like having four bikes in one.

HI-TECH FOR EVERYBODY

For 2021, the Dragster Rosso has received all the technical and electronic updates of the Dragster range, incorporating them into a more urban configuration. The plates on the frame, the new linkage of the shock absorber, the suspension settings, the saddle with brand-new padding: all make the experience of riding the Dragster Rosso more rewarding, with less exertion.

TECHNOLOGY

QUALITY BRAKING SYSTEM

Performance and safety: mission accomplished thanks to the pair of four-piston Brembo radial callipers on the front end. More latest-generation features include the ABS (anti-lock braking system) developed by Continental, with cornering function and RLM (Rear wheel Lift-Up Mitigation).

The most distinctive hallmark of the Dragster Rosso is its exclusive colouring. The exuberance of red, alternating with the elegance of black, serves to highlight the design architecture.

The Rosso will be available in Matt Argo Red.
