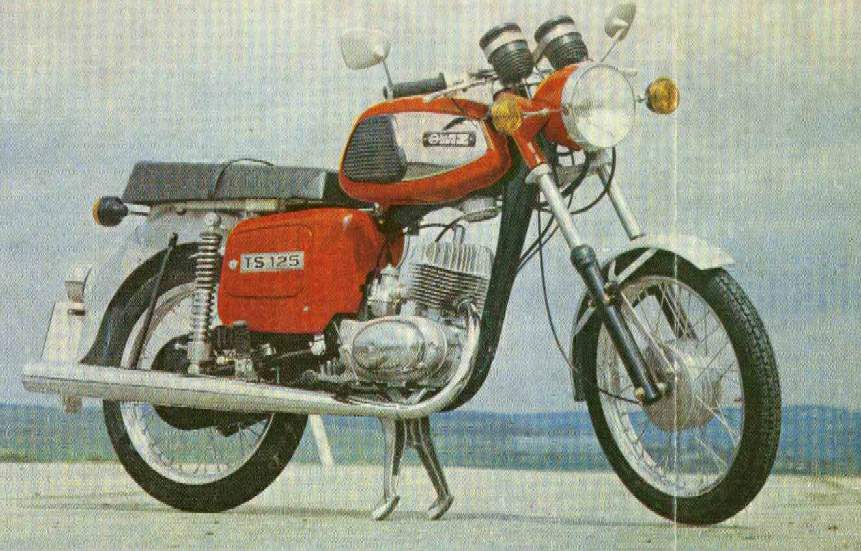

MuZ TS 125

.

Model

MuZ TS 125

Year

1973 -

Engine

Two stroke single cylinder

Capacity

123 cc / 7.6 cu-in
Bore x Stroke 52 x 58 mm
Cooling System Air cooled
Compression Ratio 10.1:1

Induction

Carburetor

Ignition

Battery & coil
Starting Kick

Max Power

10 hp / 7.35 kW @ 6300 rpm
Max Torque 21.2 Nm / 1.25 kg-m @ 5500 rpm

Transmission

4 Speed
Final Drive Chain

Front Suspension

Telescopic forks
Front Wheel Travel 185 mm / 7.3 in

Rear Suspension

Swinging arm, dual shocks
Rear Wheel Travel 105 mm / 4.1 in

Front Brakes

Drum

Rear Brakes

Drum

Front Tyre

2.75-18

Rear Tyre

3.00-18
Dimensions Length 2045 mm / 80.5 in
Width    730 mm / 28.7 in
Height 1125 mm / 44.3 in

Dry Weight

103 kg / 227 lbs

Fuel Capacity

12.5 Litres / 3.3 US gal
