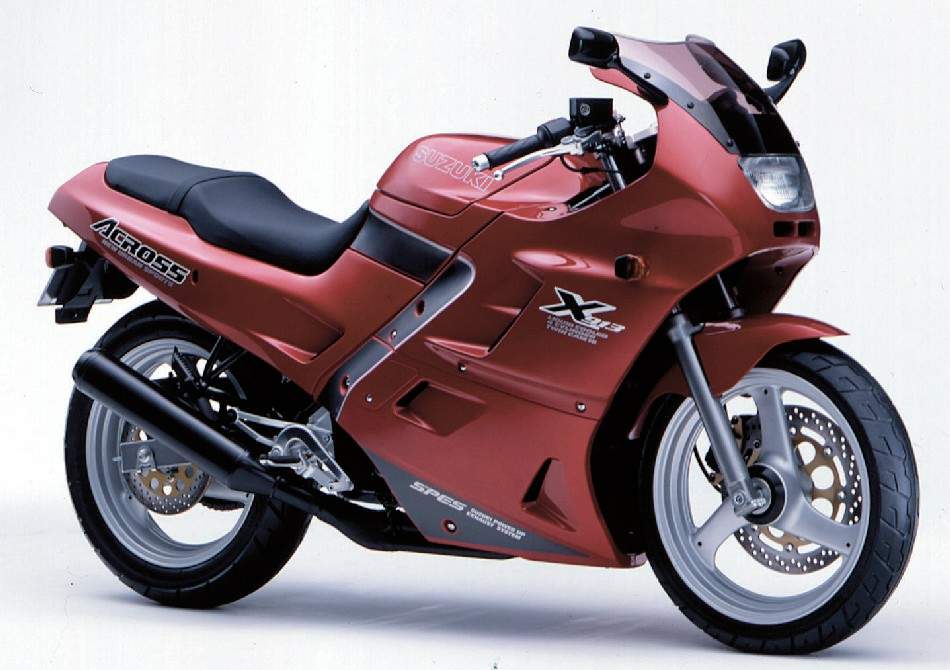

Suzuki Across

.

Make Model

Suzuki Across

Year

1990 - 91

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cyclinder

Capacity

248 cc / 15.1 cu-in
Bore x Stroke 49 x 33 mm
Compression Ratio 12.5:1
Cooling System Liquid cooled

Ignition

Transistor

Starting

Electric

Max Power

33.6 kW / 45 hp @ 14000 rpm

Max Torque

24 Nm / 2.5 kgf-m / 17.7 lb-ft @ 10500 rpm

Transmission

6 Speed

Final Drive

Chain

Front Suspension

Telescopic forks

Rear Suspension

Full floater

Front Brakes

2 x 300 mm discs, 2 piston calipers

Rear Brakes

Single 240 mm disc

Front Tyre

2.50 -17

Rear Tyre

3.50 -17
Dimensions Length: 2020 mm / 79.5 in
Width:     695 mm / 27.4 in
Height:  1120 mm / 44.1 in
Wheelbase 1380 mm / 54.3 in
Seat Height 770 mm / 30.3 in

Dry Weight

159 kg / 350 lbs

Fuel Capacity

16 Litres / 4.2 US gal

Top Speed

180 km/h / 110 mph
.
