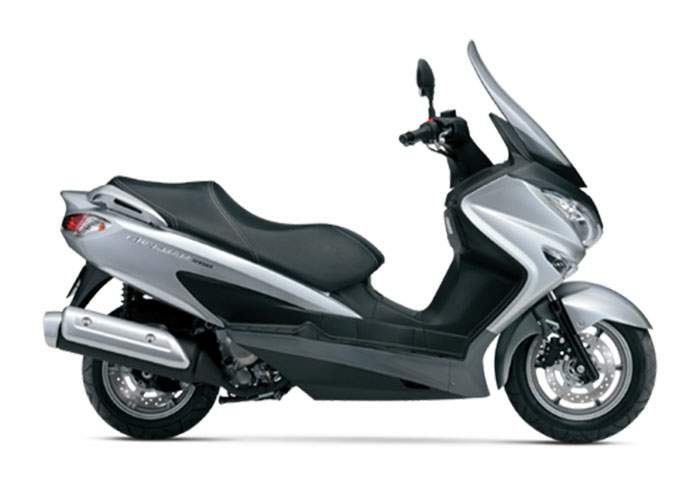

Suzuki AN 200 Burgman

Make Model	Suzuki AN 200 Burgman
Year	2013 - 15
Engine	Four stroke, single cylinder, SOHC, 4 valve
Capacity	200 cc / 12.2 cu in
Bore x Stroke	69 x 53.4 mm
Compression Ratio	11.0:1
Cooling System	Liquid cooled
Lubrication	Wet sump
Induction	Electronic injection
Ignition	Electronic, transistorised
Starting	Electric
Max Power	13.5 kW / 18.35 hp @ 8000 rpm
Max Torque	17 Nm / 1.73 kgf-m / 12.5 ft-lb @ 6000 rpm
Clutch	Dry shoe, automatic, centrifugal type
Transmission	Automatic CVT
Final Drive	V-belt Drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Front Brakes	Single 220mm disc, 3 piston caliper
Rear Brakes	Single 220mm disc,1 piston caliper
Front Tyre	110/90-13M/C 56P, tubeless
Rear Tyre	130/70-12 62P, tubeless
Dimensions	Length 2055 mm / 80.9 in Width 740 mm / 29.1 in
Wheelbase	1460 mm / 57.7 in
Ground Clearance	130 mm / 5.1 in
Seat Height	735 mm / 28.9 in
Dry Weight	149 kg / 328 lbs
Wet Weight	160 kg / 353 lbs
Fuel Capacity	11 Litres / 2.9 US gal

Utilizing Suzuki’s most advanced technology the Burgman 200 ABS has got everything you need and more. The plush double stitched seating and specially designed cutaway floorboards provide a comfortable riding experience that is second to none. From the sleek elegant body styling to the powerful 200cc SOHC engine the Burgman 200 ABS offers best riding experience possible.

Whether you are touring the town or commuting to work the Burgman 200 ABS is just what you need to get the job done with style and class.

Floating Discs
The Bugman 200’s ABS* monitors wheel speed and matches stopping power to available traction.

*Please note that ABS is a supplemental device for brake operation, not a device for shortening stopping distance. Always remember to reduce speed sufficiently before approaching curves and corners.

1 Spacious under-seat storage can hold two full-face helmets.
2 Ergonomically designed for an easy foot reach from the ground.
3 The ergonomically designed and wind-tunnel tested windscreen provides excellent wind protection and reduces rider fatigue.
4 240mm front disc with 2-piston caliper and 240mm rear disc with single piston caliper provide efficient braking performance.
5 A 12V DC outlet is located below the instrument panel is for ease of use and is ideal for powering a navigation unit or charging your mobile device.

A lightweight and compact 200cc engine produces strong low-to-mid range power and is powerful enough for freeway commutes.
Suzuki fuel injection system achieves superb combustion efficiency, results in smooth engine start, improved fuel efficiency and smooth power delivery.

The continuously variable transmission (CVT) incorporates a fixed-spring design that minimizes vibration.

The telescopic front forks (33mm inner tube diameter) soak in harsh road bumps to provide a plush ride.
Rear twin shock absorbers are equipped with spring pre-load adjustment. Rider can adjust the spring setting depending on the conditions.
Center fuel tank layout and compact engine design creates a low-center of gravity which contributes to great stability and maneuverability.
The Burgman 200’s seat height comes in at 735mm and is the lowest in the class
2 Ergonomically designed for an easy foot reach from the ground.
3 The ergonomically designed and wind-tunnel tested windscreen provides excellent wind protection and reduces rider fatigue.
4 240mm front disc with 2-piston caliper and 240mm rear disc with single piston caliper provide efficient braking performance.
Utility/Convenience Features
The seat is shaped narrowly in the front while wider in the back for increased comfort.
Conveniently placed grab bars for passengers.

Two front storage compartments allow you to easily carry essential items on daily trips.
5 A 12V DC outlet is located below the instrument panel is for ease of use and is ideal for powering a navigation unit or charging your mobile device.
An instrument cluster with turn signal, high-beam, FI, ABS, water temp, eco drive, clock, fuel, and more!
Clean and classy cockpit displays provides an enjoyable riding experience.
Choose from a wide range of accessories to accompany you journey.
