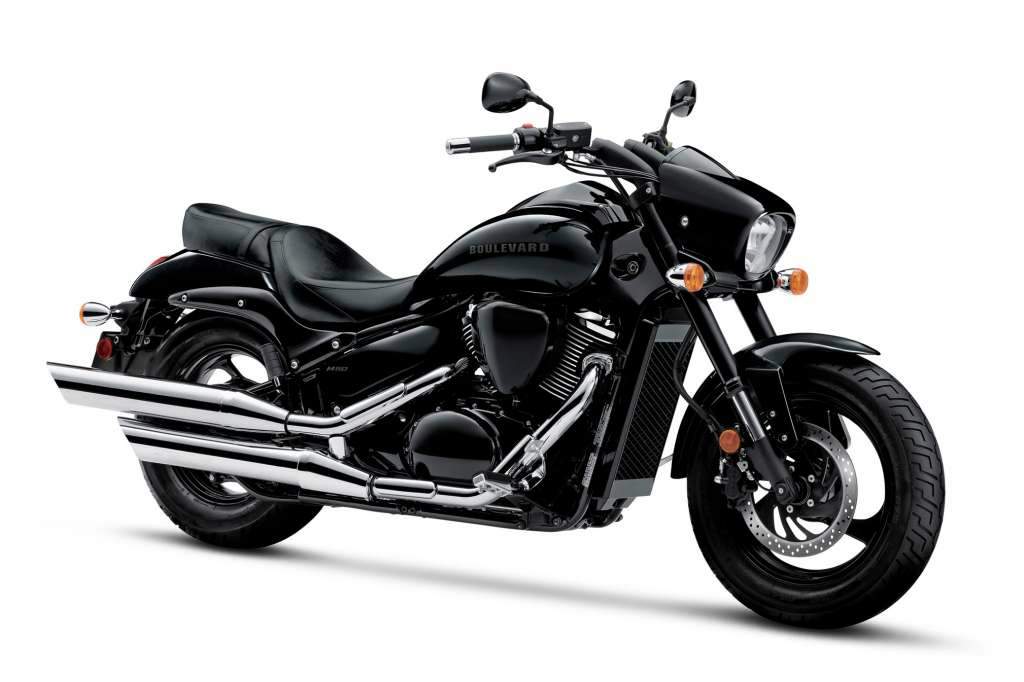

Suzuki Boulevard M50
|
. |
Make Model |
Suzuki Boulevard M50 |
Year |
2018 - 19 |
Engine |
Four stroke, 45° V-Twin, SOHV |
Capacity |
805cc / 49.1 cu-in |
Bore x Stroke | 83 x 74.4 mm |
Cooling System | Liquid cooled |
Compression Ratio | 9.4:1 |
Lubrication | Wet sump |
Induction |
Mikuni BDSR34 |
Ignition |
Electronic |
Starting | Electric |
Max Power |
39 kW / 52 hp / @ 6000 rpm |
Max Torque |
69 Nm / 7.0 kgf-m / 51 lb-ft @ 3200 rpm |
Clutch | Wet, multiple discs, cable operated |
Transmission |
5 Speed |
Final Drive | Shaft |
Front Suspension |
Inverted, telescopic, coil spring, oil damped |
Rear Suspension |
Link-type, oil damped, 7-way adjustable spring preload |
Front Brakes |
Single 300 mm disc, 2 piston caliper |
Rear Brakes |
Drum |
Front Tyre |
130/90-16M/C 67H, tubeless |
Rear Tyre |
170/80-15M/C 77H, tubeless |
Dimensions |
Length 2395 mm / 94.3 in Width 890 mm / 35.0 in Height 1105 mm / 43.5 in |
Wheelbase | 1655 mm / 65.2 in |
Seat Height | 700 mm / 27.6 in. |
Wet Weight |
269 kg / 593 lbs |
Ground Clearance | 140 mm / 5.5 in |
Fuel Capacity |
15.5 Litres / 4.1 / 3.4 US/Imp gal |
The Suzuki Boulevard M50 is a muscle cruiser with sleek, yet powerful styling that includes slash-cut mufflers, a hard-tail look, and drag-style bars. The distinctively shaped headlight nacelle presents a look that’s uniquely Suzuki. Wherever you ride, the M50 offers responsive handling and an exceptionally comfortable ride, thanks to its inverted forks, smooth, single-shock rear suspension and ideally designed saddle. Its 50-cubic-inch V-twin engine with advanced Suzuki fuel injection is equally impressive, producing a load of torque for strong acceleration in every gear.
The Suzuki Boulevard M50 is a modern cruiser with cutting-edge performance while retaining its classic looks. It features our advanced fuel-injected 805cc V-twin engine which delivers a robust, responsive power. The M50’s sleek styling — including slash-cut mufflers, a hard-tail design and low-rise bars — promises aggressive performance that delivers. Better yet, the M50 has precise handling and exceptional ride quality, especially when you’re out for a long ride.
Cutting-edge performance-cruiser look featuring sleek lines and gleaming details. Advanced fuel-injected 805cm3 V-Twin delivering robust, responsive power. SUZUKI BOULEVARD M50, sharing the exciting styling and technology of its larger-displacement brothers, looks right, and performs right.
Engine Features
Robust 805cc (50 cubic inch) liquid-cooled, fuel-injected V-Twin powerplant is
built to deliver exciting torque from down low in the rpm range.
Smooth black finish on the engine and air cleaner covers complements the
muscular presence of the V-twin’s finned cylinders.
Crankshaft design features 45-degree offset crank pins to reduce engine
vibration without a balancer shaft for a more comfortable ride.
Electronic fuel injection system features the Suzuki Dual Throttle Valve System
(SDTV) – maintains optimum air velocity in the intake tract for smooth
low-to-mid rpm throttle response and high torque output.
Multi-hole-type fuel injectors deliver a fine spray for a powerful yet
fuel-efficient operation.
An automatic Idle Speed Control (ISC) system eliminates the choke and shortens
the engine’s warm-up time.
Powerful 32-bit-processor Engine Control Module (ECM) helps ensure precise
fuel-injection control.
Cutting-edge 3D-mapped digital ignition system using a throttle-position sensor
helps boost the hallmark big V-Twin’s down-low torque.
Chromed and staggered dual-exhaust system mounted on the right side of the
engine is tuned for responsive torque delivery providing a deep, rumbling
exhaust note.
Suzuki Pulsed-secondary AIR-injection (PAIR) system introduces air into the
exhaust ports to ignite unburned hydrocarbons and cut down on emissions.
A wide-ratio five-speed transmission features a high fifth gear ratio for
relaxed highway cruising.
Low-maintenance shaft drive is clean-running and has minimal torque reaction as
it efficiently transmits power to the wide 15-inch rear tire.
Chassis Features
Strong, double-cradle steel frame supports a chassis ready for cruising or a
full-on tour.
Link-type rear suspension connects to a truss-style swing arm and a single shock
absorber with 7-way spring preload adjustability providing 4.1 inches of smooth
and response suspension travel.
Large 300mm front brake rotor and rigid caliper bring strong braking performance
to match the engine’s output.
Suzuki performance-cruiser styling is sleek and flowing throughout from the
distinctive headlight cowl to the purposeful tail section.
Drag-style handlebars mounted on pull-back risers provide a comfortable reach
for the rider and increased comfort around town or on the highway
Long, wide 4.1 US gallon fuel tank flows smoothly back to the seat -attractive
raised fuel filler includes indicator lights for turn signals, high beam and low
fuel.
• The modern instrument cluster, including a fuel gauge and a clock, is neatly
integrated with the bike’s uniquely Suzuki headlight nacelle.
Cast-aluminum 16-inch front and 15-inch rear wheels, with a seamless black
finish.
Black outer tubes on the 41mm inverted front forks add sporty looks and
performance feel.
A wide and comfortable seat is shaped for a smooth visual harmony with the
sporty rear fender (ideal when seat up with the optional seat cowl).
Bright, multi-reflector headlight and a LED taillight that’s
performance-inspired match the tail section design.
Bright, bullet-style turn signals are designed for high visibility and a sharp
appearance.
Any corrections or more information on these motorcycles will be kindly appreciated. |
