Suzuki AN 400 Burgman

.

Make Model

Suzuki AN 400

Year

2014 - 15

Engine

Four stroke, single cylinder, DOHC, 4 valves

Capacity

400 cc / 24.4 cu in
Bore x Stroke 81 x 77.6 mm
Compression Ratio 12.5:1
Cooling System Liquid cooled
Lubrication Wet sump

Induction

EFI

Ignition

Digital electronic

Starting

Electric

Max Power

25.0 kW / 33.5 hp  @ 7600 rpm

Max Torque

36 Nm / 3.7 kgf-m / 26.8 lb-ft @ 6000 rpm

Transmission

CVT- automatic

Final Drive

V-belt

Front Suspension

41mm Telescopic, coil spring, oil damped

Rear Suspension

Link-type, coil spring, oil damped, adjustable preload

Front Wheel Travel

109 mm / 4.3"

Rear heel Travel

99 mm / 3.9"

Front Brakes

2 x 260 mm discs, ABS

Rear Brakes

Single 210 mm disc, ABS

Front Tyre

120/80-14 M/C 58S, tubeless

Rear Tyre

150/70-13 M/C 64S, tubeless

Dimensions

Length: 2270 mm / 89.4"

Width:     760 mm / 29.9"

Height:  1385 mm / 54.5"

Wheelbase

1585 mm / 62.4"

Ground Clearance

125 mm / 4.9"

Seat Height

710 mm / 28.0"

Dry Weight

199 kg / 438 lbs

Wet Weight

222 kg / 489 lbs

Fuel Capacity

13.5 Litres / 3.6 US gal

Consumption  average

5.2 L/100 km 19.2  km/l / 45 US mpg

Standing ¼ Mile

17.2 sec

Top Speed

152.1 km/h / 94.5 mph

Looking to turn some heads? You came to the right place.

The Burgman 400 not only combines exhilarating performance with a comfortable ride - it boasts a stylish design that's guaranteed to capture the spotlight wherever you ride.

Around town or on longer rides, the Burgman 400 offers an impressively comfortable ride. It has plush suspension, matched by a sleek, aerodynamic fairing that provides excellent protection from the wind. A stepped seat and an easily adjustable backrest for the rider provides comfortable seating mile after mile. And concave floorboards offer you and your passenger plenty of legroom.

For exciting performance, its liquid-cooled engine offers strong acceleration, while an advanced fuel injection system provides crisp throttle response. It also has an automatic clutch and V-belt drive for smooth power delivery and standard ABS braking.

Have some cargo you need to stash? No problem. The Burgman 400 has a lighted underseat storage compartment that accommodates two full-coverage helmets, matched by three front compartments with lids that allow quick, easy access to smaller items.

So add some style - and excitement - to your life, with the 2011 Suzuki Burgman 400!

The Burgman 400 offers a striking combination of performance, comfort, style and convenience. The 400cc engine produces strong power while delivering incredible fuel economy. Its automatic transmission also offers riders amazing convenience. The Burgman 400 also provides an impressively comfortable ride. It has plush suspension, matched by a sleek, aerodynamic fairing that provides excellent protection from the wind. A stepped seat and an easily adjustable backrest for the rider provides comfortable seating mile after mile. And the underseat storage provides ample room (that can accommodate two full-coverage helmets) to riders for a variety of shopping trips and errands. The Burgman 400 boasts a stylish design that is guaranteed to capture the spotlight wherever you ride, be it around town or on longer rides.



Key Features
For added security, the ignition switch is fitted with a magnetic cover that opens only with correctly coded key.

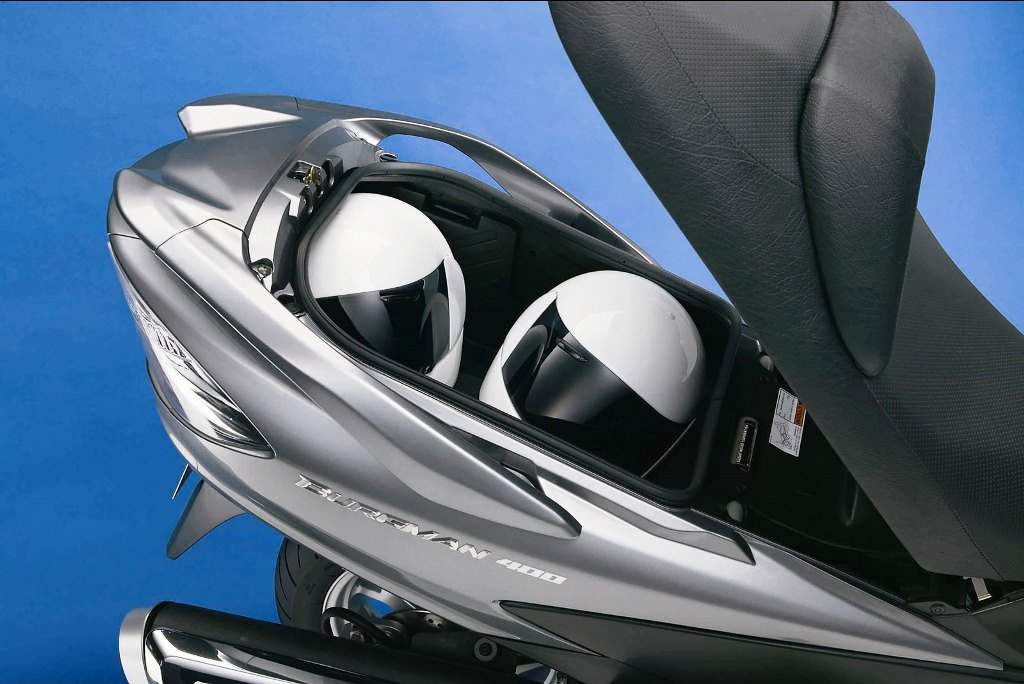

A huge storage bay large enough for two full-face helmets, and a smaller compartment for personal items. A convenient switchable light is also included to illuminate the underseat area.
Antilock Brake System (ABS*) monitors wheel speed, and matches stopping power to available traction.
*Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.

Engine Features
This Burgman comes with a 400cc, 4-stroke, single-cylinder, liquid-cooled, DOHC, fuel-injected engine that was designed to produce broad, useable power with quiet operation and low maintenance.
Suzuki electronic Idle Speed Control (ISC) helps improve cold starting and reduce cold-start emissions and stabilize engine idle under varying conditions.

Transmission
User friendly to the core, a belt-drive, CVT transmission is fully automatic.

Chassis Features
A 3.6 gallon fuel tank allows for long distances between fuel stops.
A high-tensile steel-tube frame combines strength and rigidity for precise handling.
Telescopic front forks with 41mm inner tubes have a generous 4.3 in of wheel travel, while a motorcycle-style link-type monoshock rear suspension offers adjustable preload, providing 3.9 in of wheel travel with responsive handling and exceptional maneuverability.

Utility/Convenience Features
The easy-to-read instrumentation includes a speedometer, tachometer, odometer, twin tripmeters, clock, indicators for the ambient temperature, average fuel consumption, fuel level and coolant temperature.
Convenient electric start with a maintenance-free battery helps provide quick and easy starts.
A convenient parking brake has easy-to-use, single-layer operation conveniently located in the front bodywork that will apply a lock system that acts on the rear brake when parked.

Abundant luggage space includes a huge storage bay large enough for two full-face helmets, and a smaller compartment for personal items.
Front bodywork contains three covered storage compartments, including a large 10-liter compartment and two smaller compartments above it. A convenient DC power outlet allows you to charge electric devices while on the move.
Comfortable well-padded seat is dual-stepped.
A security gate allows a chain lock to be passed through the bodywork around the frame.
