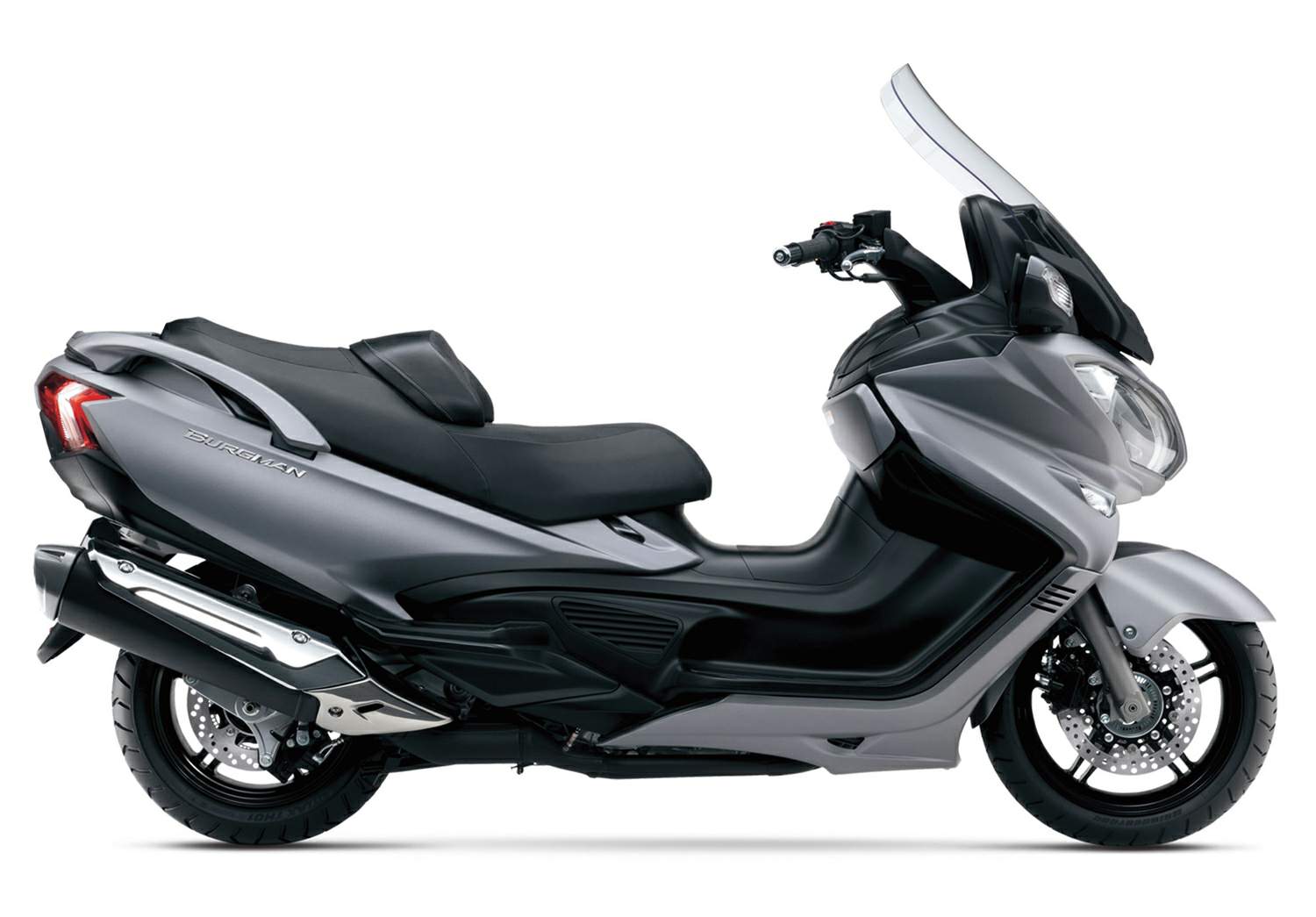

Suzuki AN 650 Burgman

.

Make Model

Suzuki AN 650 Burgman

Year

2014 - 15

Engine

Four stroke, twin cylinder, DOHC, 4 valves per cylinder.

Capacity

638 cc / 38.9 cu in
Bore x Stroke 75.5 x 71.3 mm
Compression Ratio 11.2:1
Cooling System Liquid cooled
Lubrication Wet sump

Induction

Electronic fuel injection

Ignition

Digital electronic

Starting

Electric

Max Power

40 kW / 55 hp @ 7000 rpm

Max Torque

62 Nm / 6.3 kgf-m / 45.7 lb-ft @ 5000 rpm

Transmission

Electronically-controlled, CVT- automatic and manual shift

Final Drive

V-belt

Frame

Tubular steel

Front Suspension

Telescopic front fork with 41mm inner tubes, coil spring, oil damped

Rear Suspension

Swingarm-style, twin preload-adjustable shock absorbers and a separate aluminum swingarm, coil spring, oil damped

Front Wheel Travel

110 mm / 4.3"

Rear Wheel Travel

100 mm / 3.9"

Front Brakes

2 x 260 mm discs, 2 piston calipers, ABS

Rear Brakes

Single 250 mm disc, 2 piston caliper, ABS

Front Tyre

120/70 R15M/C 56H, tubeless

Rear Tyre

160/60 R14M/C 65H, tubeless

Dimensions

Length:  2265 mm / 89.2"

Width:      810 mm / 31.9"

Wheelbase

1585 mm / 62.4"

Seat Height

755 mm / 29.7"

Ground Clearance

125 mm / 4.9"

Dry Weight

238 kg / 525 lbs

Wet Weight

277 kg / 611 lbs

Fuel Capacity

15 Litres / 4.0 US gal
Top Speed 177 km/h / 110 mph
¼ Mile Acceleration 16 sec

For generations of riders, the Burgman has redefined the two-wheel luxury scooter experience. It brought performance and comfort into a market once unimaginable. For 2013, the Burgman 650 ABS continues to improve with new styling matched with unbeatable performance.

Notable changes to the Burgman 650 ABS include refinements in the transmission setting and a reduction of mechanical losses contribute to a boost in fuel economy by 15%* compared to the previous model in Drive Mode. Drive Mode heightens efficiency at normal road speeds and gives smooth, linear, almost shock-free power delivery for easy riding. Power Mode gives more punch when you twist the throttle. And Manual Mode lets you thumb-toggle between six preset gear ratios for a unique feeling of control. The SECVT’s updated design includes new clutch plates that cause 35% less drag.

You can feel the nimbleness and abundance of power in your hand. It is simply exhilarating! With refinements in the transmission setting that easily allows you to downshift, accelerate, and maneuver around traffic and through every road, there’s no better time than to hop on the Burgman 650 ABS than today!

The Burgman 650 ABS model also offers an antilock braking system (ABS)** that helps to maximize the rider’s control by preventing the wheels from locking during hard brake application. The ABS unit weighs 55% less than the previous model.

*Measured in the Worldwide Motorcycle Test Cycle (WMTC).
**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.



Key Features
Features a new Eco Drive Indicator to encourage riding that may reduce environmental impacts. The Eco Drive Indicator light, located on the instrument panel, will come on when the vehicle is operated in a fuel-efficient manner – and may help riders learn techniques to improve their fuel economy*.
*The Eco Drive Indicator does not automatically improve fuel economy but may help riders refine their riding efficiency and improve fuel consumption. Fuel consumption may vary depending on traffic conditions, such as the frequency of starts from stop, distance driven, rate of acceleration (throttle use), chosen speed, and maintenance.

Two fully automatic modes (Drive and Power) and Manual. Drive mode heightens efficiency at normal road speeds and gives smooth, linear, almost shock-free power delivery for easy riding. Power mode gives more punch when you twist the throttle. And Manual mode lets you thumb-toggle between six preset gear ratios for a unique feeling of control.

The front brakes have an updated design with floating discs for more consistent braking performance.

A lever-operated brake lock lever gives the rider extra peace of mind. The lever has a stylish new design that makes it easier to reach and operate.

An antilock braking system (ABS)* helps to maximize the rider’s control by preventing the wheels from locking during hard brake application.

The ABS unit weights 55% less than that of the previous model.

*Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.



Engine Features
A newly tuned, liquid-cooled, 638cc, DOHC, 8-valve, twin-cylinder engine

The new exhaust system features a triangular section muffler and is engineered to keep emissions so low that the Burgman 650 satisfies the most stringent regulations.

Transmission Features
Superlative control comes from a Suzuki Electronically-controlled Continuously Variable Transmission (SECVT). The SECVT’s updated design includes new clutch plates that cause 35% less drag.

Refined transmission setting and reduced mechanical losses contribute to boost fuel economy even more; the engine uses 15% less fuel* than that of the previous model in drive mode.
*Measured in the Worldwide Motorcycle Test Cycle (WMTC).

Chassis Features
Tubular frame and aluminum-alloy swingarm allow the engine to be mounted in a forward position for excellent balance and agility.

The frame inherits the long, 1595mm wheelbase of earlier Burgmans for a sporty, controllable ride and has a newly designed, slimmer tail section for sleeker, sportier bodywork.

110mm front and 100mm rear wheel travel helps keep the ride smooth

Additional Features
The underseat compartment can hold two full-face helmets and has a light for nighttime convenience.

Three compartments below the handlebars provide space for maps and other items you might need on the road. One contains a DC outlet that’s ideal for charging a mobile telephone

Big, easy-to-read analogue dials for the speedometer and tachometer flank a digital display that shows an odometer, twin trip meters, a fuel consumption meter, a fuel meter, a coolant temperature indicator, a thermometer, a clock, an oil level indicator, an oil change indicator, a drive mode indicator (for drive mode and power mode), and a gear position indicator (for manual mode).

The windscreen is shaped to give great wind protection and a clear view of the road. It’s electrically adjustable to suit the rider’s height. For convenience in tight parking spaces, the rearview mirrors can be retracted electrically at the touch of a button.
