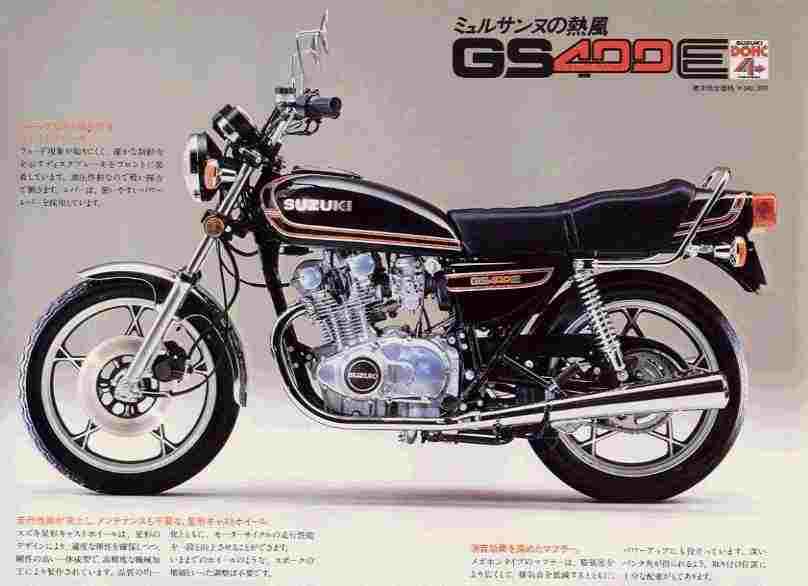

Suzuki GS 400E

.

Make Model

Suzuki GS 400E

Year

1978 - 84

Engine

Four stroke, parallel twin  cylinders, DOHC, 2 valve per cylinder.

Capacity

398 cc / 24.2 cu-in
Bore x Stroke 65 x 60 mm
Cooling System Air cooled
Compression Ratio 9:1

Induction

2 x Mikuni BS34 carburetors

Ignition

Conventional type non-transistor
Starting Electric and kick-start.

Max Power

25.4 kW / 34 hp / @ 8000 rpm

Max Torque

30 Nm / 2.94 kpm / 22.1 lb-ft @ 7000 rpm
Clutch Wet multi-plate type

Transmission

6 Speed
Final Drive Chain
Primary Drive Ratio 2.714
Final Drive Ratio 2.461
Gear Ratio 1st 2.461 / 2nd 1.777 / 3rd 1.380 / 4th 1.125 / 5th 0.961 / 6th 0.851:1
Frame Double cradle tube

Front Suspension

Telescopic, coil spring, oil damped

Rear Suspension

Swing arm, coil spring (5-way adjustable), oil damped

Front Brakes

Single 270 mm disc, 1 piston caliper

Rear Brakes

160mm Drum

Front Tyre

3.00-18

Rear Tyre

3.50-18
Dimensions Length 2085 mm / 82.1 in
Width     835 mm / 32.9 in
Height  1125 mm / 44.3 in
Wheelbase 1385 mm / 54.5 in
Seat Height 790 mm / 31.1 in
Ground Clearance 170 mm / 6.7 in
Dry Weight 172 kg / 378 lbs

Wet Weight

185.0 kg / 408 lbs

Fuel Capacity

14 Litres / 3.7 US gal / 3.1 Imp gal

Source CYCLE BUYERS GUIDE 1978

Time has worked in Suzuki's favor. As a latecomer to the twin-cylinder, four-stroke 400cc market, Suzuki was both aware of their competitors' progress and able to begin with a fresh sheet of paper.

Suzuki designers, utilizing their latest technological advances, made the GS400 a celebration of mechanical connections. The bike employs double overhead camshafts very similar in pattern to the GS750. The GS400 has the same bore—65mm— as the 750, and identical cam timing. The smaller GS has a gear-driven counter-balancer in its 180-degree twin engine and cannot develop chain slop to upset balancer phasing.

By way of techno-trickle-down, the Suzuki has been strengthened in the areas of rider comfort, suspension compliance and handling. Motorcycle comfort relates primarily to considerations in three areas: overall fit and feel of the motorcycle, including saddle comfort, handlebar and peg positions; suspension compliance, or the ability of the suspension components to respond to pavement irregularities; and vibration control.

In the past, the Suzuki created a negative first impression in the area of overall fit and feel: the Suzuki seat—on the 1977 GS400—burned a hole in the average backside within 50 miles. However, for 1978, Suzuki is replacing the seats on the entire GS line; the GS550 and 750 have shared the same ailment. On the positive side, the handlebar position is good and Suzuki's sportier seating position directs the rider's feet up and back. The bike also has nice soft grips. And, in noticing details, we recommend some practice in using the kill switch: its roller action is inferior to a flip switch design.

Suzuki has an up-to-date suspension system which goes beyond being merely soft; it is supple. Front fork stiction has been eliminated; the bike floats over minor ripples in the highway and responds equally well to larger pocks. Even on minimum pre-load, the Suzuki feels taut but controlled at the rear. The bike's Conestoga Wagon seat may have as much to do with that taut feeling as the rear shocks.

The GS400 goes down the quarter-mile straight at 87.20 mph and in 15.04 seconds. A willing and responsive unit, its engine is eager to run-and-gun between 6000 and 9000 rpm and sounds the part: it has a very throaty exhaust. Moreover, because the gear-driven counter-balancer is genuinely effective, and because Suzuki has rubber-mounted many components, a rider will find himself confidently using the smooth-running engine's top-end performance.

Although driveline slop continues to plague most Japanese motorcycles, the GS400 suffers only marginally in this regard. What little problem it has arises primarily from the 400's sensitive constant-vacuum carburetors, which slam down the throttle slides when the twist grip is rolled back slightly.

Stable and wallow-free in corners, the GS refuses to hunt down freeway rain grooves, holds as steady in crosswinds as any 400-pound bike can manage, and performs with agility around town. In general, only heavy riders will experience bothersome ground-clearance problems. While our 200-pound staffers ground the pegs and hardware, lighter riders encountered no problems, providing they raised the ride height by pre-loading the rear

shock springs. Tire crawl signallf proach of reasonable speed through corners. Furthermore, the ( uses a very good front disc brake a almost equally good rear drum I outclassed only by some compel rear disc brakes.

Using low-lead or unleaded fuel i normal riding conditions, we avei around 50 mpg, a figure well within norm for motorcycles in the 400cc stroke class.

Nevertheless, the most outstan feature of the GS400 is its smooth en While the Suzuki isn't the quickest, fa or lightest 400 money can buy, it is smoothest. And this lack of vibration gether with the compliant suspend goes a long way to make it a great motorcycle.

Source CYCLE BUYERS GUIDE 1978
