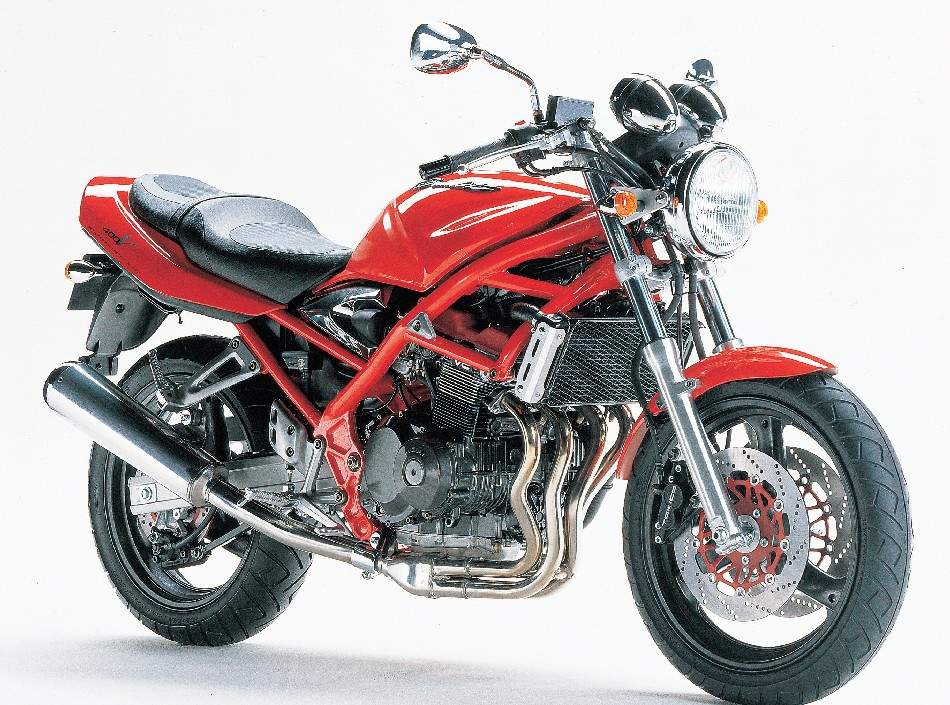

Suzuki GSF 400 Bandit

.

Make Model

Suzuki GSF 400

Year

1996 - 97

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Capacity

398 cc / 24.3 cu in
Bore x Stroke 56 х 40.4 mm
Compression Ratio 11.8:1
Cooling System Liquid cooled

Induction

4 x Mikuni BST32 carburetors

Ignition

Transistorized

Starting

Electric

Max Power

44 kW / 59 hp @ 12000 rpm (at rear tyre 35 kW / 48 hp @ 10200 rpm )

Max Torque

35.2 Nm / 3.6 kgf-m / 26 lb-ft @ 10000 rpm

Transmission

6 Speed

Final Drive

Chain

Front Suspension

41mm Kayaba, telescopic, coil spring, oil-damped

Front Wheel Travel

120 mm / 4.7 in

Rear Suspension

Preload adjustable Kayaba monoshock

Rear Wheel Travel

120 mm / 4.7 in

Front Brakes

Single 310mm disc, 2 piston caliper

Rear Brakes

Single 260mm disc, 2 piston caliper

Front Tyre

110/70-17, Dunlop K505F

Rear Tyre

150/70-17, Dunlop K505J

Rake

25.5°

Trail

99.1 mm / 3.9 in

Dimensions

Length: 2055 mm / 80.9 in
Width:     705 mm / 27.8 in
Height:  1060 mm / 41.7 in

Wheelbase

1430 mm / 56.3 in

Seat Height

762 mm / 30 in

Dry Weight

168 kg / 370 lbs

Wet Weight

189 kg / 418 lbs

GVWR

406 kg / 895 lbs

Fuel Capacity

17 Litres / 4.4 US gal / 3.6 Imp gal

Consumption Average

5.6 L/100 km / 17.8 km/l / 42 US mpg / 50 Imp mpg

Braking 60 km/h - 0

13.8 m / 45.3 ft

Braking 100 km/h - 0

37.9 m / 124.3 ft

Standing ¼ Mile

13.1 sec / 161 km/h / 100 mph

Acceleration: 40 - 60 mph

5.9 sec

Acceleration: 60 - 80 mph

6.1 sec

Top Speed

177 km/h / 110 mph
