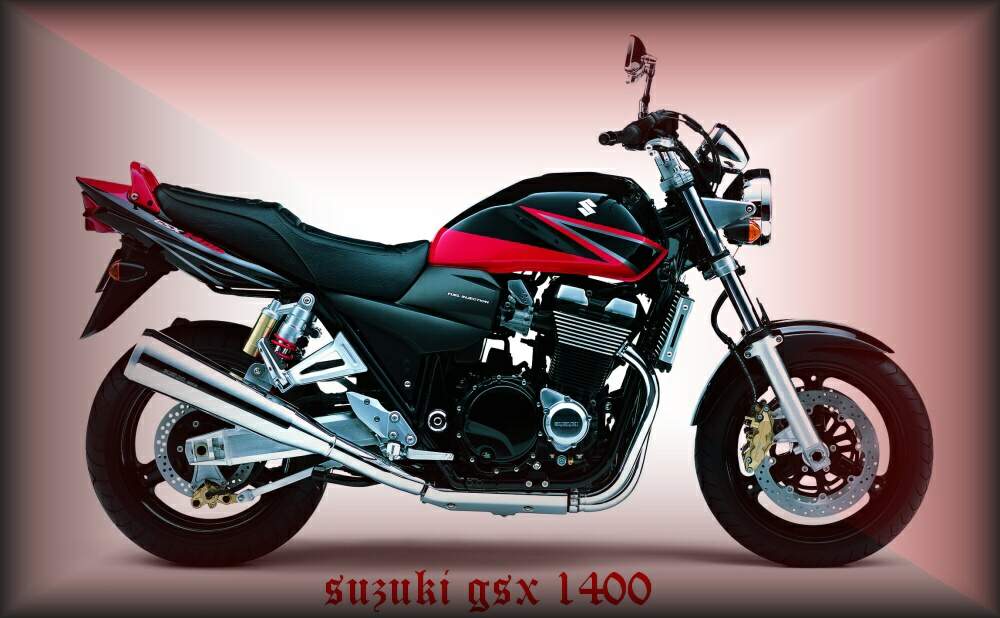

Suzuki GSX 1400Z


.

Make Model

Suzuki GSX 1400Z

Year

2004 - 05

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Capacity

1402 cc / 85.6 cu in

Bore x Stroke

81 x 68 mm

Compression Ratio

9.5:1

Cooling System

Air/oil cooled

Induction

Fuel injection with 34mm throttle bodies

Ignition

Electronic ignition

Starting

Electric

Max Power

78 kW / 105 hp @ 6800 rpm

Max Torque

124 Nm / 12.6 kgf-m / 91.5 lb-ft @ 5000 rpm

Transmission

6 Speed

Final Drive

Chain

Front Suspension

46 mm Telescopic forks, preload, compression and rebound damping adjustable

Rear Suspension

Dual piggyback reservoir shocks fully adjustable for preload, compression and rebound damping

Front Brakes

2 x 320 mm Discs, 6 piston calipers

Rear Brakes

Single 260 mm disc, 2 piston caliper

Front Tyre

120/70 ZR17

Rear Tyre

190/50 ZR17
Wheelbase 1520 mm / 59.8 in
Seat Height 790 mm / 31.1 in

Dry Weight

228 kg / 503 lbs

Fuel Capacity

22 Litres / 5.8 US gal / 4.8 Imp gal

Consumption  average

6.5 L/100 km / 15.5 km/l / 36.5 US mpg / 43.8 Imp mpg

Standing ¼ Mile

11.4 sec

Top Speed

233 km/h / 145 mph
Reviews Moto.it / MCNews.COMMotorbikes today

The 2004-GSX1400 has not only been modified on the surface. The most obvious difference that was easy to spot was the new exhaust system, revisited from classic twin 4-2-2 to single (but longer) 4-2-1 pipe with a stainless steel silencer. The loss of the left muffler reduced the weight of the bike by 3 kg (6.6 lbs) but also lowered the torque by 2 Nm.

The fuel injection system was revisited for a better fuel intake (better acceleartion) at the lower speed range as was the automatic fast idle system. An internally coded ignition key was added as an immobilizer system and the aluminum cylinder walls were coated with something called Suzuki Composite Electrochemical Material (SMEC). The front brake lever had now 5-step adjustment (previously 6-step). Luminous meter needles.

The feel and the looks of the bike remained the same. The Suzuki logo was changed to a single "S", as with all the other (except Hayabusa) Suzuki models for 2004.

The Red suspension springs you were not standard even outside Japan. An all-black version was now available in Europe. As it had Black wheels and Red shocker spring, the Japanese GSX1400Z special model had Gold wheels, Black engine, Black headlight, Black Chrome exhaust and Black shocker coil springs.

Colors available: Pearl Deep Blue / Pearl White (LR5), Pearl Red / Solid Black (CG9), Solid Black (B PJ)
