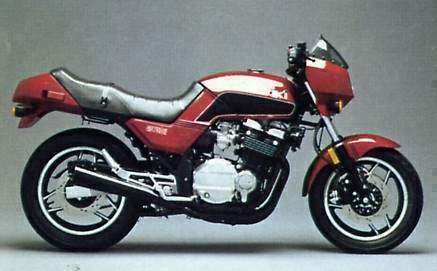

Suzuki GSX 750E-II

.

Make Model

Suzuki GSX 750E-II

Year

1983 - 84

Engine

Four stroke, transverse four cylinders, DOHC, 4 valve per cylinder.

Capacity

747 cc / 45.5 cu-in
Bore x Stroke 67 x 53 mm
Cooled System Air/Oil cooled
Compression Ratio 9.6:1
Lubrication Wet sump

Induction

4 x Mikuni 32mm carburetors

Ignition

Transistorized
Starting Electric

Max Power

62.6 kW / 84 hp @ 9500 rpm

Max Torque

68 Nm / 6.9 kgf-m / 50.2 lb-ft @ 8500 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

Air assisted telescopic forks

Rear Suspension

Full floater, preload and rebound adjustable

Front Brakes

2 x 275 mm Discs, 2 piston caliper

Rear Brakes

Single 255 mm disc, 1 piston caliper

Front Tyre

100/90-16

Rear Tyre

120/90-17

Dry Weight

207 kg / 456 lbs

Fuel Capacity

21 Litres / 5.5 US gal / 4.6 Imp gal
