Suzuki GSX-R 600

.

Make Model

Suzuki GSX-R 600

Year

2019

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder

Capacity

599 c / 36.6 cub. in.

Bore x Stroke

67.0 x 42.5 mm

Compression Ratio

12.8:1

Cooling System

Liquid cooled

Oil

10W40

Lubrication

Wet sump

Exhaust System

Suzuki Advanced Exhaust System (SAES), under engine chamber leading to large volume muffler and triangular silencer

Induction

EFI, Four 40 mm throttle bodies, 2 valves per body. S-DMS engine management system

Ignition

Digital CDI

Spark Plug

NGK CR9E

Starting

Electric

Max Power

93.2 kW / 125 hp @ 13500 rpm with maximum RAM air

Max Torque

67.7 Nm / 6.9 kgf-m / 49.9 ft-lb @ 11500 rpm, RAM air

Clutch

Wet, slipper, cable operated

Transmission

6 Speed, constant mesh

Gear Ratios

1st 2.69 / 2nd 2.11 / 3rd 1.76 / 4th 1.52 / 5th 1.35 / 6th 1.23:1
Final Drive #525 Chain, 114 links
Frame Aluminium, twin spar extrusion frame
Rake 23.25°
Trail 93 mm / 3.7 in

Front Suspension

Showa Big Piston front-Fork (BPF)

Rear Suspension

Link type, coil spring, oil damped

Front Wheel Travel

125 mm / 4.9 in.

Rear Wheel Travel

130 mm / 5.1 in.

Front Brakes

2 x 310 mm Discs, Brembo 4 piston calipers

Rear Brakes

Single 220 mm disc, Nissin 2 piston caliper

Wheels

Alloy, 3 spoke

Front Tyre

120/70 ZR17

Rear Tyre

180/55 ZR17
Wheelbase 1385 mm / 54.5 in.

Dimensions

Length  2030 mm / 80.0 in.

Width      715 mm / 28.1 in.

Height   1125 mm / 44.7 in.

Seat Height 810 mm / 31.9 in.
Ground clearance 130 mm / 5.1 in.

Dry Weight

160 kg / 352 lbs

Wet Weight

187kg / 412 lbs

Fuel Capacity

17 Litres / 4.5 US gal / 3.7 Imp gal

Average Fuel Consumption

5.4 L/100 km / 18.4 km/l / 43.3 US mpg / 52.3 Imp mpg

Standing ¼ mile

11.1 sec

Top Speed

253 km/h / 157 mph
.

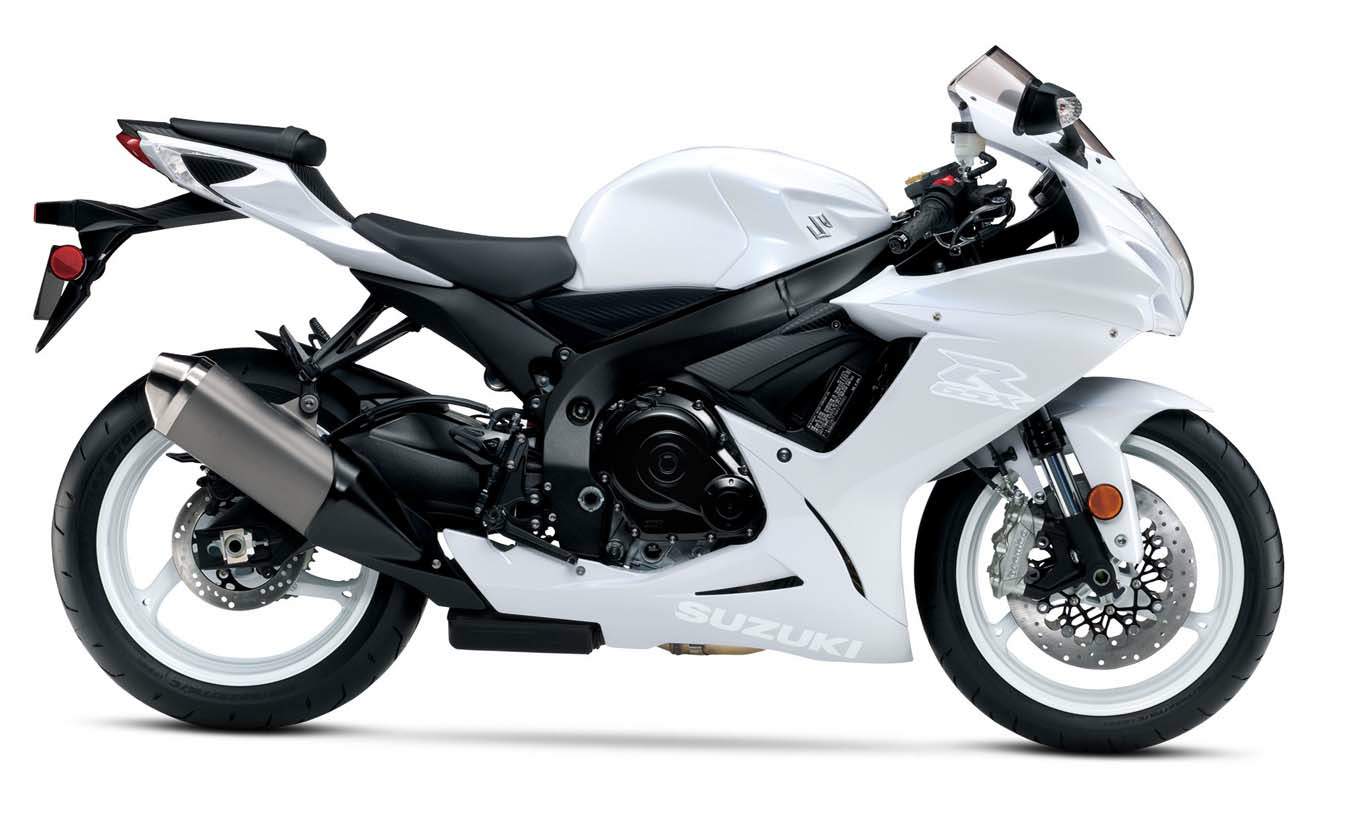

Suzuki GSX-R600 is a class-leading sportbike worthy of its race-winning GSX-R heritage. Whether you’re carving through your favorite canyon or dominating the racetrack, it offers unparalleled performance. A compact, powerful four-cylinder engine demonstrates the advanced race-proven technology of the GSX-R line when you hit the throttle and push it to redline, while supremely refined suspension systems front and rear help provide precise, responsive handling. Wrapped in aerodynamic and lightweight bodywork that’s lifted from the racetrack, the GSX-R600 can not only win races, it can win envy.

Built to own the racetrack and let loose on the streets. Since 1985, the GSX-R has been continuously refined to deliver new levels of performance and agility. This legacy of innovation continues with over 1 million legends made.

The GSX-R600’s compact, fuel injected, 599cc, four-cylinder engine delivers a rush of power from idle to redline. Located between the frame’s spars, the engine’s top end is canted forward to improve cylinder head charging for increased power output.

The Suzuki Drive Mode Selector (S-DMS) lets the rider adjust the engine’s power delivery to suit the riding conditions.

The twin-spar aluminum frame effectively connects the steering head with the swingarm pivot portion of the chassis in a way that balances light weight and strength. The engine is suspended below the frame to keep mass low and the wheelbase short to promote nimble handling.

The Showa Big Piston front Fork (BPF) and remote reservoir rear shock absorber are fully adjustable to deliver exceptional handling.

Twin Brembo Monobloc, radially mounted front brake calipers grasp fully floating stainless steel brake rotors to deliver strong stopping power.ENGINE FEATURES
Compact 599cc, four-cylinder engine with a race-proven over-square bore/stroke ratio that produces remarkably strong high rpm power delivery.

The energy efficient engine employs forged pistons, shot-peened connecting rods, chrome-nitride-coated upper compression and oil control rings, and pentagonal ventilation holes to reduce frictional and mechanical losses.

Camshafts with aggressive valve-lift profiles were developed using proven MotoGP racing engine technology – the first time this method has been applied to a production Suzuki.

Lightweight titanium alloy valves are controlled by single coil-valve springs to reduce valve train mass, reducing mechanical losses at high rpm.

Lightweight and durable forged pistons were designed using the same Finite Element Method (FEM) and fatigue analysis technology used for MotoGP racing engines.

Suzuki Dual Throttle Valve (SDTV) fuel injection uses eight, fine-spray eight-hole injectors for improved fuel atomization, which contributes to more complete combustion.

An Engine Control Module (ECM) provides state-of-the-art engine management and has enhanced settings to suit the intake and exhaust systems, resulting in better fuel economy and linear throttle response.

Advanced, MotoGP-developed transistorized ignition control programming helps maintain more precise spark timing across the range of engine speed and temperature.

Suzuki Drive Mode Selector (S-DMS) offers push-button selection of two racing-developed engine control maps to suit road or track conditions and personal tastes.

Four-into-one stainless-steel exhaust system with a titanium muffler is fitted with a Suzuki Exhaust Tuning (SET) valve that maximizes torque and improves throttle response, especially in the low- to mid-rpm range.

The close-ratio six-speed transmission features a taller first-gear ratio and shorter ratios for 2nd, 3rd, 4th and 6th gears, making it easier for a racer to get a good start while improving straight-line acceleration and drive out of corners.

Race-proven back-torque-limiting clutch contributes to smoother downshifting and corner entry.

CHASSIS FEATURES
Lightweight and compact twin-spar aluminum alloy frame is constructed of five cast sections to produce a balance of light weight and strength.

The frame is mated with a cast aluminum swingarm and multi-piece rear sub-frame that’s ready for racetrack use.

Race-developed, lightweight Showa BPF deliver superb feedback and consistent performance.

Single Showa rear shock features externally adjustable rebound and compression damping, along with adjustable ride height.

Electronically controlled steering damper provides lighter steering at slower speeds and more damping force at racetrack and highway speeds.

Front brakes with fully floating 310mm discs are grasped by radial-mount, four-piston Brembo Monobloc calipers.

Three-spoke cast aluminum alloy wheels are shod with lightweight, high-grip front and rear tires for sharp handling.

Three-way adjustable footpegs, adjustable shift lever and short fuel tank help compose a comfortable riding position that permits the rider movement required for performance riding.

Compact, lightweight instrument cluster with a built-in lap timer/stopwatch and programmable engine rpm indicators to alert the rider to certain shift points.

Trim, simple, and lightweight bodywork creates an exciting, aerodynamic style that truly works well at speed.

Distinctive multi-reflector headlight with vertically stacked high and low-beam halogen bulbs is centered between position lights on each side.

Bright, durable LED tail light, with clear lens.

The front turn signal are integrated into the rearview mirrors while the rear tail section houses the rear signals.

The lightweight instruments also include an analog tachometer and LCD readouts that show speed, odometer, dual trip meter, reserve trip meter, clock, coolant temperature/oil pressure indicator, S-DMS, and gear position indicators.

Attention to rider comfort and confidence includes a carefully shaped seat with a high-grip cover.

ADDITIONAL FEATURES
Stylized Suzuki “S” 3-D emblems on the fuel tank and the fork upper bracket denotes the quality, sophistication, and performance legacy of the brand.

Optional single seat cowl can replace the passenger seat for an even more aggressive look or for use on solo rides or track days.
