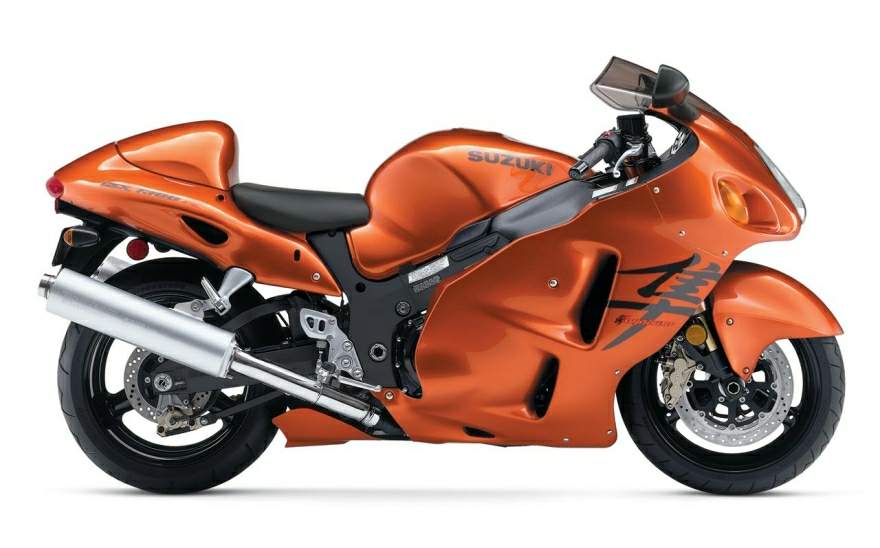

2003 Suzuki GSX 1300RZ Hayabusa Special Edition

Make Model	Suzuki GSX 1300R Hayabusa Special Edition
Year	2003
Engine	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity	1298 cc / 79.2 u in
Bore x Stroke	81 x 63 mm
Compression Ratio	11.0:1
Cooling System	Liquid cooled
Lubrication	Wet sump
Engine Oil	10W/40
Induction	Mikuni Denso Fuel Injection
Ignition	Electronic
Spark Plug	NGK, CR9E
Starting	Electric
Max Power	127.6 kW / 175 hp @ 9800 rpm
Max Torque	138 Nm / 14.07 kg-m / 102 lb-ft @ 7000 rpm
Clutch	Wet, multiple discs, hydraulic operated
Transmission	6 Speed
Final Drive	#530 chain
Frame	Twin-spar steel
Front Suspension	Inverted telescopic, coil spring, fully adjustable spring preload, rebound and compression damping
Front Wheel Travel	120 mm / 4.7 in
Rear Suspension	Link-type, gas/oil damped, fully adjustable spring preload, compression damping, and rebound damping
Rear Wheel Travel	140 mm / 5.5 in
Front Brakes	2 x 320mm Discs, 6 piston calipers
Rear Brakes	Single 240mm disc, 2 piston caliper
Front Tyre	120/70 ZR17
Rear Tyre	190/50 ZR17
Rake	24.2°
Trail	98 mm / 3.8 in
Dimensions	Length 2140 mm / 84.3 in Width 740 mm / 29.1in Height 1155 mm / 45.5 in
Wheelbase	1480 mm / 58.3in
Seat Height	805 mm / 31.7 in
Dry Weight	221.5 kg / 488.3 lbs
Wet Weight	249 kg / 549 lbs
Fuel Capacity	21 Litres / 5.5 US gal / 4.6 Imp gal

Titanium-nitride-coated inner fork tubes for reduced friction and improved appearance.
Gold-colored brake calipers for improved appearance.

• Striking orange color scheme with black-painted frame and black swingarm
• Aerodynamic fairing design with low drag coefficient. All fairing components have been designed for reduced drag and turbulence.
• Compact 4-stroke, four-cylinder liquid-cooled engine with DOHC, 16-valves, Twin Swirl Combustion Chambers, plus gear-driven counterbalancer for smooth operation.
• Electronic fuel injection system, fed by 46mm throttle bodies and ram air intake with large volume airbox.
• Lightweight shim-under-bucket valve train with narrow 14 degree valve angle for high combustion chamber efficiency.
• High efficiency liquid cooling system for optimum engine operating temperature, including compact air-cooled oil cooler and oil-jet piston cooling.
• SCEM (Suzuki Composite Electro-chemical Material) plated cylinders minimize cylinder size and improve heat dissipation.
• 6-speed transmission with high-capacity clutch featuring back-torque limiter system for smooth downshifts and scissors-type primary gear for reduced gear noise.
• Large volume 4-into-2 exhaust system with stainless steel head pipes and lightweight aluminum silencers.
• Digital direct-ignition system combines an ignition coil with each spark plug cap for reduced weight and stronger spark.
• Full instrumentation with ultra-thin step-motor construction. Includes fuel gauge, clock, temperature gauge, LCD odometer and twin tripmeters with fuel consumption gauge.
• Unique, vertically mounted dual headlight provides a bright, wide beam with a 60W projector-type high-beam and a 55W low-beam halogen bulb.
• Rigid twin-spar aluminum frame minimizes weight while maintaining high torsional strength.
• Large diameter (43mm) inverted front forks with fully adjustable compression & rebound damping and spring preload, plus steering damper.
• Proven link-type rear suspension with remote reservoir shock absorber. Rear suspension features fully adjustable rebound damping and compression damping and spring preload.
• Bridge-type swingarm with large diameter swingarm pivot shaft provides high swingarm rigidity.
• Powerful front disc brakes with large 320mm discs and 6-piston calipers.
• Rear disc brake with 240mm disc and 2-piston caliper.
• Radial tires mounted on lightweight 3-spoke aluminum wheels. Wide 190-size rear tire is mounted on 6" wide rim.
• Hinged fuel tank simplifies maintenance and provides easy access to the airbox and air filter.
